AUR21L-GWFEXW (2009)

Toyota Verso

Production Feb 2009 - Jul 2010
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902-1211)LHD

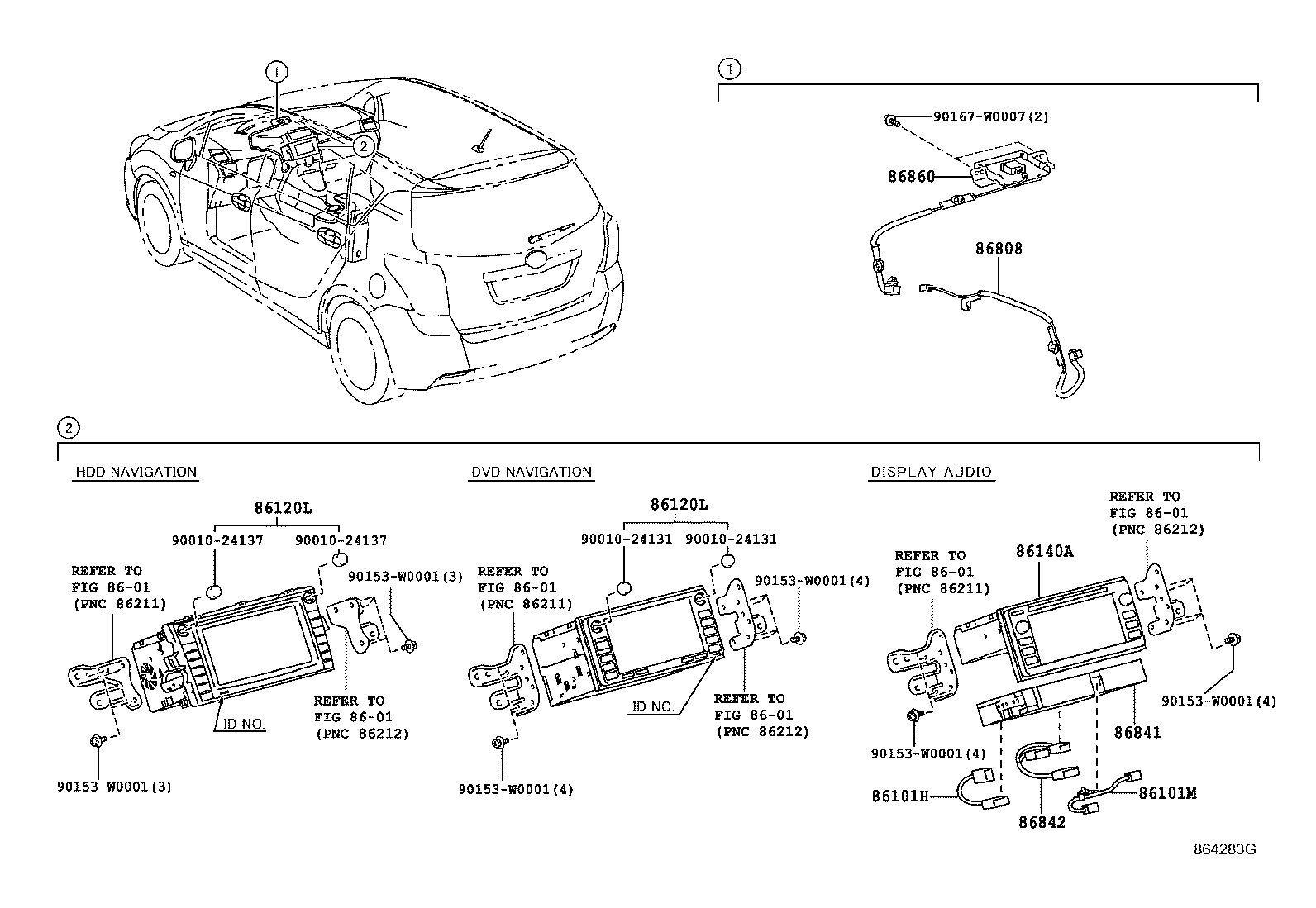

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 86101H 86101M 86120L 86120L 86140A 86808 86841 86842 86860 9001024131 9001024131 9001024137 9001024137 90153W0001 90153W0001 90153W0001 90153W0001 90153W0001 90153W0001 90167W0007
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-20A90

AUR2#,ZGR2#..E

AISHIN AW,AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86100-0F010

AUR2#,ZGR2#..E

AISIN AW,ID=B9020,AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86100-0F031

AUR2#,ZGR2#..E

PANASONIC, ID=B9029,AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86100-0F011

AUR2#,ZGR2#..E

AISIN AW,ID=B9020,AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86120L - RECEIVER ASSY, NAVIGATION
86120-20A90

AUR2#,ZGR2#..E

AISHIN AW,AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86100-0F010

AUR2#,ZGR2#..E

AISIN AW,ID=B9020,AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86100-0F031

AUR2#,ZGR2#..E

PANASONIC, ID=B9029,AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86100-0F011

AUR2#,ZGR2#..E

AISIN AW,ID=B9020,AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
86808-0F020

AUR2#,ZGR2#..LHD..E

AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86808-0F020

AUR2#,ZGR2#..LHD..E

AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-64020

AUR2#,ZGR2#..E

AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86860-64020

AUR2#,ZGR2#..E

AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
Common parts
90010-24131
90010-24137
90153-W0001
90167-W0007
Linked diagrams
8601
