AUR21L-GWFEXW (2009)

Toyota Verso

Production Feb 2009 - Jul 2010
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )

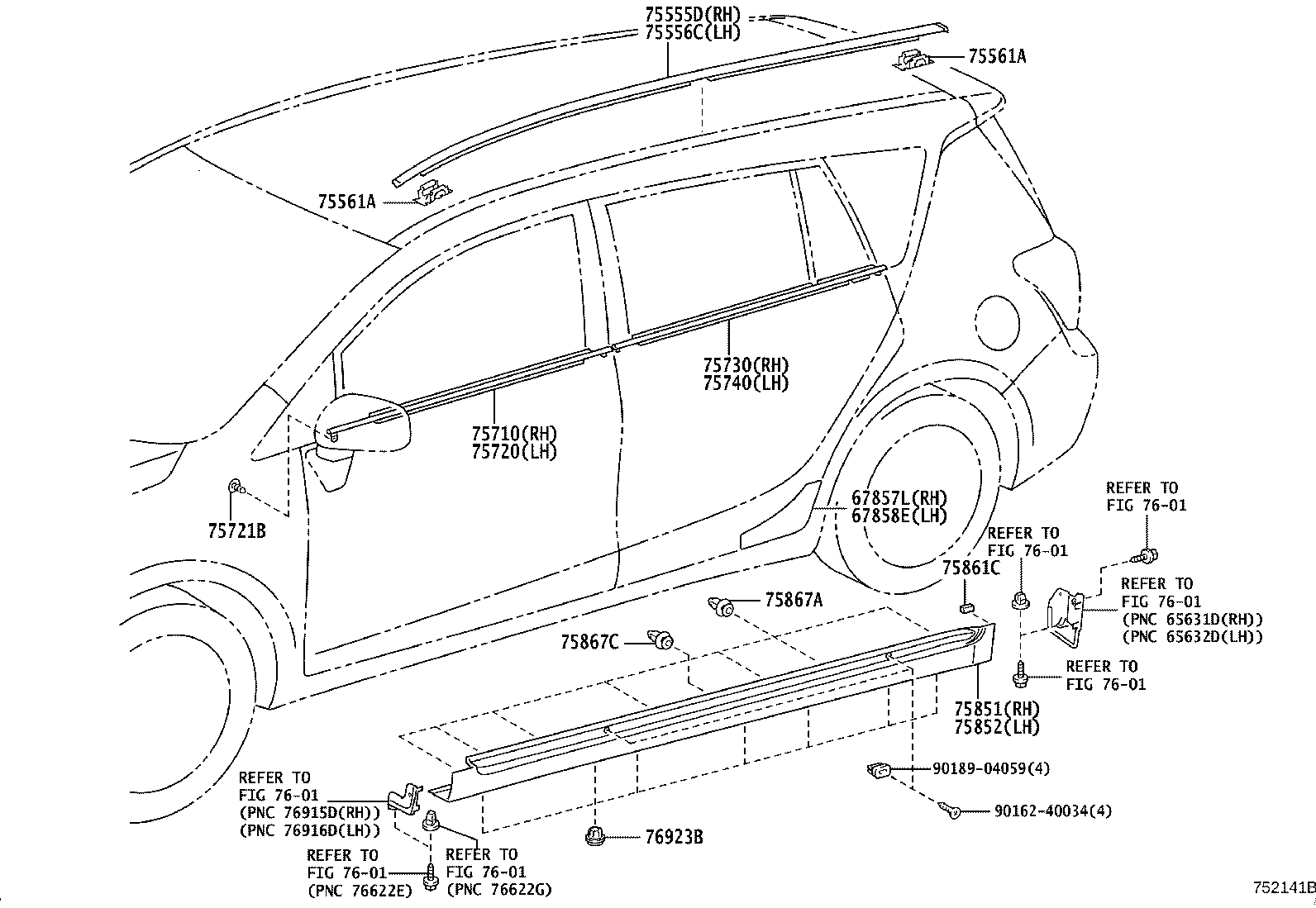

Click highlighted areas on diagram

diagram 67857L 67858E 75555D 75556C 75561A 75561A 75710 75720 75721B 75730 75740 75851 75852 75861C 75867A 75867C 7601 7601 7601 7601 7601 7601 7601 76923B 9016240034 9018904059
Part # Description Qty Price
67857L - PROTECTOR, REAR DOOR PANEL, RH
67857-0F020

AUR2#,ZGR2#

 1
67858E - PROTECTOR, REAR DOOR PANEL, LH
67858-0F020

AUR2#,ZGR2#

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-0F020

AUR2#,ZGR2#

 1
75555-0F030

AUR2#,ZGR2#..E

MOON ROOF-WITH(PANORAMIC ROOF)

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-0F030

AUR2#,ZGR2#..E

MOON ROOF-WITH(PANORAMIC ROOF)

 1
75556-0F020

AUR2#,ZGR2#

 1
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-52040

AUR2#,ZGR2#

 4
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-52040

AUR2#,ZGR2#

 4
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-0F020

AUR2#,ZGR2#

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-0F020

AUR2#,ZGR2#

 1
75721B - CLIP(FOR FRONT DOOR BELT MOULDING SET)
90467-0504522

AUR2#,ZGR2#

BLACK

 2
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-0F020

AUR2#,ZGR2#

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-0F020

AUR2#,ZGR2#

 1
75851 - MOULDING, ROCKER PANEL, RH
75851-0F900

AUR2#,ZGR2#

 1
75852 - MOULDING, ROCKER PANEL, LH
75852-0F900

AUR2#,ZGR2#

 1
75861C - PAD, ROCKER PANEL MOULDING
75861-0F010

AUR2#,ZGR2#

 2
75867A - CLIP, ROCKER PANEL MOULDING
75867-33030

AUR2#,ZGR2#

 14
75867C - CLIP, ROCKER PANEL MOULDING
75867-33030

AUR2#,ZGR2#

 2
76923B - RETAINER, SIDE MUDGUARD
76923-52021

AUR2#,ZGR2#

 14
Common parts
90162-40034
90189-04059
Linked diagrams
7601
