AUR21L-GWFEXW (2009)

Toyota Verso

Production Feb 2009 - Jul 2010
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902-1110)1ADFTV,2ADFHV

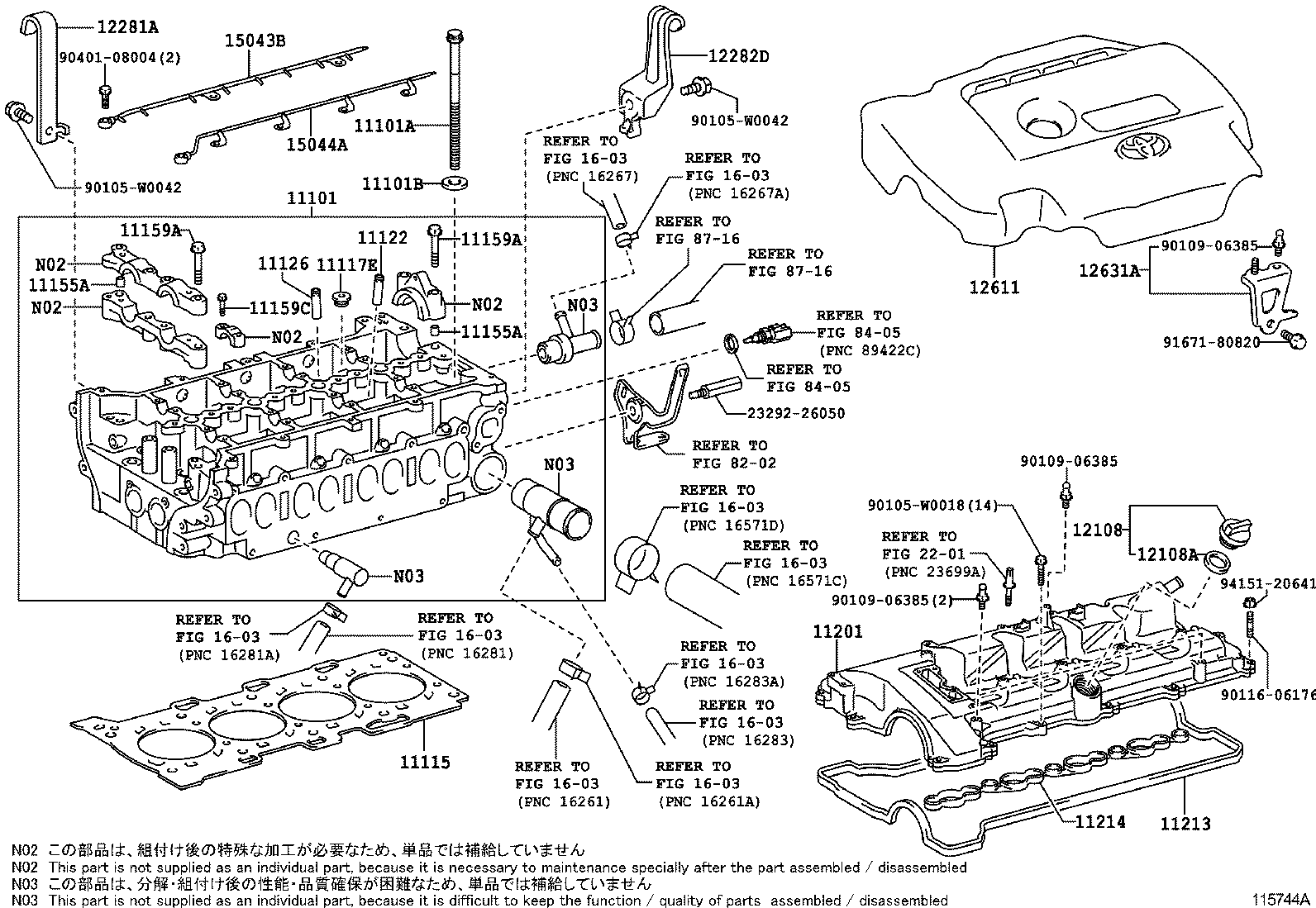

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11117E 11122 11126 11155A 11155A 11159A 11159A 11159C 11201 11213 11214 12108 12108A 12281A 12282D 12611 12631A 15043B 15044A 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 2201 2329226050 8202 8405 8405 8716 8716 90105W0018 90105W0042 90105W0042 9010906385 9010906385 9010906385 9011606176 9040108004 9167180820 9415120641
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-29615

1ADFTV,2ADFHV..AUR2#

(J)

 1
11101-09415

1ADFTV,2ADFHV..AUR2#

(L)

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02158

1ADFTV,2ADFHV..AUR2#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90560-13023

1ADFTV,2ADFHV..AUR2#

 10
11115 - GASKET, CYLINDER HEAD
11115-26052D0

1ADFTV,2ADFHV..AUR2#

MARKD,REFER REPAIR MANUAL

 1
11115-26052A0

1ADFTV,2ADFHV..AUR2#

MARKA,REFER REPAIR MANUAL

 1
11115-26052B0

1ADFTV,2ADFHV..AUR2#

MARKB,REFER REPAIR MANUAL

 1
11115-26052E0

1ADFTV,2ADFHV..AUR2#

MARKE,REFER REPAIR MANUAL

 1
11115-26052C0

1ADFTV,2ADFHV..AUR2#

MARKC,REFER REPAIR MANUAL

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-14015

1ADFTV,2ADFHV..AUR2#

 4
11122 - BUSH, INTAKE VALVE GUIDE
11122-0R010

1ADFTV,2ADFHV..AUR2#

STD

 8
11123-0R010

1ADFTV,2ADFHV..AUR2#

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-0R010

1ADFTV,2ADFHV..AUR2#

STD

 8
11123-0R010

1ADFTV,2ADFHV..AUR2#

O/S 0.05

 8
11155A - PIN, RING W/HEAD
90253-11021

1ADFTV,2ADFHV..AUR2#

 6
11155A - PIN, RING W/HEAD
90253-11021

1ADFTV,2ADFHV..AUR2#

 6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-W0138

1ADFTV,2ADFHV..AUR2#

(L)

 6
91551-80860

1ADFTV,2ADFHV..AUR2#

(J)

 6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-W0138

1ADFTV,2ADFHV..AUR2#

(L)

 6
91551-80860

1ADFTV,2ADFHV..AUR2#

(J)

 6
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80630

1ADFTV,2ADFHV..AUR2#

*6-1.0PX30-18

 16
90105-W0139

1ADFTV,2ADFHV..AUR2#

*6-1.0PX32-18

 16
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-26070

1ADFTV,2ADFHV..AUR2#

(J)

 1
11201-0R020

1ADFTV,2ADFHV..AUR2#

(L)

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-0R010

1ADFTV,2ADFHV..AUR2#

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-26010

1ADFTV,2ADFHV..AUR2#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-21010

1ADFTV,2ADFHV..AUR2#

(J)

 1
12180-0N010

1ADFTV,2ADFHV..AUR2#

(L)

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1ADFTV,2ADFHV..AUR2#

(J)

 1
90080-43020

1ADFTV,2ADFHV..AUR2#

(L)

 1
12281A - HANGER, ENGINE, NO.1
12281-26040

1ADFTV,2ADFHV..AUR2#

 1
12282D - HANGER, ENGINE, NO.2
12282-26010

1ADFTV,2ADFHV..AUR2#

 1
12611 - COVER, ENGINE, NO.1
12611-0R071

2ADFHV..AUR21

 1
12631A - BRACKET, ENGINE COVER
12631-0R010

1ADFTV,2ADFHV..AUR2#

 1
15043B - PIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, RH
15043-0R010

1ADFTV,2ADFHV..AUR2#

 1
15044A - PIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, LH
15044-0R010

1ADFTV,2ADFHV..AUR2#

 1
Common parts
23292-26050
90105-W0018
90105-W0042
90109-06385
90116-06176
90401-08004
91671-80820
94151-20641
Linked diagrams
1603
2201
8202
8405
8716
