AUR20R-GWFEYW (2012)

Toyota Verso

Production Nov 2012 - Mar 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

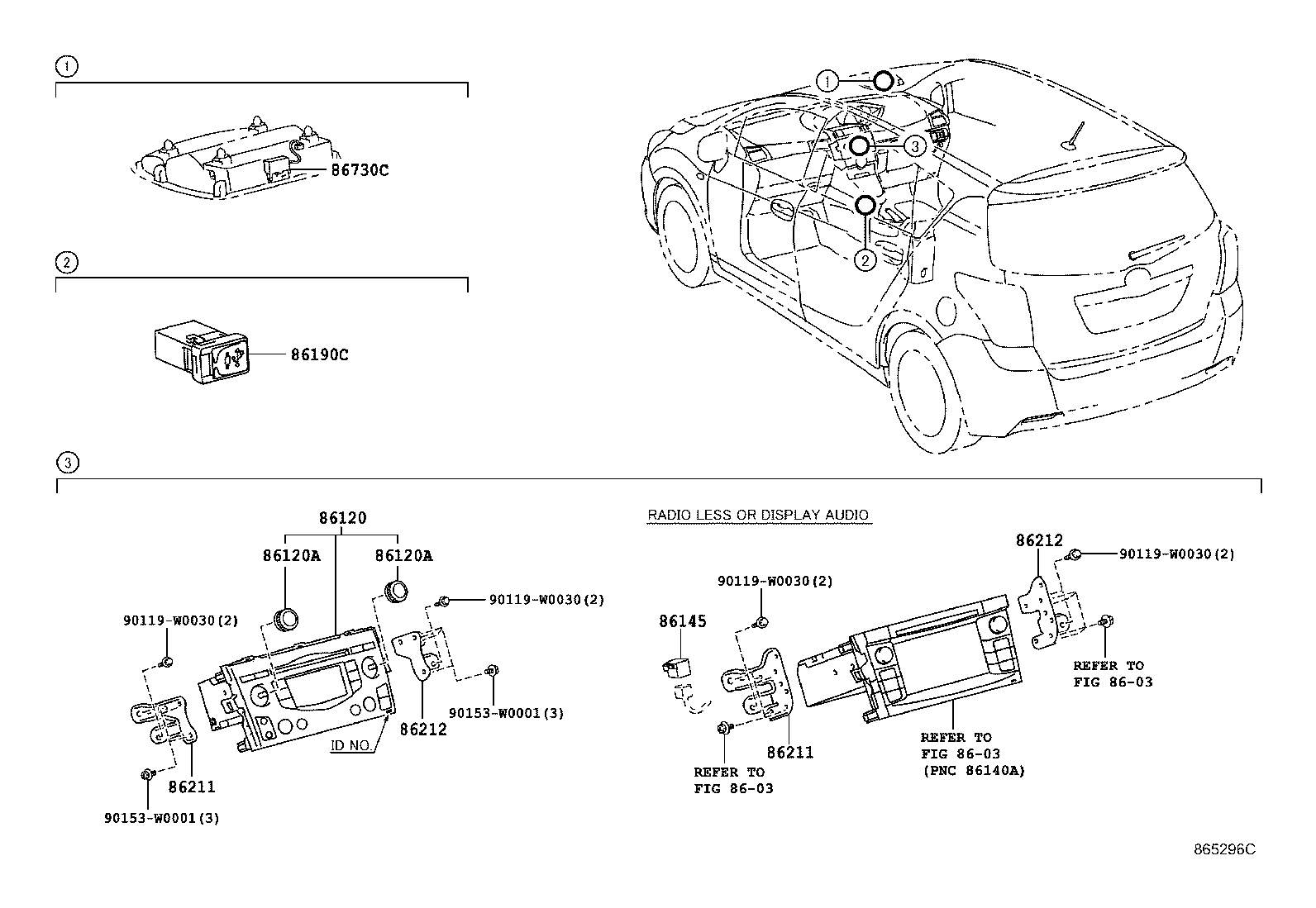

ILLUST NO. 1 OF 2(1211- )RHD

Click highlighted areas on diagram

diagram 8603 8603 8603 86120 86120A 86120A 86145 86190C 86211 86211 86212 86212 86730C 90119W0030 90119W0030 90119W0030 90119W0030 90153W0001 90153W0001
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0F070

AUR2#,ZGR2#..E

PANASONIC,ID=W53833,AUDIO-CD CHANGER & 6SPEAKER & BLUETOOTH

 1
86120-0F060

AUR2#,ZGR2#..E

PANASONIC,ID=W53834,AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86120-0F060

AUR2#,ZGR2#..E

PANASONIC,ID=W53834,AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86120-0F060

AUR2#,ZGR2#..E

PANASONIC,ID=W53834

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25159

AUR2#,ZGR2#..E

AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 2
90011-25159

AUR2#,ZGR2#

 2
90011-25159

AUR2#,ZGR2#..E

AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25159

AUR2#,ZGR2#..E

AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 2
90011-25159

AUR2#,ZGR2#

 2
90011-25159

AUR2#,ZGR2#..E

AUDIO-HDD NAVIGATION & 6SPEAKER & BLUETOOTH

 2
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0D010

AUR2#,ZGR2#

 1
86190-0D030

AUR2#,WAR20,ZGR2#

 1
86211 - BRACKET, RADIO, NO.1
86211-0F020

AUR2#,ZGR2#

 1
86211-0F030

AUR2#,ZGR2#..E

AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86211-0F060

AUR2#,WAR20,ZGR2#

 1
86211 - BRACKET, RADIO, NO.1
86211-0F020

AUR2#,ZGR2#

 1
86211-0F030

AUR2#,ZGR2#..E

AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86211-0F060

AUR2#,WAR20,ZGR2#

 1
86212 - BRACKET, RADIO, NO.2
86212-0F030

AUR2#,ZGR2#..E

AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86212-0F020

AUR2#,ZGR2#

 1
86212-0F060

AUR2#,WAR20,ZGR2#

 1
86212 - BRACKET, RADIO, NO.2
86212-0F030

AUR2#,ZGR2#..E

AUDIO-DVD NAVIGATION & 6SPEAKER & BLUETOOTH

 1
86212-0F020

AUR2#,ZGR2#

 1
86212-0F060

AUR2#,WAR20,ZGR2#

 1
86730C - MICROPHONE ASSY, TELEPHONE
86730-0F020

AUR2#,WAR20,ZGR2#..RHD..E

 1
86730-64030

AUR2#,ZGR2#..RHD..E

 1
Common parts
90119-W0030
90153-W0001
Linked diagrams
8603

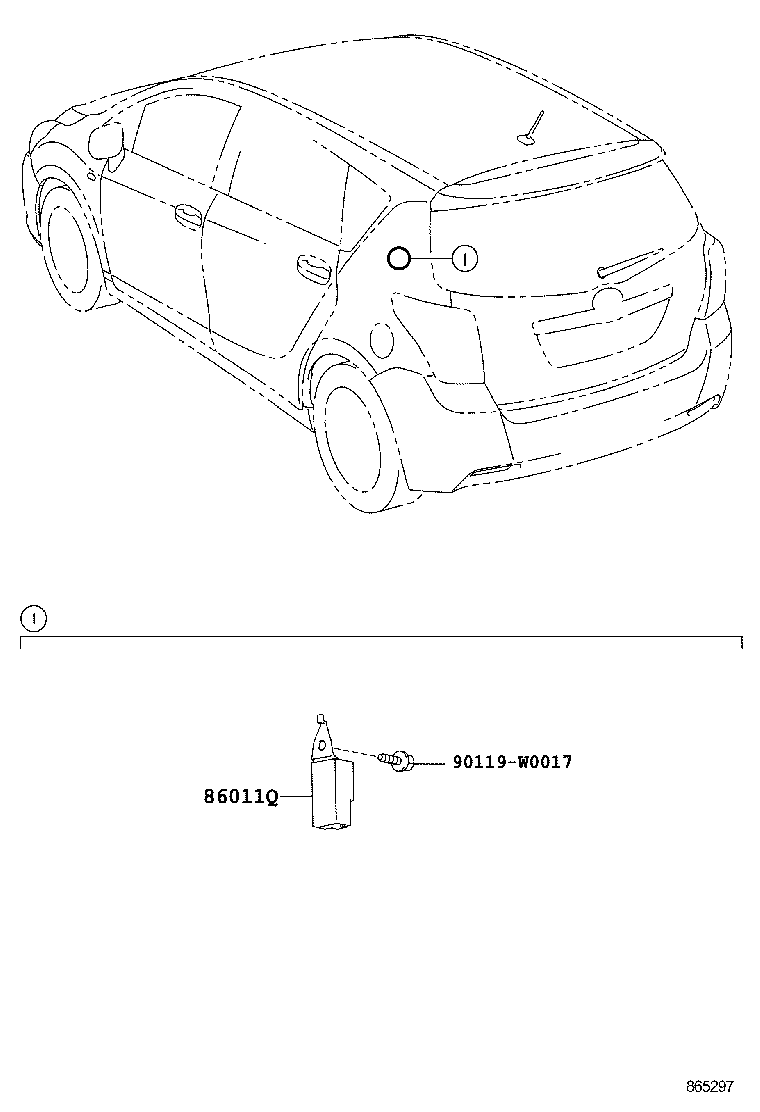

ILLUST NO. 2 OF 2(1211- )

Click highlighted areas on diagram

CONDENSER

diagram 86011Q 90119W0017
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04148

AUR2#,ZGR2#

 1
90980-04148

AUR2#,WAR20,ZGR2#

 1
Common parts
90119-W0017
