AUR20R-GWFDYW (2012)
Toyota Verso
ILLUST NO. 6 OF 7(0902-1601)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 84052-71010 |
WAR20..RHD..E;AUR2#,ZGR2#..E PACKAGE OPTION 1-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84052-71010 |
AUR2#,ZGR2# |
1 | ||
| 84052-71010 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-05190 |
AUR2#,ZGR2#..E INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR) |
1 | ||
| 84140-05210 |
AUR20,ZGR2#..ENTRY |
1 | ||
| 84140-05200 |
AUR20,ZGR2#..ENTRY FRONT FOG LAMP-WITH |
1 | ||
| 84140-05200 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 84140-05190 |
AUR2#,WAR20,ZGR2#..RHD..E PACKAGE OPTION 1-HIGH PACKAGE&FRONT FOG LAMP-WITH(FOG)+PLATING |
1 | ||
| 84140-05200 |
AUR2#,ZGR2#..E |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-05020 |
AUR2#,ZGR2#..6F..E |
1 | ||
| 84250-05040 |
AUR20,ZGR2#..6F..ENTRY |
1 | ||
| 84250-0F050 |
AUR2#,ZGR2#..6F..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER) |
1 | ||
| 84250-0F200 |
AUR20,WAR20,ZGR20..ENTRY |
1 | ||
| 84250-0F220 |
AUR2#,WAR20,ZGR2#..6F..E |
1 | ||
| 84250-0F240 |
AUR2#,ZGR2#..6F..E CRUISE CONTROL-WITH(ADJUSTABLE SPEED LIMITER) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-05020 |
AUR2#,ZGR2# |
1 | ||
| 84307-05030 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84450-12200 |
AUR2#,ZGR2# |
1 | ||
| 84450-12200 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 84450-12200 |
WAR20..RHD..E;AUR2#,ZGR2#..E PACKAGE OPTION 1-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-05210 |
AUR2#,ZGR2# |
1 | ||
| 84652-05190 |
AUR2#,ZGR21..E HIGH PLUS PACKAGE |
1 | ||
| 84652-05190 |
AUR2#,ZGR2#..E HIGH PACKAGE |
1 | ||
| 84652-05210 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 84652-05190 |
AUR2#,WAR20,ZGR2#..RHD..E PACKAGE OPTION 1-HIGH PACKAGE |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 89650-0F100 |
AUR2#,ZGR2#..RHD |
1 | ||
| 89650-0F101 |
AUR2#,WAR20,ZGR2#..RHD |
1 | ||
| 8965AA - PROTECTOR, POWER STEERING COMPUTER | ||||
| 8965A-0F020 |
AUR2#,ZGR2# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||

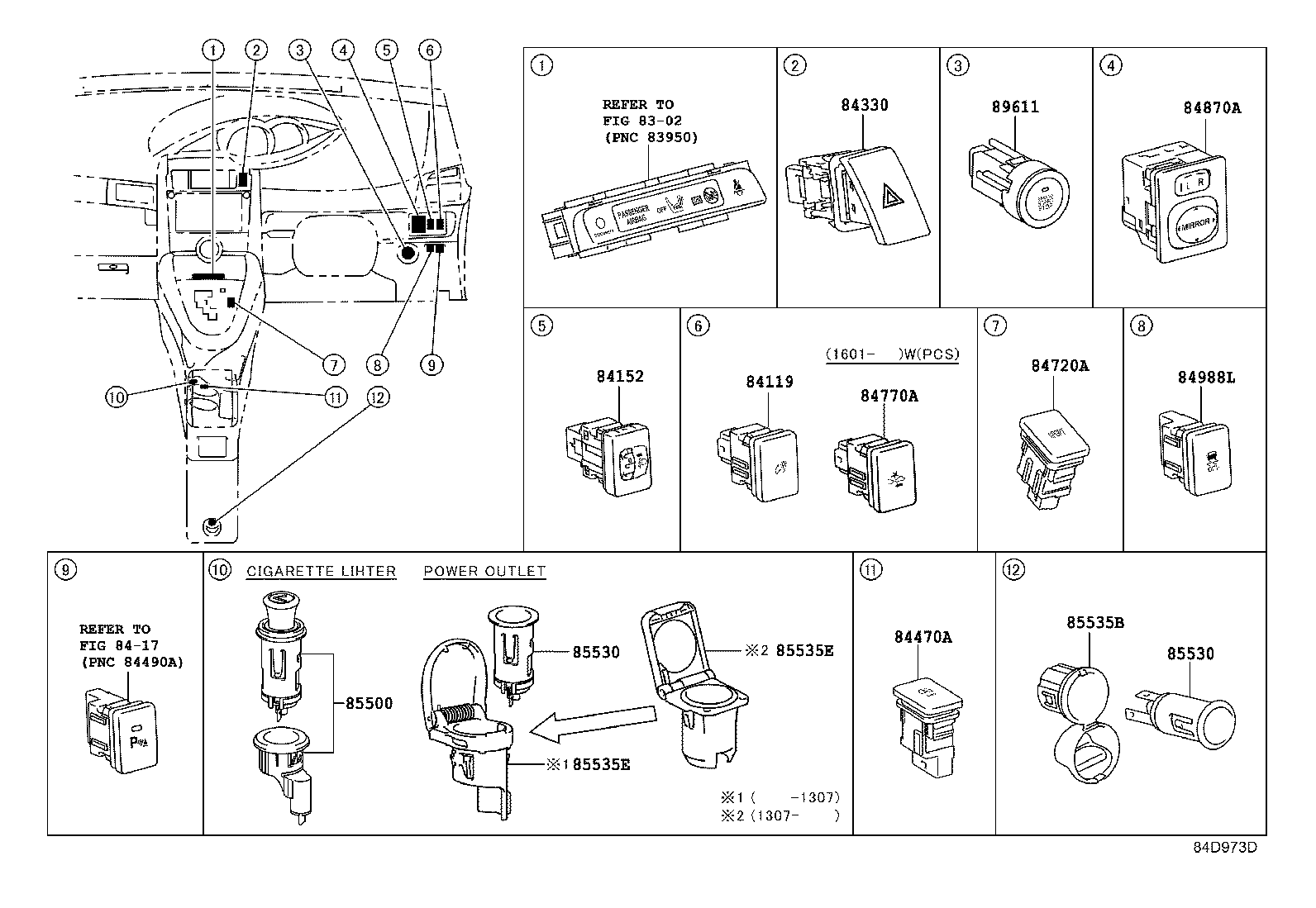

ILLUST NO. 5 OF 7(1211- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-0F010 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D090 |
AUR2#,WAR20,ZGR2#..E HEADLAMP-DISCHARGE & *DRL(LED) |
1 | ||
| 84152-52120 |
AUR2#,ZGR2#..E HEADLAMP-DISCHARGE |
1 | ||
| 84152-0D090 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 84152-52120 |
AUR2#,ZGR2# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0F040 |
AUR2#,ZGR2#..RHD |
1 | ||
| 84332-0F070 |
AUR2#,WAR20,ZGR2#..RHD |
1 | ||
| 84332-0F071 |
AUR2#,WAR20,ZGR2#..RHD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0F030 |
AUR2#,WAR20,ZGR2#..E |
1 | ||
| 84870-0F020 |
AUR20,WAR20,ZGR2#..ENTRY |
1 | ||
| 84870-0F030 |
AUR20,WAR20,ZGR2#..ENTRY OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER) |
1 | ||
| 84870-0F010 |
AUR2#,ZGR2# |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0D010 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 84988-05020 |
AUR2#,ZGR2# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09060 |
AUR2#,ZGR2# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
AUR2#,ZGR2#..E |
1 | ||
| 85530-0D020 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
AUR2#,ZGR2#..E |
1 | ||
| 85530-0D020 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52040 |
AUR2#,ZGR2#..E |
1 | ||
| 85535-52040 |
AUR2#,WAR20,ZGR2#..E |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-02040 |
AUR2#,ZGR2# |
1 | ||
| 85535-12060 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-02040 |
AUR2#,ZGR2# |
1 | ||
| 85535-12060 |
AUR2#,WAR20,ZGR2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0F020 |
AUR2#,ZGR2#..RHD..E PACKAGE OPTION 1-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-02011 |
AUR2#,ZGR2#..E WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89611-0F021 |
AUR2#,WAR20,ZGR2#..RHD..E PACKAGE OPTION 1-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8417 | ||||

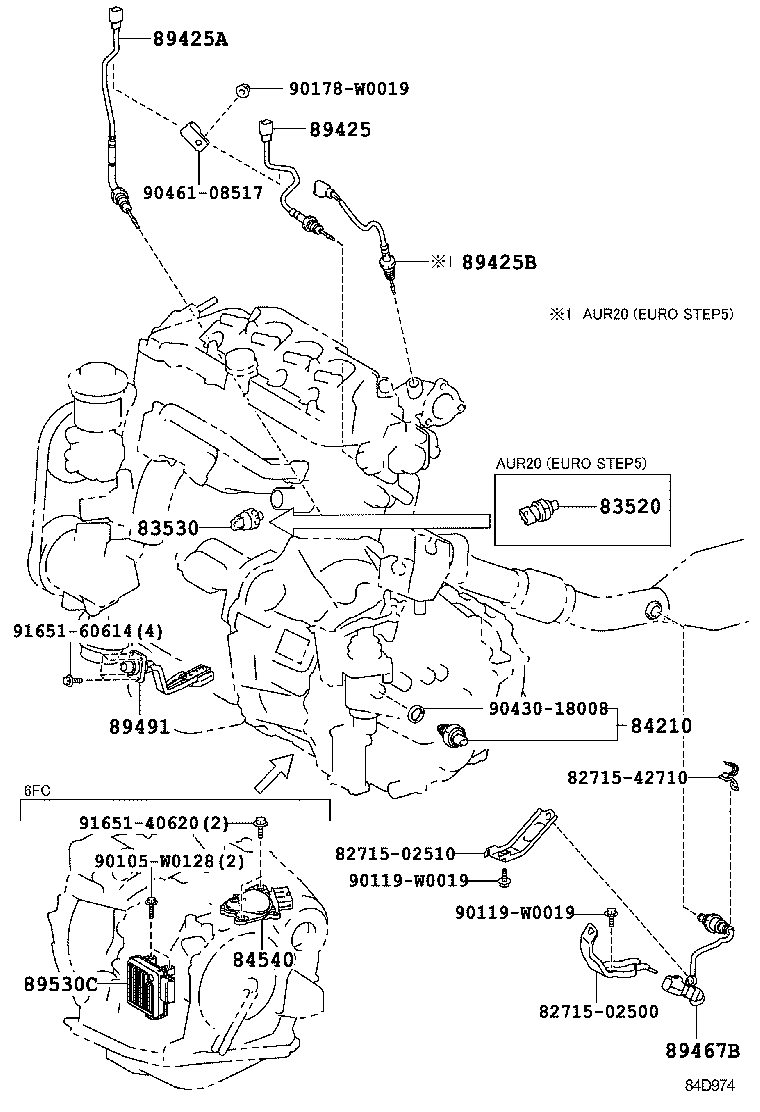

ILLUST NO. 1 OF 7(1211- )AUR2#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
AUR20 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28010 |
AUR20 ENGINE-1AD-FTV(DPF),DENSO |
1 | ||
| 83530-60010 |
AUR2# YAZAKI |
1 | ||
| 83530-28010 |
AUR2# DENSO |
1 | ||
| 83530-60010 |
AUR20 ENGINE-1AD-FTV(DPF),YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AUR2#,ZGR2#..6F |
1 | ||
| 84210-52050 |
AUR2#,WAR20,ZGR2#..6F |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-20380 |
AUR2# |
1 | ||
| 89425-20380 |
AUR2# |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-20390 |
AUR2# |
1 | ||
| 89425-20390 |
AUR2# |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-20400 |
AUR20 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-20100 |
AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 89467-20100 |
AUR2# |
1 | ||
| 89467-20100 |
AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 89467-20100 |
AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 89467-20100 |
AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 |
1 | ||
| 89467-20100 |
AUR20 ENGINE-1AD-FTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 89467-20100 |
AUR20..RHD REGULAT.COMPL.LBL & NAME PL-EUROPE NTA NAME PLATE&ENGINE-1AD-FTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 89467-20100 |
AUR2# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-20120 |
AUR20 |
1 | ||
| 89491-20120 |
AUR20 ENGINE-1AD-FTV(DPF) |
1 | ||
| 89491-20140 |
AUR20 |
1 | ||
| Common parts | ||||
| 82715-02500 | ||||
| 82715-02510 | ||||
| 82715-42710 | ||||
| 90105-W0128 | ||||
| 90119-W0019 | ||||
| 90178-W0019 | ||||
| 90430-18008 | ||||
| 90461-08517 | ||||
| 91651-40620 | ||||
| 91651-60614 | ||||
