AUR20R-GWFDYW (2012)
Toyota Verso

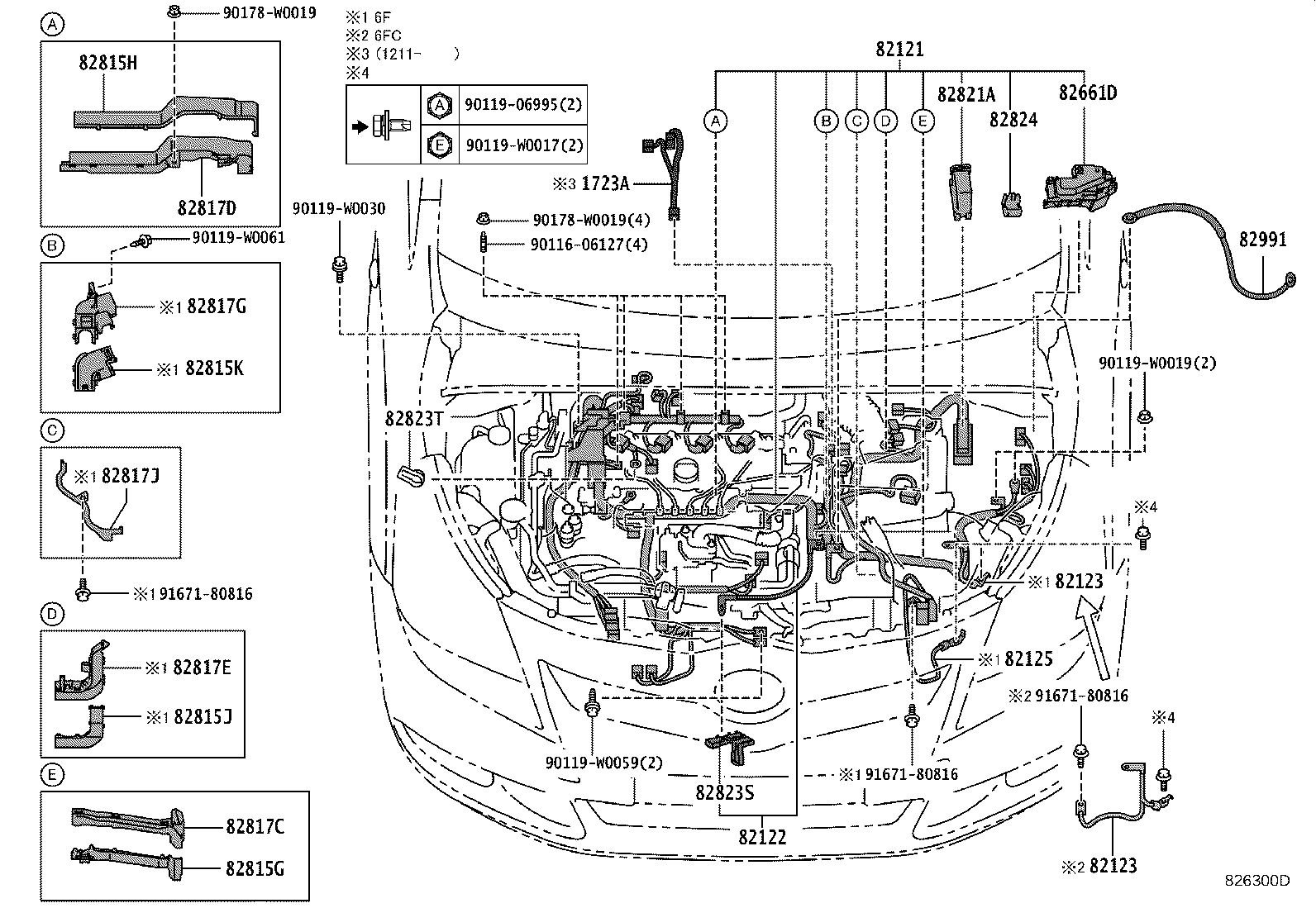

ILLUST NO. 2 OF10(0902-1503)AUR2#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 1723A - WIRE, TURBOCHARGER | ||||
| 1723A-0R012 |
1ADFTV..AUR20 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-0F180 |
AUR2#..6F |
1 | ||
| 82121-0F200 |
AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 82121-0F200 |
AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 82121-0F200 |
AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 82121-0F320 |
AUR20 |
1 | ||
| 82121-0F290 |
AUR20..RHD ENGINE-1AD-FTV(DPF) |
1 | ||
| 82121-0F290 |
AUR20..RHD REGULAT.COMPL.LBL & NAME PL-EUROPE NTA NAME PLATE&ENGINE-1AD-FTV(DPF) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-02090 |
AUR2#..6F |
1 | ||
| 82122-02090 |
AUR2#..6F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02410 |
AUR2#..6F |
1 | ||
| 82123-02410 |
AUR2#..6F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02410 |
AUR2#..6F |
1 | ||
| 82123-02410 |
AUR2#..6F |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-02020 |
AUR2#..6F |
1 | ||
| 82125-02020 |
AUR2#,WAR20..6F |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
AUR2#,ZGR2# |
1 | ||
| 82661-12280 |
AUR2#,ZGR2# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-02080 |
AUR20..RHD ENGINE-1AD-FTV(DPF) |
1 | ||
| 82815-02080 |
AUR2# |
1 | ||
| 82815-02080 |
AUR20..RHD REGULAT.COMPL.LBL & NAME PL-EUROPE NTA NAME PLATE&ENGINE-1AD-FTV(DPF) |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-05240 |
AUR2# |
1 | ||
| 82815-05240 |
AUR2# |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-02070 |
AUR2#..6F |
1 | ||
| 82815-02070 |
AUR2#..6F |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-02110 |
AUR20..RHD ENGINE-1AD-FTV(DPF) |
1 | ||
| 82815-02110 |
AUR20..RHD REGULAT.COMPL.LBL & NAME PL-EUROPE NTA NAME PLATE&ENGINE-1AD-FTV(DPF) |
1 | ||
| 82815-02110 |
AUR2#..6F |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-02390 |
AUR2# |
1 | ||
| 82817-02390 |
AUR20..RHD ENGINE-1AD-FTV(DPF) |
1 | ||
| 82817-02390 |
AUR20..RHD REGULAT.COMPL.LBL & NAME PL-EUROPE NTA NAME PLATE&ENGINE-1AD-FTV(DPF) |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-05490 |
AUR2# |
1 | ||
| 82817-05490 |
AUR2# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-02380 |
AUR2#..6F |
1 | ||
| 82817-02380 |
AUR2#..6F |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-02420 |
AUR20..RHD ENGINE-1AD-FTV(DPF) |
1 | ||
| 82817-02420 |
AUR2#..6F |
1 | ||
| 82817-02420 |
AUR20..RHD REGULAT.COMPL.LBL & NAME PL-EUROPE NTA NAME PLATE&ENGINE-1AD-FTV(DPF) |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-02440 |
AUR2#..6F |
1 | ||
| 82817-02440 |
AUR2#..6F |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
AUR20..RHD ENGINE-1AD-FTV(DPF) |
1 | ||
| 82821-12560 |
AUR2#,ZGR2# |
1 | ||
| 82821-12560 |
AUR20..RHD REGULAT.COMPL.LBL & NAME PL-EUROPE NTA NAME PLATE&ENGINE-1AD-FTV(DPF) |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20100 |
AUR2# |
1 | ||
| 82823-20100 |
AUR2# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
AUR2#,ZGR2# |
1 | ||
| 82823-22050 |
AUR2#,ZGR2# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
AUR2#,ZGR2# |
1 | ||
| 82824-34100 |
AUR2#,ZGR2# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12120 |
AUR2# |
1 | ||
| 82991-12120 |
AUR2# |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-06995 | ||||
| 90119-W0017 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0059 | ||||
| 90119-W0061 | ||||
| 90178-W0019 | ||||
| 91671-80816 | ||||

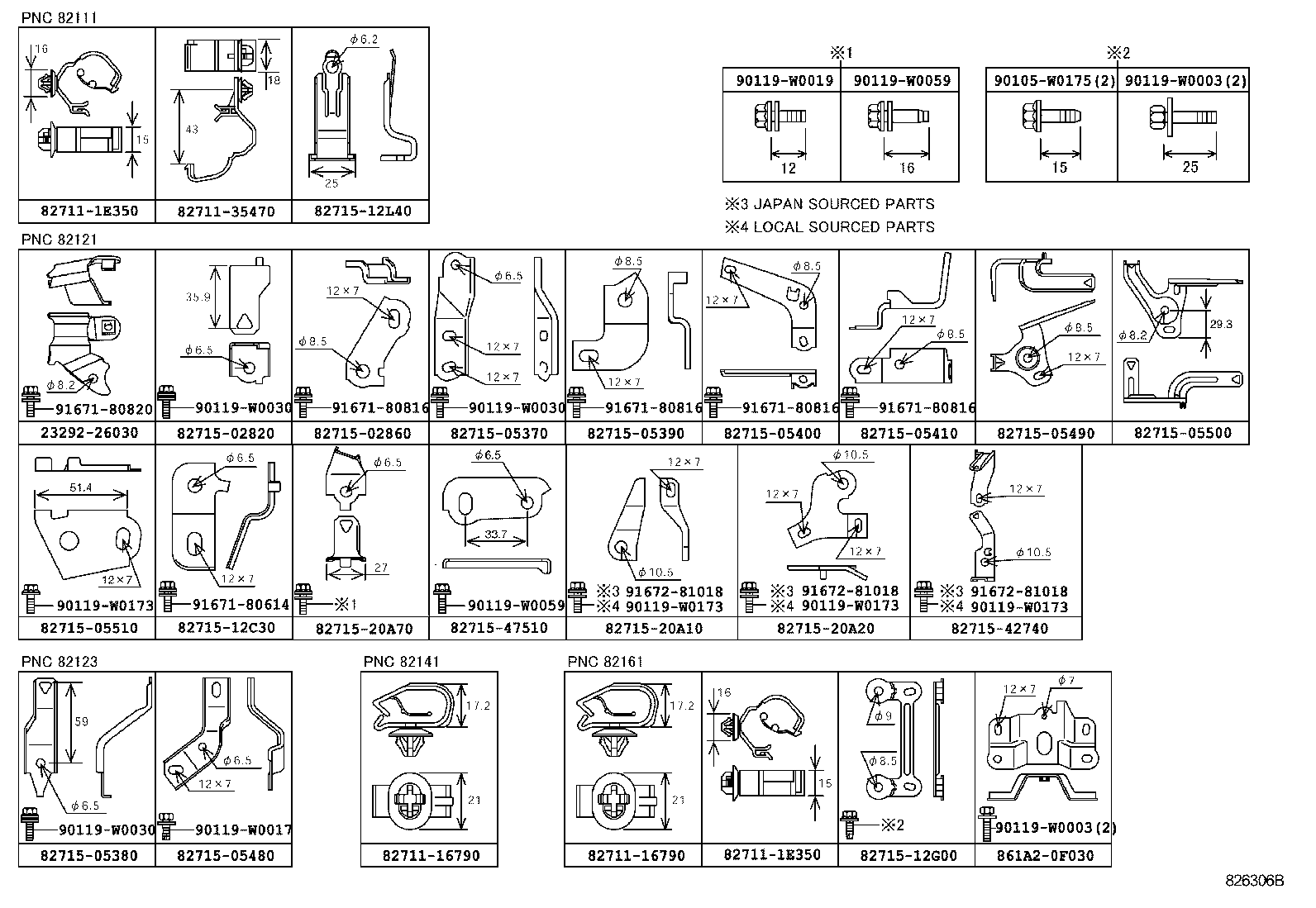

ILLUST NO. 6 OF10(0902-1503)AUR2#
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23292-26030 | ||||
| 82711-16790 | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-02820 | ||||
| 82715-02860 | ||||
| 82715-05370 | ||||
| 82715-05380 | ||||
| 82715-05390 | ||||
| 82715-05400 | ||||
| 82715-05410 | ||||
| 82715-05480 | ||||
| 82715-05490 | ||||
| 82715-05500 | ||||
| 82715-05510 | ||||
| 82715-12C30 | ||||
| 82715-12G00 | ||||
| 82715-12L40 | ||||
| 82715-20A10 | ||||
| 82715-20A20 | ||||
| 82715-20A70 | ||||
| 82715-42740 | ||||
| 82715-47510 | ||||
| 861A2-0F030 | ||||
| 90105-W0175 | ||||
| 90119-W0003 | ||||
| 90119-W0017 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0059 | ||||
| 90119-W0173 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81018 | ||||
