AUR20L-GWFEYW (2010)
Toyota Verso

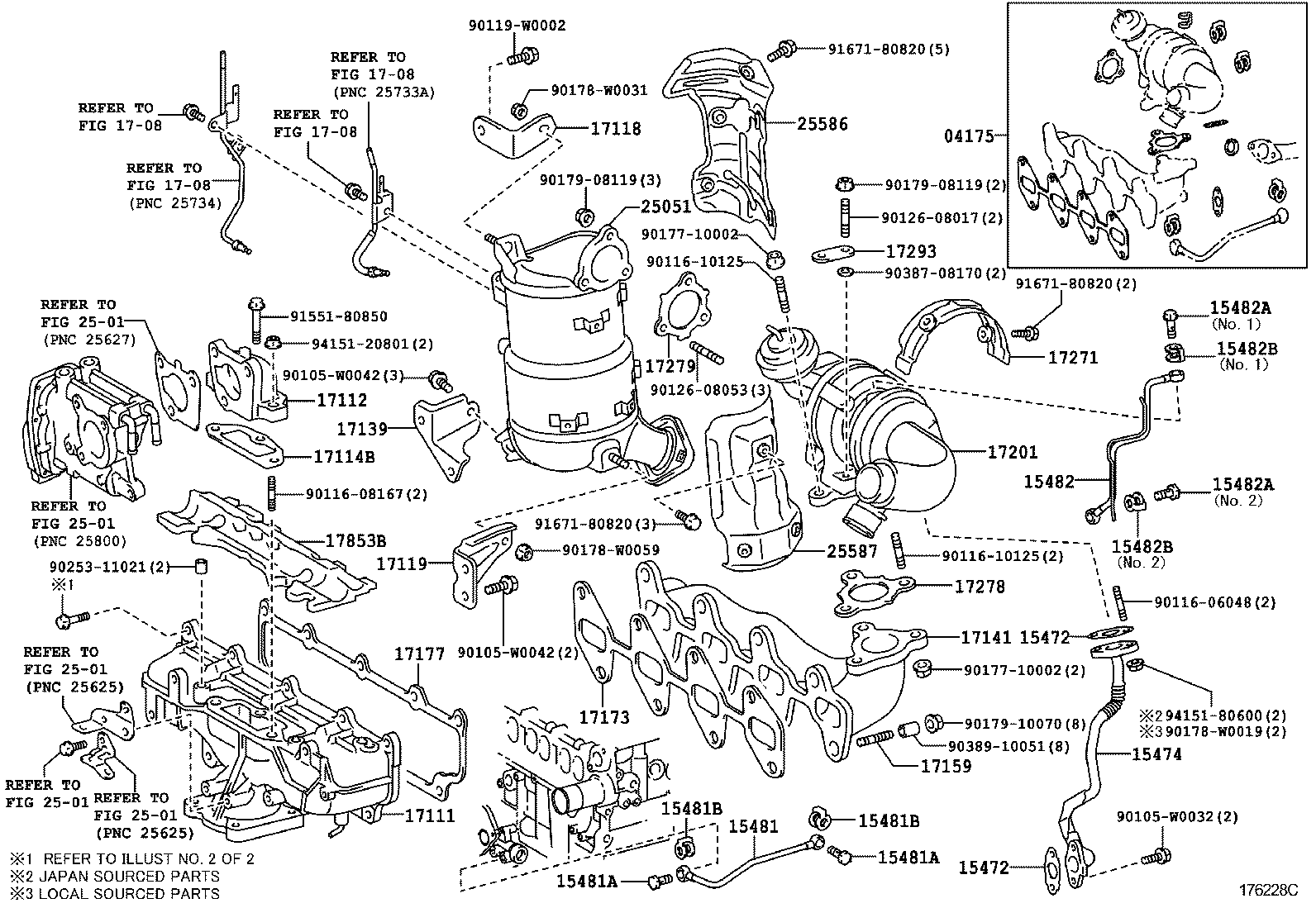

ILLUST NO. 1 OF 2(0902-1212)1ADFTV
W(DPF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-0R080 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 04175-0R100 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 04175-0R080 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 04175-0R100 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 04175-0R080 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 04175-0R080 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 04175-0R080 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 04175-0R080 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-0R010 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 15472-0R010 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-0R010 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 15472-0R010 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-26030 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 15474-26030 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 15481 - PIPE, TURBO OIL, NO.1 | ||||
| 15481-0R010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 15481-0R010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 15481A - BOLT, UNION, NO.1 | ||||
| 90401-12039 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 90401-12039 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 15481A - BOLT, UNION, NO.1 | ||||
| 90401-12039 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 90401-12039 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 15481B - GASKET(FOR UNION BOLT NO.1) | ||||
| 90430-12037 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 90430-12037 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 15481B - GASKET(FOR UNION BOLT NO.1) | ||||
| 90430-12037 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 90430-12037 |
1ADFTV,2ADFHV..AUR2# |
2 | ||
| 15482 - PIPE, TURBO OIL, NO.2 | ||||
| 15482-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 15482-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 15482A - BOLT, UNION, NO.2 | ||||
| 90401-10068 |
1ADFTV..AUR20 NO.1 |
1 | ||
| 90401-12039 |
1ADFTV,2ADFHV..AUR2# NO.2 |
1 | ||
| 90401-12039 |
1ADFTV,2ADFHV..AUR2# NO.2 |
1 | ||
| 90401-10068 |
1ADFTV..AUR20 NO.1 |
1 | ||
| 15482A - BOLT, UNION, NO.2 | ||||
| 90401-10068 |
1ADFTV..AUR20 NO.1 |
1 | ||
| 90401-12039 |
1ADFTV,2ADFHV..AUR2# NO.2 |
1 | ||
| 90401-12039 |
1ADFTV,2ADFHV..AUR2# NO.2 |
1 | ||
| 90401-10068 |
1ADFTV..AUR20 NO.1 |
1 | ||
| 15482B - GASKET(FOR UNION BOLT NO.2) | ||||
| 90430-12037 |
1ADFTV,2ADFHV..AUR2# NO.2 |
1 | ||
| 90430-12037 |
1ADFTV,2ADFHV..AUR2# NO.2 |
1 | ||
| 90904-30011 |
1ADFTV,2ADFHV..AUR2# NO.1 |
1 | ||
| 90904-30011 |
1ADFTV,2ADFHV..AUR2# NO.1 |
1 | ||
| 15482B - GASKET(FOR UNION BOLT NO.2) | ||||
| 90430-12037 |
1ADFTV,2ADFHV..AUR2# NO.2 |
1 | ||
| 90430-12037 |
1ADFTV,2ADFHV..AUR2# NO.2 |
1 | ||
| 90904-30011 |
1ADFTV,2ADFHV..AUR2# NO.1 |
1 | ||
| 90904-30011 |
1ADFTV,2ADFHV..AUR2# NO.1 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17101-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17112 - MANIFOLD, INTAKE, NO.2 | ||||
| 17112-26010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17112-26010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-26010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17116-26010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 17118-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 17118-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 17118-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 17118-26030 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17118-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 17118-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 17118-26030 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17119-0R030 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 17119-0R030 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 17119-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17119-0R030 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 17119-0R030 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 17119-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17119-0R030 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 17119-0R030 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 17139-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17139-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 17139-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 17139-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 17139-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 17139-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17139-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-0R010 |
1ADFTV,2ADFHV..AUR2# (L) |
1 | ||
| 17141-26100 |
1ADFTV,2ADFHV..AUR2# (J) |
1 | ||
| 17141-26100 |
1ADFTV,2ADFHV..AUR2# (J) |
1 | ||
| 17141-0R010 |
1ADFTV,2ADFHV..AUR2# (L) |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10024 |
1ADFTV,2ADFHV..AUR2# |
8 | ||
| 90126-10024 |
1ADFTV,2ADFHV..AUR2# |
8 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0R010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17173-0R010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-0R010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17171-0R010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-26080 |
1ADFTV..AUR20 (J) |
1 | ||
| 17201-0R070 |
1ADFTV..AUR20 (L) |
1 | ||
| 17201-0R070 |
1ADFTV..AUR20 (L) |
1 | ||
| 17201-26080 |
1ADFTV..AUR20 (J) |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17271-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 17278-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 17278-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 17278-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17278-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 17278-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 17278-0R010 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 17278-0R020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-0R010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17279-0R010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-26010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17293-26010 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17853B - INSULATOR, INTAKE MANIFOLD | ||||
| 17853-26030 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 17853-26030 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-0R050 |
1ADFTV..AUR20 *114=TOYOTA/0R050/Y,EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 25051-0R050 |
1ADFTV..AUR20 *114=TOYOTA/0R050/Y,EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 25051-0R050 |
1ADFTV..AUR20 *114=TOYOTA/0R050/Y,EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 25051-0R060 |
1ADFTV..AUR20 *114=TOYOTA/0R060/Y |
1 | ||
| 25051-0R060 |
1ADFTV..AUR20 *114=TOYOTA/0R060/Y |
1 | ||
| 25051-0R050 |
1ADFTV..AUR20 *114=TOYOTA/0R050/Y,EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 25051-0R050 |
1ADFTV..AUR20 *114=TOYOTA/0R050/Y,EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 25051-0R050 |
1ADFTV..AUR20 *114=TOYOTA/0R050/Y,EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-0R020 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 25586-0R020 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 25586-0R020 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 25586-0R020 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC |
1 | ||
| 25586-26030 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 25586-0R020 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 25586-0R020 |
1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC |
1 | ||
| 25586-26030 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-26020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| 25587-26020 |
1ADFTV,2ADFHV..AUR2# |
1 | ||
| Common parts | ||||
| 90105-W0032 | ||||
| 90105-W0042 | ||||
| 90116-06048 | ||||
| 90116-08167 | ||||
| 90116-10125 | ||||
| 90119-W0002 | ||||
| 90126-08017 | ||||
| 90126-08053 | ||||
| 90177-10002 | ||||
| 90178-W0019 | ||||
| 90178-W0031 | ||||
| 90178-W0059 | ||||
| 90179-08119 | ||||
| 90179-10070 | ||||
| 90253-11021 | ||||
| 90387-08170 | ||||
| 90389-10051 | ||||
| 91551-80850 | ||||
| 91671-80820 | ||||
| 94151-20801 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2501 | ||||
