NSP120R-CHFGKW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )RHD

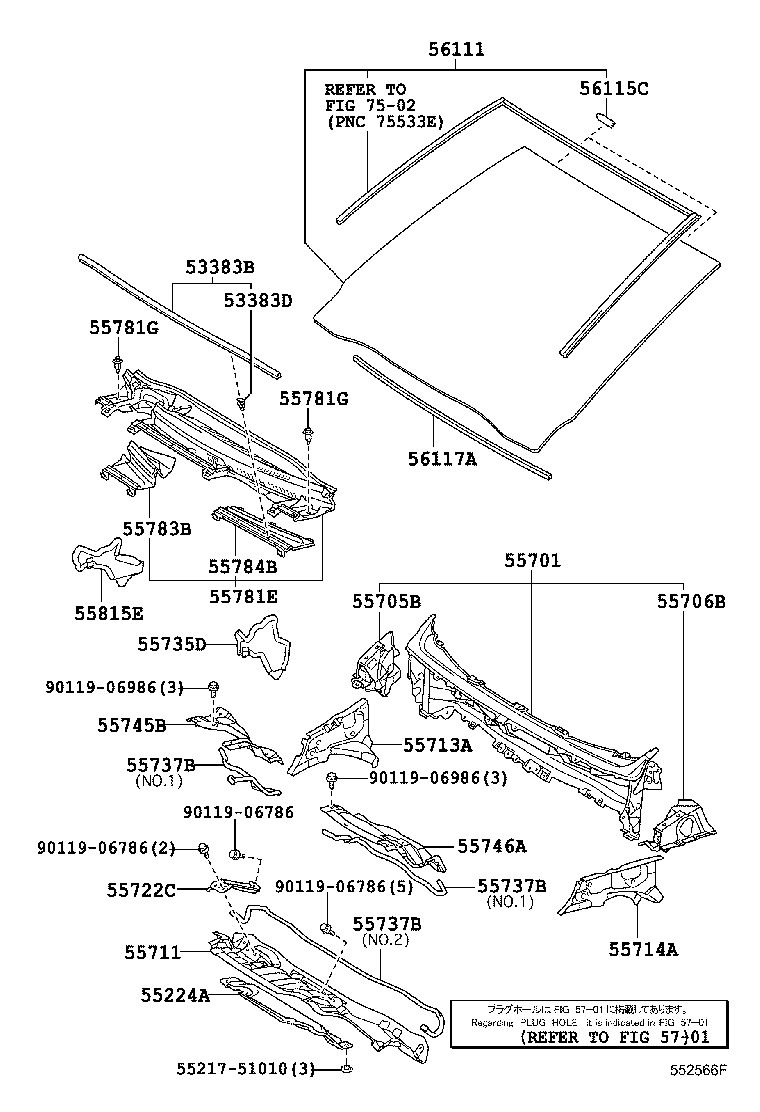

Click highlighted areas on diagram

diagram 53383B 53383D 5521751010 55224A 55701 55705B 55706B 55711 55713A 55714A 55722C 55735D 55737B 55737B 55737B 55745B 55746A 55781E 55781G 55781G 55783B 55784B 55815E 56111 56115C 56117A 5701 7502 9011906786 9011906786 9011906786 9011906986 9011906986
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-52120

NLP121,NSP120

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

NLP121,NSP120

 6
55224A - INSULATOR, DASH PANEL, OUTER NO.2
55224-52010

NLP121,NSP120

 1
55701 - PANEL SUB-ASSY, COWL
55700-52210

NSP120..RHD

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-52140

NLP121,NSP120

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-52140

NLP121,NSP120

 1
55711 - PANEL, COWL TOP, OUTER
55701-52230

NSP120..RHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-52120

NLP121,NSP120

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-52120

NLP121,NSP120

 1
55722C - BRACE, COWL TOP TO COWL, INNER
55722-52150

NSP120..RHD

 1
55735D - SEAL, FRONT AIR SHUTTER, RH
55735-52030

NLP121,NSP120

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-52090

NLP121,NSP120

NO.2

 1
55737-52130

NLP121,NSP120

NO.1

 2
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-52090

NLP121,NSP120

NO.2

 1
55737-52130

NLP121,NSP120

NO.1

 2
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-52090

NLP121,NSP120

NO.2

 1
55737-52130

NLP121,NSP120

NO.1

 2
55745B - PANEL, COWL TOP INSIDE CORNER, RH
55703-52331

NSP120..RHD

 1
55703-52330

NSP120..RHD

 1
55746A - REINFORCEMENT, COWL TOP, INNER LOWER
55746-52111

NSP120..RHD

 1
55746-52110

NSP120..RHD

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-52030

NSP120..RHD

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-0908722

NLP121,NSP120

BLACK

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-0908722

NLP121,NSP120

BLACK

 2
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-52260

NSP120..RHD

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-52100

NSP120..RHD

 1
55815E - SEAL, FRONT VENTILATOR, NO.1
55815-52050

NLP121,NSP120

 1
56111 - GLASS, WINDSHIELD
56101-52580

NLP121,NSP120..LUNA

*LAM,T=4.56,GREEN,HI GRADE(WITH/PANORAMA)

 1
56101-52571

NLP121,NSP120

*LAM,T=4.56,GREEN

 1
56101-52582

NLP121,NSP120..LUNA

*LAM,T=4.56,GREEN,HI GRADE(WITH/PANORAMA)

 1
56101-52581

NLP121,NSP120..LUNA

*LAM,T=4.56,GREEN,HI GRADE(WITH/PANORAMA)

 1
56101-52582

NLP121,NSP120..LUNA

*LAM,T=4.56,GREEN,HI GRADE (WITHOUT PANORAMA)

 1
56101-52580

NLP121,NSP120..LUNA

*LAM,T=4.56,GREEN,HI GRADE (WITHOUT PANORAMA)

 1
56101-52570

NLP121,NSP120

*LAM,T=4.56,GREEN

 1
56101-52581

NLP121,NSP120..LUNA

*LAM,T=4.56,GREEN,HI GRADE (WITHOUT PANORAMA)

 1
56101-52572

NLP121,NSP120

*LAM,T=4.56,GREEN

 1
56115C - STOPPER, WINDSHIELD GLASS
56115-50100

NLP121,NSP120

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-50140

NLP121,NSP120..LUNA

*D,L=1241,HI GRADE (WITHOUT PANORAMA)

 1
56117-50140

NLP121,NSP120

*D,L=1241

 1
56117-50140

NLP121,NSP120..LUNA

*D,L=1241,HI GRADE(WITH/PANORAMA)

 1
Common parts
55217-51010
90119-06786
90119-06986
Linked diagrams
5701
7502
