NSP120L-CHXGKW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1011- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

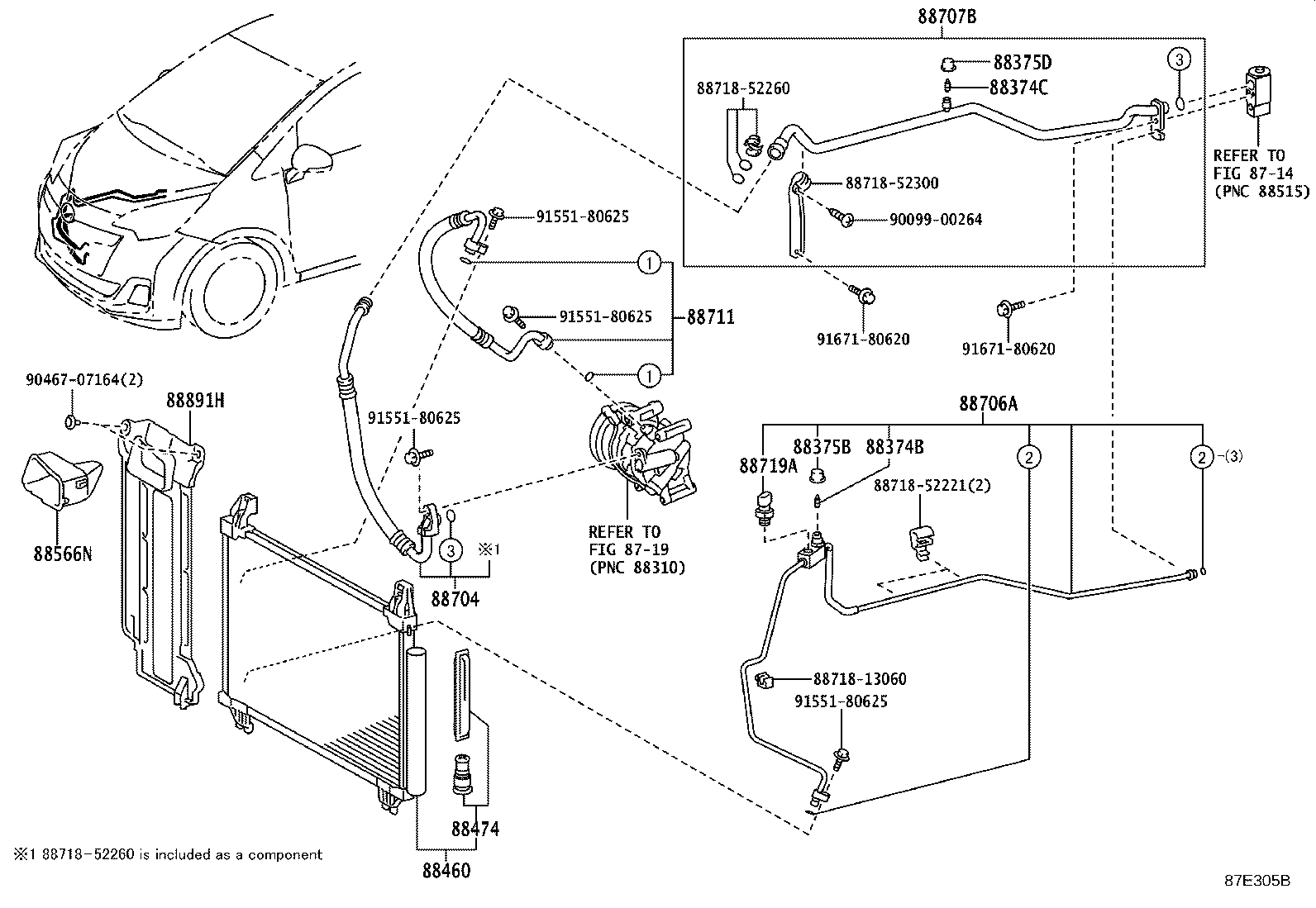

ILLUST NO. 1 OF 2(1011-1405)NSP120

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88566N 88704 88706A 88707B 88711 8871813060 8871852221 8871852260 8871852300 88719A 88891H 9009900264 9046707164 9155180625 9155180625 9155180625 9155180625 9167180620 9167180620
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NLP121,NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88374-30010

NLP121,NSP120

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NLP121,NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88374-30010

NLP121,NSP120

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

NLP121,NSP120

 1
88375-30280

NLP121,NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

NLP121,NSP120

 1
88375-30290

NLP121,NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88460 - CONDENSER ASSY, COOLER
88460-52130

NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88460-52130

NSP120

 1
88474 - DRYER, COOLER
88474-12030

NLP121,NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88474-12030

NLP121,NSP120

 1
88566N - DUCT, COOLER AIR, NO.1
88566-52110

NSP120

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-52220

NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88704-52220

NSP120

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-52540

NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88706-52540

NSP120

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-52300

NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88707-52300

NSP120

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52370

NSP120

 1
88711-52370

NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NLP121,NSP120

 1
88719-33020

NLP121,NSP120

FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)

 1
88891H - COVER, COOLER, NO.1
88891-52090

NSP120

 1
Common parts
88718-13060
88718-52221
88718-52260
88718-52300
90099-00264
90467-07164
91551-80625
91671-80620
Linked diagrams
8714
8719
