Toyota Verso-s NSP120 WIRING & CLAMP

NSP120L-CHXGKW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014

Engine 1NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

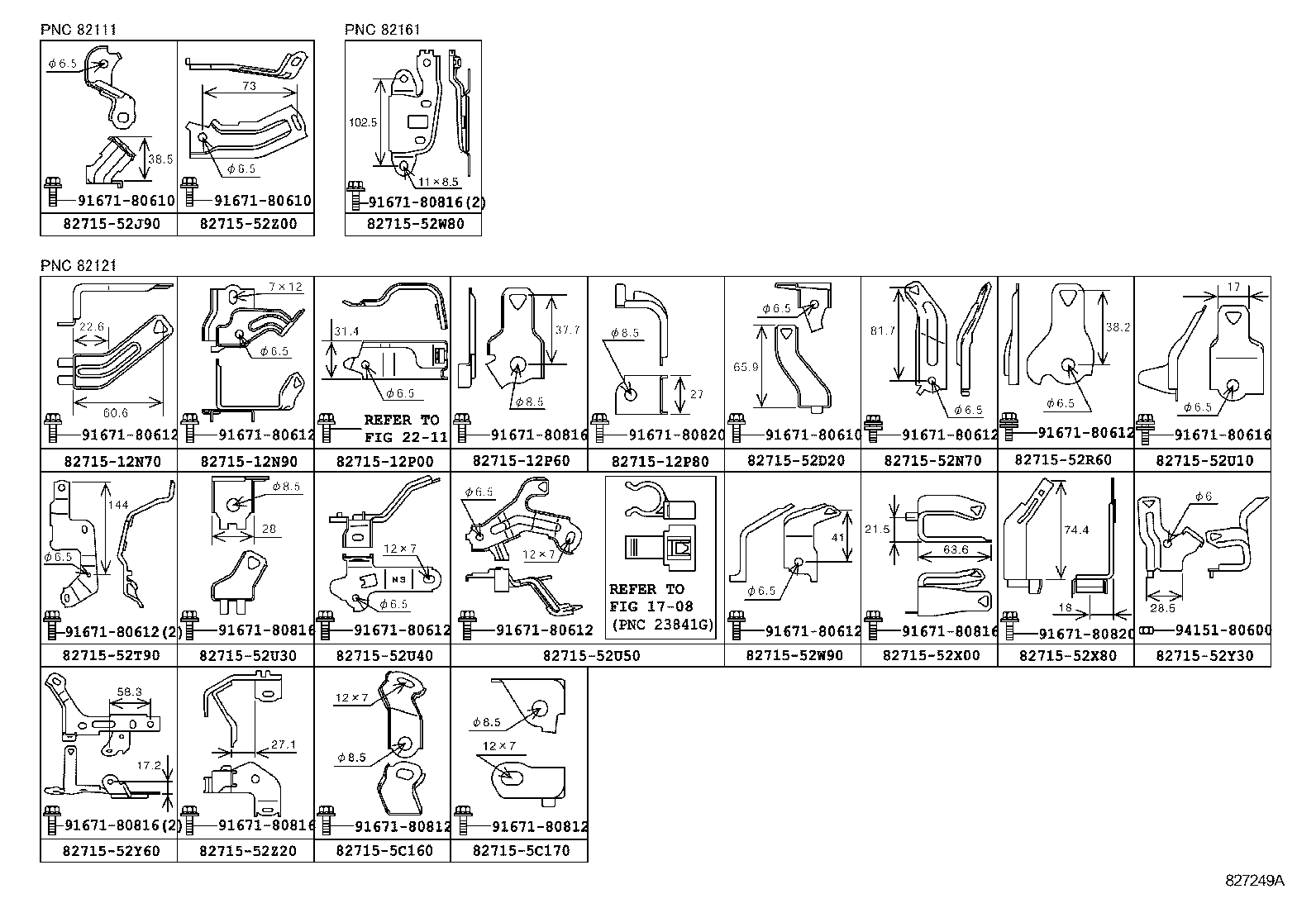

ILLUST NO. 6 OF 8(1011- )NSP120

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-12N70
82715-12N90
82715-12P00
82715-12P60
82715-12P80
82715-52D20
82715-52J90
82715-52N70
82715-52R60
82715-52T90
82715-52U10
82715-52U30
82715-52U40
82715-52U50
82715-52W80
82715-52W90
82715-52X00
82715-52X80
82715-52Y30
82715-52Y60
82715-52Z00
82715-52Z20
82715-5C160
82715-5C170
91671-80610
91671-80612
91671-80616
91671-80812
91671-80816
91671-80820
94151-80600
Linked diagrams
1708
2211

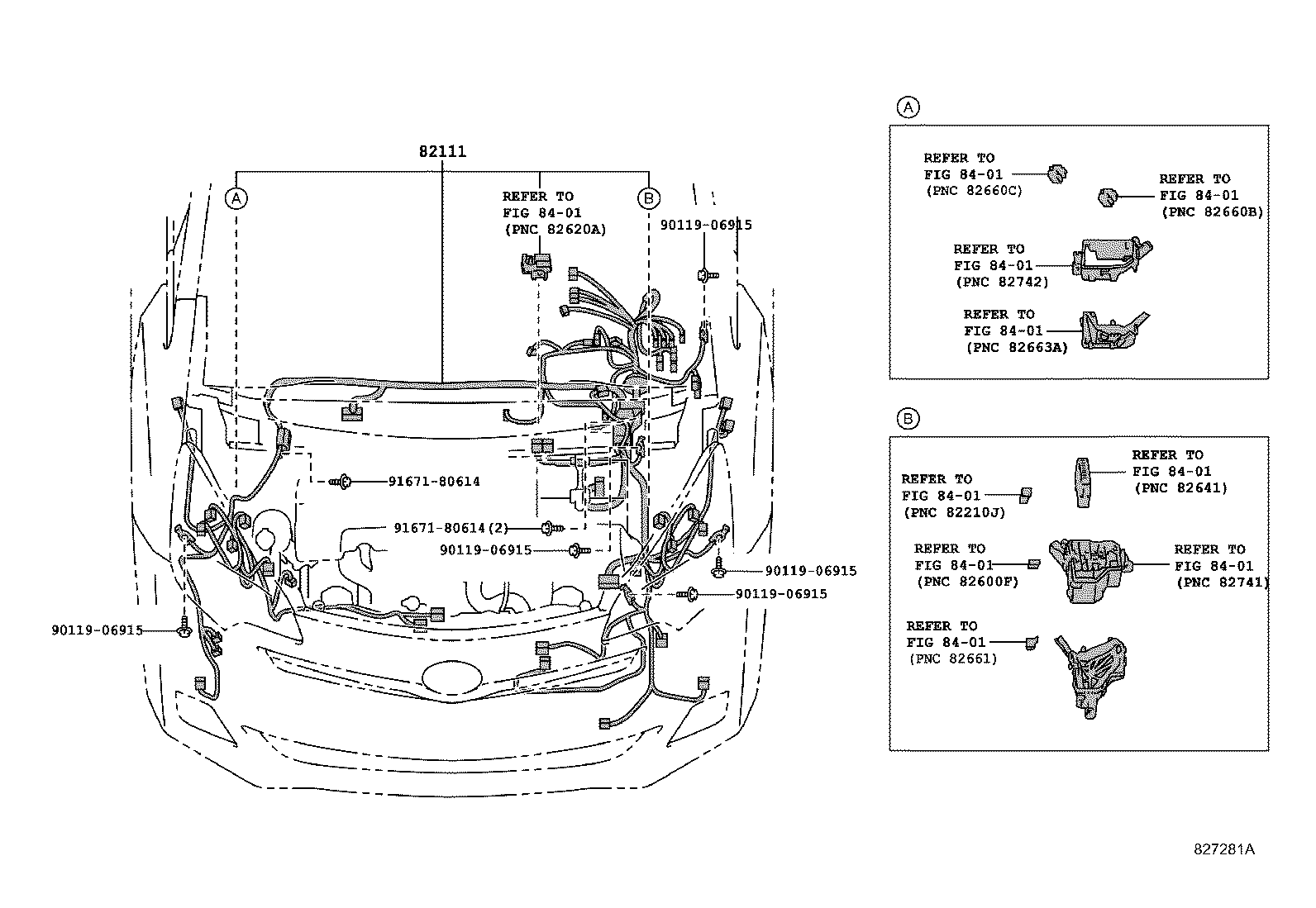

ILLUST NO. 1 OF 8(1011- )LHD

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-5CA90	NSP120..LHD..CVT UKRAINE SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT	11/2010 - 08/2012	1
82111-5CB00	NSP120..LHD..CVT	11/2010 - 08/2012	1
82111-5CA90	NSP120..LHD..CVT RUSSIA SPEC&COLD SPEC & WITH(REAR HEATER DUCT)&VSC-WITHOUT&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)	11/2010 - 08/2012	1
82111-5CA90	NSP120..LHD..CVT TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT	11/2010 - 08/2012	1
82111-5CB10	NSP120..LHD..CVT WITH(STOP & START SYSTEM)	11/2010 - 08/2012	1
82111-5CA91	NSP120..LHD..CVT TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT	08/2012 - 12/2012	1
82111-5CA91	NSP120..LHD..CVT UKRAINE SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT	08/2012 - 12/2012	1
82111-5CB01	NSP120..LHD..CVT	08/2012 - 12/2012	1
82111-5CA91	NSP120..LHD..CVT RUSSIA SPEC&COLD SPEC & WITH(REAR HEATER DUCT)&VSC-WITHOUT&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)	08/2012 - 12/2012	1
82111-5CB11	NSP120..LHD..CVT WITH(STOP & START SYSTEM)	08/2012 - 12/2012	1
82111-5CB02	NSP120..LHD..CVT	12/2012 - 05/2014	1
82111-5CB12	NSP120..LHD..CVT WITH(STOP & START SYSTEM)	12/2012 - 05/2014	1
Common parts
90119-06915
91671-80614
Linked diagrams
8401

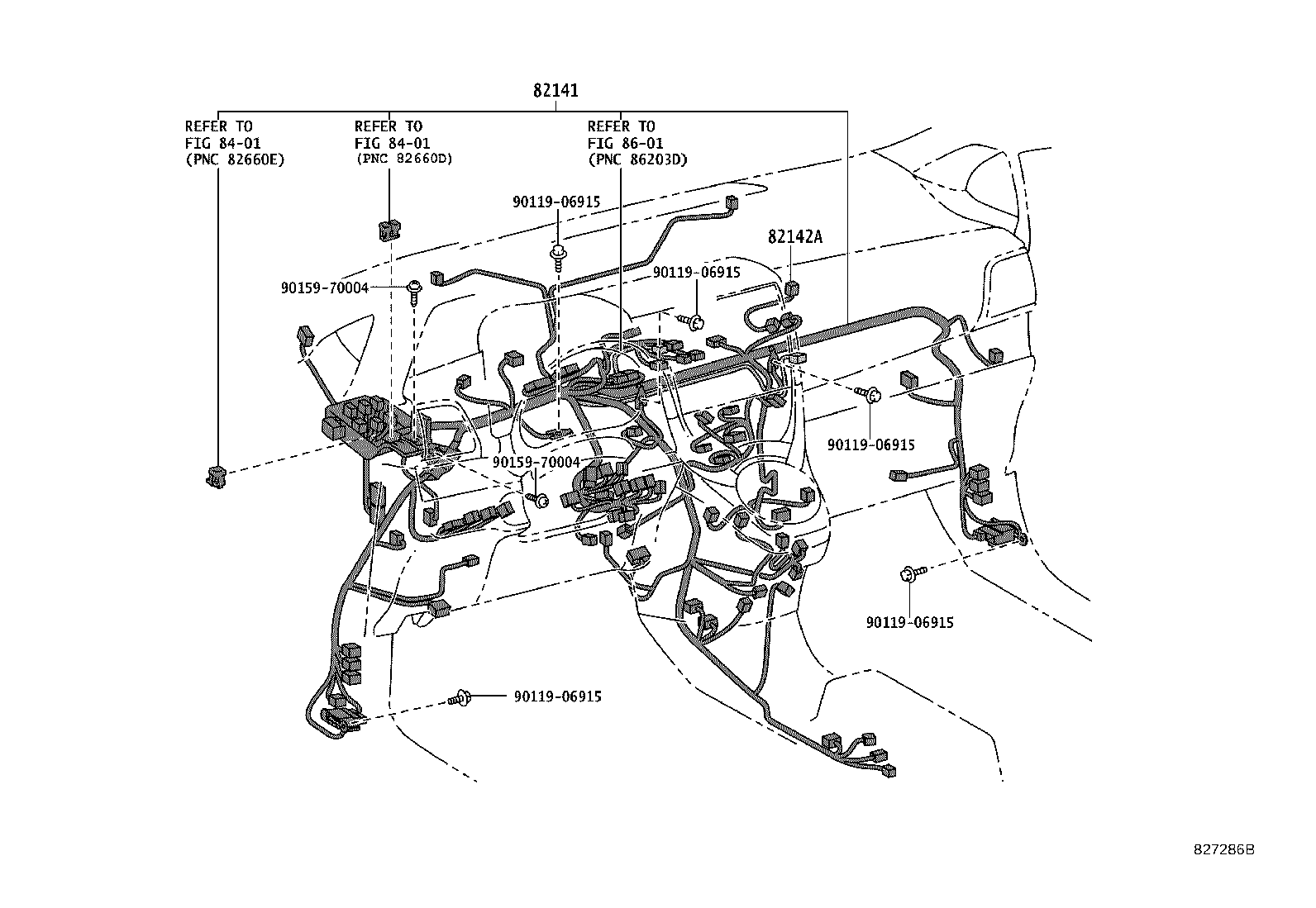

ILLUST NO. 3 OF 8(1011- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-5DK40	NSP120..LHD..CVT FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 11/2011	1
82141-5DK93	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITH(AUTO)	12/2012 - 10/2013	1
82141-5DK90	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 11/2011	1
82141-5DK40	NSP120..LHD..CVT FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 11/2011	1
82141-5DK90	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 11/2011	1
82141-5DK70	NSP120..LHD..CVT WITH(STOP & START SYSTEM)	11/2010 - 08/2012	1
82141-5DK50	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	11/2010 - 08/2012	1
82141-5DK50	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	11/2010 - 08/2012	1
82141-5DL00	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&WITH(STOP & START SYSTEM)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	11/2010 - 08/2012	1
82141-5DK20	NSP120..LHD..CVT	11/2010 - 08/2012	1
82141-5DK50	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 08/2012	1
82141-5DL00	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&WITH(STOP & START SYSTEM)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 08/2012	1
82141-5DK70	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 08/2012	1
82141-5DL00	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WITH(STOP & START SYSTEM)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	11/2010 - 08/2012	1
82141-5DL00	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WITH(STOP & START SYSTEM)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 08/2012	1
82141-5DK41	NSP120..LHD..CVT FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2011 - 08/2012	1
82141-5DK91	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2011 - 08/2012	1
82141-5DK91	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2011 - 08/2012	1
82141-5DK50	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 08/2012	1
82141-5DK51	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	08/2012 - 12/2012	1
82141-5DK51	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	08/2012 - 12/2012	1
82141-5DK41	NSP120..LHD..CVT FRONT AIR CONDITIONER-WITH(AUTO)	11/2011 - 08/2012	1
82141-5DK71	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	08/2012 - 12/2012	1
82141-5DK92	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITH(AUTO)	08/2012 - 12/2012	1
82141-5DK21	NSP120..LHD..CVT	08/2012 - 12/2012	1
82141-5DK51	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	08/2012 - 12/2012	1
82141-5DK51	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	08/2012 - 12/2012	1
82141-5DL01	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&WITH(STOP & START SYSTEM)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	08/2012 - 12/2012	1
82141-5DK71	NSP120..LHD..CVT WITH(STOP & START SYSTEM)	08/2012 - 12/2012	1
82141-5DL01	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WITH(STOP & START SYSTEM)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	08/2012 - 12/2012	1
82141-5DK92	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	08/2012 - 12/2012	1
82141-5DL01	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&WITH(STOP & START SYSTEM)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	08/2012 - 12/2012	1
82141-5DL01	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WITH(STOP & START SYSTEM)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	08/2012 - 12/2012	1
82141-5DK43	NSP120..LHD..CVT FRONT AIR CONDITIONER-WITH(AUTO)	12/2012 - 10/2013	1
82141-5DK52	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	12/2012 - 10/2013	1
82141-5DK72	NSP120..LHD..CVT WITH(STOP & START SYSTEM)	12/2012 - 10/2013	1
82141-5DK43	NSP120..LHD..CVT FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	12/2012 - 10/2013	1
82141-5DK22	NSP120..LHD..CVT	12/2012 - 10/2013	1
82141-5DL02	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WITH(STOP & START SYSTEM)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	12/2012 - 10/2013	1
82141-5DK52	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	12/2012 - 10/2013	1
82141-5DK52	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	12/2012 - 10/2013	1
82141-5DK93	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	12/2012 - 10/2013	1
82141-5DK52	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	12/2012 - 10/2013	1
82141-5DL02	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&WITH(STOP & START SYSTEM)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	12/2012 - 10/2013	1
82141-5DL02	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&WITH(STOP & START SYSTEM)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	12/2012 - 10/2013	1
82141-5DL02	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WITH(STOP & START SYSTEM)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	12/2012 - 10/2013	1
82141-5DK72	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	12/2012 - 10/2013	1
82141-5DK44	NSP120..LHD..CVT FRONT AIR CONDITIONER-WITH(AUTO)	10/2013 - 05/2014	1
82141-5DK53	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82141-5DK53	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	10/2013 - 05/2014	1
82141-5DK53	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82141-5DK94	NSP120..LHD..CVT WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITH(AUTO)	10/2013 - 05/2014	1
82141-5DK53	NSP120..LHD..CVT FRANCE SPEC&HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82141-5DK23	NSP120..LHD..CVT	10/2013 - 05/2014	1
82141-5DK53	NSP120..LHD..CVT FRANCE SPEC&HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82141-5DL03	NSP120..LHD..CVT FRANCE SPEC&HI GRADE(WITH/PANORAMA)&WITH(STOP & START SYSTEM)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82141-5DK53	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	10/2013 - 05/2014	1
82141-5DK73	NSP120..LHD..CVT WITH(STOP & START SYSTEM)	10/2013 - 05/2014	1
82141-5DL03	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WITH(STOP & START SYSTEM)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	10/2013 - 05/2014	1
82141-5DL03	NSP120..LHD..CVT FRANCE SPEC&HI GRADE (WITHOUT PANORAMA)&WITH(STOP & START SYSTEM)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82141-5DL03	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&WITH(STOP & START SYSTEM)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82141-5DL03	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&WITH(STOP & START SYSTEM)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	10/2013 - 05/2014	1
82141-5DL03	NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&WITH(STOP & START SYSTEM)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-74010	NLP121,NSP120	11/2010 - 05/2014	1
Common parts
90119-06915
90159-70004
Linked diagrams
8401
8601

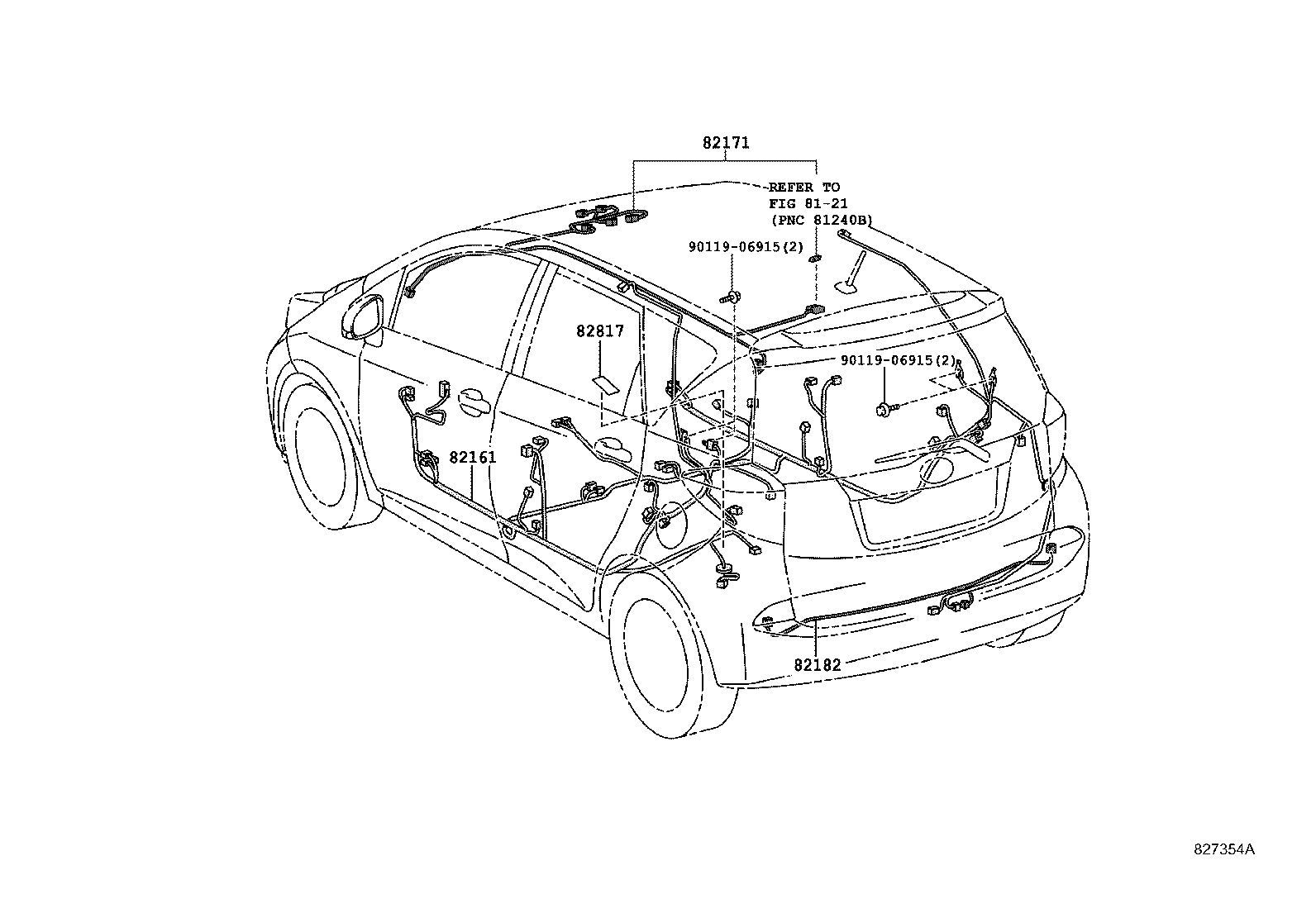

ILLUST NO. 5 OF 8(1011- )

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-5CA60	NSP120..LHD..LUNA UKRAINE SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT&AUDIO(FOR OVERSEASMARKET)-DISPLAY 6SPEAKER	11/2010 - 12/2012	1
82161-5CA60	NSP120..LHD UKRAINE SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT	11/2010 - 12/2012	1
82161-5CA60	NLP121..6F..LUNA;NSP120..LHD..LUNA TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 12/2012	1
82161-5CA60	NLP121..6F;NSP120..LHD TURKEY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)&VSC-WITHOUT	11/2010 - 12/2012	1
82161-5CA90	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 10/2013	1
82161-5CA90	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 10/2013	1
82161-5CA70	NSP120..LHD RUSSIA SPEC&COLD SPEC & WITH(REAR HEATER DUCT)&VSC-WITHOUT	11/2010 - 12/2012	1
82161-5CA90	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	11/2010 - 05/2014	1
82161-5CA80	NLP121,NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82161-5CA80	NLP121..6F..LUNA;NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 10/2013	1
82161-5CK30	NLP121,NSP120..LHD	11/2010 - 05/2014	1
82161-5CA70	NSP120..LHD..LUNA RUSSIA SPEC&COLD SPEC & WITH(REAR HEATER DUCT)&VSC-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 12/2012	1
82161-5CA90	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	11/2010 - 05/2014	1
82161-5CA90	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82161-5CA80	NLP121,NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82161-5CA90	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82161-5CA90	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82161-5CA90	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82171 - WIRE, ROOF, NO.1
82171-52460	NLP121..6F..LUNA;NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 10/2013	1
82171-52480	NLP121..6F..LUNA;NSP120..LHD..LUNA MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY6SPEAKER	11/2010 - 10/2013	1
82171-52450	NLP121;NSP120..TERRA;NSP120..LHD..LUNA	11/2010 - 05/2014	1
82171-52520	NLP121..6F..LUNA;NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 10/2013	1
82171-52470	NLP121,NSP120..LHD..LUNA MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)	11/2010 - 05/2014	1
82171-52520	NSP120..CVT;NLP121,NSP120..LHD..6F..LUNA HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	11/2010 - 05/2014	1
82171-52500	NLP121..6F..LUNA;NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	11/2010 - 10/2013	1
82171-52460	NLP121,NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82171-52460	NLP121,NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82171-52480	NLP121,NSP120..LHD..LUNA MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82171-52480	NLP121,NSP120..LHD..LUNA MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82171-52500	NSP120..CVT;NLP121,NSP120..LHD..6F..LUNA HI GRADE (WITHOUT PANORAMA)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER	11/2010 - 05/2014	1
82171-52520	NLP121,NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82171-52500	NLP121,NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82171-52500	NLP121,NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82171-52520	NLP121,NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-52220	NLP121,NSP120..LHD	11/2010 - 05/2014	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-52710	NLP121,NSP120	11/2010 - 05/2014	1
Common parts
90119-06915
Linked diagrams
8121

ILLUST NO. 7 OF 8(1011- )

Click highlighted areas on diagram

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10825
90980-10860
90980-10942
90980-11019
90980-11070
90980-11149
90980-11156
90980-11314
90980-12390
90980-12391
90980-12392
90980-12449
90980-12450
90980-12490
90980-12699
90980-WA052

ILLUST NO. 8 OF 8(1011- )

Click highlighted areas on diagram

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10996
90980-10997
90980-12495
90980-12553
90980-12555

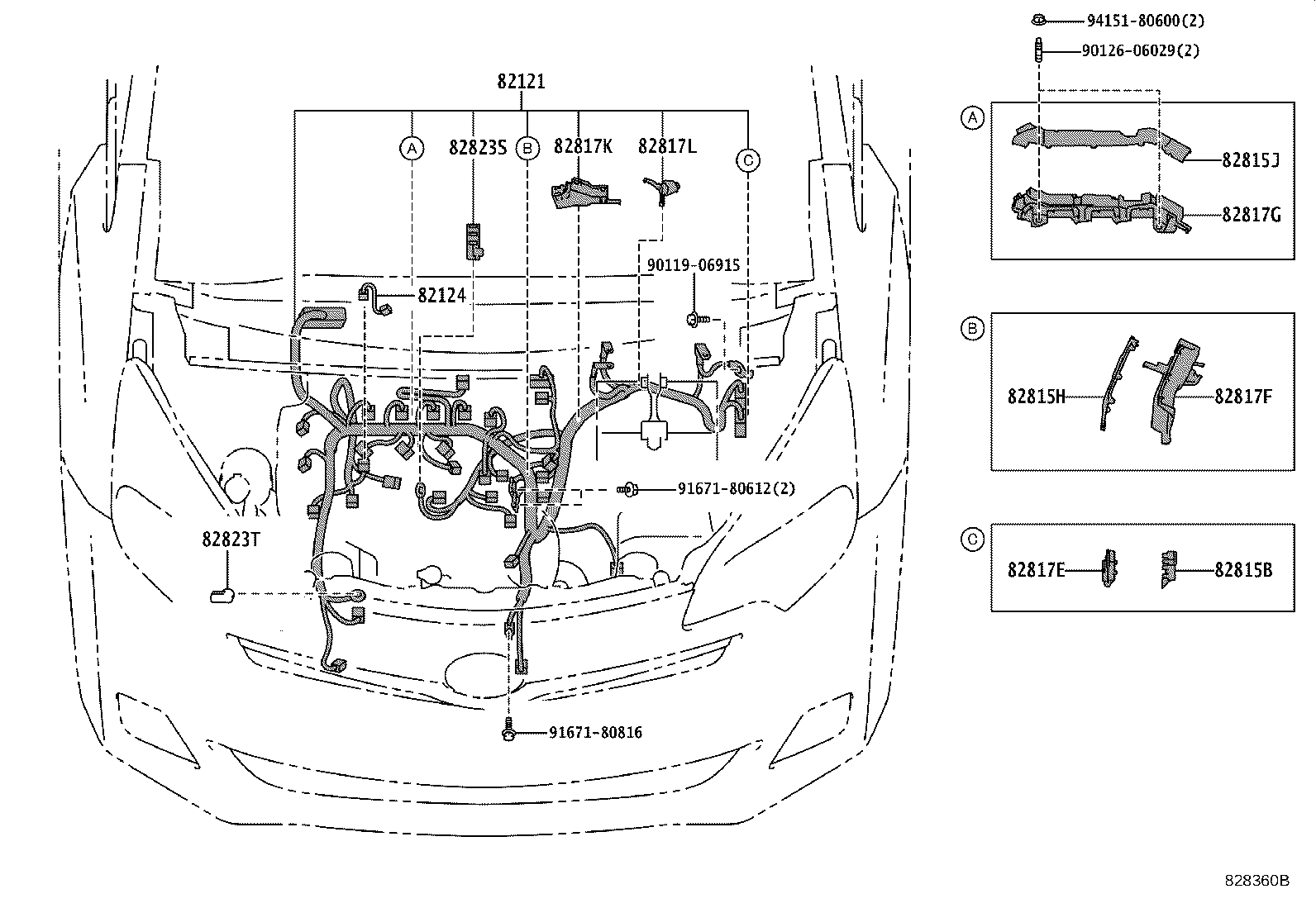

ILLUST NO. 2 OF 8(1011- )LHD..CVT

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-52K50	NSP120..LHD..CVT WITH(STOP & START SYSTEM)	11/2010 - 05/2014	1
82121-52K40	NSP120..LHD..CVT	11/2010 - 05/2014	1
82124 - WIRE, ENGINE, NO.4
82124-12150	NSP120	11/2010 - 05/2014	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-52120	NLP121,NSP120	11/2010 - 08/2012	1
82815-52120	NLP121,NSP120	08/2012 - 05/2014	1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-52170	NSP120..LHD..CVT	11/2010 - 08/2012	1
82815-52170	NSP120..LHD..CVT	08/2012 - 05/2014	1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-52230	NSP120	08/2012 - 05/2014	1
82815-52230	NSP120	11/2010 - 08/2012	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-52850	NLP121,NSP120	11/2010 - 08/2012	1
82817-52850	NLP121,NSP120	08/2012 - 05/2014	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-52880	NSP120..LHD..CVT	08/2012 - 05/2014	1
82817-52880	NSP120..LHD..CVT	11/2010 - 08/2012	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-52B80	NSP120	11/2010 - 08/2012	1
82817-52B80	NSP120	08/2012 - 05/2014	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-52620	NSP120..LHD..CVT	08/2012 - 05/2014	1
82817-52620	NSP120..LHD..CVT	11/2010 - 08/2012	1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-52860	NSP120..LHD..CVT	08/2012 - 05/2014	1
82817-52860	NSP120..LHD..CVT	11/2010 - 08/2012	1
82823S - CAP, STARTER TERMINAL
82823-20080	NSP120	11/2010 - 08/2012	1
82823-20080	NSP120	08/2012 - 05/2014	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	NLP121,NSP120	11/2010 - 05/2014	1
Common parts
90119-06915
90126-06029
91671-80612
91671-80816
94151-80600

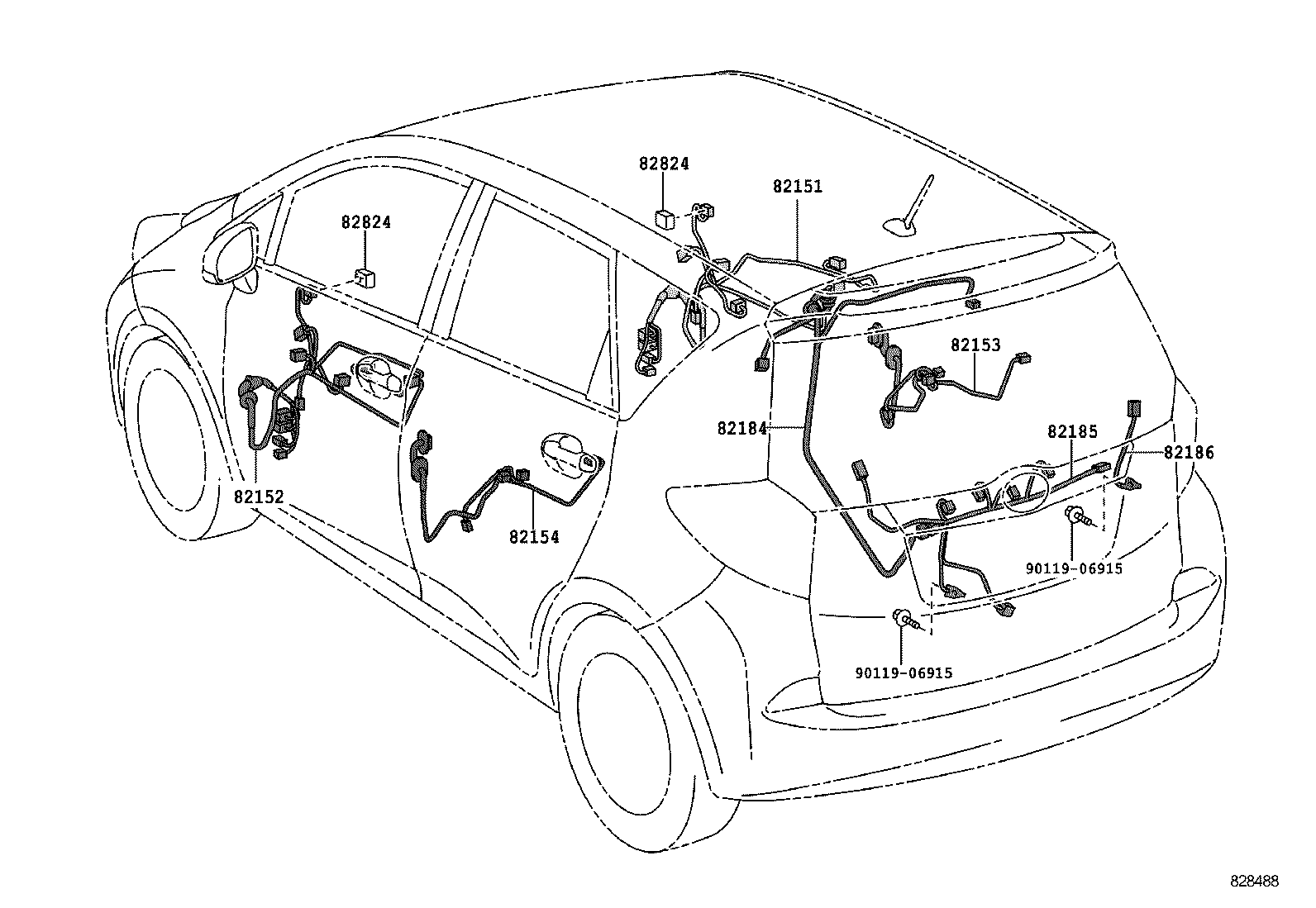

ILLUST NO. 4 OF 8(1011- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-52N30	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&FRONTAIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82151-52N30	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82151-52N40	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&COLD SPEC & WITHOUT(REAR HEATER DUCT)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82151-52N40	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&COLD SPEC & WITH(REAR HEATER DUCT)&POWER WINDOW-FRONT& REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82151-52N90	NLP121,NSP120..LHD	11/2010 - 05/2014	1
82151-52P00	NLP121..6FS;NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)	11/2010 - 05/2014	1
82151-52P00	NLP121..6FS;NSP120..LHD..LUNA COLD SPEC & WITHOUT(REAR HEATER DUCT)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)	11/2010 - 05/2014	1
82151-52N40	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&COLD SPEC & WITHOUT(REAR HEATER DUCT)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82151-52N40	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&COLD SPEC & WITH(REAR HEATER DUCT)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&FRONT AIR CONDITIONER-WITH(AUTO)	08/2012 - 05/2014	1
82151-52P00	NLP121..6FS;NSP120..LHD..LUNA COLD SPEC & WITHOUT(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)	11/2010 - 05/2014	1
82151-52P00	NLP121..6FS;NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)	11/2010 - 05/2014	1
82152 - WIRE, FRONT DOOR, LH
82152-52K00	NLP121,NSP120..LHD	11/2010 - 05/2014	1
82152-52K20	NLP121..6FS;NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)	11/2010 - 05/2014	1
82152-52K30	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&FRONTAIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82152-52K20	NLP121..6FS;NSP120..LHD..LUNA COLD SPEC & WITHOUT(REAR HEATER DUCT)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)	11/2010 - 05/2014	1
82152-52K30	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82152-52K40	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&COLD SPEC & WITHOUT(REAR HEATER DUCT)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82152-52L00	NLP121..6FS;NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)	11/2010 - 05/2014	1
82152-52K40	NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&COLD SPEC & WITH(REAR HEATER DUCT)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&FRONT AIR CONDITIONER-WITH(AUTO)	08/2012 - 05/2014	1
82152-52K40	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&COLD SPEC & WITHOUT(REAR HEATER DUCT)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82152-52L00	NLP121..6FS;NSP120..LHD..LUNA COLD SPEC & WITHOUT(REAR HEATER DUCT)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)	11/2010 - 05/2014	1
82152-52K40	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&COLD SPEC & WITH(REAR HEATER DUCT)&POWER WINDOW-FRONT& REAR(DRIVER ONE TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82152-52K90	NLP121,NSP120..LHD..LUNA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)	11/2010 - 05/2014	1
82153 - WIRE, REAR DOOR, NO.1
82153-52610	NLP121,NSP120..LHD..LUNA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)	11/2010 - 05/2014	1
82153-52610	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82153-52620	NLP121,NSP120..LHD	11/2010 - 05/2014	1
82153-52610	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&FRONTAIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82154 - WIRE, REAR DOOR, NO.2
82154-52290	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&FRONTAIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82154-52300	NLP121,NSP120..LHD	11/2010 - 05/2014	1
82154-52290	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)&FRONT AIR CONDITIONER-WITH(AUTO)	11/2010 - 05/2014	1
82154-52290	NLP121,NSP120..LHD..LUNA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)	11/2010 - 05/2014	1
82184 - WIRE, BACK DOOR, NO.1
82184-52510	NLP121,NSP120	11/2010 - 05/2014	1
82185 - WIRE, BACK DOOR, NO.2
82185-52870	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	12/2012 - 10/2013	1
82185-52600	NLP121,NSP120	11/2010 - 12/2012	1
82185-52630	NLP121;NSP120..TERRA;NSP120..LHD..LUNA	12/2012 - 05/2014	1
82185-52870	NLP121..6F..LUNA;NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	12/2012 - 10/2013	1
82185-52870	NLP121,NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82185-52870	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82185-52870	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER	10/2013 - 05/2014	1
82185-52870	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82185-52870	NSP120..LHD..LUNA HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82185-52870	NSP120..LHD..LUNA HI GRADE (WITHOUT PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER	12/2012 - 10/2013	1
82185-52870	NLP121,NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER	10/2013 - 05/2014	1
82186 - WIRE, REAR WINDOW, NO.1
82186-52150	NLP121,NSP120	11/2010 - 05/2014	1
82824 - CONNECTOR, WIRING HARNESS
82824-52300	NSP120..LHD..CVT AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 4SPEAKER	11/2010 - 05/2014	2
82824-52300	NSP120..LHD..CVT AUDIO(FOR OVERSEAS MARKET)-CD RADIO USB 4SPEAKER	11/2010 - 05/2014	2
82824 - CONNECTOR, WIRING HARNESS
82824-52300	NSP120..LHD..CVT AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 4SPEAKER	11/2010 - 05/2014	2
82824-52300	NSP120..LHD..CVT AUDIO(FOR OVERSEAS MARKET)-CD RADIO USB 4SPEAKER	11/2010 - 05/2014	2
Common parts
90119-06915

NSP120L-CHXGKW (2010)

ILLUST NO. 6 OF 8(1011- )NSP120

ILLUST NO. 1 OF 8(1011- )LHD

ILLUST NO. 3 OF 8(1011- )LHD

ILLUST NO. 5 OF 8(1011- )

ILLUST NO. 7 OF 8(1011- )

ILLUST NO. 8 OF 8(1011- )

ILLUST NO. 2 OF 8(1011- )LHD..CVT

ILLUST NO. 4 OF 8(1011- )

Part Price Details
