NSP120L-CHXGKW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

Click highlighted areas on diagram

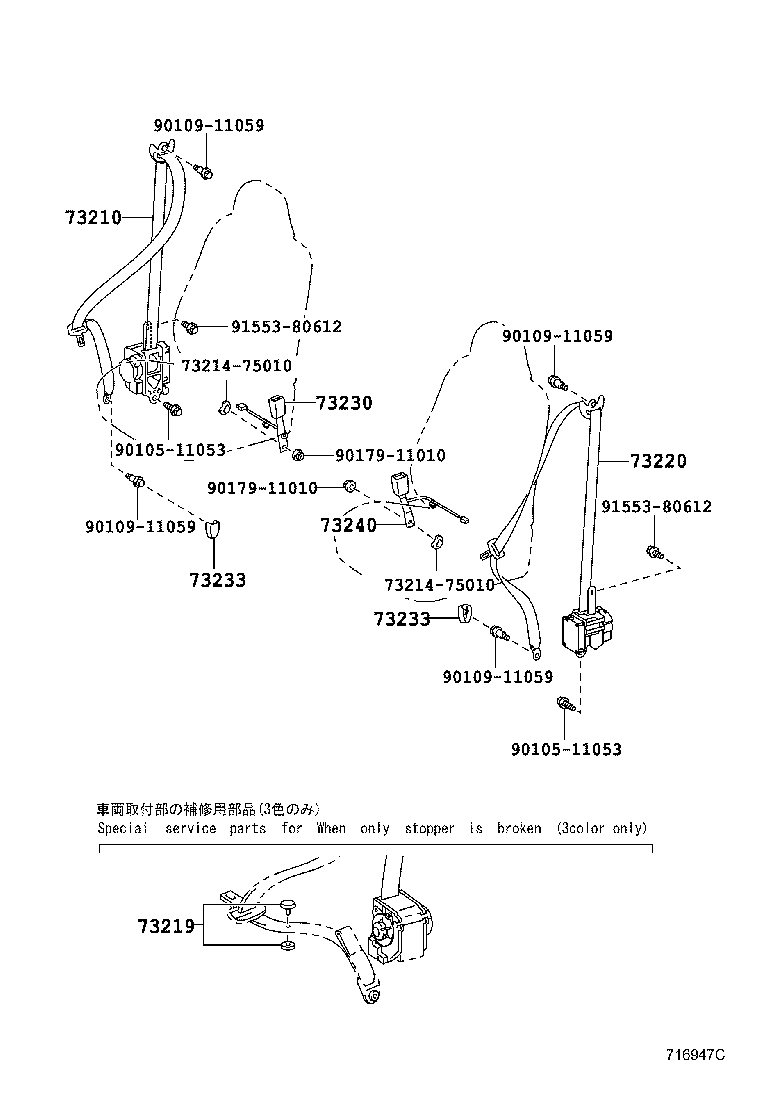

FRONT SEAT

diagram 73210 7321475010 7321475010 73219 73220 73230 73233 73233 73240 9010511053 9010511053 9010911059 9010911059 9010911059 9010911059 9017911010 9017911010 9155380612 9155380612
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52831C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
73210-52830C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

NLP121,NSP120

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52820C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
73220-52821C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52820C0

NLP121,NSP120..LHD..LUNA

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2#,4#

 1
73230-52680C0

NLP121,NSP120..LHD..LUNA

BLACK,TRIM1#,2#,4#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52550C0

NLP121,NSP120..LHD..LUNA

BLACK,TRIM1#,2#,4#

 1
73230-52810C0

NLP121,NSP120..LHD..LUNA

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2#,4#

 1
Common parts
73214-75010
90105-11053
90109-11059
90179-11010
91553-80612

(1011- )

Click highlighted areas on diagram

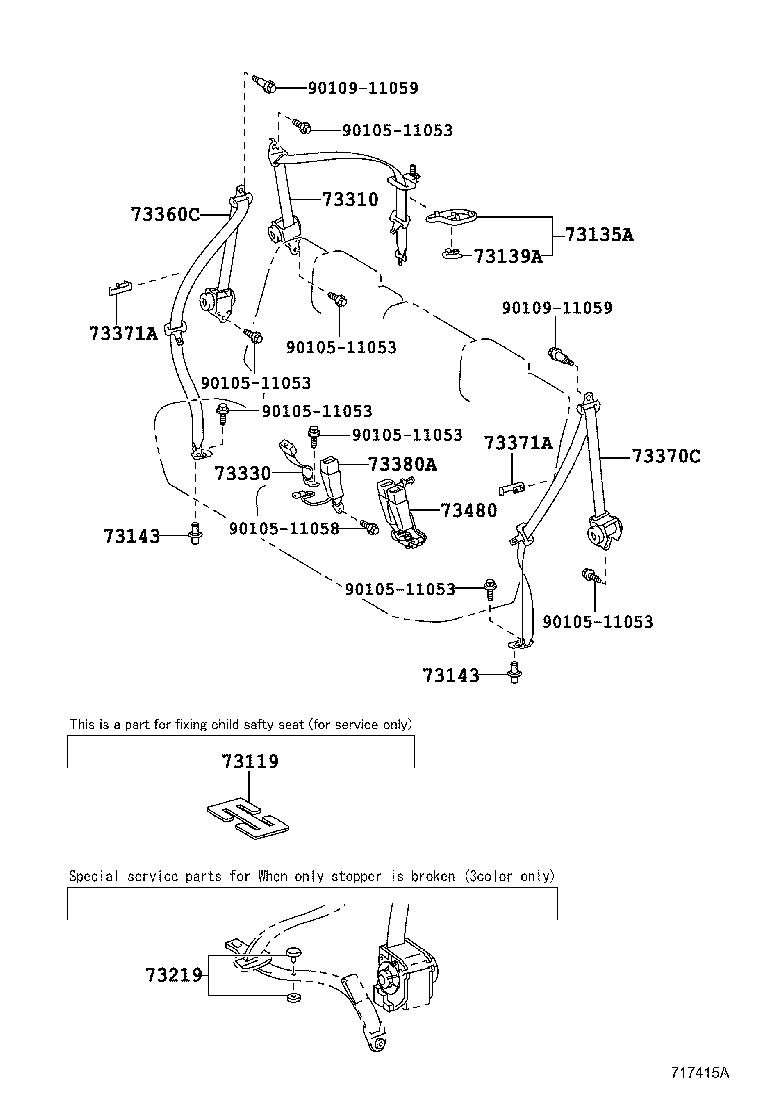

REAR SEAT

diagram 73119 73135A 73139A 73143 73143 73219 73310 73330 73360C 73370C 73371A 73371A 73380A 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511058 9010911059 9010911059
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NLP121,NSP120

 1
73135A - COVER, SHOULDER BELT ANCHOR, RH
73137-52050B0

NLP121,NSP120..LUNA

LT.GRAY,TRIM1#,2#,4#

 1
73139A - COVER, SEAT BELT ANCHOR
73139-52030B0

NLP121,NSP120..LUNA

LT.GRAY,TRIM1#,2#,4#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52011

NLP121,NSP120

 2
73143 - SEAL, SEAT BELT HOLE
73143-52011

NLP121,NSP120

 2
73219 - STOPPER, TONGUE PLATE
73219-33030

NLP121,NSP120

BEIGE

 1
73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH
73310-52061C1

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
73310-52060C1

NLP121,NSP120..LUNA

BLACK,TRIM2#,4#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-52080C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-52300C1

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-52260C1

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-52130C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52341C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
73480-52340C0

NLP121,NSP120..LUNA

BLACK,TRIM2#,4#

 1
Common parts
90105-11053
90105-11058
90109-11059
