NSP120L-CHXGKW (2010)
Toyota Verso-S
(1011- )LHD..LUNA

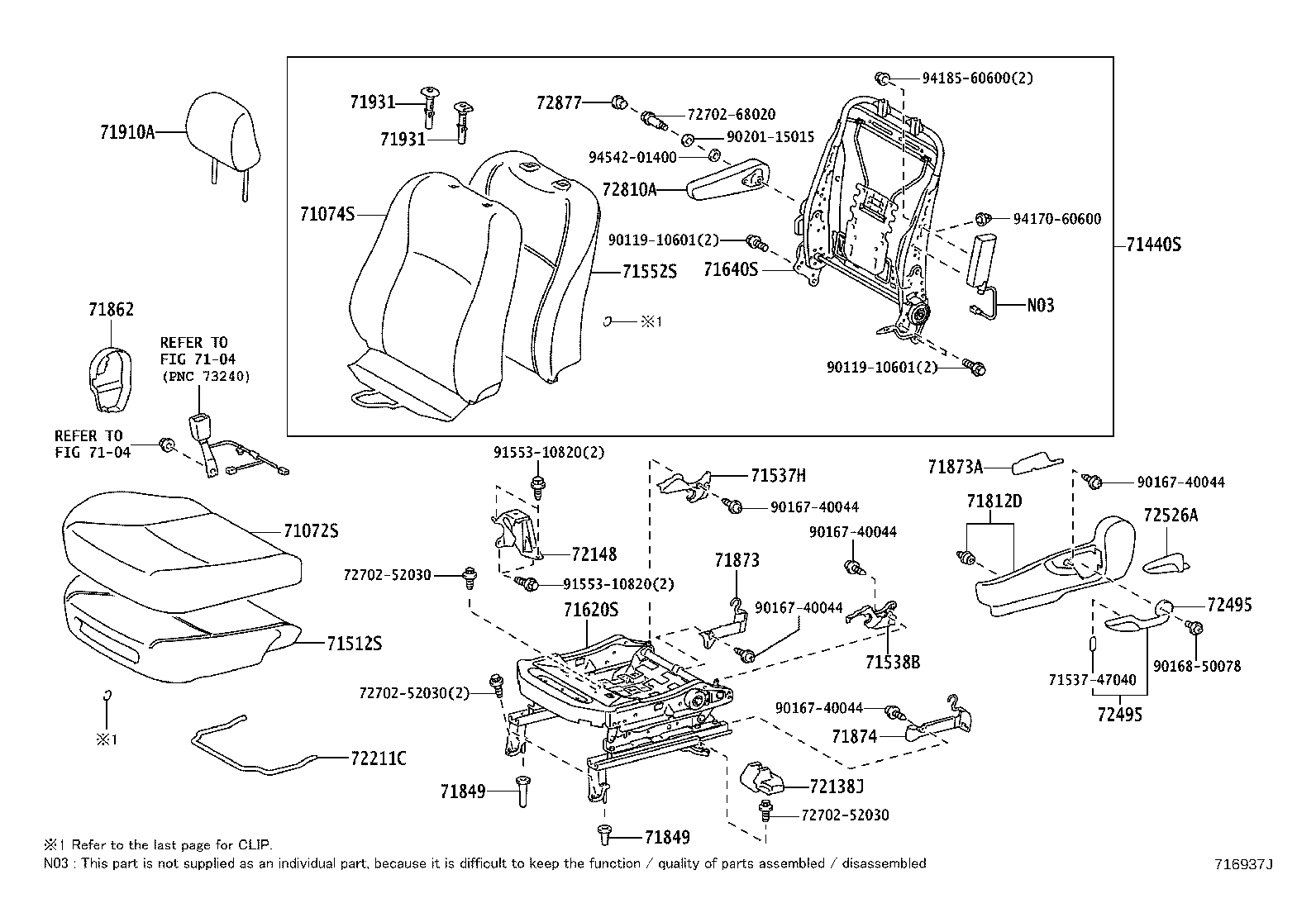

DRIVER SEAT W(LEATHER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52F60C1 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-52F60C1 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-52R00A0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71072-52R10C1 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-52R00C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71072-52F60C2 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-52R10A1 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71072-52R00A1 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71072-52F60C3 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-52R10C0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-52R10A0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71072-52F60C2 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-52R00A2 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71072-52S10B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71072-52R00C2 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71072-52R10C2 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-52R00C1 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71072-52S20B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71072-52R10A2 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71072-52F60C3 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-52C90C2 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-52C90C2 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52C80A6 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71440-52C90A6 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52D10C4 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C90C7 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52M40C2 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71440-52C90C6 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52C90A6 |
NSP120..LHD..CVT ISRAEL SPEC,BEIGE,TRIM4# |
1 | ||
| 71440-52C90A6 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52D10C4 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C90C7 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52C80E0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71440-52C90E0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52C90C7 |
NSP120..LHD..CVT ISRAEL SPEC,BLACK,TRIM2# |
1 | ||
| 71440-52M40C2 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71440-52C90A5 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52D10C5 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C80C5 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C90C8 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52D10C5 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C81C5 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52T30B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71440-52C80C4 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C81E0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71440-52T20B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71440-52M40C4 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71440-52D11C5 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52T21B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71440-52C91E0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52C91C8 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52T31B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71440-52M41C4 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71440-52D11C5 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-52380 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-52600 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71512-52380 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER) |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52100C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52050C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-52610 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552-52610 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52031 |
NLP121,NSP120..LHD |
1 | ||
| 71620-52030 |
NLP121,NSP120..LHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52070 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER) |
1 | ||
| 71640-52060 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71640-52220 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE |
1 | ||
| 71640-52070 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71640-52220 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52310C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71812-52310C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52190C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
NLP121,NSP120..LHD |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-52230C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52220C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C80C1 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C80C1 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C70B2 |
NLP121,NSP120..LUNA DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-52C60C2 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52B20B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
2 | ||
| 71910-52C60C1 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52C70E2 |
NLP121,NSP120..LUNA BEIGE,TRIM4# |
2 | ||
| 71910-52C60C1 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52C70E3 |
NLP121,NSP120..LUNA BEIGE,TRIM4# |
2 | ||
| 71910-52C80C2 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52B20B0 |
NLP121,NSP120..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
2 | ||
| 71910-52C80C2 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C70B1 |
NLP121,NSP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-52061C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52081 |
NLP121,NSP120 |
1 | ||
| 72148-52080 |
NLP121,NSP120 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NLP121,NSP120 |
2 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-21010C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-21010C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-52110A1 |
NLP121..6F..LUNA;NSP120..LHD..LUNA BEIGE,TRIM40 |
1 | ||
| 72810-52120C1 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 72810-52120C1 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72810-52110B1 |
NLP121..6F..LUNA;NSP120..LHD..LUNA DARK GRAY,TRIM1#,2#,44 |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 71877-52010A0 |
NLP121,NSP120..LHD..LUNA SHELL,TRIM40 |
1 | ||
| 71877-52010C0 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71877-52010C0 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71877-52010C0 |
NLP121..6F..LUNA;NSP120..LHD..LUNA BLACK,TRIM1#,2#,40,44 |
1 | ||
| Common parts | ||||
| 71537-47040 | ||||
| 72702-52030 | ||||
| 72702-68020 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-15015 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||

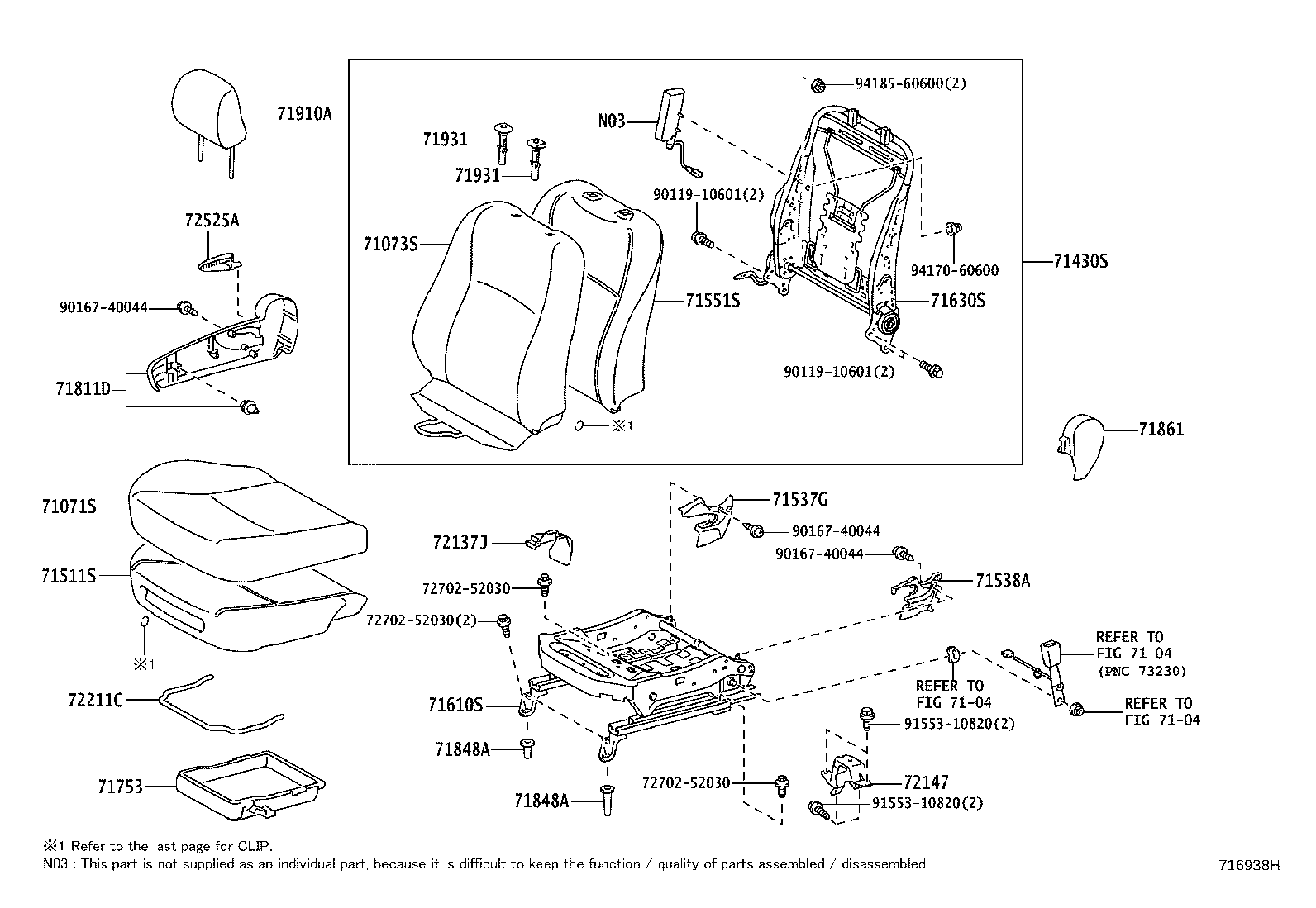

(1011- )LHD..LUNA
PASSENGER SEAT W(LEATHER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-52R50A0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71071-52R60A0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71071-52E80C1 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52R50C1 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71071-52E80C1 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52R50A1 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71071-52E80C2 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52R50C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71071-52R60A1 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71071-52E80C3 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52R60C0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52E80C3 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52E80C2 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52R50A2 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71071-52R60C1 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52S70B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71071-52S80B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71071-52R50C2 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71071-52R60C2 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52R60A2 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-52J70C2 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-52J70C2 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-52D60A5 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D60A5 |
NSP120..LHD..CVT ISRAEL SPEC,BEIGE,TRIM4# |
1 | ||
| 71430-52D60C6 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D60C7 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D40C3 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52L70C2 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71430-52D40A5 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71430-52D60A6 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D70C3 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D60C6 |
NSP120..LHD..CVT ISRAEL SPEC,BLACK,TRIM2# |
1 | ||
| 71430-52D60C6 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D40E0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71430-52D60C8 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D70C3 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D60E0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D70C4 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D70C4 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52L70C2 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71430-52D60A5 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D40C4 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D61C8 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D41E0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71430-52L70C4 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71430-52D71C4 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D61E0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D41C4 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D71C4 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52T01B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71430-52T00B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71430-52S90B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71430-52L71C4 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71430-52S91B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-52020 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-52090 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71501-52020 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER) |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52110C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52060C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-52F30 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71551-52F30 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71551-52740 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-52740 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52030 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE |
1 | ||
| 71610-52020 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71610-52021 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71610-52030 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE |
1 | ||
| 71610-52031 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52300 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER) |
1 | ||
| 71630-52430 |
NLP121;NSP120..TERRA;NSP120..LHD..LUNA |
1 | ||
| 71630-52300 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52060C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52300C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71811-52300C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52240C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C80C1 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C80C1 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C70B2 |
NLP121,NSP120..LUNA DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-52C60C2 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52B20B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
2 | ||
| 71910-52C60C1 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52C70E2 |
NLP121,NSP120..LUNA BEIGE,TRIM4# |
2 | ||
| 71910-52C60C1 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52C70B1 |
NLP121,NSP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70E3 |
NLP121,NSP120..LUNA BEIGE,TRIM4# |
2 | ||
| 71910-52C80C2 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52B20B0 |
NLP121,NSP120..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
2 | ||
| 71910-52C80C2 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-52051C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52080 |
NLP121,NSP120 |
1 | ||
| 72147-52081 |
NLP121,NSP120 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NLP121,NSP120 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

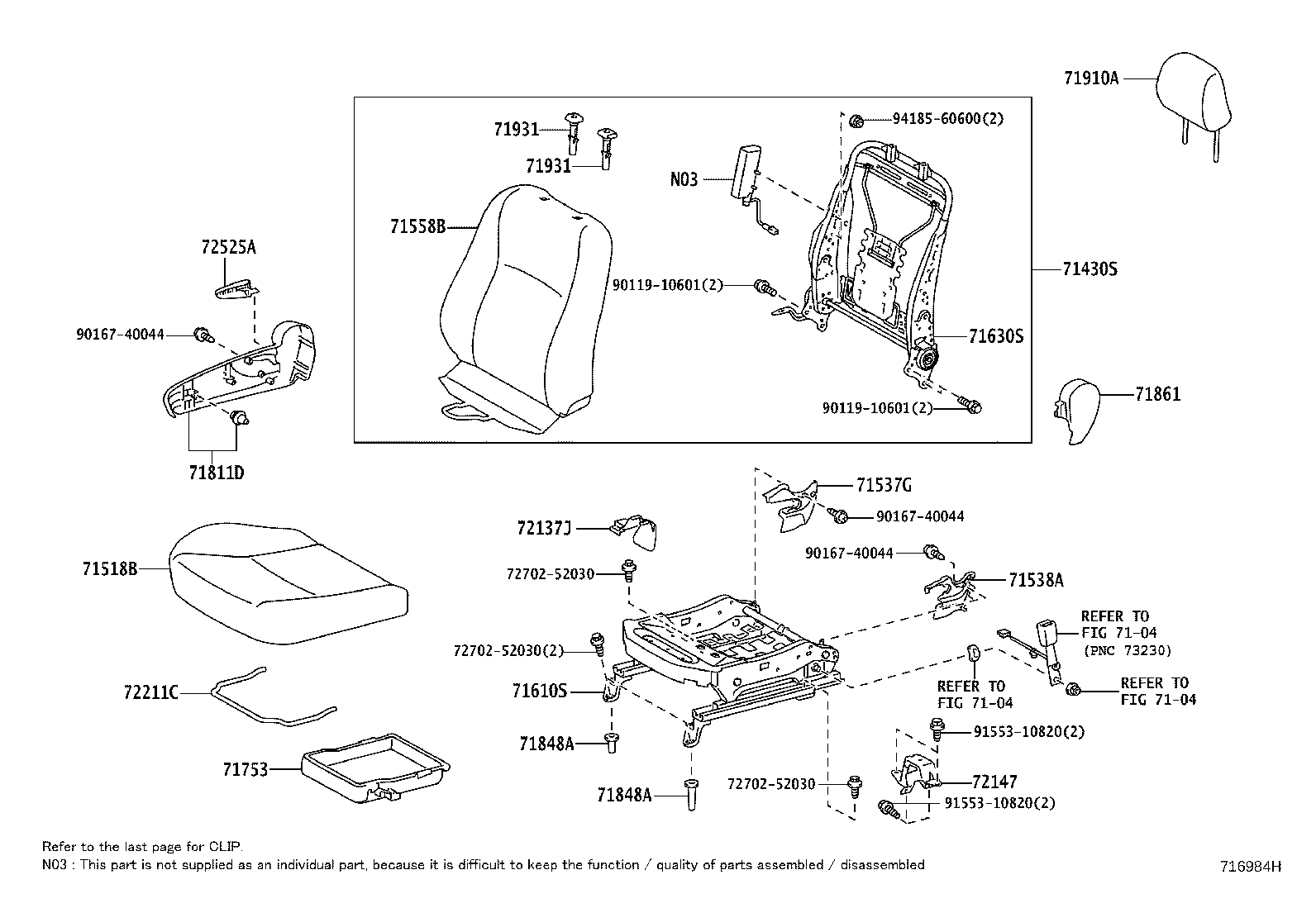

(1011-1106)LHD..LUNA ; (1011- )LHD..TERRA ; (1106- )LHD..CVT
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-52D60A5 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D60A5 |
NSP120..LHD..CVT ISRAEL SPEC,BEIGE,TRIM4# |
1 | ||
| 71430-52D60C6 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D60C7 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D40C3 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52L70C2 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71430-52D40A5 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71430-52D60A6 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D70C3 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D60C6 |
NSP120..LHD..CVT ISRAEL SPEC,BLACK,TRIM2# |
1 | ||
| 71430-52D60C6 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D40E0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71430-52D60C8 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D70C3 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D60E0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D70C4 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D70C4 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52L70C2 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71430-52D60A5 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D40C4 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D61C8 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D41E0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71430-52L70C4 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71430-52D71C4 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D61E0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D41C4 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D71C4 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52T01B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71430-52T00B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71430-52S90B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71430-52L71C4 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71430-52S91B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52S10A1 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71518-52S00A1 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71518-52S10C2 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71518-52S10A1 |
NSP120..LHD..CVT ISRAEL SPEC,BEIGE,TRIM4# |
1 | ||
| 71518-52S00C1 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71518-52P20A0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71518-52P20C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71518-52S20C1 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71518-52S20C1 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71518-52S20C2 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71518-52S10C2 |
NSP120..LHD..CVT ISRAEL SPEC,BLACK,TRIM2# |
1 | ||
| 71518-52S20C3 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52110C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52060C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52W30C1 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71558-52U40C1 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71558-52U50A3 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71558-52U50C2 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71558-52U40A3 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71558-52U50C3 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71558-52T80B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71558-52X80B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71558-52W30C1 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71558-52W30C3 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71558-52U50E0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71558-52U40C2 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71558-52U40E0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52030 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE |
1 | ||
| 71610-52020 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71610-52021 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71610-52030 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE |
1 | ||
| 71610-52031 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52300 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER) |
1 | ||
| 71630-52430 |
NLP121;NSP120..TERRA;NSP120..LHD..LUNA |
1 | ||
| 71630-52300 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52060C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52300C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71811-52300C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52240C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C70B1 |
NLP121,NSP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71910-52C80C1 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C80C1 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C70B2 |
NLP121,NSP120..LUNA DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-52C60C2 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52B20B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
2 | ||
| 71910-52C60C1 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52C70E2 |
NLP121,NSP120..LUNA BEIGE,TRIM4# |
2 | ||
| 71910-52C60C1 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52C70E3 |
NLP121,NSP120..LUNA BEIGE,TRIM4# |
2 | ||
| 71910-52C80C2 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52B20B0 |
NLP121,NSP120..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
2 | ||
| 71910-52C80C2 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-52051C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52080 |
NLP121,NSP120 |
1 | ||
| 72147-52081 |
NLP121,NSP120 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NLP121,NSP120 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 91553-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1011- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

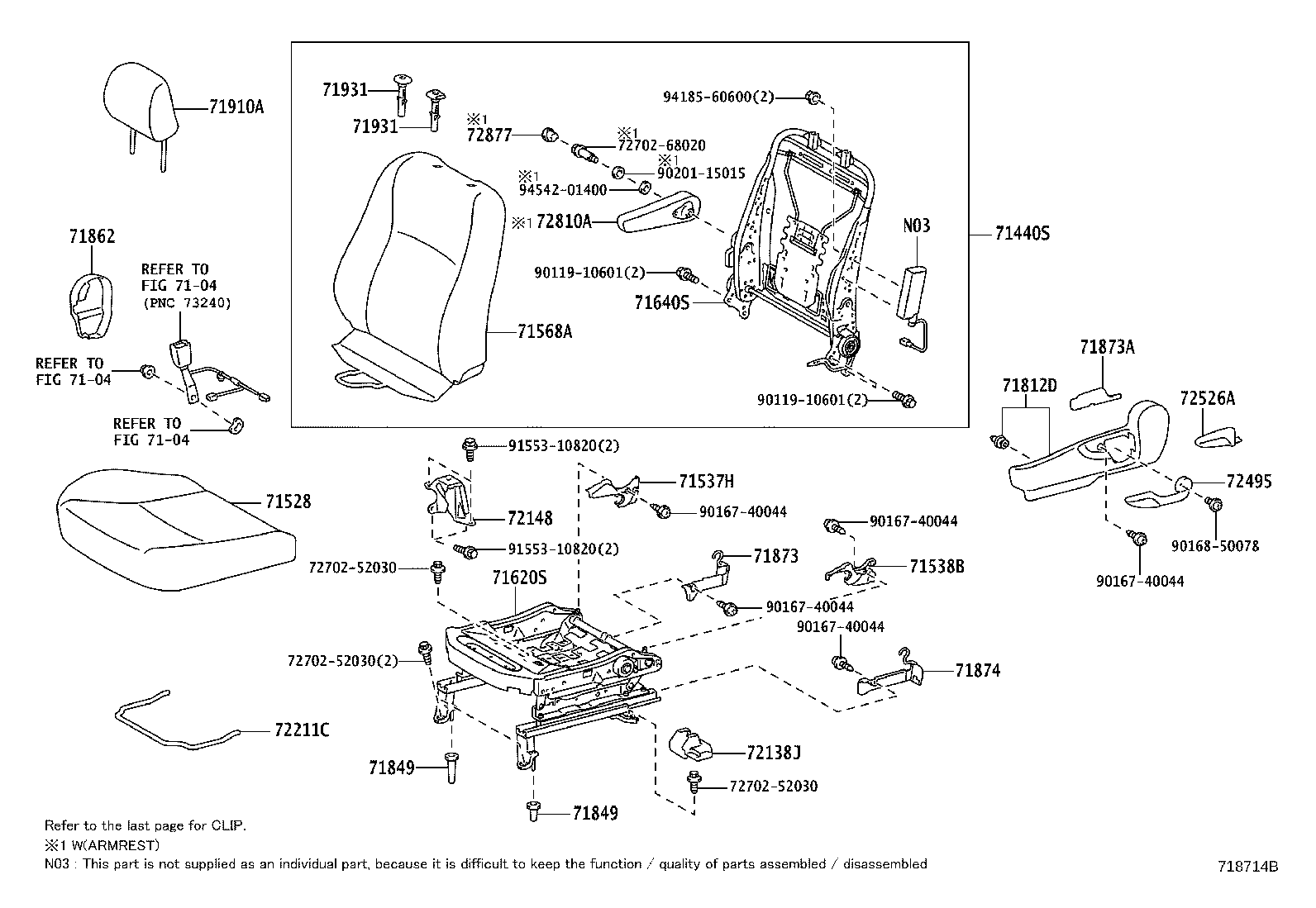

(1011-1106)LHD..LUNA ; (1011- )LHD..TERRA ; (1106- )LHD..CVT
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52C80A6 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71440-52C90A6 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52D10C4 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C90C7 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52M40C2 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71440-52C90C6 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52C90A6 |
NSP120..LHD..CVT ISRAEL SPEC,BEIGE,TRIM4# |
1 | ||
| 71440-52C90A6 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52D10C4 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C90C7 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52C80E0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71440-52C90E0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52C90C7 |
NSP120..LHD..CVT ISRAEL SPEC,BLACK,TRIM2# |
1 | ||
| 71440-52M40C2 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71440-52C90A5 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52D10C5 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C80C5 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C90C8 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52D10C5 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C81C5 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52T30B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71440-52C80C4 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C81E0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71440-52T20B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71440-52M40C4 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71440-52D11C5 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52T21B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71440-52C91E0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52C91C8 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52T31B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71440-52M41C4 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71440-52D11C5 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52R50A1 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71528-52R40A1 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71528-52R50C2 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71528-52S70A0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71528-52R50C2 |
NSP120..LHD..CVT ISRAEL SPEC,BLACK,TRIM2# |
1 | ||
| 71528-52S70C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71528-52R40C1 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71528-52R60C3 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71528-52R60C2 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71528-52R50A1 |
NSP120..LHD..CVT ISRAEL SPEC,BEIGE,TRIM4# |
1 | ||
| 71528-52R60C1 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71528-52R60C1 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52100C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52050C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52P80C1 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71568-52R20C1 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71568-52P80A3 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71568-52R20C1 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71568-52P90C2 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71568-52R20C3 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
1 | ||
| 71568-52P90A3 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71568-52P80E0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71568-52P80C2 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71568-52P00B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
1 | ||
| 71568-52P90E0 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71568-52P10B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
1 | ||
| 71568-52P90C3 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52031 |
NLP121,NSP120..LHD |
1 | ||
| 71620-52030 |
NLP121,NSP120..LHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52220 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE |
1 | ||
| 71640-52070 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER) |
1 | ||
| 71640-52060 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71640-52070 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71640-52220 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52310C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71812-52310C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52190C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
NLP121,NSP120..LHD |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-52230C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52220C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C80C1 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C80C1 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C70B2 |
NLP121,NSP120..LUNA DK.GRAY,TRIM1#,2# |
2 | ||
| 71910-52C60C2 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52B20B0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1# |
2 | ||
| 71910-52C60C1 |
NSP120..LHD..CVT ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52C70E2 |
NLP121,NSP120..LUNA BEIGE,TRIM4# |
2 | ||
| 71910-52C60C1 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2# |
2 | ||
| 71910-52C70E3 |
NLP121,NSP120..LUNA BEIGE,TRIM4# |
2 | ||
| 71910-52C80C2 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52B20B0 |
NLP121,NSP120..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE(SILVER STECH),DK.GRAY,TRIM1# |
2 | ||
| 71910-52C80C2 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C70B1 |
NLP121,NSP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-52061C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52081 |
NLP121,NSP120 |
1 | ||
| 72148-52080 |
NLP121,NSP120 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NLP121,NSP120 |
2 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-21010C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-52110A1 |
NLP121..6F..LUNA;NSP120..LHD..LUNA BEIGE,TRIM40 |
1 | ||
| 72810-52120C1 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 72810-52120C1 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72810-52110B1 |
NLP121..6F..LUNA;NSP120..LHD..LUNA DARK GRAY,TRIM1#,2#,44 |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 71877-52010A0 |
NLP121,NSP120..LHD..LUNA SHELL,TRIM40 |
1 | ||
| 71877-52010C0 |
NSP120..LHD..CVT HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER),BLACK,TRIM2# |
1 | ||
| 71877-52010C0 |
NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71877-52010C0 |
NLP121..6F..LUNA;NSP120..LHD..LUNA BLACK,TRIM1#,2#,40,44 |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 72702-68020 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-15015 | ||||
| 91553-10820 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
