NSP120L-CHXGKW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011-1504)

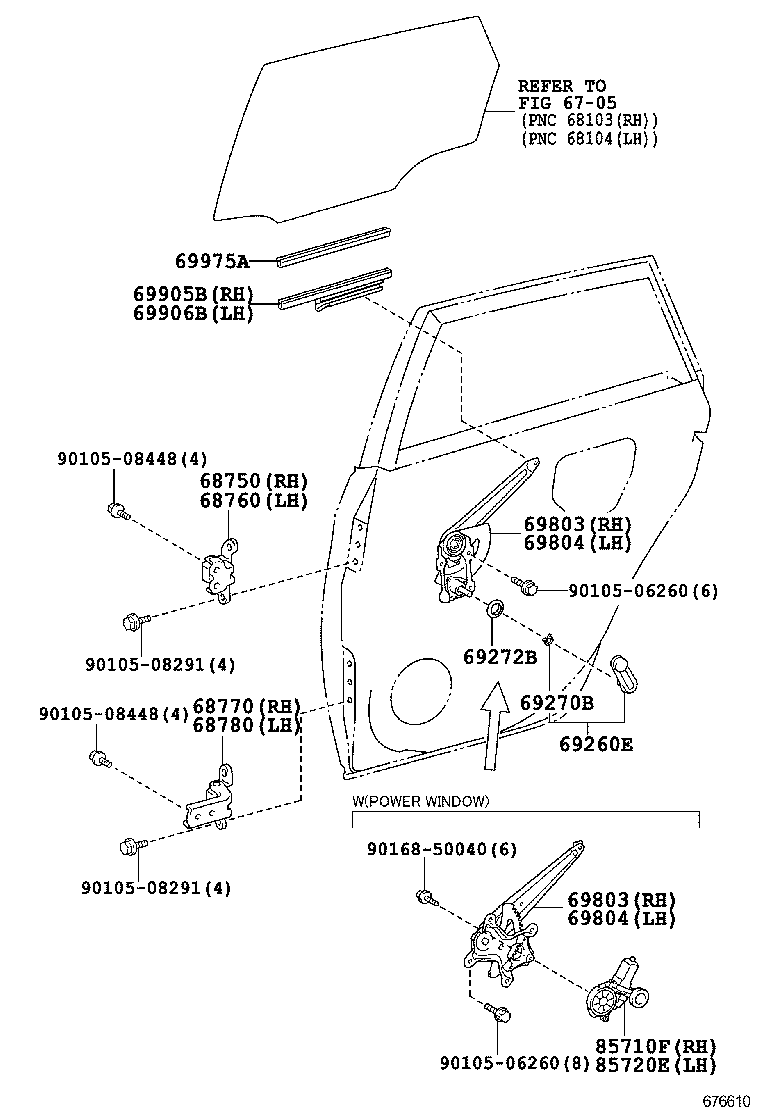

Click highlighted areas on diagram

diagram 6705 68750 68760 68770 68780 69260E 69270B 69272B 69803 69803 69804 69804 69905B 69906B 69975A 85710F 85720E 9010506260 9010506260 9010508291 9010508291 9010508448 9010508448 9016850040
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20121

NLP121,NSP120

 1
68750-20122

NLP121,NSP120

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20121

NLP121,NSP120

 1
68760-20122

NLP121,NSP120

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-52031

NLP121,NSP120

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-52031

NLP121,NSP120

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-14030C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 2
69260-14030C0

NLP121,NSP120..LUNA

HI GRADE (WITHOUT PANORAMA),BLACK,TRIM1#,2#,4#

 2
69260-14030C0

NLP121,NSP120..LUNA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#,2#,4#

 2
69260-14030C0

NLP121,NSP120..LUNA

HI GRADE(WITH/PANORAMA),BLACK,TRIM1#,2#,4#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

NLP121,NSP120..LUNA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

 2
90520-01274

NLP121,NSP120..LUNA

HI GRADE (WITHOUT PANORAMA)

 2
90520-01274

NLP121,NSP120

 2
90520-01274

NLP121,NSP120..LUNA

HI GRADE(WITH/PANORAMA)

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69268-52010

NLP121,NSP120..LUNA

HI GRADE(WITH/PANORAMA)

 2
69268-52010

NLP121,NSP120

 2
69268-52010

NLP121,NSP120..LUNA

HI GRADE (WITHOUT PANORAMA)

 2
69268-52010

NLP121,NSP120..LUNA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-52240

NLP121,NSP120

 1
69803-42040

NLP121,NSP120..LUNA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-52240

NLP121,NSP120

 1
69803-42040

NLP121,NSP120..LUNA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-52240

NLP121,NSP120

 1
69804-42040

NLP121,NSP120..LUNA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-52240

NLP121,NSP120

 1
69804-42040

NLP121,NSP120..LUNA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-53010

NLP121,NSP120

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-53010

NLP121,NSP120

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

NLP121,NSP120

 2
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-52150

NLP121,NSP120..LUNA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-52160

NLP121,NSP120..LUNA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

 1
Common parts
90105-06260
90105-08291
90105-08448
90168-50040
Linked diagrams
6705
