NSP120L-CHXGKW (2010)
Toyota Verso-S
ILLUST NO. 2 OF 2(1011- )
PACKAGE TRAY TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-52040 |
NLP121,NSP120 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT |
2 | ||
| 64306-52040 |
NLP121,NSP120 |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-52040 |
NLP121,NSP120 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT |
2 | ||
| 64306-52040 |
NLP121,NSP120 |
2 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-52380B1 |
NLP121,NSP120..LUNA PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,DK.GRAY,TRIM1#,2#,4# |
1 | ||
| 64330-52380B1 |
NLP121,NSP120..LUNA DK.GRAY,TRIM1#,2#,4# |
1 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-12020 |
NLP121,NSP120 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT |
2 | ||
| 64376-12020 |
NLP121,NSP120 |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NLP121,NSP120 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT |
2 | ||
| 64381-52010 |
NLP121,NSP120 |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NLP121,NSP120 PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT |
2 | ||
| 64381-52010 |
NLP121,NSP120 |
2 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-52080B0 |
NLP121,NSP120..LUNA DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 64910-52080B0 |
NLP121,NSP120..LUNA PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,DARK GRAY,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90467-07181 | ||||

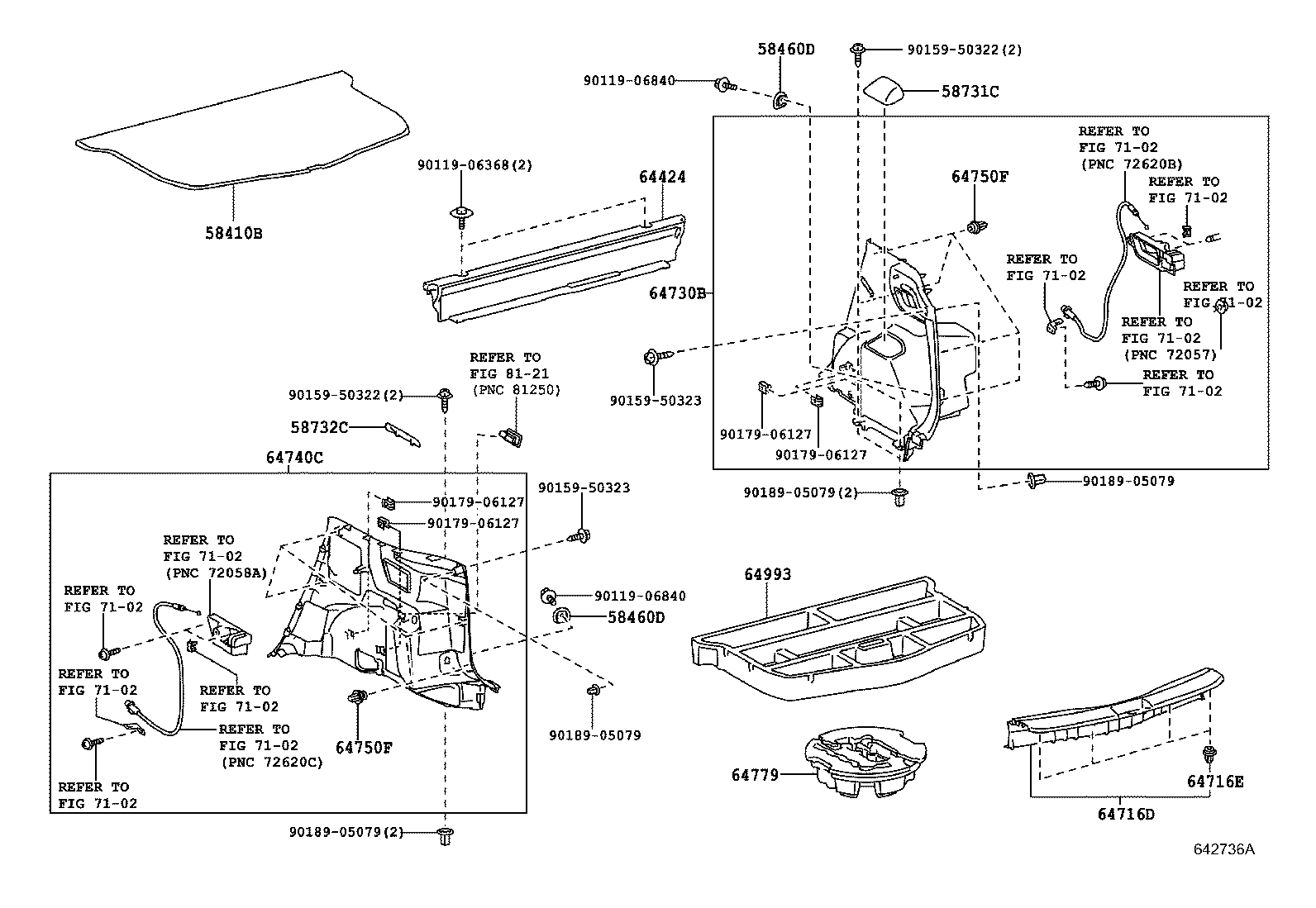

ILLUST NO. 1 OF 2(1011- )LUNA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 90467-05164C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
5 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-52070B0 |
NSP120..LHD..CVT REUNION SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT UKRAINE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ENTRY GRADE&SPARE TIRE-T135/70 D16,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT TURKEY SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..LUNA RUSSIA SPEC&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ENTRY GRADE,DARK GRAY,TRIM2# |
1 | ||
| 58410-52060B0 |
NLP121,NSP120..LUNA DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NLP121,NSP120 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NLP121,NSP120 |
2 | ||
| 58556D - SILENCER, REAR FLOOR | ||||
| 58556-52010 |
NLP121,NSP120..LUNA |
1 | ||
| 58582D - MAT, REAR FLOOR, REAR | ||||
| 58582-52010B0 |
NLP121,NSP120..LUNA DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 58731-52050C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58731-52050C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 58731-52050C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 58732-52030C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64424 - SEPARATOR, LUGGAGE ROOM BOX | ||||
| 64424-52020C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2# |
1 | ||
| 64424-52020C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-52160C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
NLP121,NSP120 |
4 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52360C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64730-52360C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64730-52360C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 64730-52360C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52400C0 |
NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 64741B - BOX, DECK SIDE TRIM, RH | ||||
| 64741-52020C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-52010C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NLP121,NSP120 |
8 | ||
| 90467-10161 |
NSP120..LHD..LUNA RUSSIA SPEC |
20 | ||
| 90467-10161 |
NSP120..LHD..CVT ENTRY GRADE |
20 | ||
| 90467-10161 |
NLP121,NSP120..LUNA |
16 | ||
| 90467-10161 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE |
20 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NLP121,NSP120 |
8 | ||
| 90467-10161 |
NSP120..LHD..LUNA RUSSIA SPEC |
20 | ||
| 90467-10161 |
NSP120..LHD..CVT ENTRY GRADE |
20 | ||
| 90467-10161 |
NLP121,NSP120..LUNA |
16 | ||
| 90467-10161 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE |
20 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-06840 | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90179-06127 | ||||
| 90189-05079 | ||||
| Linked diagrams | ||||
| 7102 | ||||
| 8121 | ||||

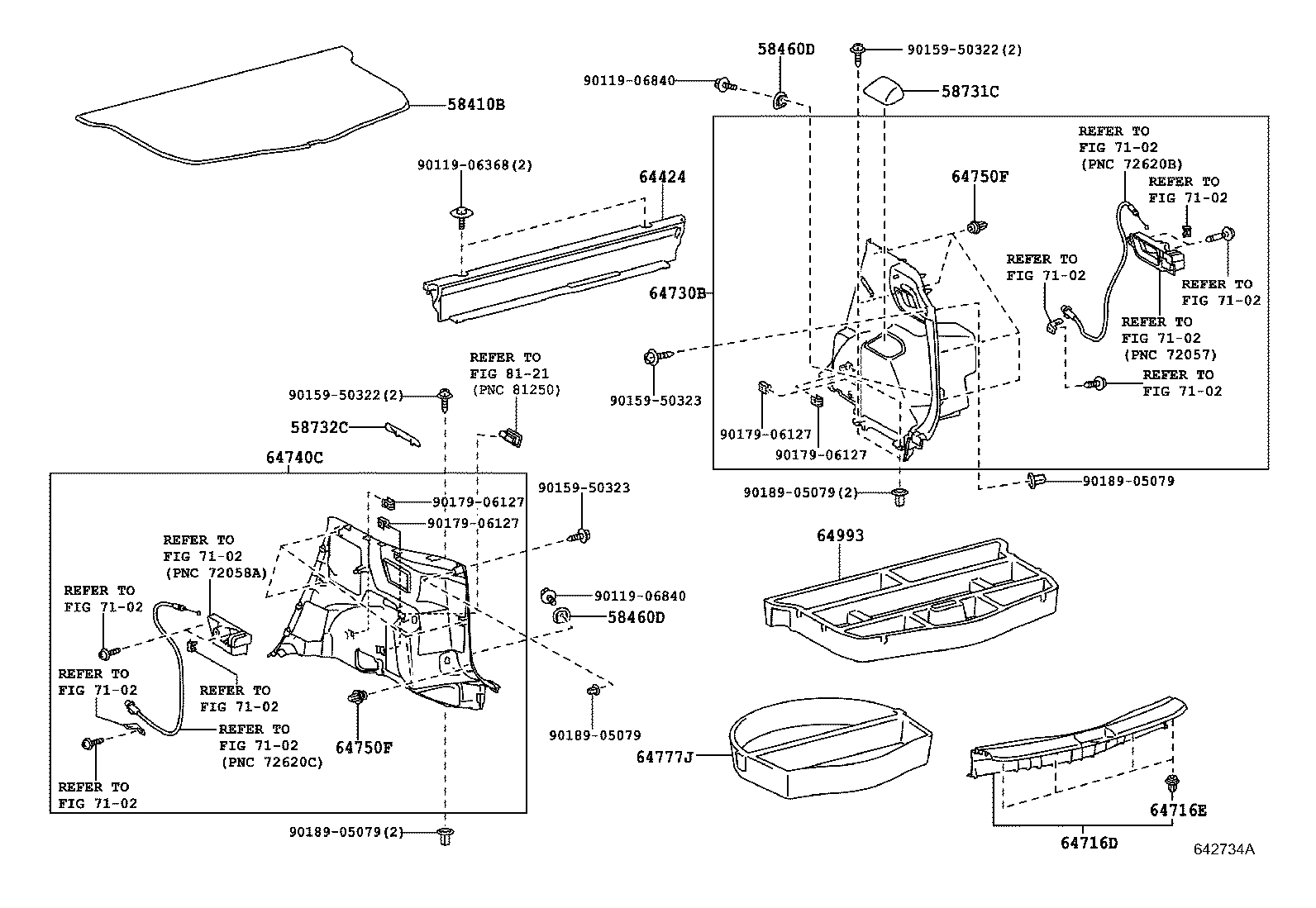

ILLUST NO. 1 OF 2(1011- )TERRA ; (1011- )LHD..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-52070B0 |
NSP120..LHD..CVT REUNION SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT UKRAINE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ENTRY GRADE&SPARE TIRE-T135/70 D16,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT TURKEY SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..LUNA RUSSIA SPEC&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ENTRY GRADE,DARK GRAY,TRIM2# |
1 | ||
| 58410-52060B0 |
NLP121,NSP120..LUNA DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NLP121,NSP120 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NLP121,NSP120 |
2 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 58731-52050C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58731-52050C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 58731-52050C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 58732-52030C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64424 - SEPARATOR, LUGGAGE ROOM BOX | ||||
| 64424-52020C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2# |
1 | ||
| 64424-52020C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-52160C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
NLP121,NSP120 |
4 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52360C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64730-52360C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64730-52360C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 64730-52360C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52400C0 |
NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NLP121,NSP120 |
8 | ||
| 90467-10161 |
NSP120..LHD..LUNA RUSSIA SPEC |
20 | ||
| 90467-10161 |
NSP120..LHD..CVT ENTRY GRADE |
20 | ||
| 90467-10161 |
NLP121,NSP120..LUNA |
16 | ||
| 90467-10161 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE |
20 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NLP121,NSP120 |
8 | ||
| 90467-10161 |
NSP120..LHD..LUNA RUSSIA SPEC |
20 | ||
| 90467-10161 |
NSP120..LHD..CVT ENTRY GRADE |
20 | ||
| 90467-10161 |
NLP121,NSP120..LUNA |
16 | ||
| 90467-10161 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE |
20 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-52030 |
NSP120..LHD..CVT ENTRY GRADE |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52060 |
NSP120..LHD..CVT REUNION SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT TURKEY SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT ENTRY GRADE&SPARE TIRE-T135/70 D16 |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT ENTRY GRADE |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT UKRAINE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..LUNA RUSSIA SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-06840 | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90179-06127 | ||||
| 90189-05079 | ||||
| Linked diagrams | ||||
| 7102 | ||||
| 8121 | ||||
ILLUST NO. 1 OF 2(1011- )LUNA
W(SPARE TIRE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-52070B0 |
NSP120..LHD..CVT REUNION SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT UKRAINE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ENTRY GRADE&SPARE TIRE-T135/70 D16,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT TURKEY SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..LUNA RUSSIA SPEC&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ENTRY GRADE,DARK GRAY,TRIM2# |
1 | ||
| 58410-52060B0 |
NLP121,NSP120..LUNA DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NLP121,NSP120 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NLP121,NSP120 |
2 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 58731-52050C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58731-52050C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 58731-52050C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 58732-52030C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64424 - SEPARATOR, LUGGAGE ROOM BOX | ||||
| 64424-52020C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2# |
1 | ||
| 64424-52020C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-52160C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
NLP121,NSP120 |
4 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52360C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64730-52360C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64730-52360C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 64730-52360C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52400C0 |
NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 64741B - BOX, DECK SIDE TRIM, RH | ||||
| 64741-52020C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-52010C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NLP121,NSP120 |
8 | ||
| 90467-10161 |
NSP120..LHD..LUNA RUSSIA SPEC |
20 | ||
| 90467-10161 |
NSP120..LHD..CVT ENTRY GRADE |
20 | ||
| 90467-10161 |
NLP121,NSP120..LUNA |
16 | ||
| 90467-10161 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE |
20 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NLP121,NSP120 |
8 | ||
| 90467-10161 |
NSP120..LHD..LUNA RUSSIA SPEC |
20 | ||
| 90467-10161 |
NSP120..LHD..CVT ENTRY GRADE |
20 | ||
| 90467-10161 |
NLP121,NSP120..LUNA |
16 | ||
| 90467-10161 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE |
20 | ||
| 64771G - COVER, SPARE WHEEL | ||||
| 64771-52180B0 |
NSP120..LHD..LUNA UKRAINE SPEC&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 64771-52180B0 |
NSP120..LHD..LUNA TURKEY SPEC&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 64771-52180B0 |
NLP121,NSP120..LUNA SPARE TIRE-T135/70 D16,DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 64771-52180B0 |
NSP120..LHD..LUNA REUNION SPEC&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 64771-52180B0 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 64771-52180B0 |
NSP120..LHD..CVT ISRAEL SPEC&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-46010 |
NSP120..LHD..CVT UKRAINE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..LUNA REUNION SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT REUNION SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT TURKEY SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..LUNA RUSSIA SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..LUNA UKRAINE SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NLP121,NSP120 SPARE TIRE-T135/70 D16 |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT ENTRY GRADE&SPARE TIRE-T135/70 D16 |
1 | ||
| 64779-46010 |
NSP120..LHD..LUNA TURKEY SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT ISRAEL SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-06840 | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90179-06127 | ||||
| 90189-05079 | ||||
| Linked diagrams | ||||
| 7102 | ||||
| 8121 | ||||
ILLUST NO. 1 OF 2(1011- )TERRA ; (1011- )NSP120..LHD..LUNA
W(SRARE TIRE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-52070B0 |
NSP120..LHD..CVT REUNION SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT UKRAINE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ENTRY GRADE&SPARE TIRE-T135/70 D16,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT TURKEY SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..LUNA RUSSIA SPEC&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ENTRY GRADE,DARK GRAY,TRIM2# |
1 | ||
| 58410-52060B0 |
NLP121,NSP120..LUNA DARK GRAY,TRIM1#,2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58410-52070B0 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NLP121,NSP120 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NLP121,NSP120 |
2 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 58731-52050C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58731-52050C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 58731-52050C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 58732-52030C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 58732-52030C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64424 - SEPARATOR, LUGGAGE ROOM BOX | ||||
| 64424-52020C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2# |
1 | ||
| 64424-52020C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-52160C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
NLP121,NSP120 |
4 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52360C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64730-52360C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64730-52360C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 64730-52360C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52400C0 |
NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-52620C0 |
NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NLP121,NSP120 |
8 | ||
| 90467-10161 |
NSP120..LHD..LUNA RUSSIA SPEC |
20 | ||
| 90467-10161 |
NSP120..LHD..CVT ENTRY GRADE |
20 | ||
| 90467-10161 |
NLP121,NSP120..LUNA |
16 | ||
| 90467-10161 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE |
20 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NLP121,NSP120 |
8 | ||
| 90467-10161 |
NSP120..LHD..LUNA RUSSIA SPEC |
20 | ||
| 90467-10161 |
NSP120..LHD..CVT ENTRY GRADE |
20 | ||
| 90467-10161 |
NLP121,NSP120..LUNA |
16 | ||
| 90467-10161 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE |
20 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-46010 |
NSP120..LHD..CVT UKRAINE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..LUNA REUNION SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT REUNION SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT TURKEY SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..LUNA RUSSIA SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..LUNA UKRAINE SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NLP121,NSP120 SPARE TIRE-T135/70 D16 |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT ENTRY GRADE&SPARE TIRE-T135/70 D16 |
1 | ||
| 64779-46010 |
NSP120..LHD..LUNA TURKEY SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64779-46010 |
NSP120..LHD..CVT ISRAEL SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-52060 |
NSP120..LHD..CVT REUNION SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT TURKEY SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT ENTRY GRADE&SPARE TIRE-T135/70 D16 |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT ENTRY GRADE |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT UKRAINE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT ISRAEL SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..CVT GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| 64993-52060 |
NSP120..LHD..LUNA RUSSIA SPEC&SPARE TIRE-T135/70 D16 TEMPORARY |
1 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-06840 | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90179-06127 | ||||
| 90189-05079 | ||||
| Linked diagrams | ||||
| 7102 | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
