NSP120L-CHXGKW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

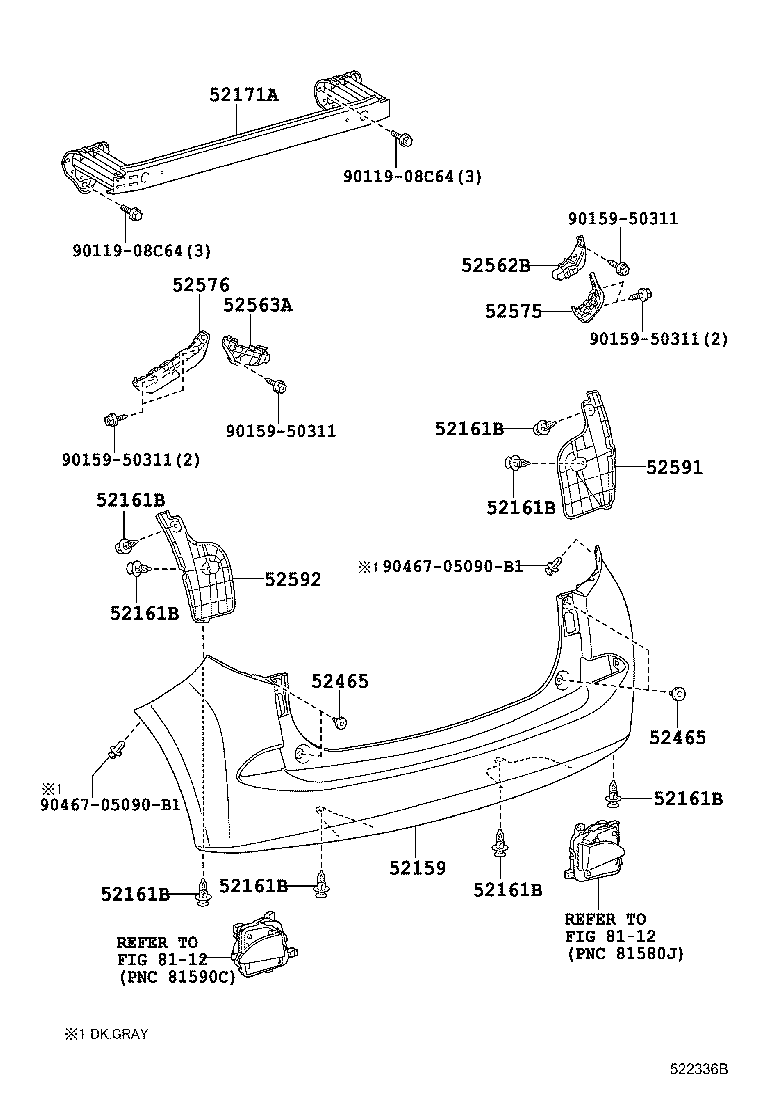

Click highlighted areas on diagram

diagram 52159 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52171A 52465 52465 52562B 52563A 52575 52576 52591 52592 8112 8112 9011908C64 9011908C64 9015950311 9015950311 9015950311 9015950311 9046705090B1 9046705090B1
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-52973

NLP121,NSP120

 1
52159-52964

NLP121,NSP120

 1
52161B - PIECE, REAR BUMPER
52161-16010

NLP121,NSP120

 8
52161B - PIECE, REAR BUMPER
52161-16010

NLP121,NSP120

 8
52161B - PIECE, REAR BUMPER
52161-16010

NLP121,NSP120

 8
52161B - PIECE, REAR BUMPER
52161-16010

NLP121,NSP120

 8
52161B - PIECE, REAR BUMPER
52161-16010

NLP121,NSP120

 8
52161B - PIECE, REAR BUMPER
52161-16010

NLP121,NSP120

 8
52161B - PIECE, REAR BUMPER
52161-16010

NLP121,NSP120

 8
52161B - PIECE, REAR BUMPER
52161-16010

NLP121,NSP120

 8
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-52110

NSP120..LHD

RUSSIA SPEC

 1
52023-52110

NLP121,NSP120

 1
52465 - CUSHION, REAR BUMPER, NO.1
52461-52020

NLP121,NSP120

 4
52465 - CUSHION, REAR BUMPER, NO.1
52461-52020

NLP121,NSP120

 4
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-52050

NLP121,NSP120

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-52020

NLP121,NSP120

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52120

NLP121,NSP120

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52100

NLP121,NSP120

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52290

NLP121,NSP120

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52280

NLP121,NSP120

 1
Common parts
90119-08C64
90159-50311
90467-05090B1
Linked diagrams
8112
