NSP120L-CHXGKW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )LHD

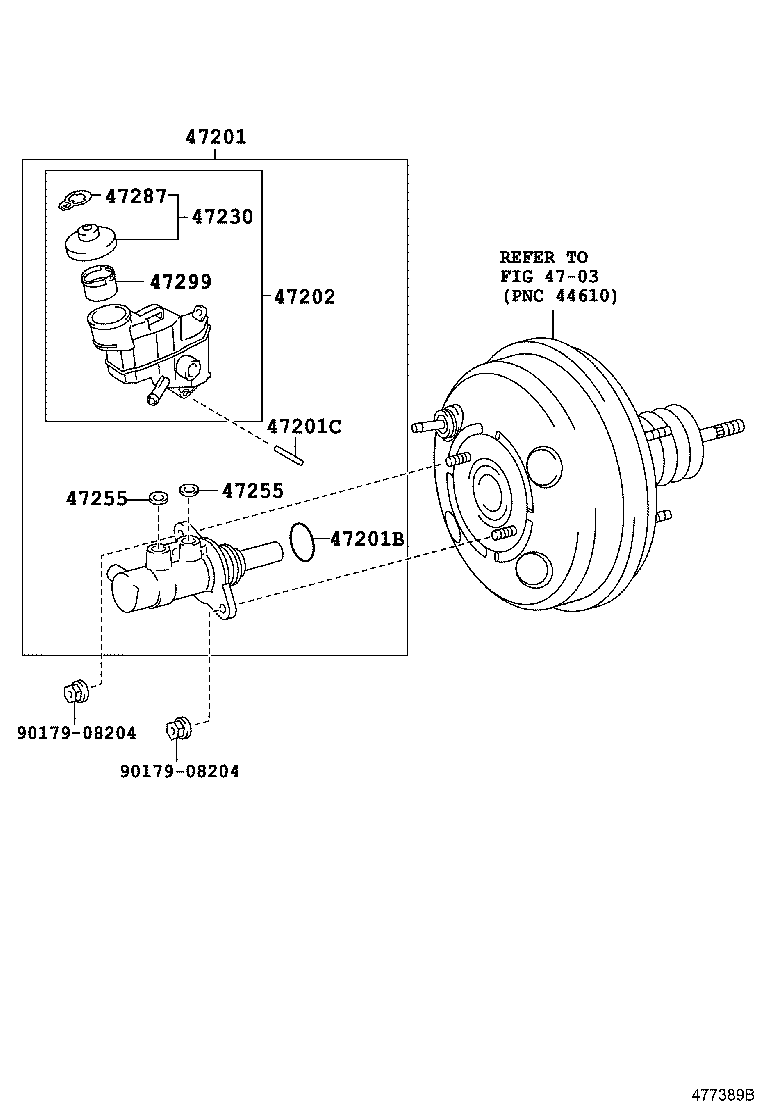

Click highlighted areas on diagram

diagram 4703 47201 47201B 47201C 47202 47230 47255 47255 47287 47299 9017908204 9017908204
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-52530

NSP120..LHD..CVT

RUSSIA SPEC&VSC-WITHOUT

 1
47201-52550

NSP120..LHD..CVT

 1
47201-52530

NSP120..LHD..CVT

UKRAINE SPEC&VSC-WITHOUT

 1
47201-52530

NSP120..LHD..CVT

TURKEY SPEC&VSC-WITHOUT

 1
47201-52531

NSP120..LHD..CVT

UKRAINE SPEC&VSC-WITHOUT

 1
47201-52531

NSP120..LHD..CVT

TURKEY SPEC&VSC-WITHOUT

 1
47201-52531

NSP120..LHD..CVT

RUSSIA SPEC&VSC-WITHOUT

 1
47201-52532

NSP120..LHD..CVT

TURKEY SPEC&VSC-WITHOUT

 1
47201-52551

NSP120..LHD..CVT

 1
47201-52532

NSP120..LHD..CVT

UKRAINE SPEC&VSC-WITHOUT

 1
47201-52552

NSP120..LHD..CVT

 1
47201-52532

NSP120..LHD..CVT

RUSSIA SPEC&VSC-WITHOUT

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH002

NLP121..6F;NSP120..LHD

TURKEY SPEC&VSC-WITHOUT

 1
90015-AH002

NSP120..LHD

RUSSIA SPEC&VSC-WITHOUT

 1
90015-AH002

NSP120;NLP121..6F

 1
90015-AH002

NSP120..LHD

UKRAINE SPEC&VSC-WITHOUT

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803

NSP120..LHD

RUSSIA SPEC&VSC-WITHOUT

 1
90029-15803

NLP121..6F;NSP120..LHD

TURKEY SPEC&VSC-WITHOUT

 1
90029-15803

NSP120..LHD

UKRAINE SPEC&VSC-WITHOUT

 1
90029-15803

NSP120;NLP121..6F

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-52250

NLP121..6FS;NSP120..LHD..CVT

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

NSP120..LHD

UKRAINE SPEC&VSC-WITHOUT

 2
90029-48001

NSP120..LHD

RUSSIA SPEC&VSC-WITHOUT

 2
90029-48001

NLP121..6F;NSP120..LHD

TURKEY SPEC&VSC-WITHOUT

 2
90029-48001

NSP120;NLP121..6F

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

NSP120..LHD

UKRAINE SPEC&VSC-WITHOUT

 2
90029-48001

NSP120..LHD

RUSSIA SPEC&VSC-WITHOUT

 2
90029-48001

NLP121..6F;NSP120..LHD

TURKEY SPEC&VSC-WITHOUT

 2
90029-48001

NSP120;NLP121..6F

 2
Common parts
90179-08204
Linked diagrams
4703
