NSP120L-CHXGKW (2010)
Toyota Verso-S
Production
Nov 2010
-
May 2014
Engine
1NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1011- )

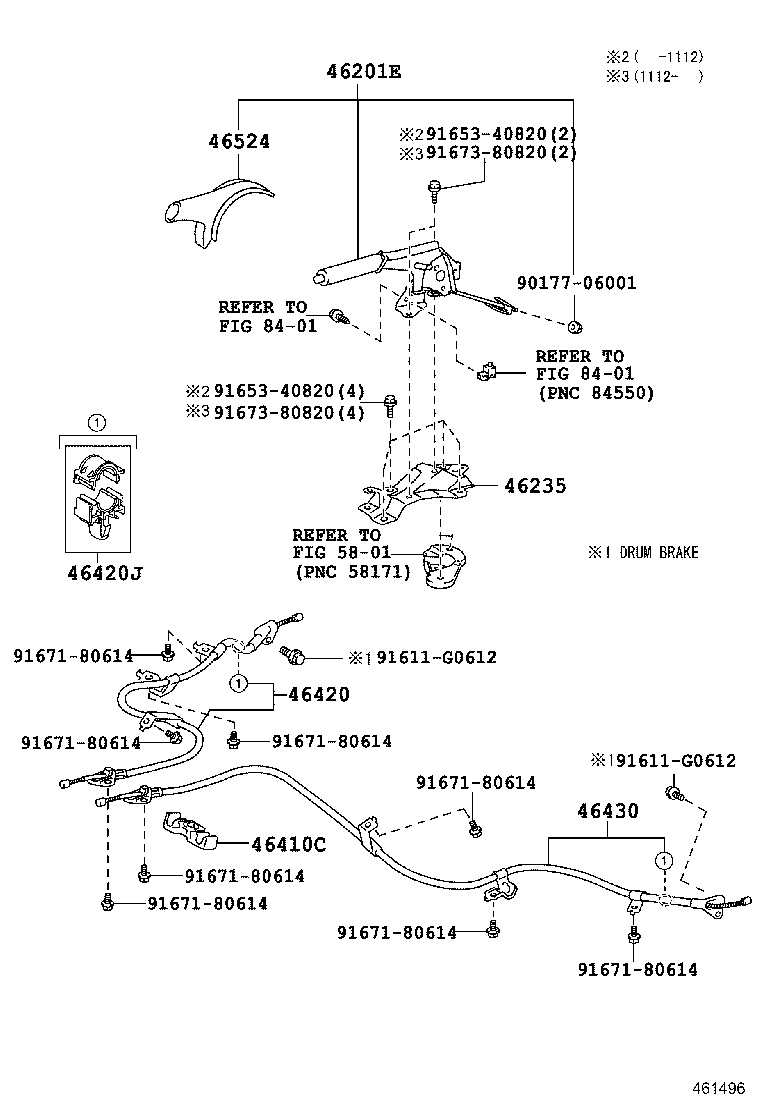

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-52120C0 |
NLP121..6F..LUNA;NSP120..LHD..LUNA REAR WHEEL BRAKE-DISK(BUILT-IN),BLACK,TRIM1#,2#,4# |
1 | ||
| 46201-52110C0 |
NSP120..LUNA;NLP121..6F..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 46235 - BRACKET, PARKING BRAKE LEVER SUPPORT | ||||
| 46235-52040 |
NLP121,NSP120 |
1 | ||
| 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) | ||||
| 46411-52030 |
NLP121,NSP120 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-52330 |
NSP120;NLP121..6F |
1 | ||
| 46420-52340 |
NLP121..6F;NSP120..LHD REAR WHEEL BRAKE-DISK(BUILT-IN) |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46402-52030 |
NLP121,NSP120 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-52250 |
NSP120;NLP121..6F |
1 | ||
| 46430-52330 |
NLP121..6F;NSP120..LHD REAR WHEEL BRAKE-DISK(BUILT-IN) |
1 | ||
| 46524 - COVER, PARKING BRAKE DUST | ||||
| 46524-52040C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90177-06001 | ||||
| 91611-G0612 | ||||
| 91653-40820 | ||||
| 91671-80614 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 8401 | ||||
