NSP120L-CHXGKW (2010)
Toyota Verso-S
Production
Nov 2010
-
May 2014
Engine
1NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1011- )1NRFE..CVT

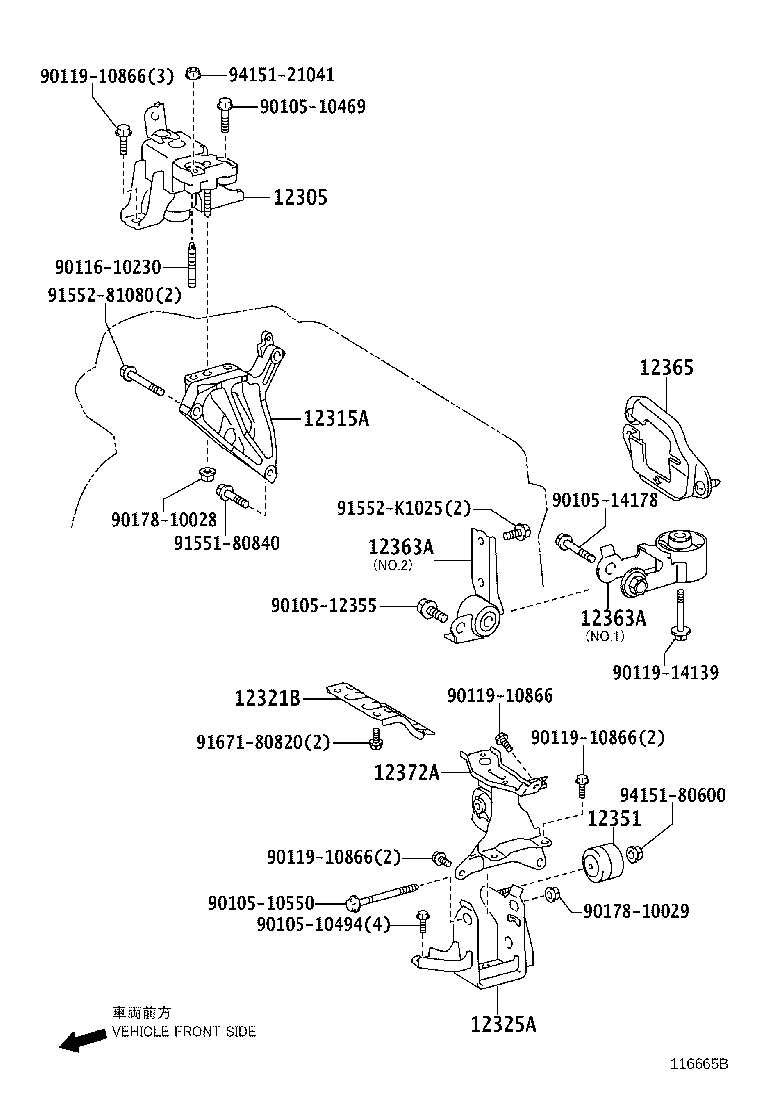

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-47070 |
1NRFE..NSP120 |
1 | ||
| 12305-47071 |
1NRFE..NSP120 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-47040 |
1NRFE..NSP120 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-52070 |
1NRFE..NSP120..CVT |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-47120 |
1NRFE..NSP120..CVT |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-37100 |
1NRFE..NSP120..CVT |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12364-47010 |
1NRFE..NSP120..CVT NO.2 |
1 | ||
| 12363-47050 |
1NRFE..NSP120..CVT NO.1 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12364-47010 |
1NRFE..NSP120..CVT NO.2 |
1 | ||
| 12363-47050 |
1NRFE..NSP120..CVT NO.1 |
1 | ||
| 12365 - COVER, ENGINE MOVING CONTROL ROD | ||||
| 12365-40010 |
1N#..NLP121,NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 12365-40010 |
1N#..NLP121,NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT) |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-47090 |
1NRFE..NSP120..CVT |
1 | ||
| Common parts | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12355 | ||||
| 90105-14178 | ||||
| 90116-10230 | ||||
| 90119-10866 | ||||
| 90119-14139 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 91551-80840 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91671-80820 | ||||
| 94151-21041 | ||||
| 94151-80600 | ||||
