Toyota Verso-s NSP120 CYLINDER BLOCK

Part #	Description	Period	Qty
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113	1NRFE..NSP120 L=22,OD=10	11/2010 - 05/2014	2
15605 - VALVE SUB-ASSY, OIL CHECK
15703-47010	1NRFE..NSP120	11/2010 - 05/2014	1
Common parts
91551-80830
91551-F0855
Linked diagrams
8401

Part #	Description	Period	Qty
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-40010	1NRFE..NSP120	11/2010 - 05/2014	1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-49026	1NRFE..NSP120	07/2013 - 09/2013	1
11410-49025	1NRFE..NSP120	11/2010 - 07/2013	1
11410-49028	1NRFE..NSP120	09/2013 - 05/2014	1
11401L - SEAL, ENGINE REAR OIL
90311-78003	1NRFE..NSP120	11/2010 - 05/2013	1
90311-78005	1NRFE..NSP120	05/2013 - 05/2014	1
90311-99012	1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)	11/2010 - 05/2014	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02175	1NRFE..NSP120	11/2010 - 05/2014	10
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097	1NRFE..NSP120 L=12,OD=4.0	11/2010 - 05/2014	2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017	1NRFE..NSP120	11/2010 - 05/2014	2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017	1NRFE..NSP120	11/2010 - 05/2014	2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-08074	1NRFE..NSP120	11/2010 - 05/2014	2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-47010	1NRFE..NSP120	11/2010 - 05/2014	1
11452 - GUIDE, OIL LEVEL GAGE
11409-47012	1NRFE..NSP120	07/2012 - 05/2014	1
11409-47011	1NRFE..NSP120	11/2010 - 07/2012	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96741-19010	1NRFE..NSP120	11/2010 - 05/2014	1
12101 - PAN SUB-ASSY, OIL
12101-47100	1NRFE..NSP120..CVT	11/2010 - 07/2012	1
12101-47101	1NRFE..NSP120..CVT	07/2012 - 05/2014	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12032	1NRFE..NSP120	11/2010 - 05/2014	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	1N#..NLP121,NSP120	11/2010 - 05/2014	1
12101C - RING, O(FOR OIL PAN)
90301-19023	1NRFE..NSP120	11/2010 - 05/2014	1
12101L - GASKET NO.1(FOR OIL PAN)
90430-12039	1NRFE..NSP120	11/2010 - 05/2014	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-B1060	1NRFE..NSP120	11/2010 - 05/2014	1
13516B - JET, OIL
13516-40010	1NRFE..NSP120	11/2010 - 05/2014	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-47050	1NRFE..NSP120	11/2010 - 05/2014	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-47031	1NRFE..NSP120 TYPE A:REFER ILLUST.	07/2013 - 05/2014	4
15708-47030	1NRFE..NSP120	11/2010 - 02/2011	4
15708-47060	1NRFE..NSP120 TYPE B:REFER ILLUST.	04/2014 - 05/2014	4
15708-47030	1NRFE..NSP120	03/2012 - 07/2013	4
15708-47040	1NRFE..NSP120	02/2011 - 03/2012	4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-47031	1NRFE..NSP120 TYPE A:REFER ILLUST.	07/2013 - 05/2014	4
15708-47030	1NRFE..NSP120	11/2010 - 02/2011	4
15708-47060	1NRFE..NSP120 TYPE B:REFER ILLUST.	04/2014 - 05/2014	4
15708-47030	1NRFE..NSP120	03/2012 - 07/2013	4
15708-47040	1NRFE..NSP120	02/2011 - 03/2012	4
Common parts
90105-10540
90110-06040
90119-06848
91671-80614

NSP120L-CHXGKW (2010)

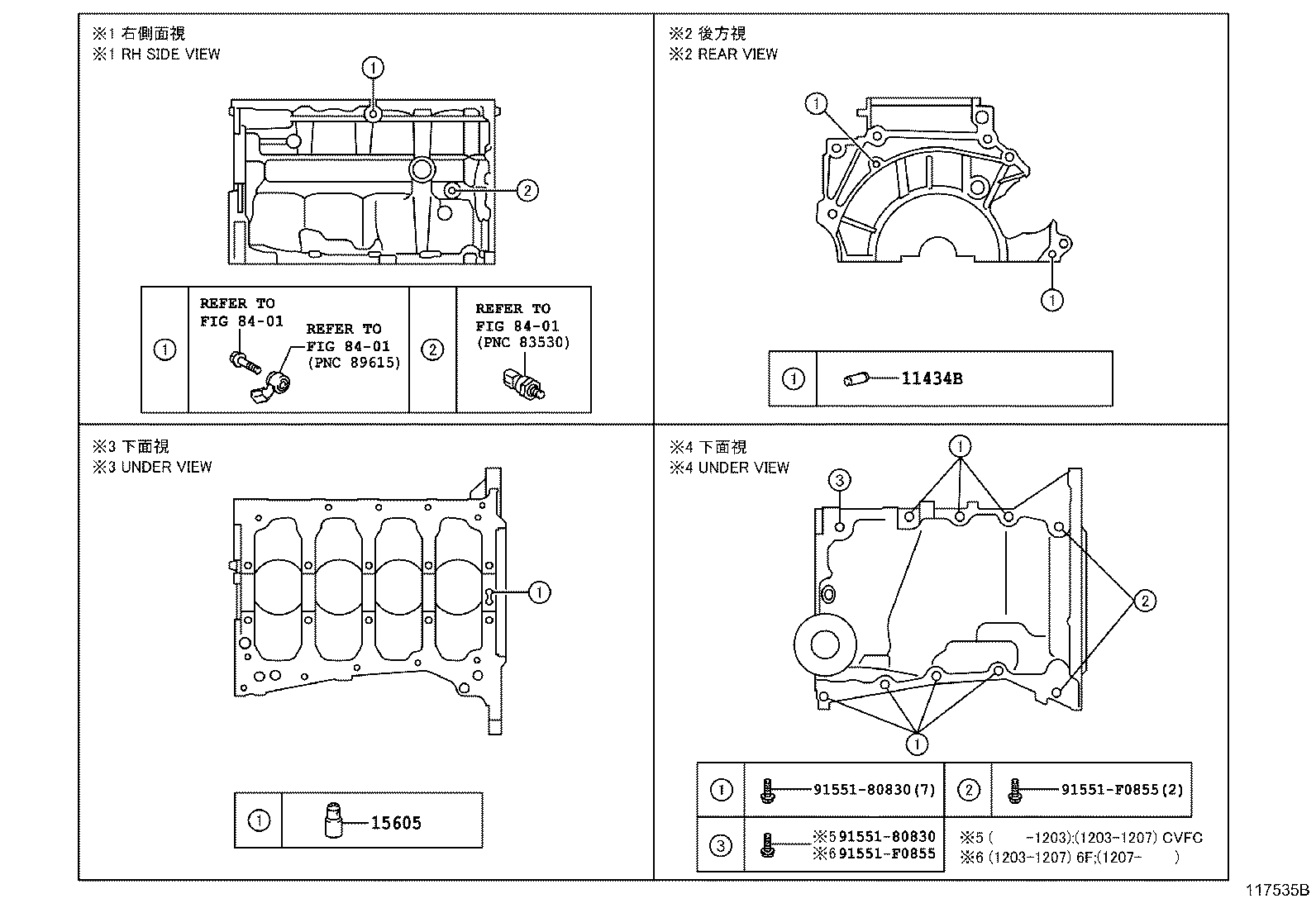

ILLUST NO. 2 OF 2(1011- )1NRFE

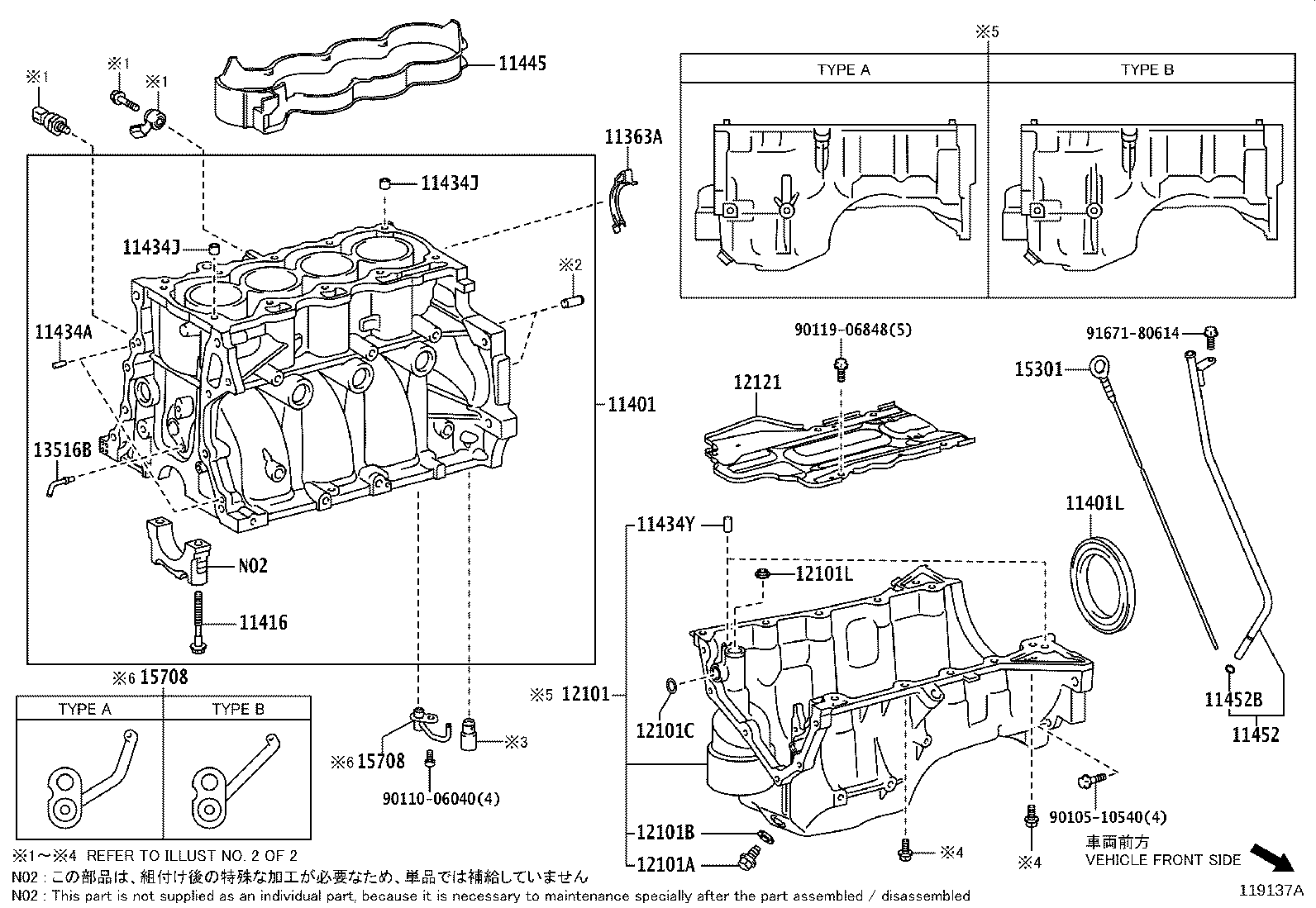

ILLUST NO. 1 OF 2(1011- )1NRFE
