Toyota Verso-s NSP120 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88374-30010	NLP121,NSP120	11/2010 - 05/2014	1
88374-30010	NLP121,NSP120	05/2014 - 04/2015	1
88374-30010	NLP121,NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88374C - VALVE, SERVICE, NO.2
88374-30010	NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88374-30010	NLP121,NSP120	11/2010 - 05/2014	1
88374-30010	NLP121,NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88374-30010	NLP121,NSP120	05/2014 - 04/2015	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	NLP121,NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88375-30280	NLP121,NSP120	11/2010 - 05/2014	1
88375-30280	NLP121,NSP120	05/2014 - 04/2015	1
88375-30280	NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	NLP121,NSP120	11/2010 - 05/2014	1
88375-30290	NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88375-30290	NLP121,NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88375-30290	NLP121,NSP120	05/2014 - 04/2015	1
88460 - CONDENSER ASSY, COOLER
88460-52130	NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88460-52130	NSP120	05/2014 - 04/2015	1
88460-52130	NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88460-52130	NSP120	11/2010 - 05/2014	1
88474 - DRYER, COOLER
88474-12030	NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88474-12030	NLP121,NSP120	11/2010 - 05/2014	1
88474-12030	NLP121,NSP120	05/2014 - 04/2015	1
88474-12030	NLP121,NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88566N - DUCT, COOLER AIR, NO.1
88566-52110	NSP120	11/2010 - 05/2014	1
88566-52110	NSP120	05/2014 - 04/2015	1
88704 - HOSE SUB-ASSY, SUCTION
88704-52220	NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88704-52220	NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88704-52220	NSP120	11/2010 - 05/2014	1
88704-52220	NSP120	05/2014 - 04/2015	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-52540	NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88706-52540	NSP120	11/2010 - 05/2014	1
88706-52620	NSP120	05/2014 - 04/2015	1
88706-52620	NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-52300	NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88707-52300	NSP120	05/2014 - 04/2015	1
88707-52300	NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88707-52300	NSP120	11/2010 - 05/2014	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52370	NSP120	11/2010 - 05/2014	1
88711-52370	NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88711-52370	NSP120	05/2014 - 04/2015	1
88711-52370	NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	NLP121,NSP120	11/2010 - 05/2014	1
88719-33020	NLP121,NSP120	05/2014 - 04/2015	1
88719-33020	NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY)	11/2010 - 05/2014	1
88719-33020	NLP121,NSP120 FRONT AIR CONDITIONER-L/UNIT(W/DIAL ONLY)	05/2014 - 04/2015	1
88891H - COVER, COOLER, NO.1
88891-52090	NSP120	05/2014 - 04/2015	1
88891-52090	NSP120	11/2010 - 05/2014	1
Common parts
88718-13060
88718-52221
88718-52260
88718-52300
90099-00264
90467-07164
91551-80625
91671-80620
Linked diagrams
8714
8719

NSP120L-CHFXKW (2014)

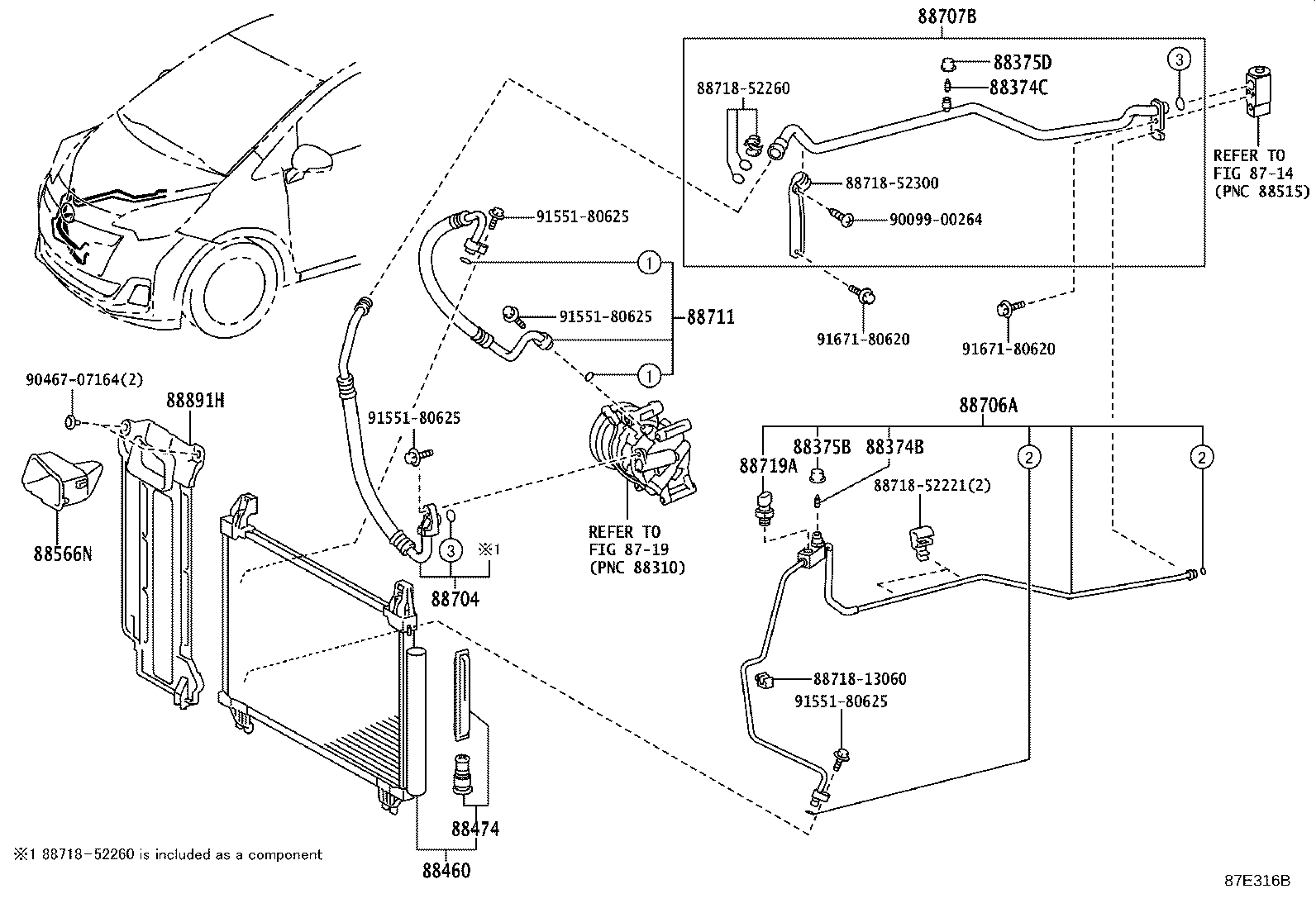

ILLUST NO. 1 OF 2(1405- )NSP120
