NSP120L-CHFXKW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )NSP120..6F

Click highlighted areas on diagram

EC63

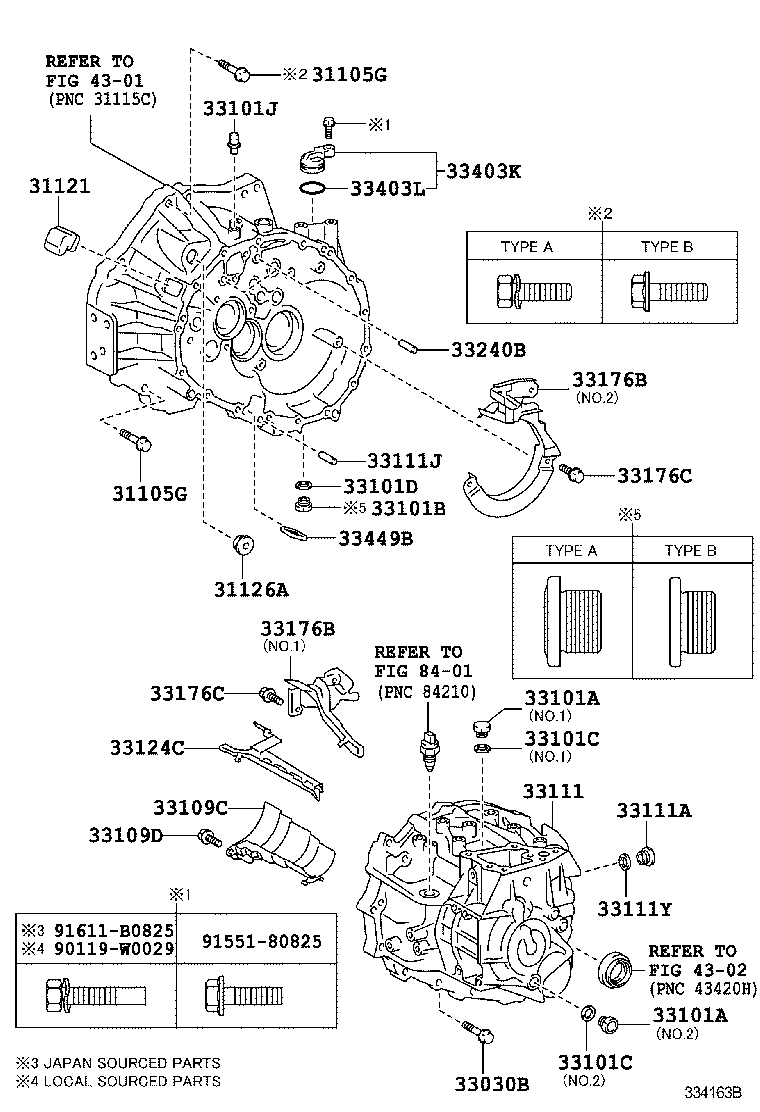

diagram 31105G 31105G 31121 31126A 33030B 33101A 33101A 33101B 33101C 33101C 33101D 33101J 33109C 33109D 33111 33111A 33111J 33111Y 33124C 33176B 33176B 33176C 33176C 33240B 33403K 33403L 33449B 4301 4302 8401 90119W0029 9155180825 91611B0825
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91552-81280

NSP120..6F

*12-1.25PX80-30

 2
91552-81245

NSP120..6F

*12-1.25PX45-30,TYPE B:REFER ILLUST.

 2
90119-W0097

NSP120..6F

*12-1.25PX45-30,TYPE A:REFER ILLUST.

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91552-81280

NSP120..6F

*12-1.25PX80-30

 2
91552-81245

NSP120..6F

*12-1.25PX45-30,TYPE B:REFER ILLUST.

 2
90119-W0097

NSP120..6F

*12-1.25PX45-30,TYPE A:REFER ILLUST.

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-52020

NLP121,NSP120..MTM

 1
31126A - BOOT, CLUTCH TUBE
31126-20090

NLP121,NSP120..MTM

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
91551-10840

NLP121,NSP120..MTM

*8-1.25PX40-22

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-14032

NLP121,NSP120..MTM

NO.1

 1
90341-18033

NLP121,NSP120..MTM

NO.2

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-14032

NLP121,NSP120..MTM

NO.1

 1
90341-18033

NLP121,NSP120..MTM

NO.2

 1
33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN)
90341-18016

NLP121,NSP120..6F

 1
90341-18023

NLP121,NSP120..6F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010

NLP121,NSP120..6F

NO.2

 1
90430-18008

NLP121,NSP120..6F

NO.2

 1
90430-14003

NLP121,NSP120..MTM

NO.1

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010

NLP121,NSP120..6F

NO.2

 1
90430-18008

NLP121,NSP120..6F

NO.2

 1
90430-14003

NLP121,NSP120..MTM

NO.1

 1
33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
12157-10010

NLP121,NSP120..6F

 1
90430-18008

NLP121,NSP120..6F

 1
33101J - PLUG, BREATHER
90930-03133

NLP121,NSP120..MTM

 1
33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109-20020

NLP121,NSP120..MTM

 1
33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
91551-80816

NLP121,NSP120..MTM

 4
33111 - CASE, MANUAL TRANSMISSION
33111-12291

NLP121,NSP120..6F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

NLP121,NSP120..6F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NLP121,NSP120..MTM

L=23,OD=8

 3
33111Y - SEAL, OIL(FOR TRANSMISSION CASE)
90430-18008

NLP121,NSP120..6F

 1
12157-10010

NLP121,NSP120..6F

 1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20080

NLP121,NSP120..6F

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-20090

NLP121,NSP120..MTM

NO.2

 1
33176-20080

NLP121,NSP120..MTM

NO.1

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-20090

NLP121,NSP120..MTM

NO.2

 1
33176-20080

NLP121,NSP120..MTM

NO.1

 1
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
91551-80816

NLP121,NSP120..MTM

 6
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
91551-80816

NLP121,NSP120..MTM

 6
33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
90250-08054

NLP121,NSP120..MTM

 2
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

NLP121,NSP120..MTM

 1
33403L - RING, O
96711-24030

NLP121,NSP120..MTM

 1
33449B - MAGNET, TRANSMISSION
33449-20010

NLP121,NSP120..MTM

 1
