NLP121L-CHFGXW (2014)
Toyota Verso-S
(1411- )LHD..LUNA

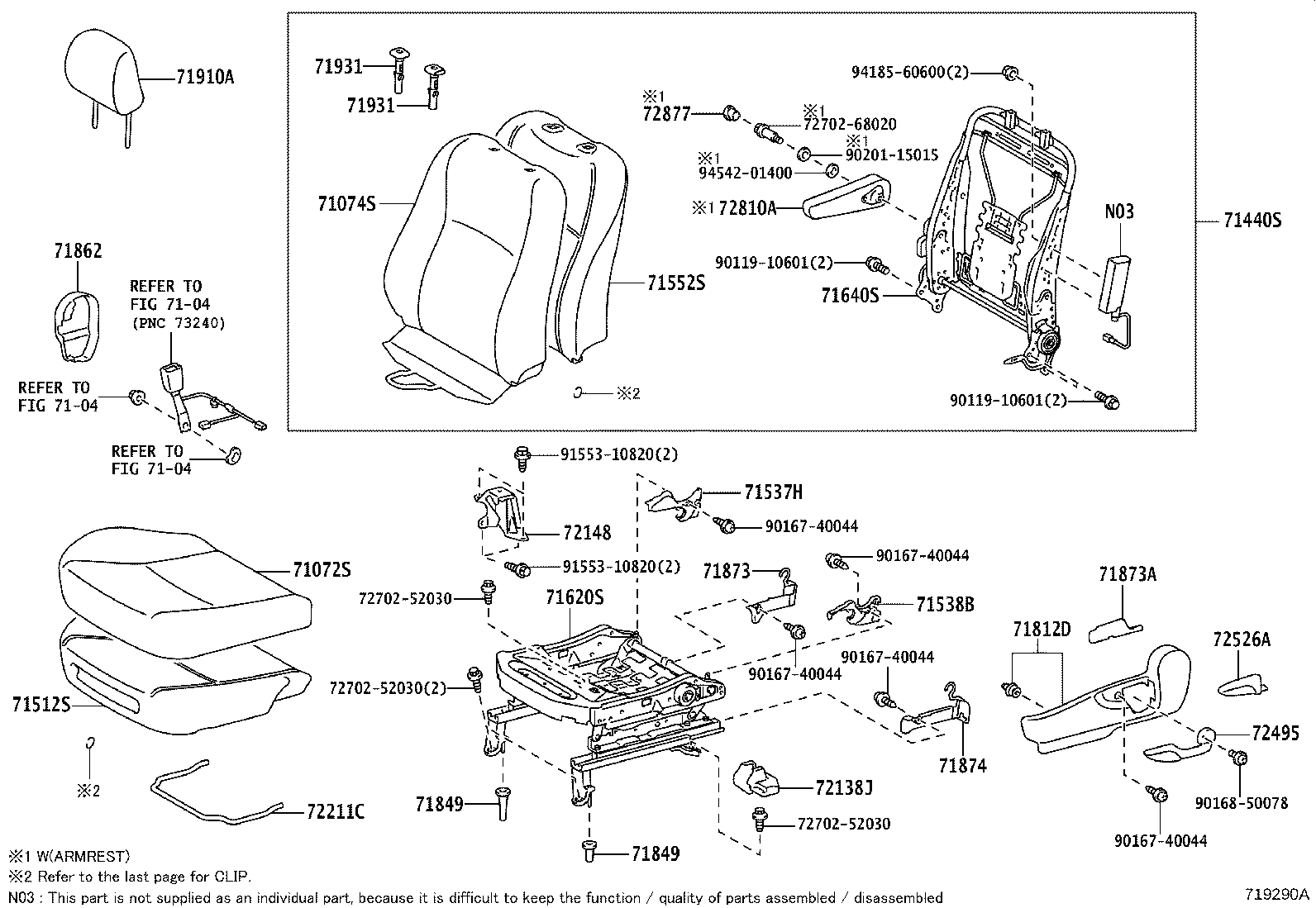

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52F60C1 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-52R01E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,CLOVE BROWN,TRIM4# |
1 | ||
| 71072-52L70C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71072-52R11E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),CLOVE BROWN,TRIM4# |
1 | ||
| 71072-52F60C3 |
NLP121,NSP120..LHD..6F..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71072-52M00C0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-52C90C2 |
NLP121,NSP120..LHD..6F..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-52S90C0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-52C90C2 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71074-52S80C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71074-5C150E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),CLOVE BROWN,TRIM4# |
1 | ||
| 71074-5C160E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,CLOVE BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52C80A6 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71440-52D10C4 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C90A6 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71440-52C90C7 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71440-52C80C4 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C82E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),CLOVE BROWN,TRIM4# |
1 | ||
| 71440-52C92E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,CLOVE BROWN,TRIM4# |
1 | ||
| 71440-52D11C5 |
NLP121,NSP120..LHD..6F..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71440-52C83E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),CLOVE BROWN,TRIM4# |
1 | ||
| 71440-52C93E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,CLOVE BROWN,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-52380 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-52600 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512-52380 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71512-52600 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52100C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71537-52100C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52050C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71538-52050C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-52610 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71552-52610 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52030 |
NLP121,NSP120..LHD |
1 | ||
| 71620-52031 |
NLP121,NSP120..LHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52060 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE |
1 | ||
| 71640-52060 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71640-52060 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71640-52070 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71640-52070 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52310C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71812-52310C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52190C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71862-52190C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
NLP121,NSP120..LHD |
1 | ||
| 71873-47040 |
NLP121,NSP120..LHD |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-52230C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71874-52230C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-52220C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71874-52220C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C80C1 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C70E2 |
NLP121,NSP120..LUNA BEIGE,TRIM4# |
2 | ||
| 71910-52C70B1 |
NLP121,NSP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71910-52C71B3 |
NLP121,NSP120..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM4# |
2 | ||
| 71910-52C80C2 |
NLP121,NSP120..LHD..6F..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C71B3 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM4# |
2 | ||
| 71910-52K60B0 |
NLP121,NSP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71930-47020C0 |
NLP121,NSP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NLP121,NSP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71930-47020C0 |
NLP121,NSP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NLP121,NSP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-52061C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72138-52061C0 |
NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52080 |
NLP121,NSP120 |
1 | ||
| 72148-52081 |
NLP121,NSP120 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NLP121,NSP120 |
2 | ||
| 72211-52130 |
NLP121,NSP120 |
2 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-21010C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72495-52020C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 72526-47010C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-52110A1 |
NLP121..6F..LUNA;NSP120..LHD..LUNA BEIGE,TRIM40 |
1 | ||
| 72810-52120C1 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72810-52110B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),DARK GRAY,TRIM4# |
1 | ||
| 72810-52110B1 |
NLP121..6F..LUNA;NSP120..LHD..LUNA DARK GRAY,TRIM1#,2#,44 |
1 | ||
| 72810-52110B1 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DARK GRAY,TRIM4# |
1 | ||
| 72810-52140C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 72810-52120C1 |
NLP121,NSP120..LHD..6F..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 71877-52010A0 |
NLP121,NSP120..LHD..LUNA SHELL,TRIM40 |
1 | ||
| 71877-52010C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71877-52010C0 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71877-52010C0 |
NLP121..6F..LUNA;NSP120..LHD..LUNA BLACK,TRIM1#,2#,40,44 |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 72702-68020 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-15015 | ||||
| 91553-10820 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1411- )LHD..LUNA

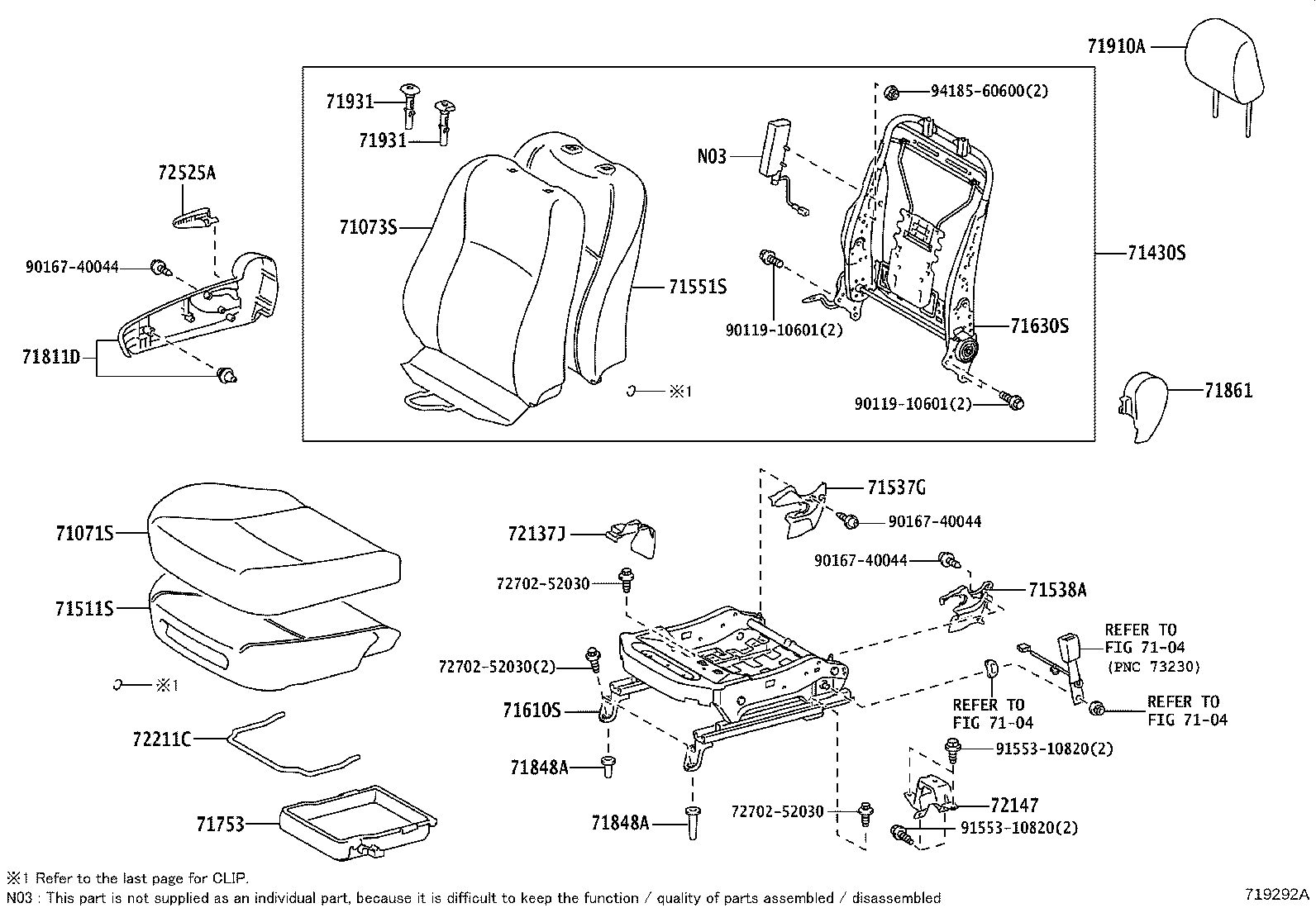

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-52E80C1 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52R61E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),CLOVE BROWN,TRIM4# |
1 | ||
| 71071-52L20C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71071-52L30C0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52E80C3 |
NLP121,NSP120..LHD..6F..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71071-52R51E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,CLOVE BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-52J70C2 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-52J70C2 |
NLP121,NSP120..LHD..6F..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-52Y10C0 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71073-5CA30E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),CLOVE BROWN,TRIM4# |
1 | ||
| 71073-52Y00C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71073-5CA40E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,CLOVE BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-52D60A5 |
NLP121,NSP120..LHD..LUNA BEIGE,TRIM4# |
1 | ||
| 71430-52D60C6 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2# |
1 | ||
| 71430-52D40C3 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D40A5 |
NLP121,NSP120..LHD..LUNA SEAT HEATER-WITH(DRIVER & PASSENGER),BEIGE,TRIM4# |
1 | ||
| 71430-52D70C3 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71430-52D42E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),CLOVE BROWN,TRIM4# |
1 | ||
| 71430-52D62E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,CLOVE BROWN,TRIM4# |
1 | ||
| 71430-52D43E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),CLOVE BROWN,TRIM4# |
1 | ||
| 71430-52D63E0 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,CLOVE BROWN,TRIM4# |
1 | ||
| 71430-52D71C4 |
NLP121,NSP120..LHD..6F..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-52090 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-52020 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71501-52020 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71501-52090 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52110C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71537-52110C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52060C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71538-52060C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-52740 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-52740 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71551-52F30 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71551-52F30 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52020 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71610-52021 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52300 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71630-52430 |
NLP121;NSP120..TERRA;NSP120..LHD..LUNA |
1 | ||
| 71630-52430 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE |
1 | ||
| 71630-52430 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71630-52300 |
NLP121,NSP120..LHD..LUNA |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52060C0 |
NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71753-52060C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52300C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71811-52300C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71848-52040 |
NLP121,NSP120 OUTER |
1 | ||
| 71848-52050 |
NLP121,NSP120 INNER |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52240C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71861-52240C0 |
NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C80C1 |
NLP121,NSP120..LHD..MTM..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C70E2 |
NLP121,NSP120..LUNA BEIGE,TRIM4# |
2 | ||
| 71910-52C70B1 |
NLP121,NSP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71910-52C71B3 |
NLP121,NSP120..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM4# |
2 | ||
| 71910-52C80C2 |
NLP121,NSP120..LHD..6F..LUNA SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
2 | ||
| 71910-52C71B3 |
NLP121,NSP120..LHD..LUNA SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM4# |
2 | ||
| 71910-52K60B0 |
NLP121,NSP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71930-47020C0 |
NLP121,NSP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NLP121,NSP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NLP121,NSP120..LUNA W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020A0 |
NLP121,NSP120..LUNA W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 71930-47020C0 |
NLP121,NSP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NLP121,NSP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NSP120..LUNA;NLP121..6F..LUNA W/O(LOCK),BLACK,TRIM1#,2#,40,44 |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-52051C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| 72137-52051C0 |
NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52080 |
NLP121,NSP120 |
1 | ||
| 72147-52081 |
NLP121,NSP120 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NLP121,NSP120 |
2 | ||
| 72211-52130 |
NLP121,NSP120 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 72525-47010C0 |
NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 91553-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
