NLP121L-CHFGXW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

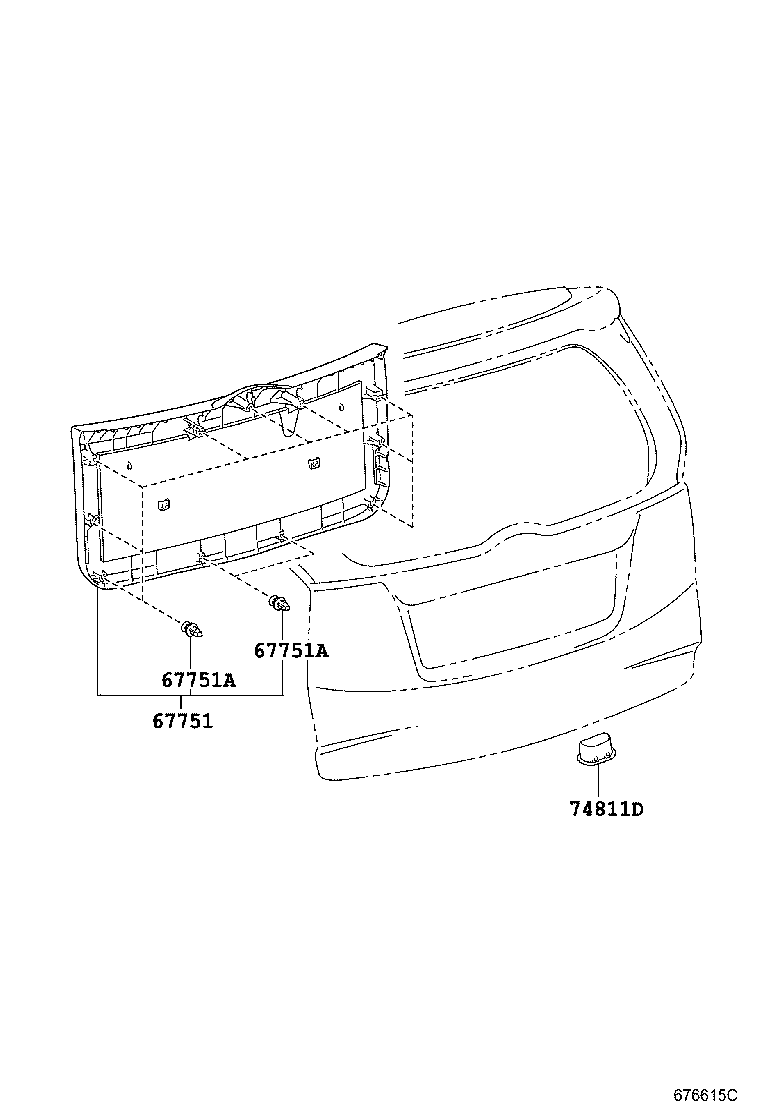

ILLUST NO. 2 OF 2(1011- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67751 67751A 67751A 74811D
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67750-52120C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

NLP121,NSP120

 11
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

NLP121,NSP120

 11
74811D - HANDLE, DOOR PULL
74811-13010C0

NLP121,NSP120..LUNA

BLACK,TRIM1#,2#,4#

 1

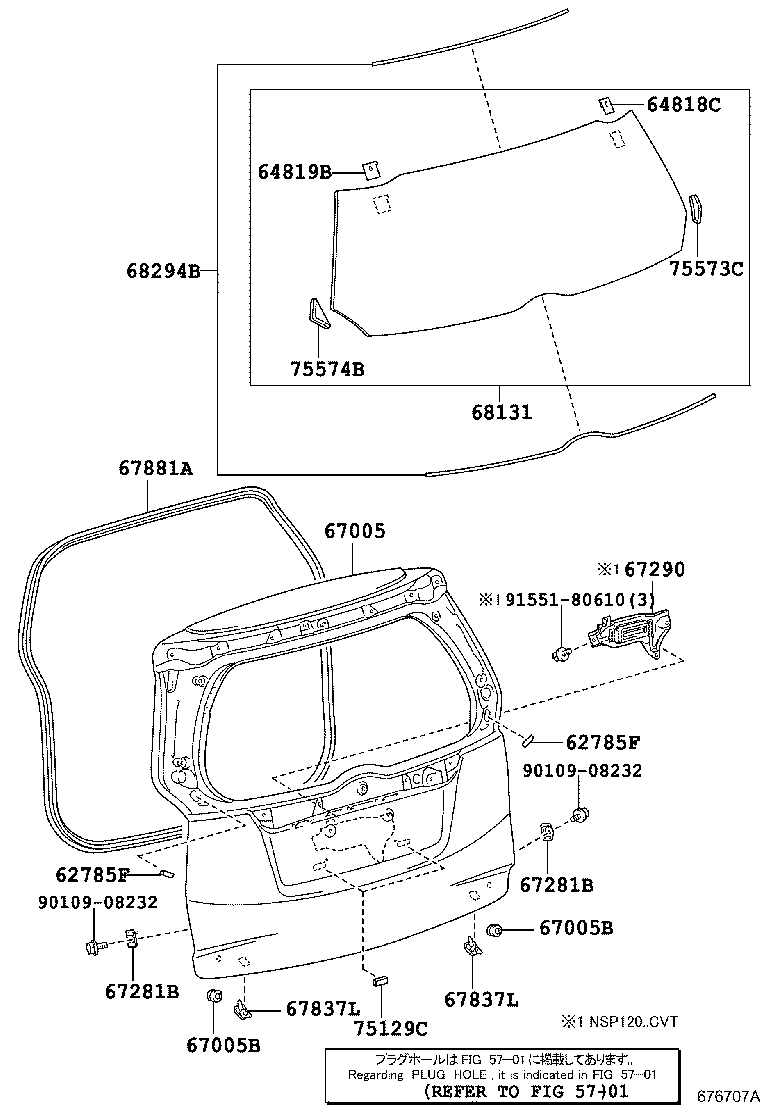

ILLUST NO. 1 OF 2(1011- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 62785F 62785F 64818C 64819B 67005 67005B 67005B 67281B 67281B 67290 67837L 67837L 67881A 68131 68294B 75129C 75573C 75574B 9010908232 9010908232 9155180610
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-12050

NLP121,NSP120

 2
62785F - SPACER, BACK DOOR GLASS
62785-12050

NLP121,NSP120

 2
64818C - SPACER, BACK WINDOW GLASS, NO.1
64818-52070

NLP121,NSP120

 1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-52060

NLP121,NSP120

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52813

NLP121;NSP120..TERRA;NSP120..LHD..LUNA

 1
67005-52811

NLP121;NSP120..TERRA;NSP120..LHD..LUNA

 1
67005-52A80

NLP121,NSP120..LHD..LUNA

AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER

 1
67005-52A83

NLP121,NSP120..LHD..LUNA

AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER

 1
67005-52A80

NLP121,NSP120..LHD..LUNA

AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER

 1
67005-52810

NLP121;NSP120..TERRA;NSP120..LHD..LUNA

 1
67005-52A83

NLP121..6F..LUNA;NSP120..LHD..LUNA

AUDIO(FOR OVERSEAS MARKET)-13INCH*DA & 6SPEAKER

 1
67005-52810

NLP121;NSP120..TERRA;NSP120..LHD..LUNA

 1
67005-52A83

NLP121..6F..LUNA;NSP120..LHD..LUNA

AUDIO(FOR OVERSEAS MARKET)-13INCH*DA(DAB) & 6SPEAKER

 1
67005-52A81

NLP121,NSP120..LHD..LUNA

AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142

NLP121,NSP120

 2
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142

NLP121,NSP120

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-52010

NLP121,NSP120

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-52010

NLP121,NSP120

 2
67837L - SEAL, DOOR DUST PROOF
67837-52020

NLP121,NSP120

 2
67837L - SEAL, DOOR DUST PROOF
67837-52020

NLP121,NSP120

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-52160

NLP121,NSP120

 1
68131 - GLASS, BACK DOOR
68105-52550

NLP121,NSP120

*UVCEHT,T=3.1,GREEN

 1
68105-52570

NLP121,NSP120

*EHT,T=3.1,C.GREEN,BACK GLASS-PRIVACY(UV-CUT)

 1
68105-52560

NLP121

*UVCEHT,T=3.1,GREEN,COLD SPEC & WITH(REAR HEATER DUCT)&REAR WINDOW DEFOGGER-HI-POWER TYPE WITH(TIMER)

 1
68105-52570

NLP121,NSP120

*EHT,T=3.1,C.GREEN

 1
68105-52580

NLP121

*EHT,T=3.1,C.GREEN,COLD SPEC & WITH(REAR HEATER DUCT)&REAR WINDOW DEFOGGER-HI-POWER TYPE WITH(TIMER)

 1
68105-52580

NLP121

*EHT,T=3.1,C.GREEN,COLD SPEC & WITH(REAR HEATER DUCT)&BACK GLASS-PRIVACY(UV-CUT)&REAR WINDOW DEFOGGER-HI-POWER TYPE WITH(TIMER)

 1
68294B - DAM, BACK DOOR GLASS ADHESIVE
56117-50140

NLP121,NSP120

 1
75129C - CUSHION, REAR LICENCE PLATE
75129-30010

NLP121,NSP120

 2
75129-13020

NLP121,NSP120

 2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-52190

NLP121,NSP120

 1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75574-52080

NLP121,NSP120

 1
Common parts
90109-08232
91551-80610
Linked diagrams
5701
