NLP121L-CHFGXW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

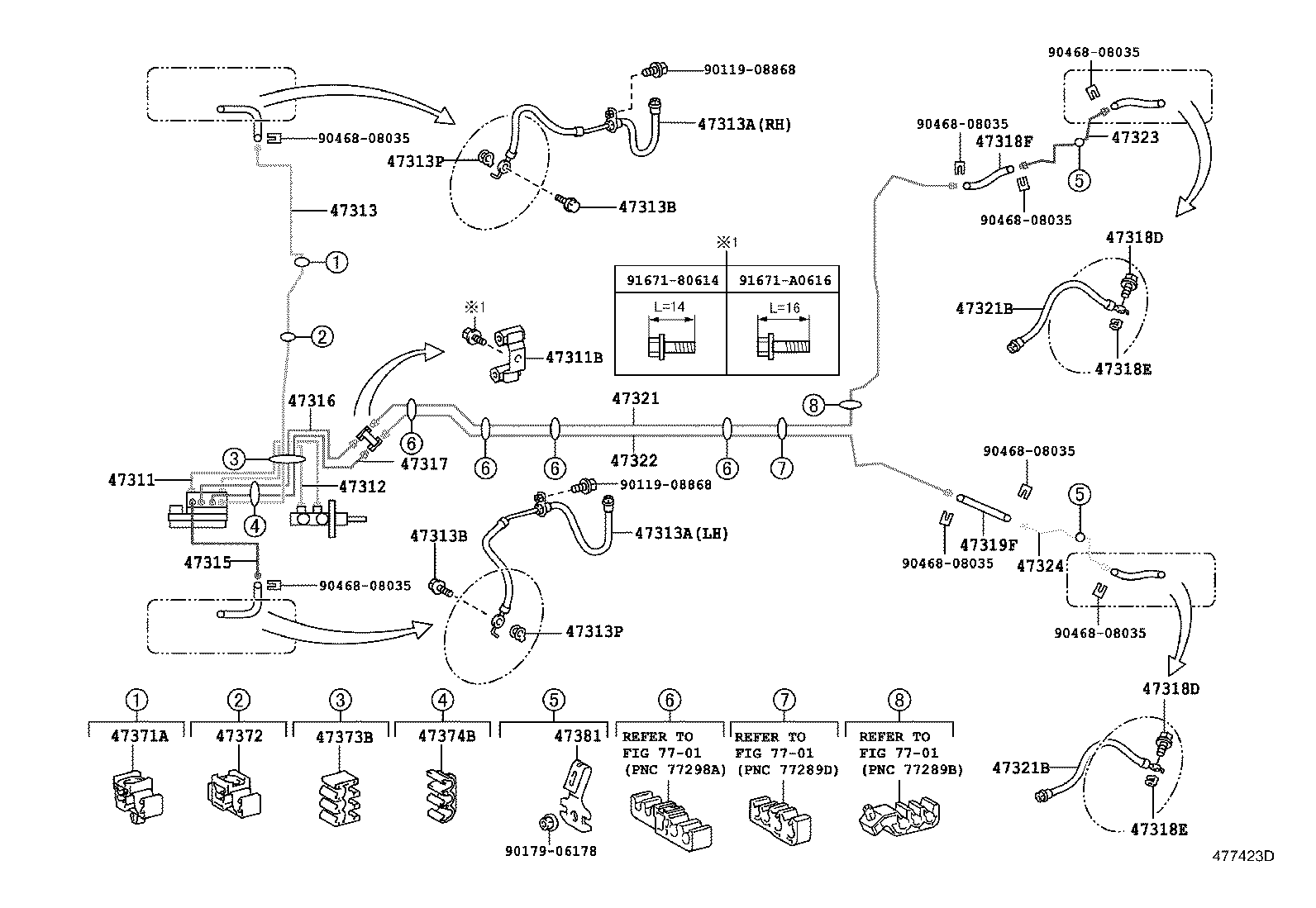

ILLUST NO. 1 OF 2(1011-1405)LHD..6F

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47372 47373B 47374B 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52700

NLP121..6F

TURKEY SPEC&VSC-WITHOUT

 1
47311-52710

NLP121

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NLP121,NSP120

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52660

NLP121

 1
47312-52650

NLP121..6F

TURKEY SPEC&VSC-WITHOUT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52340

NLP121

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

NLP121,NSP120

RH

 1
90947-02E08

NLP121,NSP120

LH

 1
90947-02G34

NLP121,NSP120

RH

 1
90947-02G35

NLP121,NSP120

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

NLP121,NSP120

RH

 1
90947-02E08

NLP121,NSP120

LH

 1
90947-02G34

NLP121,NSP120

RH

 1
90947-02G35

NLP121,NSP120

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NLP121,NSP120

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NLP121,NSP120

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NLP121,NSP120

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NLP121,NSP120

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52210

NLP121,NSP120..LHD..MTM

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52200

NLP121,NSP120..LHD..MTM

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52200

NLP121,NSP120..LHD..MTM

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G36

NLP121,NSP120

 1
90947-02E09

NLP121,NSP120

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E10

NLP121,NSP120

 1
90947-02G38

NLP121,NSP120

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52320

NLP121,NSP120

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52300

NLP121,NSP120

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52130

NSP120;NLP121..6F

 1
47323-52110

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52100

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
47324-52120

NSP120;NLP121..6F

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D82

NLP121,NSP120..LHD..MTM

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D86

NLP121,NSP120..LHD..MTM

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01969

NLP121,NSP120..LHD..6F

TURKEY SPEC&VSC-WITHOUT

 1
90464-00925

NLP121,NSP120..LHD..MTM

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00868

NLP121,NSP120..LHD..MTM

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NLP121,NSP120

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
91671-A0616
Linked diagrams
7701

ILLUST NO. 1 OF 2(1011-1405)LHD..6F

Click highlighted areas on diagram

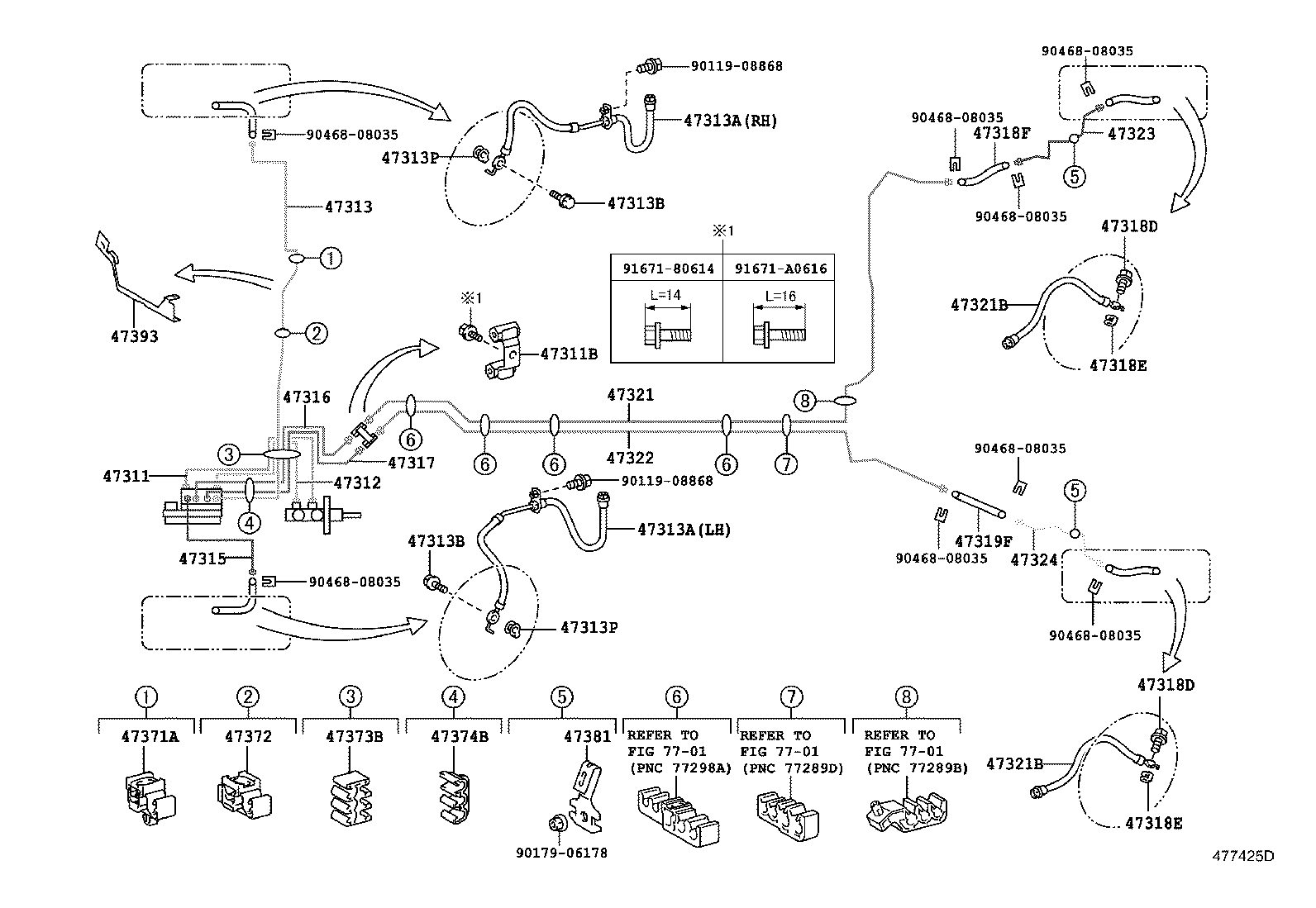

REAR DISC BRAKE

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321B 47321B 47322 47323 47324 47371A 47372 47373B 47374B 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52700

NLP121..6F

TURKEY SPEC&VSC-WITHOUT

 1
47311-52710

NLP121

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NLP121,NSP120

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52660

NLP121

 1
47312-52650

NLP121..6F

TURKEY SPEC&VSC-WITHOUT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52340

NLP121

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

NLP121,NSP120

RH

 1
90947-02E08

NLP121,NSP120

LH

 1
90947-02G34

NLP121,NSP120

RH

 1
90947-02G35

NLP121,NSP120

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

NLP121,NSP120

RH

 1
90947-02E08

NLP121,NSP120

LH

 1
90947-02G34

NLP121,NSP120

RH

 1
90947-02G35

NLP121,NSP120

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NLP121,NSP120

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NLP121,NSP120

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NLP121,NSP120

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NLP121,NSP120

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52210

NLP121,NSP120..LHD..MTM

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52200

NLP121,NSP120..LHD..MTM

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52200

NLP121,NSP120..LHD..MTM

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G36

NLP121,NSP120

 1
90947-02E09

NLP121,NSP120

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E10

NLP121,NSP120

 1
90947-02G38

NLP121,NSP120

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52320

NLP121,NSP120

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02E11

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02E11

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47322 - TUBE, REAR BRAKE, NO.2
47322-52300

NLP121,NSP120

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52130

NSP120;NLP121..6F

 1
47323-52110

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52100

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
47324-52120

NSP120;NLP121..6F

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D82

NLP121,NSP120..LHD..MTM

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D86

NLP121,NSP120..LHD..MTM

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01969

NLP121,NSP120..LHD..6F

TURKEY SPEC&VSC-WITHOUT

 1
90464-00925

NLP121,NSP120..LHD..MTM

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00868

NLP121,NSP120..LHD..MTM

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NLP121,NSP120

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
91671-A0616
Linked diagrams
7701

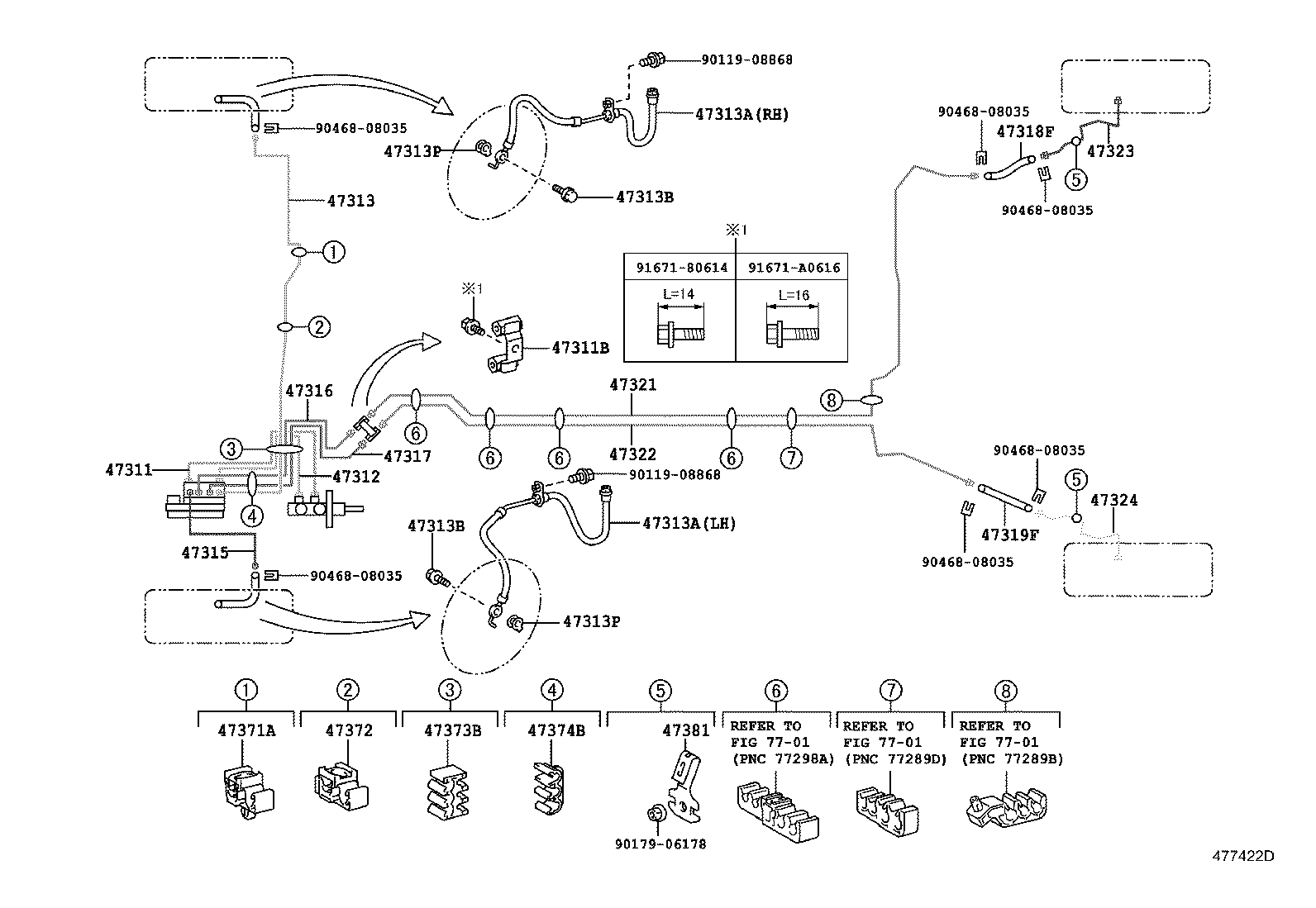

ILLUST NO. 1 OF 2(1011-1405)LHD

Click highlighted areas on diagram

REAR DISC BRAKE

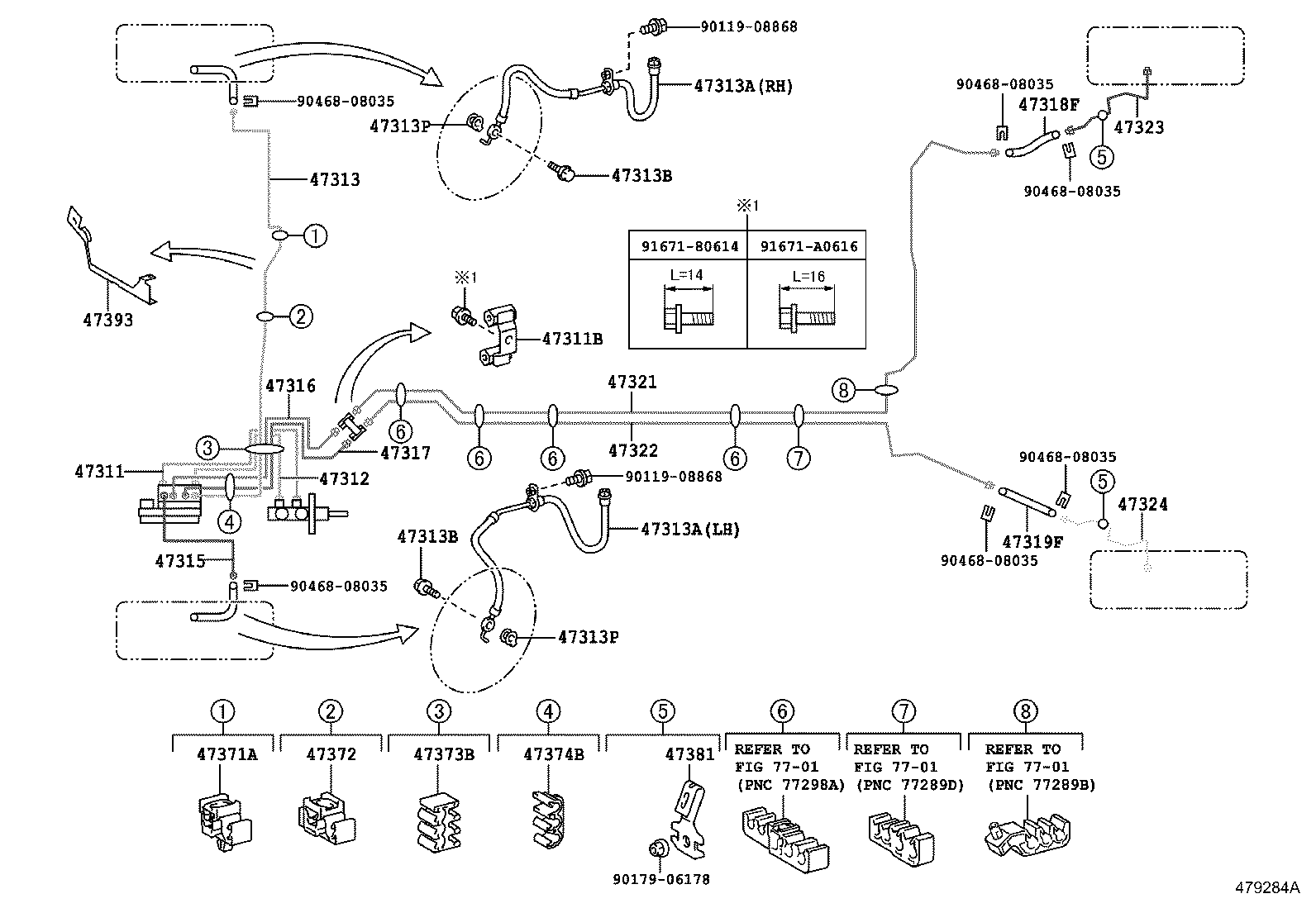

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321B 47321B 47322 47323 47324 47371A 47372 47373B 47374B 47381 47393 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52700

NLP121..6F

TURKEY SPEC&VSC-WITHOUT

 1
47311-52710

NLP121

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NLP121,NSP120

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52660

NLP121

 1
47312-52650

NLP121..6F

TURKEY SPEC&VSC-WITHOUT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52340

NLP121

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

NLP121,NSP120

RH

 1
90947-02E08

NLP121,NSP120

LH

 1
90947-02G34

NLP121,NSP120

RH

 1
90947-02G35

NLP121,NSP120

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

NLP121,NSP120

RH

 1
90947-02E08

NLP121,NSP120

LH

 1
90947-02G34

NLP121,NSP120

RH

 1
90947-02G35

NLP121,NSP120

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NLP121,NSP120

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NLP121,NSP120

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NLP121,NSP120

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NLP121,NSP120

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52210

NLP121,NSP120..LHD..MTM

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52200

NLP121,NSP120..LHD..MTM

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52200

NLP121,NSP120..LHD..MTM

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G36

NLP121,NSP120

 1
90947-02E09

NLP121,NSP120

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E10

NLP121,NSP120

 1
90947-02G38

NLP121,NSP120

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52320

NLP121,NSP120

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02E11

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02E11

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 2
47322 - TUBE, REAR BRAKE, NO.2
47322-52300

NLP121,NSP120

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52130

NSP120;NLP121..6F

 1
47323-52110

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52100

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
47324-52120

NSP120;NLP121..6F

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D82

NLP121,NSP120..LHD..MTM

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D86

NLP121,NSP120..LHD..MTM

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01969

NLP121,NSP120..LHD..6F

TURKEY SPEC&VSC-WITHOUT

 1
90464-00925

NLP121,NSP120..LHD..MTM

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00868

NLP121,NSP120..LHD..MTM

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NLP121,NSP120

 2
47393 - INSULATOR, BRAKE TUBE HEAT
47393-52010

NLP121

 1
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
91671-A0616
Linked diagrams
7701

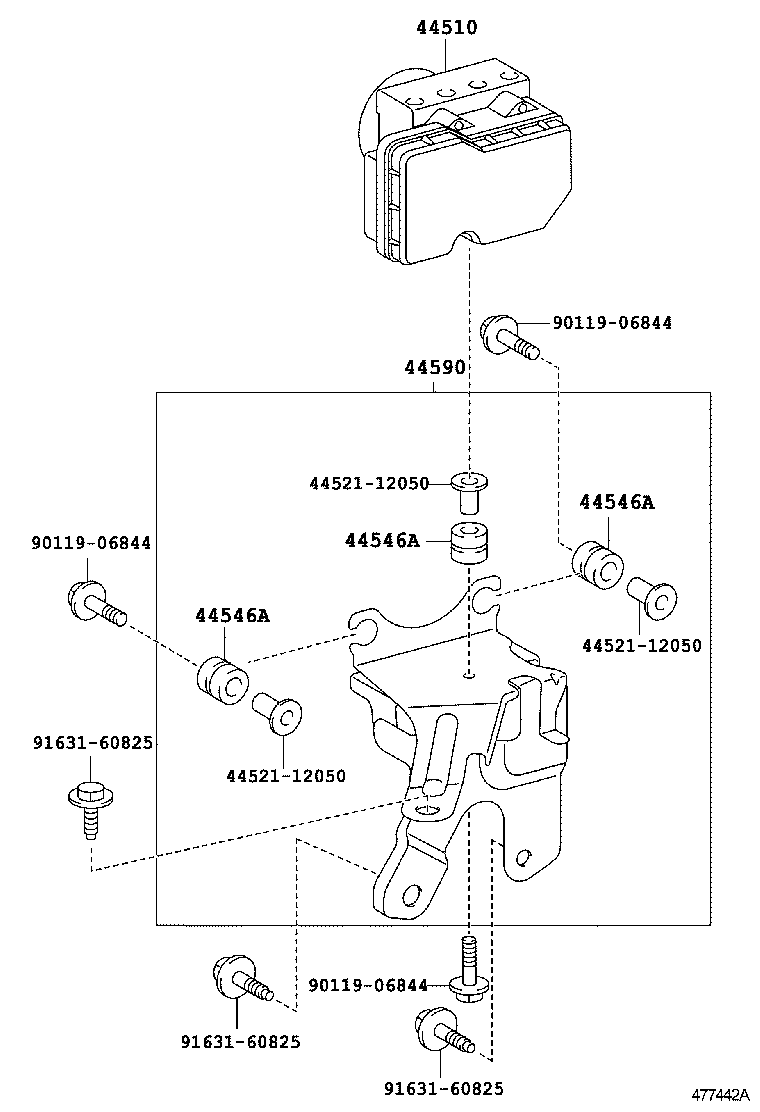

ILLUST NO. 2 OF 2(1011-1405)RHD ; (1011- )LHD..MTM

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52G80

NLP121..6F..LUNA;NSP120..LHD..LUNA

REUNION SPEC&TIRE & DISC WHEEL-185/65R15 5.5J STEEL ROUGH ROAD SPEC

 1
44050-52D90

NLP121,NSP120

 1
44050-52D60

NLP121..6F..LUNA;NSP120..LHD..LUNA

TURKEY SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-185/65R15 5.5J STEEL ROUGH ROAD SPEC

 1
44050-52G81

NLP121..6F..LUNA;NSP120..LHD..LUNA

REUNION SPEC&TIRE & DISC WHEEL-185/65R15 5.5J STEEL ROUGH ROAD SPEC

 1
44050-52D80

NLP121,NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
44050-52D91

NSP120;NLP121..6F

 1
44050-52D81

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NLP121,NSP120

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NLP121,NSP120

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NLP121,NSP120

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52170

NLP121,NSP120..LHD..6F

TURKEY SPEC&VSC-WITHOUT

 1
44590-52210

NLP121,NSP120..LHD..MTM

 1
Common parts
44521-12050
90119-06844
91631-60825

ILLUST NO. 1 OF 2(1011-1405)NLP121

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47372 47373B 47374B 47381 47393 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52700

NLP121..6F

TURKEY SPEC&VSC-WITHOUT

 1
47311-52710

NLP121

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NLP121,NSP120

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52660

NLP121

 1
47312-52650

NLP121..6F

TURKEY SPEC&VSC-WITHOUT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52340

NLP121

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

NLP121,NSP120

RH

 1
90947-02E08

NLP121,NSP120

LH

 1
90947-02G34

NLP121,NSP120

RH

 1
90947-02G35

NLP121,NSP120

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

NLP121,NSP120

RH

 1
90947-02E08

NLP121,NSP120

LH

 1
90947-02G34

NLP121,NSP120

RH

 1
90947-02G35

NLP121,NSP120

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NLP121,NSP120

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NLP121,NSP120

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NLP121,NSP120

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NLP121,NSP120

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52210

NLP121,NSP120..LHD..MTM

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52200

NLP121,NSP120..LHD..MTM

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52200

NLP121,NSP120..LHD..MTM

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G36

NLP121,NSP120

 1
90947-02E09

NLP121,NSP120

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E10

NLP121,NSP120

 1
90947-02G38

NLP121,NSP120

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52320

NLP121,NSP120

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52300

NLP121,NSP120

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52130

NSP120;NLP121..6F

 1
47323-52110

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52100

NLP121..6F;NSP120..LHD

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
47324-52120

NSP120;NLP121..6F

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01D82

NLP121,NSP120..LHD..MTM

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D86

NLP121,NSP120..LHD..MTM

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01969

NLP121,NSP120..LHD..6F

TURKEY SPEC&VSC-WITHOUT

 1
90464-00925

NLP121,NSP120..LHD..MTM

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00868

NLP121,NSP120..LHD..MTM

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NLP121,NSP120

 2
47393 - INSULATOR, BRAKE TUBE HEAT
47393-52010

NLP121

 1
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
91671-A0616
Linked diagrams
7701
