NLP121L-CHFGXW (2010)

Toyota Verso-S

Production Nov 2010 - May 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )1NDTV

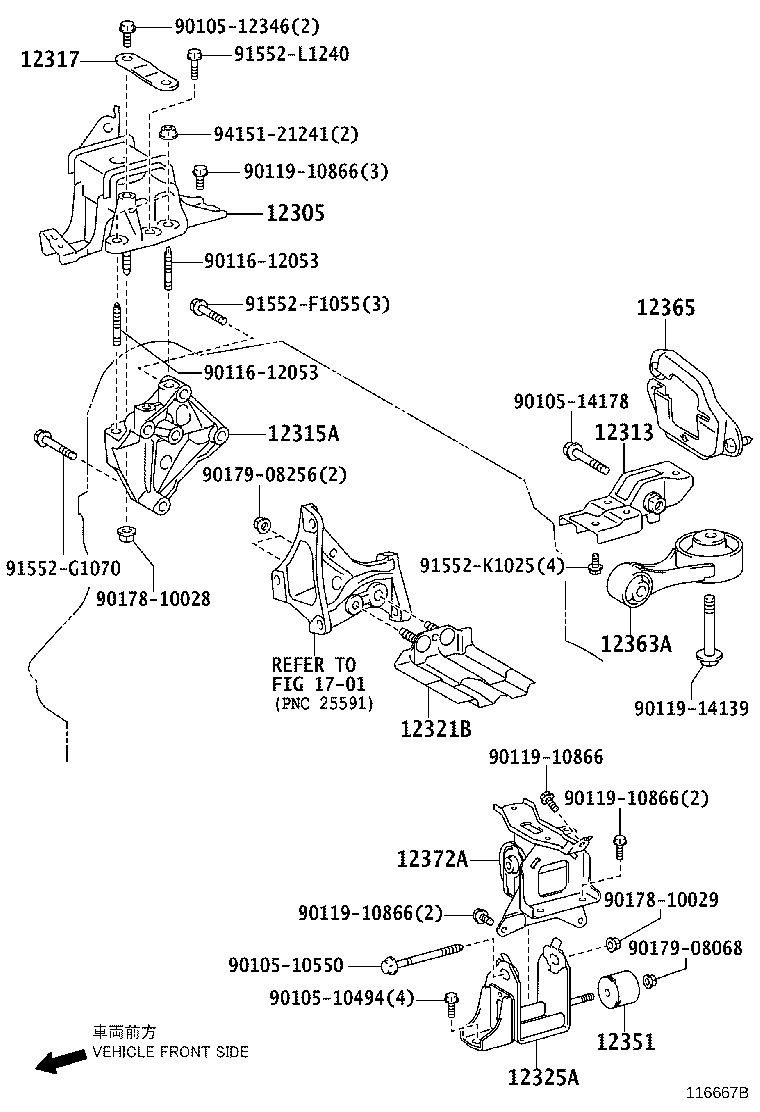

Click highlighted areas on diagram

diagram 12305 12313 12315A 12317 12321B 12325A 12351 12363A 12365 12372A 1701 9010510494 9010510550 9010512346 9010514178 9011612053 9011612053 9011910866 9011910866 9011910866 9011910866 9011914139 9017810028 9017810029 9017908068 9017908256 91552F1055 91552G1070 91552K1025 91552L1240 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-33170

1NDTV..NLP121

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-21040

1NDTV..NLP121

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-33050

1NDTV..NLP121

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-33021

1NDTV..NLP121

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-52040

1NDTV..NLP121

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-33050

1NDTV..NLP121

 1
12351 - DAMPER, ENGINE MOUNTING
12351-33020

1NDTV..NLP121

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-33060

1NDTV..NLP121

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

1N#..NLP121,NSP120..LHD

COLD SPEC & WITH(REAR HEATER DUCT)

 1
12365-40010

1N#..NLP121,NSP120..LHD

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-33110

1NDTV..NLP121

 1
Common parts
90105-10494
90105-10550
90105-12346
90105-14178
90116-12053
90119-10866
90119-14139
90178-10028
90178-10029
90179-08068
90179-08256
91552-F1055
91552-G1070
91552-K1025
91552-L1240
94151-21241
Linked diagrams
1701
