YR32LV-PRBEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 8121 87810 87810 87810B 87811 87834 87834 9331915020 9331915020
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87801-2803004

YR29,32

BLUE,TRIM8#

 1
87801-2803003

YR29,32

GRAY,TRIM1#

 1
87801-8701406

YR29,32..USA

LIGHT BROWN,TRIM4#

 1
87801-8701404

YR29,32..USA

W(NON-GLARE INNER MIRROR),BLUE,TRIM8#

 1
87801-8701413

YR29,32..USA

W(NON-GLARE INNER MIRROR),GRAY,TRIM1#

 1
87801-2803006

YR29,32

BROWN,TRIM4#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87801-2803004

YR29,32

BLUE,TRIM8#

 1
87801-2803003

YR29,32

GRAY,TRIM1#

 1
87801-8701406

YR29,32..USA

LIGHT BROWN,TRIM4#

 1
87801-8701404

YR29,32..USA

W(NON-GLARE INNER MIRROR),BLUE,TRIM8#

 1
87801-8701413

YR29,32..USA

W(NON-GLARE INNER MIRROR),GRAY,TRIM1#

 1
87801-2803006

YR29,32

BROWN,TRIM4#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
99132-12100

YR2#,3#..DLX,STD

12V 10W

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81241-87001

YR2#,3#..DLX,STD

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81241-87001

YR2#,3#..DLX,STD

 1
Common parts
93319-15020
Linked diagrams
8121

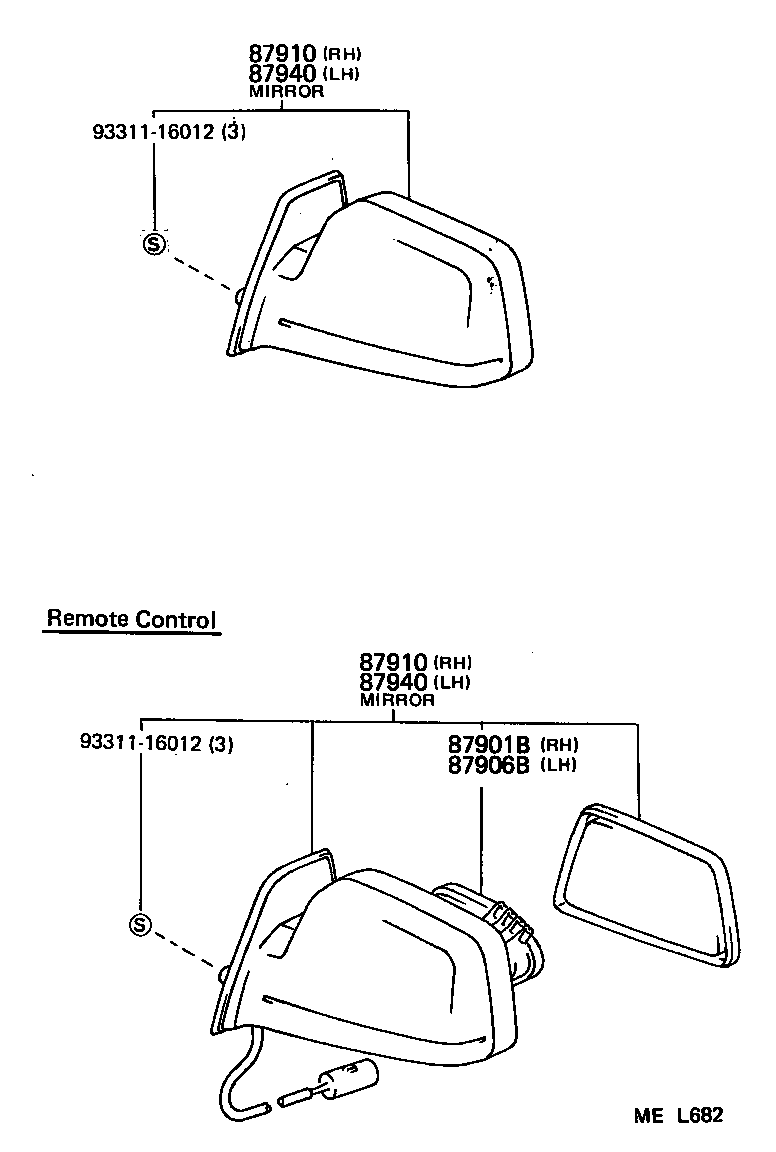

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 87901B 87906B 87910 87910 87940 87940 9331116012 9331116012
Part # Description Qty Price
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-28010

YR2#,3#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-28010

YR2#,3#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-28010

YR2#,3#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-28010

YR2#,3#

 1
Common parts
93311-16012
