YR32LV-PRBEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )YR3#..4FC

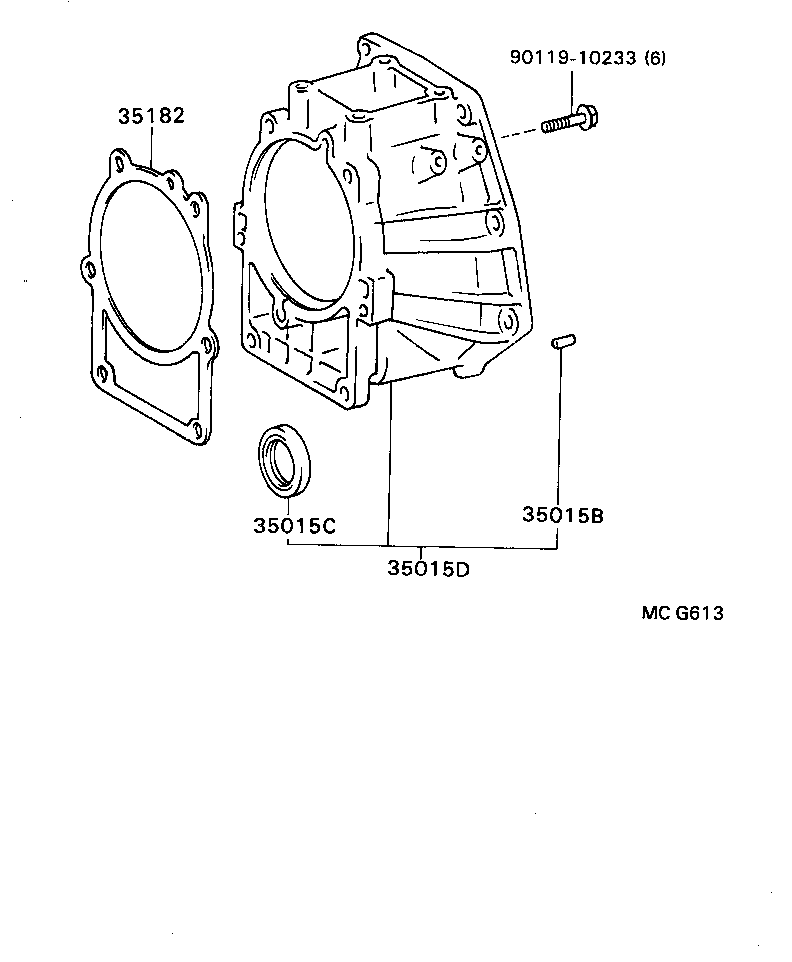

Click highlighted areas on diagram

diagram 35015B 35015C 35015D 35182 9011910233
Part # Description Qty Price
35015B - PIN, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
90250-10214

YR3#..4FC

 2
35015C - SEAL, OIL(FOR TRANSMISSION CASE ADAPTER)
90310-40003

YR3#..4FC

 1
35015D - ADAPTER SUB-ASSY, TRANSMISSION CASE
35015-28010

YR3#..4FC

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

YR2#,3#..4FC

 1
Common parts
90119-10233
