YR32LV-MRBEK (1986)

Toyota Van

Production Aug 1986 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

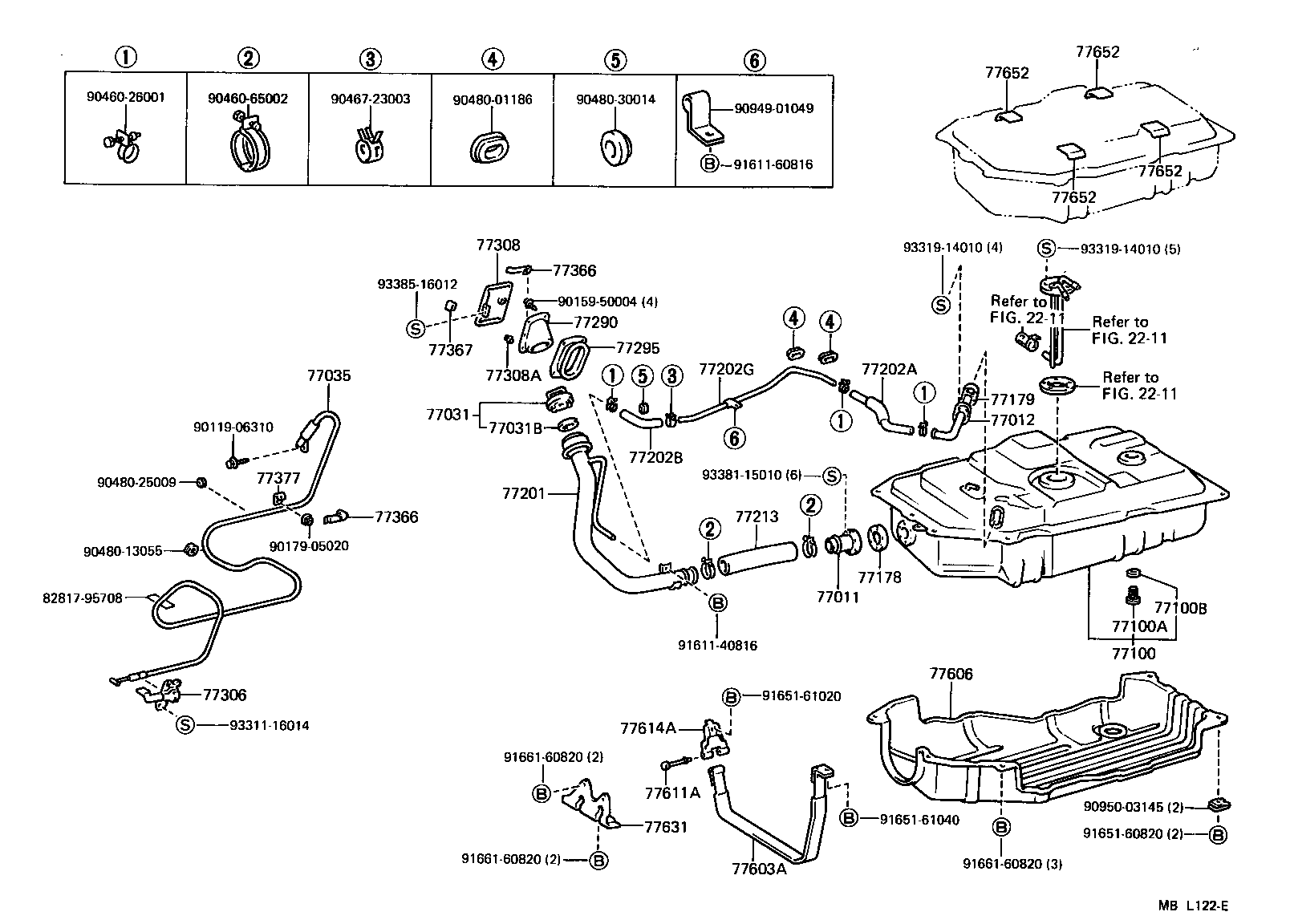

ILLUST NO. 1 OF 2(8608- )YR3#

Click highlighted areas on diagram

diagram 2211 2211 2211 77011 77012 77031 77031B 77035 77100 77100A 77100B 77178 77179 77201 77202A 77202B 77202G 77213 77290 77295 77306 77308 77308A 77366 77366 77367 77377 77603A 77606 77611A 77614A 77631 77652 77652 77652 77652 8281795708 9011906310 9015950004 9017905020 9046026001 9046065002 9046723003 9048001186 9048013055 9048025009 9048030014 9094901049 9095003145 9161140816 9161160816 9165160820 9165161020 9165161040 9166160820 9166160820 9166160820 9331116014 9331914010 9331914010 9338115010 9338516012
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-13010

YR2#,3#

 1
77031 - CAP ASSY, FUEL TANK
77310-12140

YR2#,3#

 1
77310-16011

YR2#,3#

 1
77310-16010

YR2#,3#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-16010

YR2#,3#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-28010

YR2#,3#

 1
77100 - TANK ASSY, FUEL
77001-28150

YR3#

 1
77001-28300

YR3#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

YR2#,3#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

YR2#,3#

 1
77179 - RETAINER, FUEL TANK MOUNTING, FRONT
77179-14030

YR2#,3#

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77259-28030

YR2#,3#

L=290

 1
77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE)
90445-24029

YR2#,3#

 1
77202G - TUBE, FUEL, NO.2 (FOR BREATHER TUBE)
77222-28030

YR2#,3#

 1
77213 - HOSE, FUEL TANK SUB INLET
77019-28011

YR2#,3#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-28010

YR2#,3#

 1
77295 - SHIELD, FUEL FILLER PIPE
77293-28010

YR2#,3#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28010

YR2#,3#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77305-87004

YR2#,3#

W/FUEL LID OPENER

 1
77305-87002

YR2#,32..DLX,STD

 1
77305-87004

YR2#,3#

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-06001

YR2#,3#

 2
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-87001

YR2#,3#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-87001

YR2#,3#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-28010

YR2#,3#

 1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-28060

YR3#

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-28010

YR3#

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-28010

YR2#,3#

RR RH

 1
77614A - BAND, FUEL TANK, NO.2 RH
77614-28010

YR2#,3#

 1
77631 - BRACKET, FUEL TANK, NO.1
77511-28060

YR3#

 1
77652 - CUSHION, FUEL TANK, NO.1
77651-28010

YR2#,3#

70X70

 2
77651-28020

YR2#,3#

70X110

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-28010

YR2#,3#

70X70

 2
77651-28020

YR2#,3#

70X110

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-28010

YR2#,3#

70X70

 2
77651-28020

YR2#,3#

70X110

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-28010

YR2#,3#

70X70

 2
77651-28020

YR2#,3#

70X110

 2
Common parts
82817-95708
90119-06310
90159-50004
90179-05020
90460-26001
90460-65002
90467-23003
90480-01186
90480-13055
90480-25009
90480-30014
90949-01049
90950-03145
91611-40816
91611-60816
91651-60820
91651-61020
91651-61040
91661-60820
93311-16014
93319-14010
93381-15010
93385-16012
Linked diagrams
2211
