YR32LV-MRBEA (1986)
Toyota Van
Production
Aug 1986
-
Aug 1988
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )YR3#

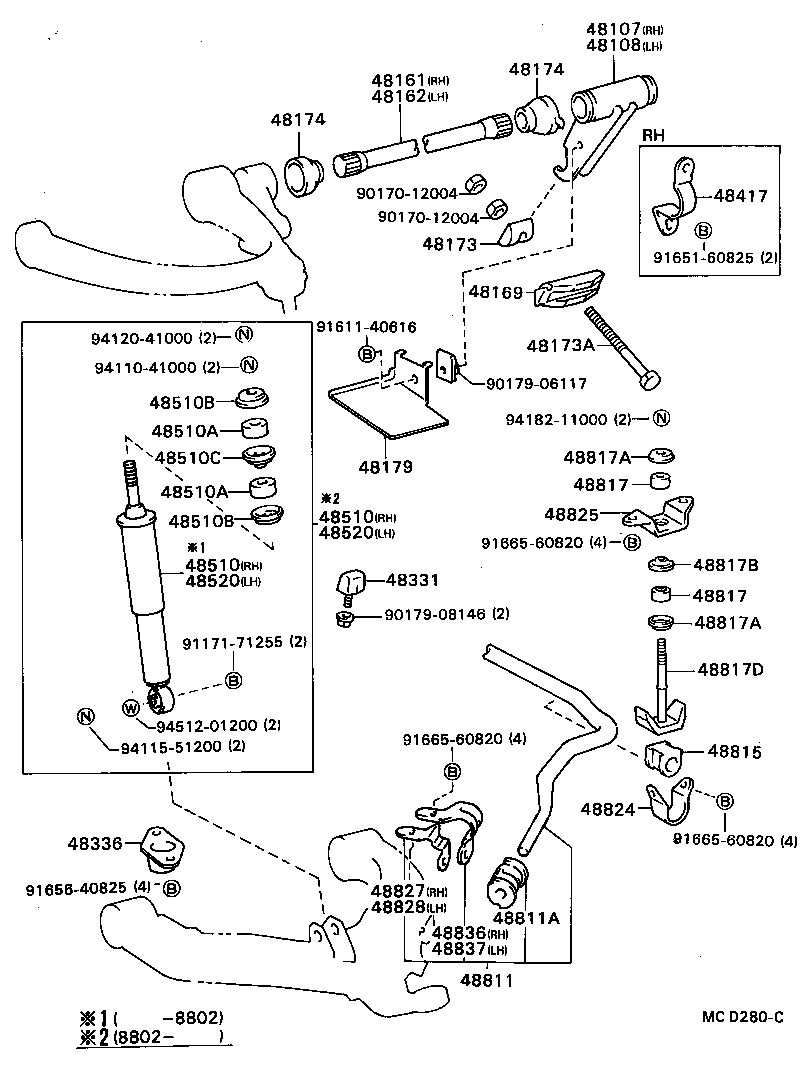

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-28010 |
YR2#,3# |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-28010 |
YR2#,3# |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-28040 |
YR3# |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-28040 |
YR3# |
1 | ||
| 48169 - SWIVEL, ANCHOR ARM | ||||
| 48169-28020 |
YR3# |
2 | ||
| 48173 - SEAT, ANCHOR ARM ADJUSTER | ||||
| 48173-27010 |
YR2#,3# |
2 | ||
| 48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING) | ||||
| 90101-12096 |
YR2#,3# |
2 | ||
| 48174 - COVER, TORSION BAR DUST | ||||
| 48175-27010 |
YR2#,3# RR |
2 | ||
| 48174-27010 |
YR2#,3# FR |
2 | ||
| 48174 - COVER, TORSION BAR DUST | ||||
| 48175-27010 |
YR2#,3# RR |
2 | ||
| 48174-27010 |
YR2#,3# FR |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48305-30030 |
YR2#,3# |
1 | ||
| 48336 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-28010 |
YR3# |
2 | ||
| 48417 - BRACKET, SPRING | ||||
| 48417-28030 |
YR2#,3# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48500-29335 |
YR3# |
1 | ||
| 48500-28090 |
YR3# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48500-29335 |
YR3# |
1 | ||
| 48500-28090 |
YR3# |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
YR3# UPR |
2 | ||
| 90948-01029 |
YR3# LWR |
2 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
YR3# UPR |
2 | ||
| 90948-01029 |
YR3# LWR |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02076 |
YR3# LWR |
2 | ||
| 90948-02002 |
YR3# UPR |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02076 |
YR3# LWR |
2 | ||
| 90948-02002 |
YR3# UPR |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
YR3# |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48500-29335 |
YR3# |
1 | ||
| 48500-28090 |
YR3# |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48500-29335 |
YR3# |
1 | ||
| 48500-28090 |
YR3# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-28010 |
YR3# |
2 | ||
| 48804-28011 |
YR3# |
2 | ||
| 48811A - BUSH(FOR FRONT STABILIZER BAR) | ||||
| 48815-28030 |
YR3# |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
YR2#,3# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
YR2#,3# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
YR2#,3# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
YR2#,3# |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02005 |
YR2#,3# |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 48819-28010 |
YR3# |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-28030 |
YR3# |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-28020 |
YR3# |
2 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-28011 |
YR3# |
1 | ||
| 48827-28010 |
YR3# |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48828-28011 |
YR3# |
1 | ||
| 48828-28010 |
YR3# |
1 | ||
| 48836 - BRACKET, FRONT STABILIZER END, RH | ||||
| 48836-28010 |
YR3# |
1 | ||
| 48836-28011 |
YR3# |
1 | ||
| 48837 - BRACKET, FRONT STABILIZER END, LH | ||||
| 48837-28020 |
YR3# |
1 | ||
| 48837-28021 |
YR3# |
1 | ||
| Common parts | ||||
| 90170-12004 | ||||
| 90179-06117 | ||||
| 90179-08146 | ||||
| 91171-71255 | ||||
| 91611-40616 | ||||
| 91651-60825 | ||||
| 91656-40825 | ||||
| 91665-60820 | ||||
| 94110-41000 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94182-11000 | ||||
| 94512-01200 | ||||
