YR31LG-PQEK (1988)
Toyota Van

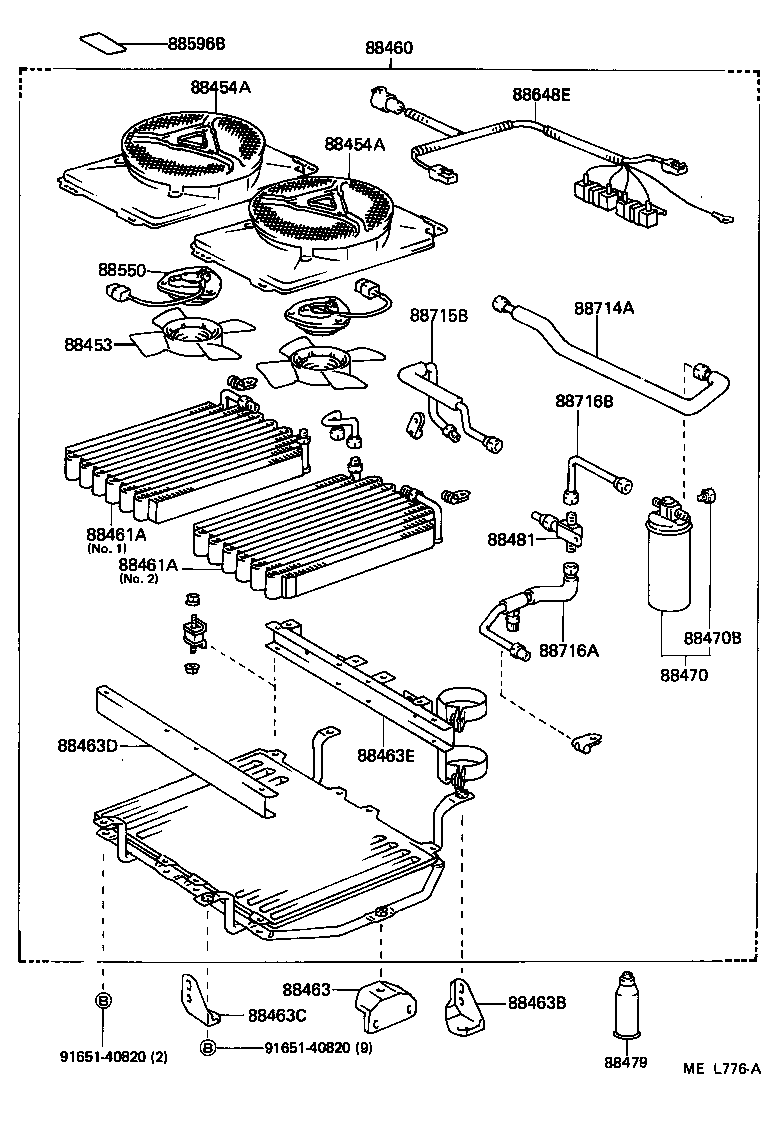

ILLUST NO. 1 OF 3(8808- )YR31
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-28010 |
YR3# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-28010 |
YR31 |
2 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-28010 |
YR31 |
2 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95D07 |
YR31 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95D01 |
YR31 NO.2 |
1 | ||
| 88461-95D00 |
YR31 NO.1 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95D01 |
YR31 NO.2 |
1 | ||
| 88461-95D00 |
YR31 NO.1 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95D03 |
YR31 |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-87014 |
YR31 |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-95D04 |
YR31 |
1 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-95D05 |
YR31 |
1 | ||
| 88463E - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88463-95D06 |
YR31 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
YR31 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
YR31 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YR2#,3# 400G,400G |
3 | ||
| 90986-02004 |
YR2#,3# 250G,250G |
3 | ||
| 88481 - GLASS, SIGHT | ||||
| 88481-87002 |
YR31 W(AIR CONDITIONER) |
1 | ||
| 88481-87004 |
YR31 W(FRONT AIR CONDITIONER) |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-87002 |
YR3# W(FRONT AIR CONDITIONER) |
2 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88723-28010 |
YR22,31;YR29..USA W(AIR CONDITIONER) |
1 | ||
| 88723-28020 |
YR3# W(FRONT AIR CONDITIONER) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95D02 |
YR31 SUCTION |
1 | ||
| 88648-87018 |
YR31 TUBE |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88716-95D18 |
YR31 |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-95D01 |
YR31 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95D19 |
YR31 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95D08 |
YR31 |
1 | ||
| Common parts | ||||
| 91651-40820 | ||||

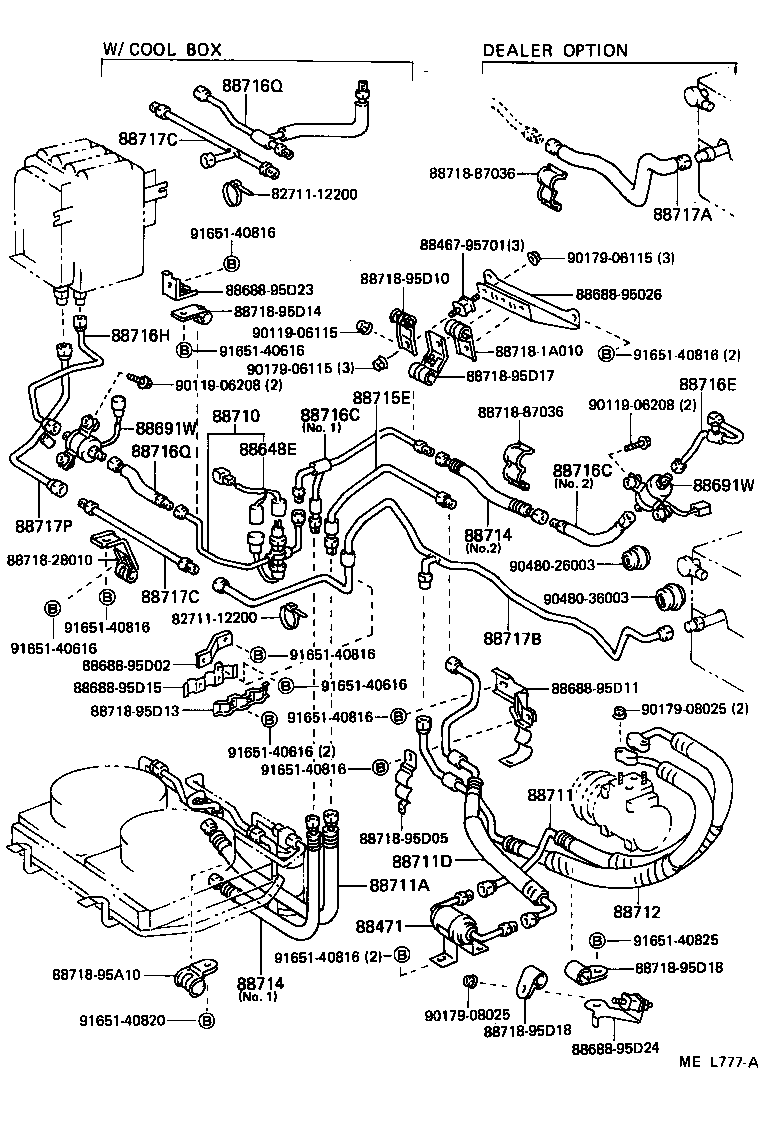

ILLUST NO. 2 OF 3(8808- )YR31
PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-95D02 |
YR31 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95D02 |
YR31 SUCTION |
1 | ||
| 88648-87018 |
YR31 TUBE |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-28040 |
YR31 FRONT |
1 | ||
| 88691-87001 |
YR22,31;YR29..USA REAR |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-28040 |
YR31 FRONT |
1 | ||
| 88691-87001 |
YR22,31;YR29..USA REAR |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-95D05 |
YR3# W(FRONT AIR CONDITIONER) |
1 | ||
| 88710-95D04 |
YR31 W(AIR CONDITIONER) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95D11 |
YR31 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95D10 |
YR31 |
1 | ||
| 88711D - HOSE, COOLER REFRIGERANT DISCHARGE, NO.4 | ||||
| 88711-95D12 |
YR31 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95D03 |
YR31 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95D02 |
YR31 NO.1 |
1 | ||
| 88721-95D07 |
YR31 NO.2 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95D02 |
YR31 NO.1 |
1 | ||
| 88721-95D07 |
YR31 NO.2 |
1 | ||
| 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E | ||||
| 88715-95D09 |
YR31 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95D09 |
YR31 NO.1 |
1 | ||
| 88716-87027 |
YR22,31;YR29..USA NO.2 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95D09 |
YR31 NO.1 |
1 | ||
| 88716-87027 |
YR22,31;YR29..USA NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-28142 |
YR31 |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-28190 |
YR31 |
1 | ||
| 88716-28180 |
YR2#,3# W(FRONT AIR CONDITIONER) |
1 | ||
| 88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q | ||||
| 88716-95D22 |
YR31 |
1 | ||
| 88716-95D23 |
YR31 W(ICE COOL BOX) |
1 | ||
| 88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q | ||||
| 88716-95D22 |
YR31 |
1 | ||
| 88716-95D23 |
YR31 W(ICE COOL BOX) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95D16 |
YR31 MAKER OPTION |
1 | ||
| 88717-95D12 |
YR3# W(FRONT AIR CONDITIONER) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-28100 |
YR22,31;YR29..USA W(ICE COOL BOX) |
1 | ||
| 88717-28120 |
YR31 |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-28100 |
YR22,31;YR29..USA W(ICE COOL BOX) |
1 | ||
| 88717-28120 |
YR31 |
1 | ||
| 88717P - PIPE, COOLER REFRIGERANT SUCTION, P | ||||
| 88717-28061 |
YR31 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-95701 | ||||
| 88688-95026 | ||||
| 88688-95D02 | ||||
| 88688-95D11 | ||||
| 88688-95D15 | ||||
| 88688-95D23 | ||||
| 88688-95D24 | ||||
| 88718-1A010 | ||||
| 88718-28010 | ||||
| 88718-87036 | ||||
| 88718-95A10 | ||||
| 88718-95D05 | ||||
| 88718-95D10 | ||||
| 88718-95D13 | ||||
| 88718-95D14 | ||||
| 88718-95D17 | ||||
| 88718-95D18 | ||||
| 90119-06115 | ||||
| 90119-06208 | ||||
| 90179-06115 | ||||
| 90179-08025 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-40825 | ||||
ILLUST NO. 3 OF 3(8808- )YR2#,31
COOL BOX PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-28010 |
YR31..CND |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-28190 |
YR31 |
1 | ||
| 88716-28180 |
YR2#,3# W(FRONT AIR CONDITIONER) |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-28131 |
YR3# |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-28090 |
YR31..CND |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88592-87002 | ||||
| 88718-28020 | ||||
| 88718-28030 | ||||
| 90099-32110 | ||||
| 90480-26003 | ||||
| 91651-40614 | ||||
