YR31LG-PQEA (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

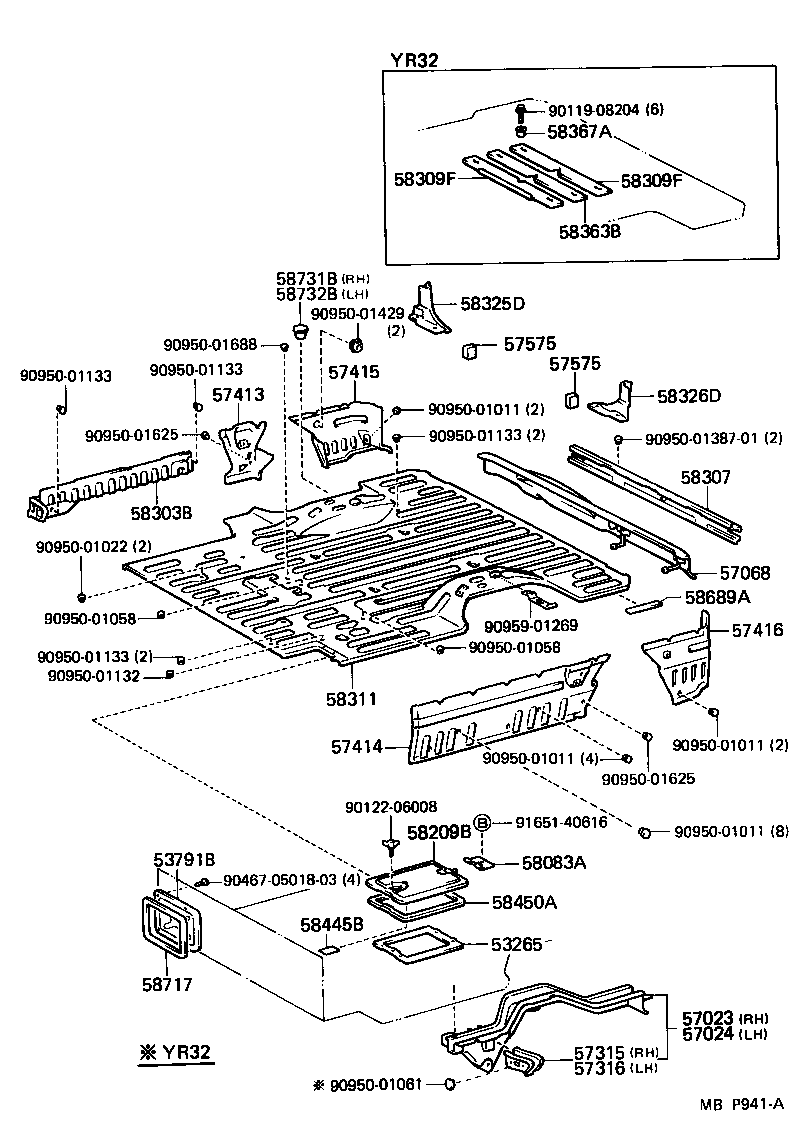

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53791B - COVER, COOL AIR INTAKE HOLE | ||||
| 53791-87003 |
YR29,32;YR22,31..USA |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-28923 |
YR31 |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-28920 |
YR31 |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95D00 |
YR3# |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57315-28010 |
YR22,31 |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57315-87004 |
YR2#,3# |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-28011 |
YR22,31..LE |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-95D01 |
YR31..4FC |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-87007 |
YR22,31 |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-87009 |
YR22,31 |
1 | ||
| 57575 - PAD, DUSTPROOF FLOOR, REAR | ||||
| 57575-87002 |
YR2#,3# |
2 | ||
| 57575 - PAD, DUSTPROOF FLOOR, REAR | ||||
| 57575-87002 |
YR2#,3# |
2 | ||
| 58083A - HINGE SUB-ASSY, BATTERY SERVICE COVER, MALE | ||||
| 58083-87002 |
YR2#,3# |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-87001 |
YR2#,3# |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-87001 |
YR2#,3# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-95D00 |
YR3# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-28041 |
YR22,31 |
1 | ||
| 58311-28071 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 58325D - BRACE, REAR FLOOR PANEL, RH | ||||
| 58325-87001 |
YR2#,3# |
1 | ||
| 58326D - BRACE, REAR FLOOR PANEL, LH | ||||
| 58326-87001 |
YR2#,3# |
1 | ||
| 58445B - PAD, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J00 |
YR2#,3# |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-87002 |
YR2#,3# |
1 | ||
| 58717 - PACKING, COOLER AIR INLET COVER | ||||
| 58717-87004 |
YR29,32;YR22,31..USA |
1 | ||
| 58731B - CAP, REAR ABSORBER, RH | ||||
| 58731-87002 |
YR22,3# |
1 | ||
| 58732B - CAP, REAR ABSORBER, LH | ||||
| 58732-87002 |
YR22,3# |
1 | ||
| Common parts | ||||
| 90119-08204 | ||||
| 90122-06008 | ||||
| 90467-0501803 | ||||
| 90950-01011 | ||||
| 90950-01022 | ||||
| 90950-01058 | ||||
| 90950-01061 | ||||
| 90950-01132 | ||||
| 90950-01133 | ||||
| 90950-0138701 | ||||
| 90950-01429 | ||||
| 90950-01625 | ||||
| 90950-01688 | ||||
| 90959-01269 | ||||
| 91651-40616 | ||||
ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55152A - BRACKET, 3 WAY ATTACHING | ||||
| 55152-87001 |
YR2#,3# |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-87701 |
YR2#,31 |
1 | ||
| 57697-87701 |
YR2#,3# |
1 | ||
| 57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH | ||||
| 57802-28010 |
YR22,31 |
1 | ||
| 57806A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2 | ||||
| 57806-28020 |
YR31..LE |
1 | ||
| 57809 - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.5 | ||||
| 57809-28010 |
YR31..LE |
1 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57832-28010 |
YR22,3# |
1 | ||
| 57834 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.4 | ||||
| 57808-28040 |
YR31..LE RH |
1 | ||
| 57808-28050 |
YR31..LE LH |
1 | ||
| 57834 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.4 | ||||
| 57808-28040 |
YR31..LE RH |
1 | ||
| 57808-28050 |
YR31..LE LH |
1 | ||
| 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57835-28030 |
YR31..LE |
1 | ||
| 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 | ||||
| 57836-28010 |
YR22,3# |
1 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-28020 |
YR22,3# |
1 | ||
| 57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH | ||||
| 57842-28020 |
YR22,3# |
1 | ||
| 57845 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH | ||||
| 57845-87001 |
YR22,3# |
1 | ||
| 57846 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH | ||||
| 57846-87001 |
YR22,3# |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
YR2#,3# |
1 | ||
| 58253B - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-87002 |
YR2#,3# |
1 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58267-87003 |
YR2#,3# |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-87002 |
YR2#,3# |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 44797-87003 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
4 | ||
| 44797-87003 |
YR22,31 TYPE A |
4 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 51938-87003 |
YR22,3# |
2 | ||
| Common parts | ||||
| 46451-87005 | ||||
