YR31LG-PQEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

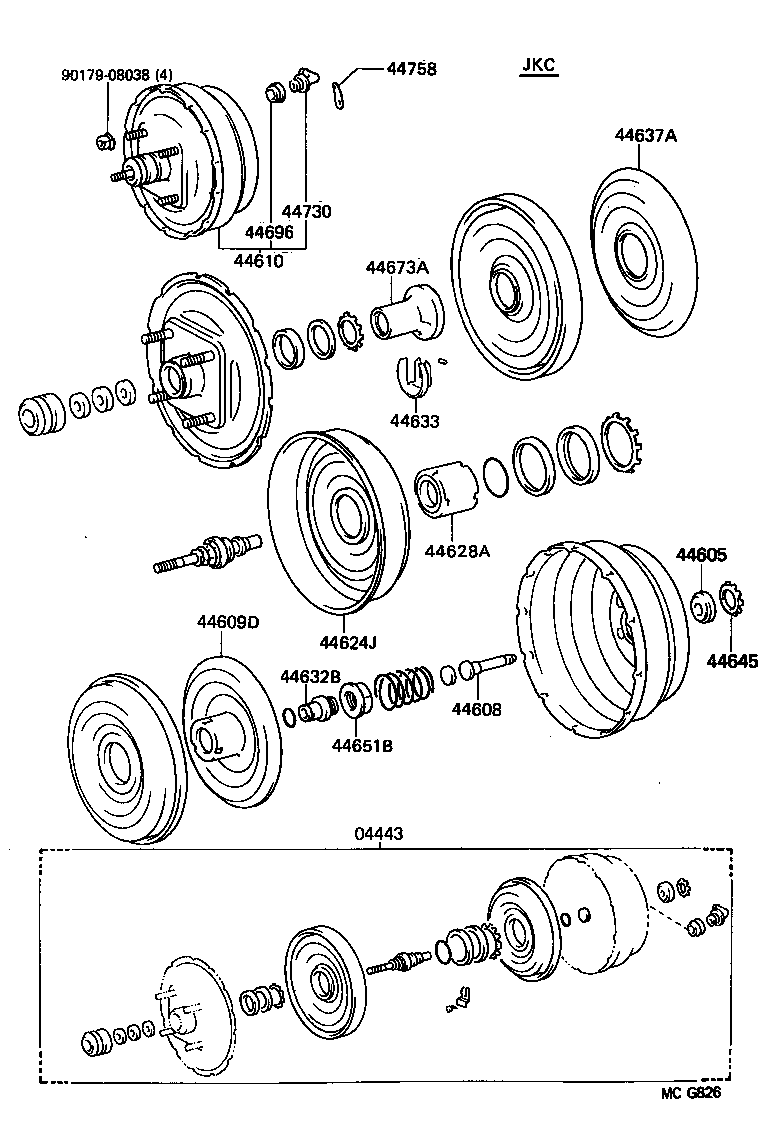

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44609D 44610 44624J 44628A 44632B 44633 44637A 44645 44651B 44673A 44696 44730 44758 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-28200

YR2#,3#

JKC

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-30350

YR2#,3#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-17090

YR2#,3#

 1
44609D - PLATE & RETAINER SUB-ASSY, BOOSTER
44609-26380

YR2#,3#

 1
44610 - BOOSTER ASSY, BRAKE
44610-28300

YR2#,3#

 1
44624J - PLATE, BOOSTER CENTER
44624-28300

YR2#,3#

 1
44628A - BODY, BOOSTER CENTER
44628-20810

YR2#,3#

 1
44632B - HUB, BOOSTER REACTION DISK
44632-28300

YR2#,3#

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-20811

YR2#,3#

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-28300

YR2#,3#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

YR2#,3#

 1
44651B - NUT, BOOSTER
44651-20810

YR2#,3#

 1
44673A - BODY, BOOSTER VALVE
44673-20810

YR2#,3#

 1
44696 - GROMMET, CHECK VALVE
90480-24015

YR2#,3#

JKC

 1
90480-24439

YR2#,3#

AISIN

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28010

YR2#,3#

JKC

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-28070

YR2#,3#

 2
Common parts
90179-08038

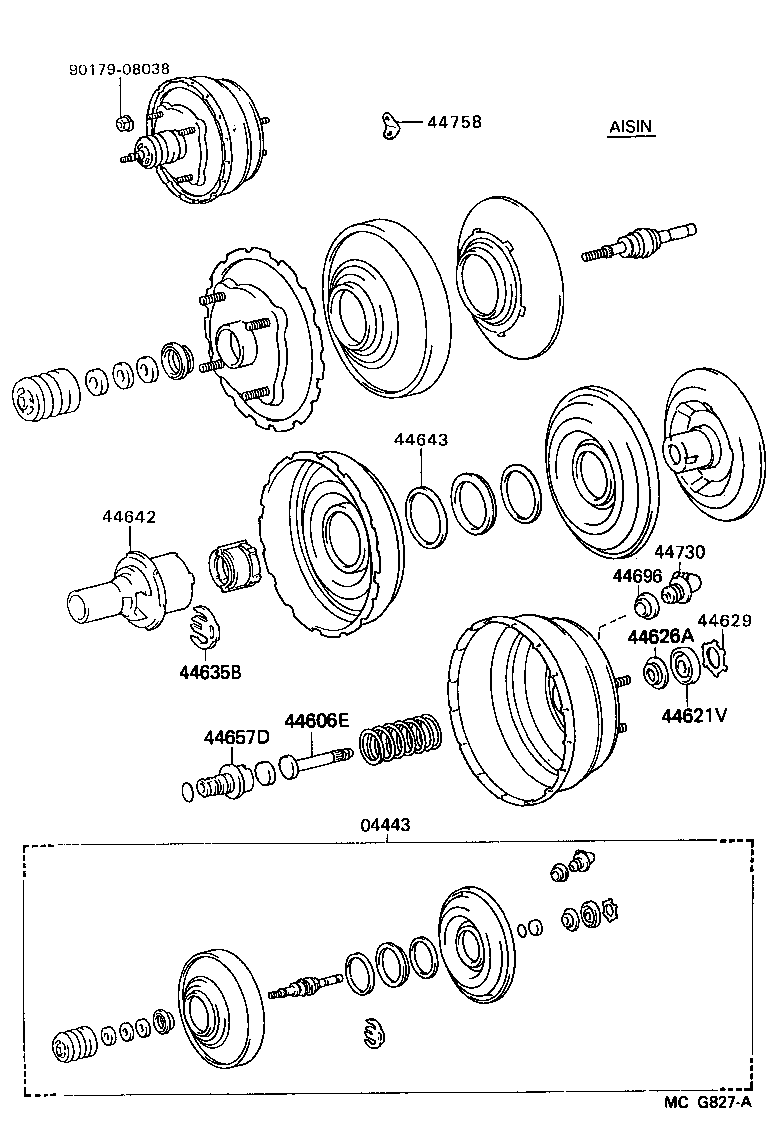

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 04443 44606E 44621V 44626A 44629 44635B 44642 44643 44657D 44696 44730 44758 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-28200

YR2#,3#

JKC

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800

YR2#,3#

 1
44621V - SEAL, BOOSTER BODY
44621-14030

YR2#,3#

 1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010

YR2#,3#

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

YR2#,3#

 1
44635B - KEY, VALVE STOPPER
44635-20800

YR2#,3#

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

YR2#,3#

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

YR2#,3#

 1
44657D - CASE, REACTION DISC
44657-28370

YR2#,3#

 1
44696 - GROMMET, CHECK VALVE
90480-24015

YR2#,3#

JKC

 1
90480-24439

YR2#,3#

AISIN

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28010

YR2#,3#

JKC

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-28070

YR2#,3#

 2
Common parts
90179-08038

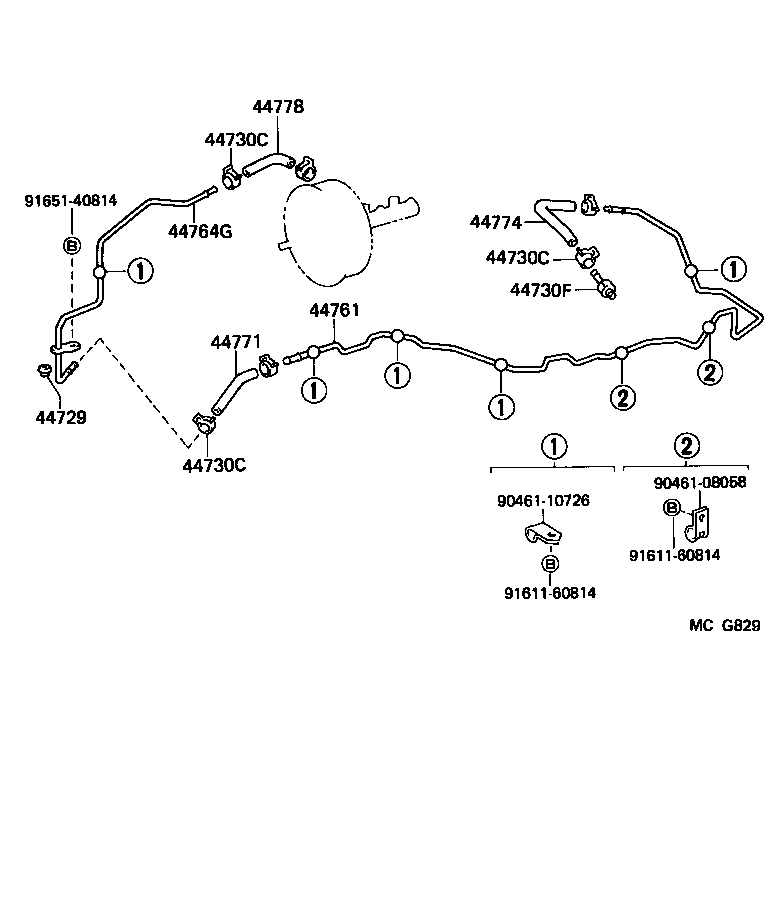

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 44729 44730C 44730C 44730C 44730F 44761 44764G 44771 44774 44778 9046108058 9046110726 9161160814 9161160814 9165140814
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-25010

YR2#,3#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

YR2#,3#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

YR2#,3#

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

YR2#,3#

 6
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

YR2#,3#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-28170

YR3#

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-28050

YR2#,3#

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-28020

YR2#,3#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-28080

YR2#,3#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-28040

YR2#,3#

 1
Common parts
90461-08058
90461-10726
91611-60814
91651-40814
