YR31LG-PQEA (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

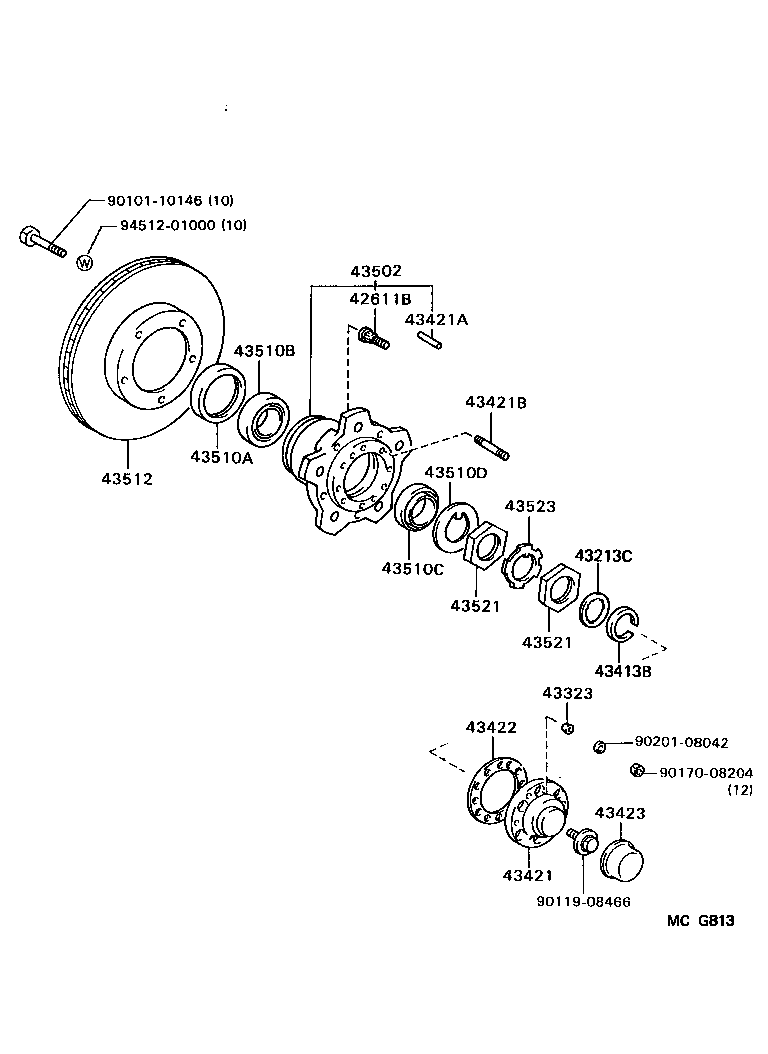

ILLUST NO. 1 OF 2(8808- )YR3#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02047 |
YR3# |
10 | ||
| 43213C - SPACER (FOR DRIVE SHAFT) | ||||
| 90560-27010 |
YR3# T=1.8 |
2 | ||
| 90560-27005 |
YR3# T=2.0 |
2 | ||
| 90560-27011 |
YR3# T=2.25 |
2 | ||
| 43323 - WASHER, CONE (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
YR3# |
12 | ||
| 43413B - RING, DRIVE SHAFT SNAP | ||||
| 90520-27023 |
YR3# |
2 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
YR3# |
4 | ||
| 43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
YR3# |
12 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60020 |
YR3# |
2 | ||
| 43422-60030 |
YR3# |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-28020 |
YR3# |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-66002 |
YR3# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90366-50011 |
YR3# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-45087 |
YR3# |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-28040 |
YR3# |
2 | ||
| Common parts | ||||
| 90101-10146 | ||||
| 90119-08466 | ||||
| 90170-08204 | ||||
| 90201-08042 | ||||
| 94512-01000 | ||||

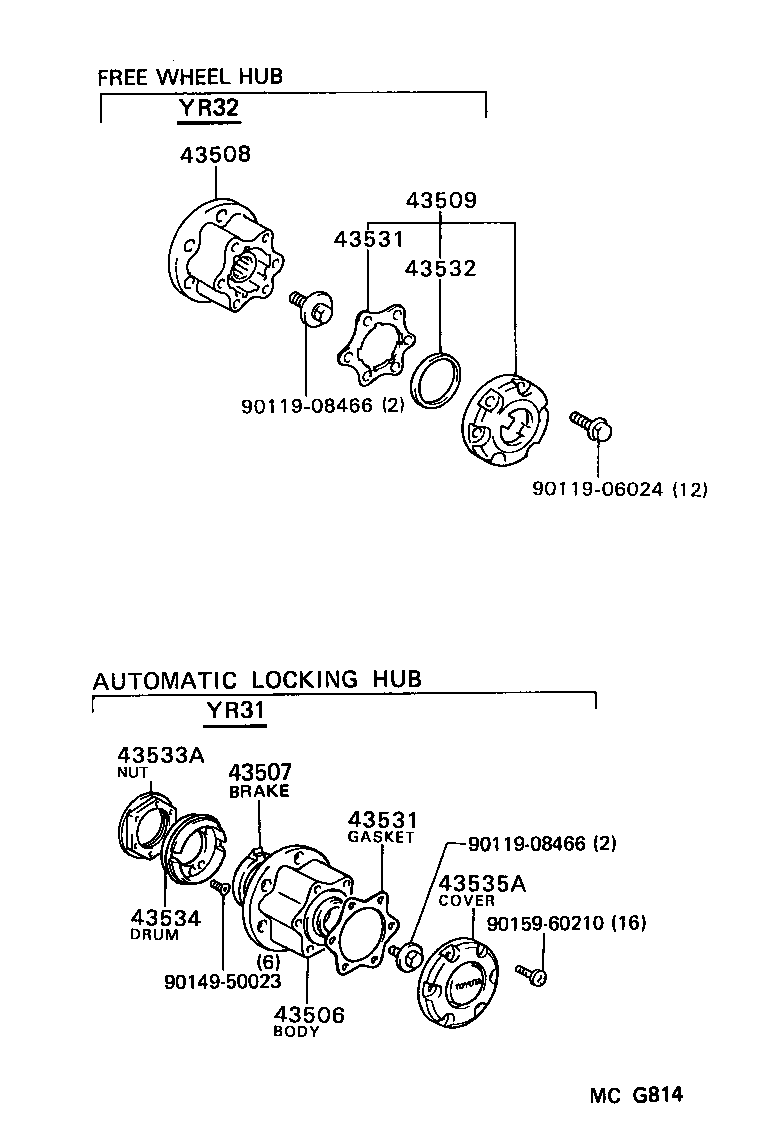

ILLUST NO. 2 OF 2(8808- )YR3#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43506 - BODY & BRAKE SUB-ASSY, AUTO LOCKING HUB | ||||
| 43506-35022 |
YR31 |
2 | ||
| 43507 - BRAKE SUB-ASSY, AUTO LOCKING HUB | ||||
| 43507-35011 |
YR31 |
2 | ||
| 43531 - GASKET, FREE WHEEL HUB | ||||
| 43531-60020 |
YR31 |
2 | ||
| 43531 - GASKET, FREE WHEEL HUB | ||||
| 43531-60020 |
YR31 |
2 | ||
| 43533A - NUT, AUTOMATIC LOCKING HUB LOCK | ||||
| 43533-60010 |
YR31 |
2 | ||
| 43534 - DRUM, AUTOMATIC LOCKING HUB BRAKE | ||||
| 43534-35011 |
YR31 |
2 | ||
| 43535A - COVER, AUTOMATIC LOCKING HUB | ||||
| 43535-35010 |
YR31 |
2 | ||
| Common parts | ||||
| 90119-06024 | ||||
| 90119-08466 | ||||
| 90149-50023 | ||||
| 90159-60210 | ||||
