YR31LG-PQEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

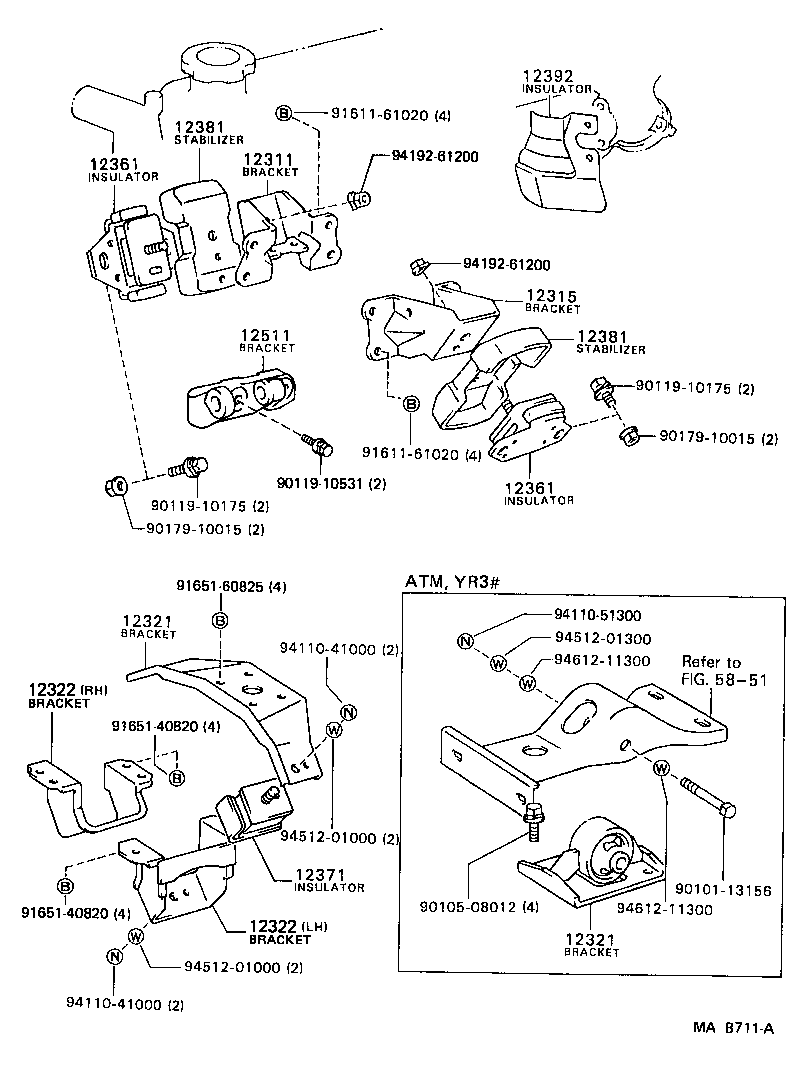

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12322 12322 12361 12361 12371 12381 12381 12392 12511 5851 9010113156 9010508012 9011910175 9011910175 9011910531 9017910015 9017910015 9161161020 9161161020 9165140820 9165140820 9165160825 9411041000 9411041000 9411051300 9419261200 9419261200 9451201000 9451201000 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

4YEC..YR2#,3#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

4YEC..YR2#,3#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-54010

4YEC..YR3#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-54010

4YEC..YR3#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

4YEC..YR2#,3#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

4YEC..YR2#,3#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

4YEC..YR2#,3#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

4YEC..YR2#,3#

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

4YEC..YR2#,3#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73011

4YEC..YR2#,3#

 1
Common parts
90101-13156
90105-08012
90119-10175
90119-10531
90179-10015
91611-61020
91651-40820
91651-60825
94110-41000
94110-51300
94192-61200
94512-01000
94512-01300
94612-11300
Linked diagrams
5851
