YR31LG-MQEA (1986)

Toyota Van

Production Aug 1986 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )4YEC..YR3#

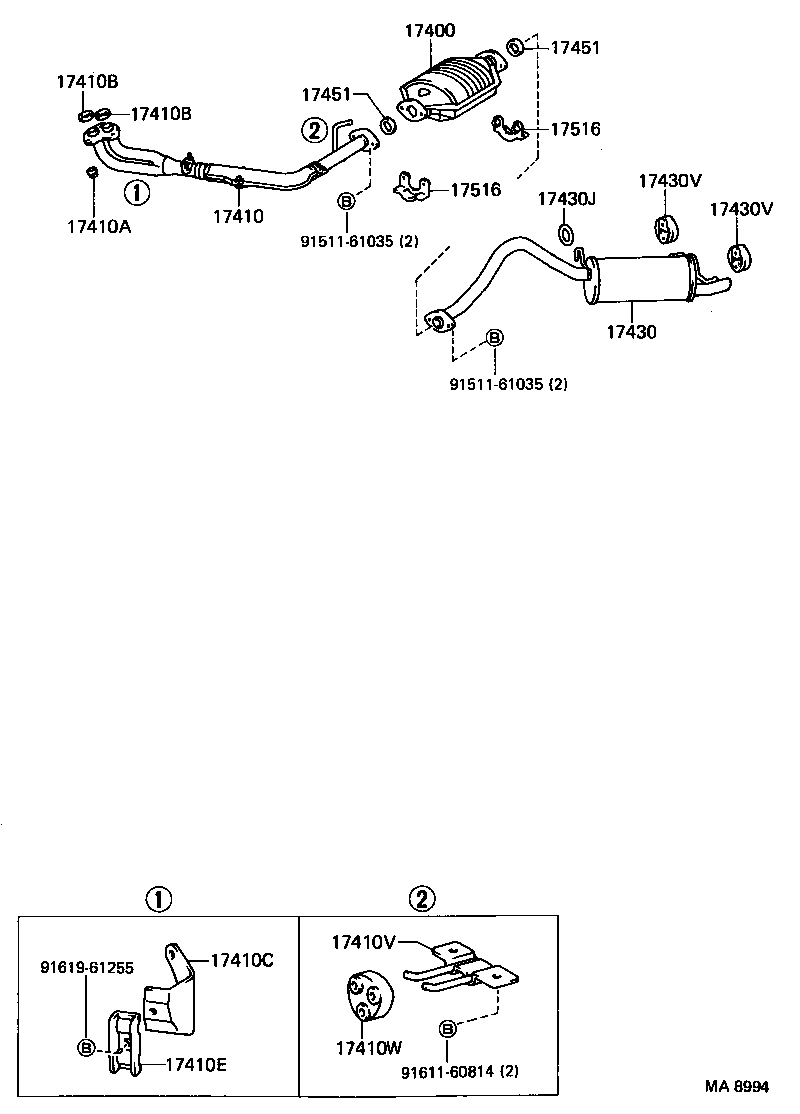

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410C 17410E 17410V 17410W 17430 17430J 17430V 17430V 17451 17451 17516 17516 9151161035 9151161035 9161160814 9161961255
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-43030

4YEC..YR3#

 1
18450-73120

4YEC..YR3#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-73350

4YEC..YR3#

 1
17410-73271

4YEC..YR3#

 1
17410B - GASKET, EXHAUST PIPE
90917-06026

3YEC,4YEC..YR2#,3#

 2
17410B - GASKET, EXHAUST PIPE
90917-06026

3YEC,4YEC..YR2#,3#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73130

4YEC..YR3#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17599-73010

4YEC..YR3#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17562-64100

4YEC..YR3#

 1
17410W - CUSHION, EXHAUST PIPE FRONT (FOR REAR)
17566-35010

4YEC..YR3#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-73040

4YEC..YR3#

 1
17405-73120

4YEC..YR3#

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

3YEC,4YEC..YR2#,3#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-15010

4YEC..YR3#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-15010

4YEC..YR3#

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

3YEC,4YEC..YR2#,3#

RR

 1
90917-06023

3YEC,4YEC..YR2#,3#

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

3YEC,4YEC..YR2#,3#

RR

 1
90917-06023

3YEC,4YEC..YR2#,3#

FR

 1
17516 - RETAINER, EXHAUST PIPE, NO.2
18495-71010

3YEC,4YEC..YR2#,3#

 2
17516 - RETAINER, EXHAUST PIPE, NO.2
18495-71010

3YEC,4YEC..YR2#,3#

 2
Common parts
91511-61035
91611-60814
91619-61255
