YR31LG-MDEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

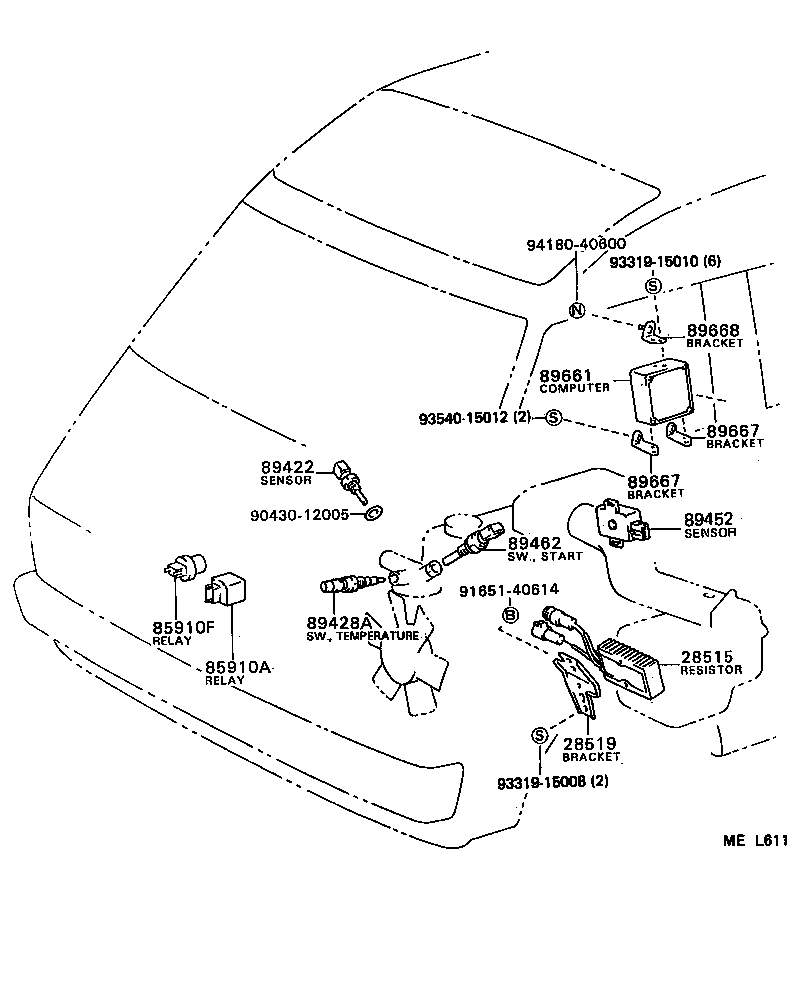

Click highlighted areas on diagram

diagram 28515 28519 85910A 85910F 89422 89428A 89452 89462 89661 89667 89667 89668 9043012005 9165140614 9331915008 9331915010 9354015012 9418040600
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-26020

4YEC..YR2#,3#

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-28010

4YEC..YR2#,3#

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

YR2#,3#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

YR2#,3#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

YR2#,3#

 1
89428A - SWITCH, WATER TEMPERATURE (FOR E.F.I)
89428-28030

YR31..USA

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-14020

YR2#,3#

 1
89462 - SWITCH, START INJECTOR TIME
89462-20020

YR2#,3#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-28081

YR2#,3#

 1
89661-28091

YR2#,3#..USA

CALIFORNIA SPEC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89567-28010

YR2#,3#

 2
89667 - BRACKET, ENGINE CONTROL COMPUTER
89567-28010

YR2#,3#

 2
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89568-28010

YR2#,3#

 1
Common parts
90430-12005
91651-40614
93319-15008
93319-15010
93540-15012
94180-40600
