YR29LV-PREA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

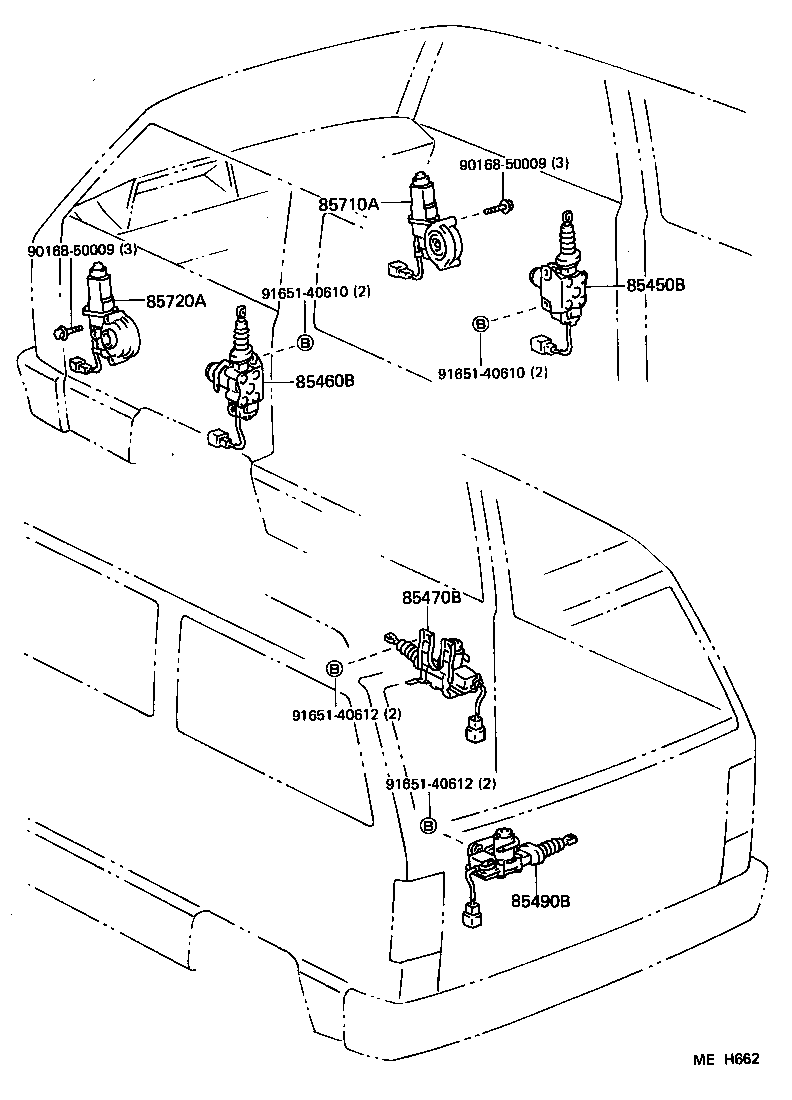

Click highlighted areas on diagram

diagram 85450B 85460B 85470B 85490B 85710A 85720A 9016850009 9016850009 9165140610 9165140610 9165140612 9165140612
Part # Description Qty Price
85450B - MOTOR ASSY, DOOR CONTROL, FRONT RH
85450-87002

YR22,31..DLX;YR29,32..USA

 1
85460B - MOTOR ASSY, DOOR CONTROL, FRONT LH
85460-87001

YR22,31..DLX;YR29,32..USA

 1
85470B - MOTOR ASSY, DOOR CONTROL, REAR RH
85470-87001

YR22,31..DLX;YR29,32..USA

 1
85490B - MOTOR ASSY, BACK DOOR CONTROL
85470-87003

YR22,31..DLX;YR29,32..USA

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-87001

YR29,32..USA

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-16030

YR29,32..USA

 1
Common parts
90168-50009
91651-40610
91651-40612
