YR29LV-PREA (1988)
Toyota Van

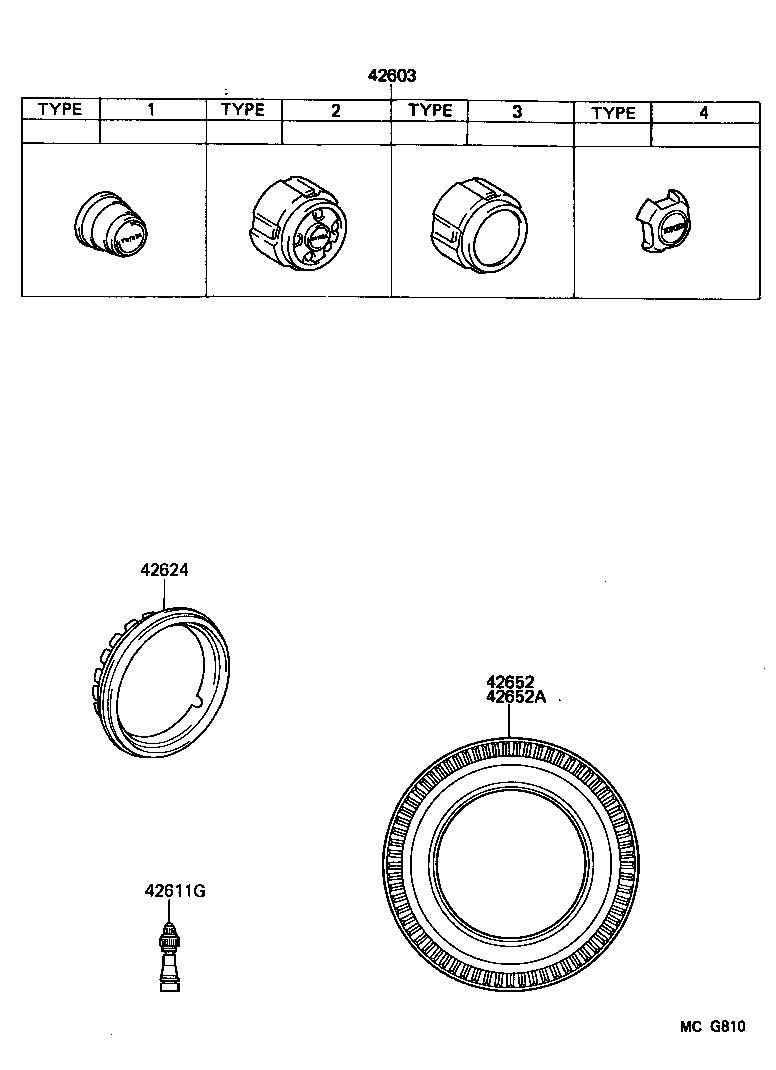

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-27060 |
YR29..USA *STE |
4 | ||
| 42603-28080 |
YR2# W(ALUMINUM WHEEL) |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
YR2#,3# |
5 | ||
| 42652 - TIRE | ||||
| 42652-28200 |
YR29 P195/75R14,W(ALUMINUM WHEEL) |
4 | ||
| 42652-28170 |
YR29 175R14 |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-28200 |
YR29 P195/75R14,W(ALUMINUM WHEEL) |
1 | ||
| 42652-28170 |
YR29 175R14 |
1 | ||

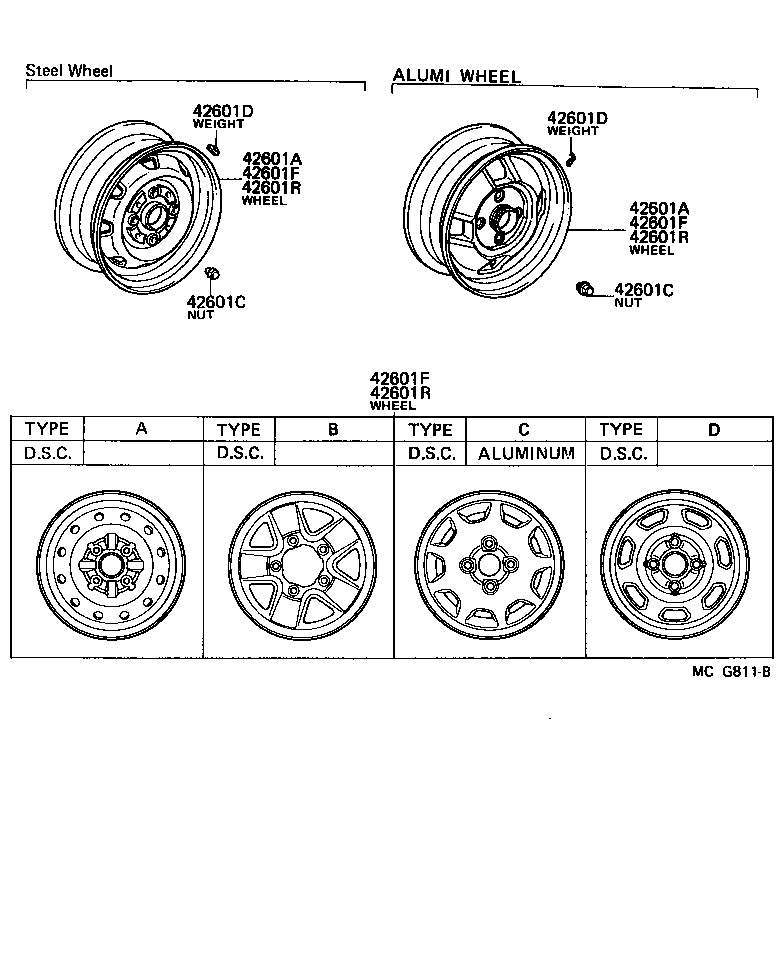

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-2221103 |
YR29 14X5J,5-JX14, TYPE A, SILVER METALLIC,SILVER |
1 | ||
| 42611-28140 |
YR2# 5.5JJ-14,ALUMI |
1 | ||
| 42611-1427103 |
YR29 14X5.5J,SILVER,045 ,148 ,168 ,3H4 ,4J6 ,4K5 ,4K7 ,8D7 ,8D8 |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-2221103 |
YR29 14X5J,5-JX14, TYPE A, SILVER METALLIC,SILVER |
1 | ||
| 42611-28140 |
YR2# 5.5JJ-14,ALUMI |
1 | ||
| 42611-1427103 |
YR29 14X5.5J,SILVER,045 ,148 ,168 ,3H4 ,4J6 ,4K5 ,4K7 ,8D7 ,8D8 |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01059 |
YR2# |
16 | ||
| 90942-01042 |
YR2# W(ALUMINUM WHEEL) |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01059 |
YR2# |
16 | ||
| 90942-01042 |
YR2# W(ALUMINUM WHEEL) |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
YR2#,3# 30G,T=10 |
1 | ||
| 90942-03022 |
YR2#,3# 40G,T=9.5 |
1 | ||
| 90942-03017 |
YR2#,3# 20G,T=8 |
1 | ||
| 90942-03025 |
YR2#,3# 50G,T=9.5 |
1 | ||
| 90942-03041 |
YR2#,3# 10G,T=7.5 |
1 | ||
| 90942-03031 |
YR2#,3# 80G,T=9.5 |
1 | ||
| 90942-03092 |
YR2# 10G |
1 | ||
| 90942-03095 |
YR2# 40G |
1 | ||
| 90942-03094 |
YR2# 30G |
1 | ||
| 90942-03093 |
YR2# 20G |
1 | ||
| 90942-03027 |
YR2#,3# 60G,T=9.5 |
1 | ||
| 90942-03096 |
YR2# 50G |
1 | ||
| 90942-03029 |
YR2#,3# 70G,T=9.5 |
1 | ||
| 90942-03097 |
YR2# 60G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
YR2#,3# 30G,T=10 |
1 | ||
| 90942-03022 |
YR2#,3# 40G,T=9.5 |
1 | ||
| 90942-03017 |
YR2#,3# 20G,T=8 |
1 | ||
| 90942-03025 |
YR2#,3# 50G,T=9.5 |
1 | ||
| 90942-03041 |
YR2#,3# 10G,T=7.5 |
1 | ||
| 90942-03031 |
YR2#,3# 80G,T=9.5 |
1 | ||
| 90942-03092 |
YR2# 10G |
1 | ||
| 90942-03095 |
YR2# 40G |
1 | ||
| 90942-03094 |
YR2# 30G |
1 | ||
| 90942-03093 |
YR2# 20G |
1 | ||
| 90942-03027 |
YR2#,3# 60G,T=9.5 |
1 | ||
| 90942-03096 |
YR2# 50G |
1 | ||
| 90942-03029 |
YR2#,3# 70G,T=9.5 |
1 | ||
| 90942-03097 |
YR2# 60G |
1 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-1427103 |
YR29 14X5.5J,SILVER,045 ,148 ,168 ,3H4 ,4J6 ,4K5 ,4K7 ,8D7 ,8D8 |
2 | ||
| 42611-28140 |
YR2# 5.5JJ-14,ALUMI |
2 | ||
| 42611-2221103 |
YR29 14X5J,SILVER |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-1427103 |
YR29 14X5.5J,SILVER,045 ,148 ,168 ,3H4 ,4J6 ,4K5 ,4K7 ,8D7 ,8D8 |
2 | ||
| 42611-28140 |
YR2# 5.5JJ-14,ALUMI |
2 | ||
| 42611-2221103 |
YR29 14X5J,SILVER |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-1427103 |
YR29 14X5.5J,SILVER,045 ,148 ,168 ,3H4 ,4J6 ,4K5 ,4K7 ,8D7 ,8D8 |
2 | ||
| 42611-28140 |
YR2# 5.5JJ-14,ALUMI |
2 | ||
| 42611-2221103 |
YR29 14X5J,SILVER |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-2221103 |
YR29 14X5J,SILVER |
2 | ||
| 42611-28140 |
YR2# 5.5JJ-14,ALUMI |
2 | ||
| 42611-1427103 |
YR29 14X5.5J,SILVER,045 ,148 ,168 ,3H4 ,4J6 ,4K5 ,4K7 ,8D7 ,8D8 |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-2221103 |
YR29 14X5J,SILVER |
2 | ||
| 42611-28140 |
YR2# 5.5JJ-14,ALUMI |
2 | ||
| 42611-1427103 |
YR29 14X5.5J,SILVER,045 ,148 ,168 ,3H4 ,4J6 ,4K5 ,4K7 ,8D7 ,8D8 |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-2221103 |
YR29 14X5J,SILVER |
2 | ||
| 42611-28140 |
YR2# 5.5JJ-14,ALUMI |
2 | ||
| 42611-1427103 |
YR29 14X5.5J,SILVER,045 ,148 ,168 ,3H4 ,4J6 ,4K5 ,4K7 ,8D7 ,8D8 |
2 | ||
