YR29LV-PRBEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

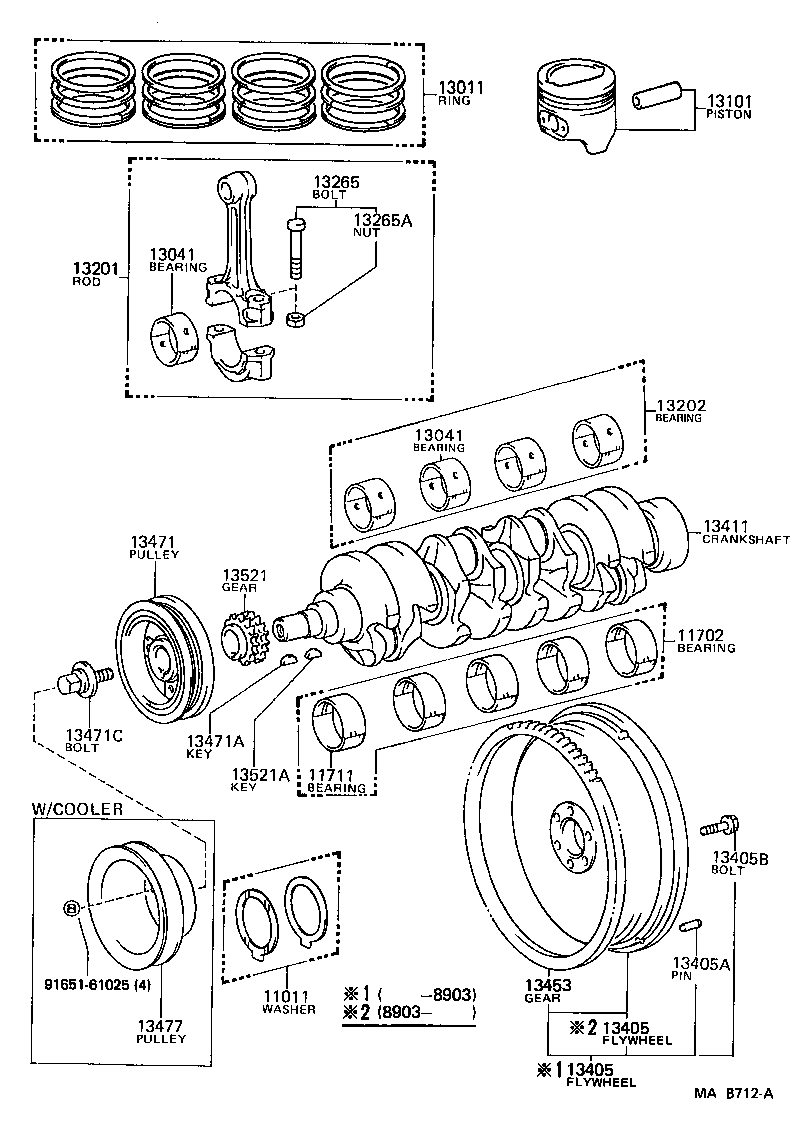

Click highlighted areas on diagram

diagram 11011 11702 11711 13011 13041 13041 13101 13201 13202 13265 13265A 13405 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13477 13521 13521A 9165161025
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010

4YEC..YR2#,3#

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-71020

4YEC..YR2#,3#

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-7102001

4YEC..YR2#,3#

MARK 1

 5
11701-7102002

4YEC..YR2#,3#

MARK 2

 5
11701-7102003

4YEC..YR2#,3#

MARK 3

 5
13011 - RING SET, PISTON
13011-73021

4YEC..YR2#,3#

STD

 1
13013-73021

4YEC..YR2#,3#

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-7101107

4YEC..YR2#,3#

MARK 7

 4
13041-7101108

4YEC..YR2#,3#

MARK 8

 4
13041-7101106

4YEC..YR2#,3#

MARK 6

 4
13041 - BEARING, CONNECTING ROD
13041-7101107

4YEC..YR2#,3#

MARK 7

 4
13041-7101108

4YEC..YR2#,3#

MARK 8

 4
13041-7101106

4YEC..YR2#,3#

MARK 6

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-7303101

4YEC..YR2#,3#

STD,MARK 1

 4
13101-7303103

4YEC..YR2#,3#

STD,MARK 3

 4
13103-73031

4YEC..YR2#,3#

O/S 0.50

 4
13101-7303102

4YEC..YR2#,3#

STD,MARK 2

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-79045

4YEC..YR2#,3#

 4
13202 - BEARING SET, CONNECTING ROD
13204-71011

4YEC..YR2#,3#

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-29025

4YEC..YR2#,3#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09001

4YEC..YR2#,3#

 8
13411 - CRANKSHAFT
13411-73010

4YEC..YR2#,3#

 1
13471 - PULLEY, CRANKSHAFT
13408-73010

4YEC..YR2#,3#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

4YEC..YR2#,3#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14069

4YEC..YR2#,3#

 1
90105-14013

4YEC..YR2#,3#

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-28010

4YEC..YR29..CND

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

4YEC..YR2#,3#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

4YEC..YR2#,3#

 1
Common parts
91651-61025
