YR29LV-PRBEK (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

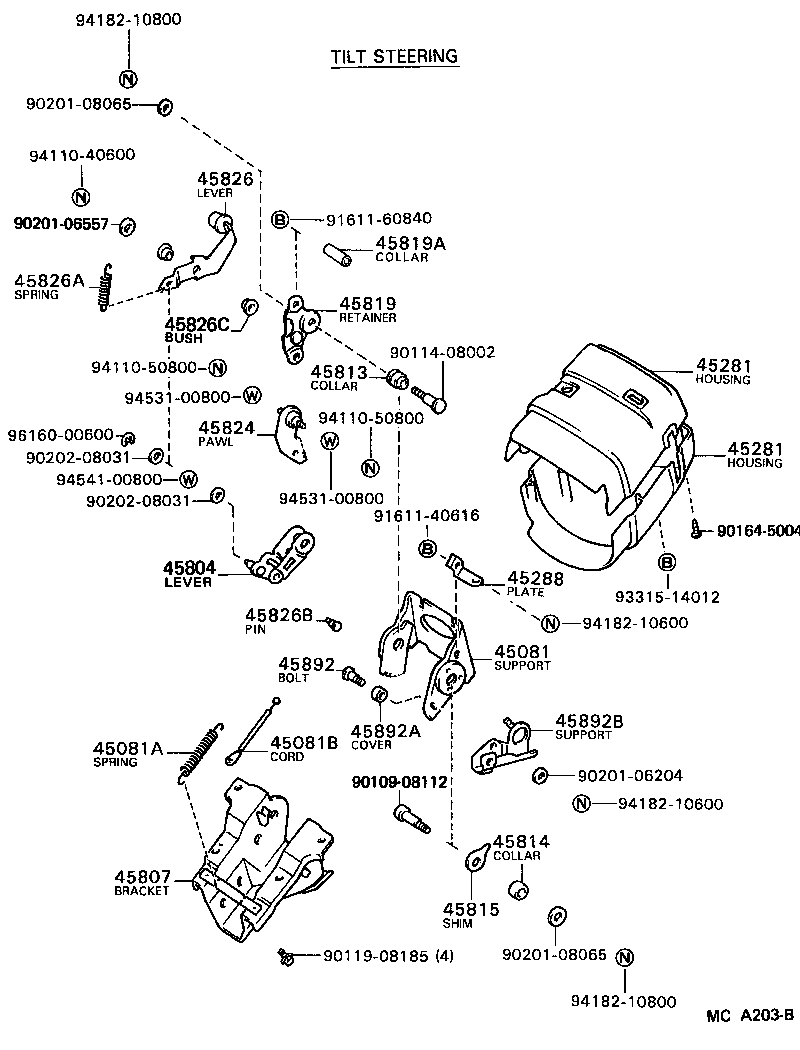

ILLUST NO. 2 OF 2(8508- )

Click highlighted areas on diagram

diagram 45081 45081A 45081B 45281 45281 45288 45804 45807 45813 45814 45815 45819 45819A 45824 45826 45826A 45826B 45826C 45892 45892A 45892B 9010908112 9011408002 9011908185 9020106204 9020106557 9020108065 9020108065 9020208031 9020208031 9161140616 9161160840 9331514012 9411040600 9411050800 9411050800 9418210600 9418210600 9418210800 9418210800 9453100800 9453100800 9454100800 9616000600
Part # Description Qty Price
45281 - HOUSING, STEERING COLUMN
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45286-2809204

YR29

UPR,BLUE,BLUE,TRIM4#

 1
45286-2809204

YR29

UPR,BLUE,BLUE,TRIM4#

 1
45286-2808214

YR29

UPR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45286-2808214

YR29

UPR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45286-2808205

YR2#,3#

UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45286-2808205

YR2#,3#

UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45287-2809203

YR29,32

LWR,GRAY,GRAY,TRIM1#,4#

 1
45287-2809203

YR29,32

LWR,GRAY,GRAY,TRIM1#,4#

 1
45287-2808214

YR29

LWR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45287-2808214

YR29

LWR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45286-2809203

YR29,32

UPR,GRAY,GRAY,TRIM1#,4#

 1
45286-2809203

YR29,32

UPR,GRAY,GRAY,TRIM1#,4#

 1
45287-2809204

YR29

LWR,BLUE,BLUE,TRIM4#

 1
45287-2809204

YR29

LWR,BLUE,BLUE,TRIM4#

 1
45287-2808203

YR29,32

LWR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45287-2808203

YR29,32

LWR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45287-2809205

YR2#,3#..DLX,STD

LWR,BEIGE,BEIGE,TRIM4#

 1
45287-2809205

YR2#,3#..DLX,STD

LWR,BEIGE,BEIGE,TRIM4#

 1
45286-2809205

YR2#,3#..DLX,STD

UPR,BEIGE,BEIGE,TRIM4#

 1
45286-2809205

YR2#,3#..DLX,STD

UPR,BEIGE,BEIGE,TRIM4#

 1
45287-2808205

YR2#,3#

LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45287-2808205

YR2#,3#

LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45286-2808203

YR29,32

UPR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45286-2808203

YR29,32

UPR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45281 - HOUSING, STEERING COLUMN
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45286-2809204

YR29

UPR,BLUE,BLUE,TRIM4#

 1
45286-2809204

YR29

UPR,BLUE,BLUE,TRIM4#

 1
45286-2808214

YR29

UPR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45286-2808214

YR29

UPR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45286-2808205

YR2#,3#

UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45286-2808205

YR2#,3#

UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45287-2809203

YR29,32

LWR,GRAY,GRAY,TRIM1#,4#

 1
45287-2809203

YR29,32

LWR,GRAY,GRAY,TRIM1#,4#

 1
45287-2808214

YR29

LWR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45287-2808214

YR29

LWR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45286-2809203

YR29,32

UPR,GRAY,GRAY,TRIM1#,4#

 1
45286-2809203

YR29,32

UPR,GRAY,GRAY,TRIM1#,4#

 1
45287-2809204

YR29

LWR,BLUE,BLUE,TRIM4#

 1
45287-2809204

YR29

LWR,BLUE,BLUE,TRIM4#

 1
45287-2808203

YR29,32

LWR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45287-2808203

YR29,32

LWR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45287-2809205

YR2#,3#..DLX,STD

LWR,BEIGE,BEIGE,TRIM4#

 1
45287-2809205

YR2#,3#..DLX,STD

LWR,BEIGE,BEIGE,TRIM4#

 1
45286-2809205

YR2#,3#..DLX,STD

UPR,BEIGE,BEIGE,TRIM4#

 1
45286-2809205

YR2#,3#..DLX,STD

UPR,BEIGE,BEIGE,TRIM4#

 1
45287-2808205

YR2#,3#

LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45287-2808205

YR2#,3#

LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45286-2808203

YR29,32

UPR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45286-2808203

YR29,32

UPR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45288 - PLATE, STEERING COLUMN COVER
45288-28021

YR2#,3#

 1
45288-28021

YR2#,3#

 1
Common parts
90109-08112
90114-08002
90119-08185
90201-06204
90201-06557
90201-08065
90202-08031
91611-40616
91611-60840
93315-14012
94110-40600
94110-50800
94182-10600
94182-10800
94531-00800
94541-00800
96160-00600

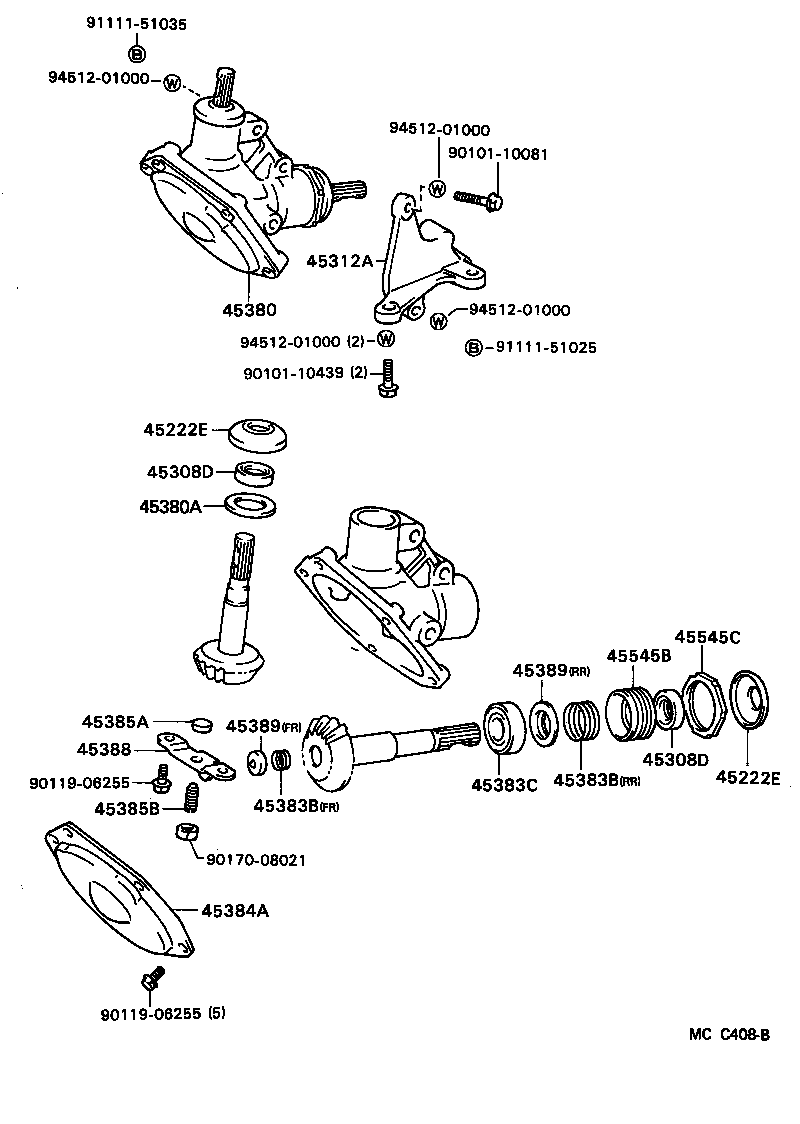

ILLUST NO. 3 OF 3(8508- )

Click highlighted areas on diagram

diagram 45222E 45222E 45308D 45308D 45312A 45380 45380A 45383B 45383B 45383C 45384A 45385A 45385B 45388 45389 45389 45545B 45545C 9010110081 9010110439 9011906255 9011906255 9017008021 9111151025 9111151035 9451201000 9451201000 9451201000 9451201000
Part # Description Qty Price
45222E - COVER, DUST(FOR STEERING BEVEL GEAR)
45222-27030

YR2#,3#

 2
45222E - COVER, DUST(FOR STEERING BEVEL GEAR)
45222-27030

YR2#,3#

 2
45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)
90311-15001

YR2#,3#

 2
45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)
90311-15001

YR2#,3#

 2
45312A - BRACKET, STEERING BEVEL GEAR HOUSING
45312-28020

YR2#,3#

 1
45380 - GEAR ASSY, STEERING BEVEL
45380-27020

YR2#,3#

W/POWER STEERING

 1
45380-28020

YR2#

 1
45380A - WASHER(FOR STEERING BEVEL GEAR)
90209-18005

YR2#,3#

T=2.05,MARK 5,T=2.05

 1
90209-18003

YR2#,3#

T=1.95,MARK 3,T=1.95

 1
90209-18002

YR2#,3#

T=1.90,MARK 2,T=1.90

 1
90209-18004

YR2#,3#

T=2.00,MARK 4,T=2.00

 1
90209-18007

YR2#,3#

T=2.15,MARK 7,T=2.15

 1
90209-18006

YR2#,3#

T=2.10,MARK 6,T=2.10

 1
90209-18008

YR2#,3#

T=2.20,MARK 8,T=2.20

 1
45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)
90501-20080

YR2#,3#

FR

 1
90501-18063

YR2#,3#

RR

 1
45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)
90501-20080

YR2#,3#

FR

 1
90501-18063

YR2#,3#

RR

 1
45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR)
90363-15010

YR2#,3#

 1
45384A - COVER, STEERING BEVEL GEAR
45384-27010

YR2#,3#

 1
45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR)
45385-27010

YR2#,3#

 1
45385B - BOLT, SET(FOR LOCK BOLT SEAT)
90113-08006

YR2#,3#

 1
45388 - PLATE, STEERING BEVEL GEAR
45388-27010

YR2#,3#

 1
45389 - HOLDER, STEERING BEVEL GEAR SPRING
45389-27021

YR2#,3#

RR

 1
45389-27010

YR2#,3#

FR

 1
45389-27020

YR2#

RR

 1
45389 - HOLDER, STEERING BEVEL GEAR SPRING
45389-27021

YR2#,3#

RR

 1
45389-27010

YR2#,3#

FR

 1
45389-27020

YR2#

RR

 1
45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR
45545-10010

YR2#,3#

 1
45545-27020

YR2#

 1
45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW
90179-38001

YR2#,3#

 1
Common parts
90101-10081
90101-10439
90119-06255
90170-08021
91111-51025
91111-51035
94512-01000

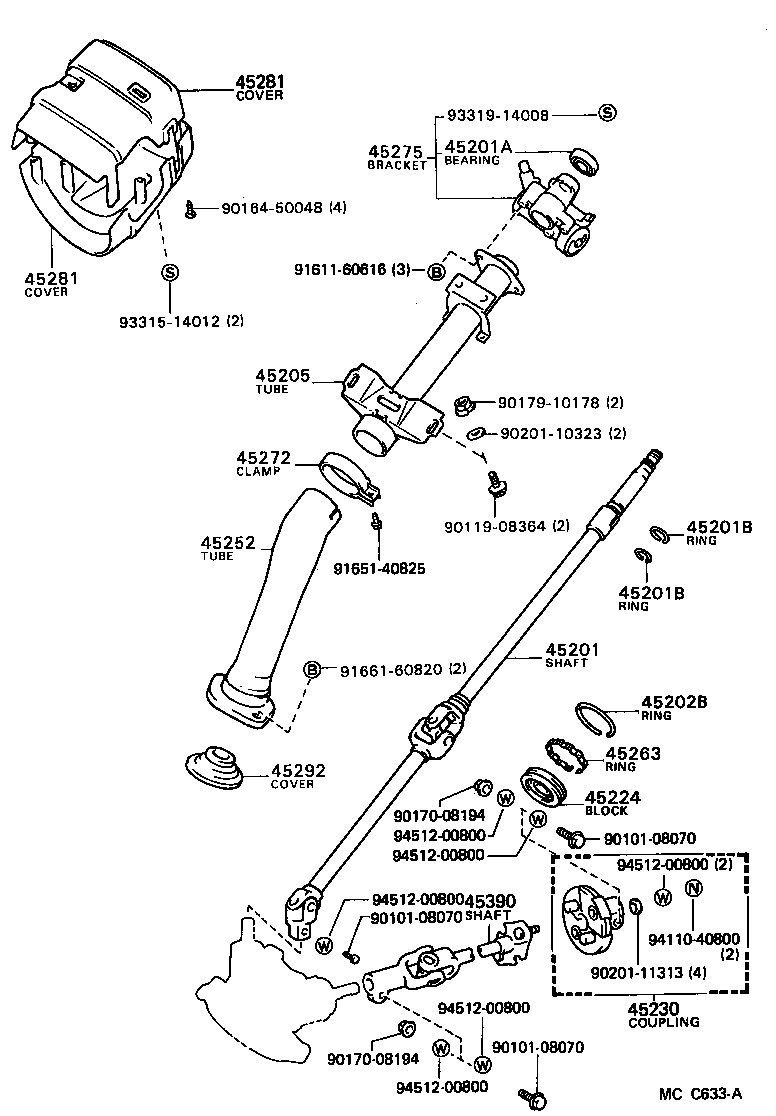

ILLUST NO. 1 OF 3(8508- )

Click highlighted areas on diagram

diagram 45201 45201A 45201B 45201B 45202B 45205 45224 45230 45252 45263 45272 45275 45281 45281 45292 45390 9010108070 9010108070 9010108070 9011908364 9016450048 9017008194 9017008194 9017910178 9020110323 9020111313 9161160616 9165140825 9166160820 9331514012 9331914008 9411040800 9451200800 9451200800 9451200800 9451200800 9451200800 9451200800
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-28021

YR2#..DLX,STD

 1
45210-28040

YR2#,3#..DLX,STD

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

YR2#,3#..DLX,STD

 1
90363-18038

YR2#..DLX,STD

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

YR2#,3#

T=1.20,UPR

 1
90520-17269

YR2#,3#

T=1.20,LWR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

YR2#,3#

T=1.20,UPR

 1
90520-17269

YR2#,3#

T=1.20,LWR

 1
45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
96152-00300

YR2#,3#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-28080

YR2#..DLX,STD

 1
45205-28080

YR2#,3#..DLX,STD

 1
45230 - COUPLING ASSY, FLEXIBLE
45230-14020

YR2#

W/POWER STEERING

 1
45230-27020

YR2#

 1
45252 - TUBE, STEERING COLUMN, LOWER
45252-28090

YR2#,3#

 1
45252-28050

YR2#

 1
45263 - RING, STEERING COLUMN, NO.1
45263-32010

YR2#,3#

 1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-28030

YR2#,3#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-35171

YR2#,3#

W/TILT STEERING

 1
45280-28081

YR2#,3#..DLX,STD

 1
45280-28080

YR2#,32..DLX,STD

 1
45280-28080

YR2#..DLX,STD

 1
45281 - HOUSING, STEERING COLUMN
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45286-2809204

YR29

UPR,BLUE,BLUE,TRIM4#

 1
45286-2808214

YR29

UPR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45286-2808205

YR2#,3#

UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45287-2809203

YR29,32

LWR,GRAY,GRAY,TRIM1#,4#

 1
45287-2808214

YR29

LWR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45286-2809203

YR29,32

UPR,GRAY,GRAY,TRIM1#,4#

 1
45287-2809204

YR29

LWR,BLUE,BLUE,TRIM4#

 1
45287-2808203

YR29,32

LWR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45287-2809205

YR2#,3#..DLX,STD

LWR,BEIGE,BEIGE,TRIM4#

 1
45286-2809205

YR2#,3#..DLX,STD

UPR,BEIGE,BEIGE,TRIM4#

 1
45287-2808205

YR2#,3#

LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45286-2808203

YR29,32

UPR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45281 - HOUSING, STEERING COLUMN
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45286-2809204

YR29

UPR,BLUE,BLUE,TRIM4#

 1
45286-2808214

YR29

UPR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45286-2808205

YR2#,3#

UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45287-2809203

YR29,32

LWR,GRAY,GRAY,TRIM1#,4#

 1
45287-2808214

YR29

LWR,W/TILT STEERING,BLUE,BLUE,TRIM4#

 1
45286-2809203

YR29,32

UPR,GRAY,GRAY,TRIM1#,4#

 1
45287-2809204

YR29

LWR,BLUE,BLUE,TRIM4#

 1
45287-2808203

YR29,32

LWR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45287-2809205

YR2#,3#..DLX,STD

LWR,BEIGE,BEIGE,TRIM4#

 1
45286-2809205

YR2#,3#..DLX,STD

UPR,BEIGE,BEIGE,TRIM4#

 1
45287-2808205

YR2#,3#

LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4#

 1
45286-2808203

YR29,32

UPR,W/TILT STEERING,GRAY,GRAY,TRIM1#,4#

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-28010

YR2#,3#

 1
45390 - SHAFT ASSY, STEERING TORQUE
45390-28010

YR2#

 1
45390-28020

YR2#

W/POWER STEERING

 1
Common parts
90101-08070
90119-08364
90164-50048
90170-08194
90179-10178
90201-10323
90201-11313
91611-60616
91651-40825
91661-60820
93315-14012
93319-14008
94110-40800
94512-00800

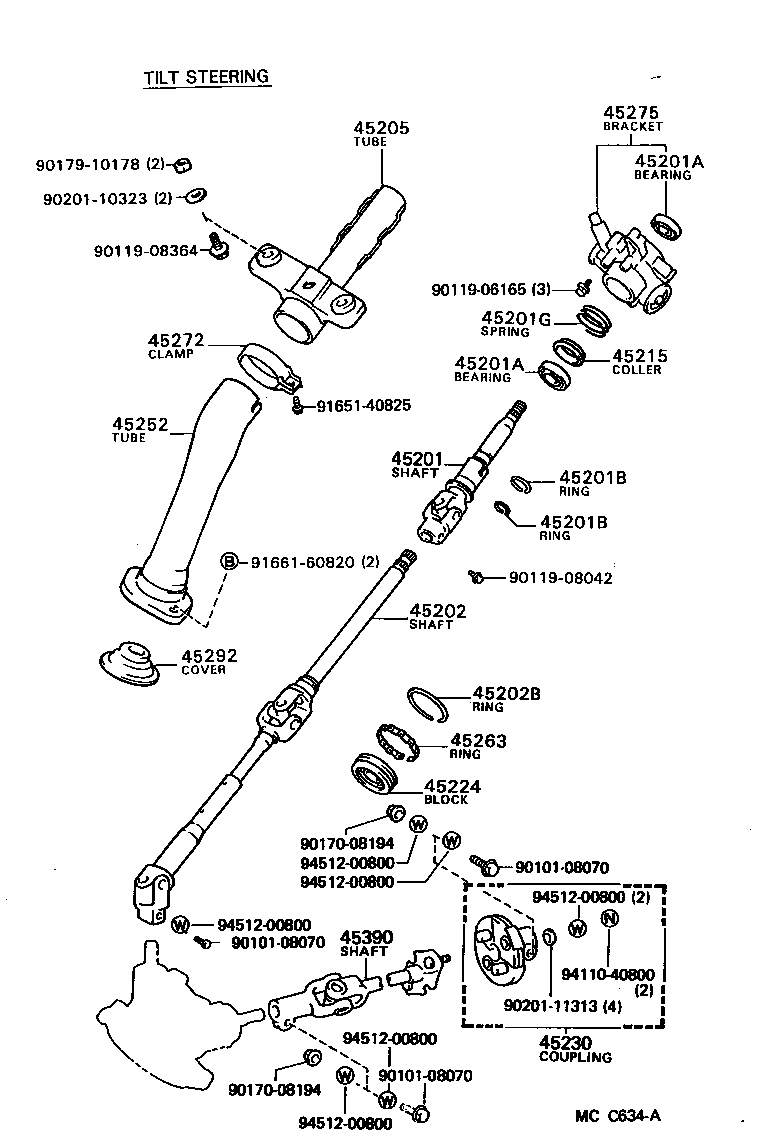

ILLUST NO. 1 OF 3(8508- )

Click highlighted areas on diagram

diagram 45201 45201A 45201A 45201B 45201B 45201G 45202 45202B 45205 45215 45224 45230 45252 45263 45272 45275 45292 45390 9010108070 9010108070 9010108070 9011906165 9011908042 9011908364 9017008194 9017008194 9017910178 9020110323 9020111313 9165140825 9166160820 9411040800 9451200800 9451200800 9451200800 9451200800 9451200800 9451200800
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-28021

YR2#..DLX,STD

 1
45210-28040

YR2#,3#..DLX,STD

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

YR2#,3#..DLX,STD

 1
90363-18038

YR2#..DLX,STD

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

YR2#..DLX,STD

 1
90363-18038

YR2#,3#..DLX,STD

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

YR2#,3#

T=1.20,UPR

 1
90520-17269

YR2#,3#

T=1.20,LWR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

YR2#,3#

T=1.20,UPR

 1
90520-17269

YR2#,3#

T=1.20,LWR

 1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45220-28050

YR2#,3#

 1
45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
96152-00300

YR2#,3#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-28080

YR2#..DLX,STD

 1
45205-28080

YR2#,3#..DLX,STD

 1
45230 - COUPLING ASSY, FLEXIBLE
45230-14020

YR2#

W/POWER STEERING

 1
45230-27020

YR2#

 1
45252 - TUBE, STEERING COLUMN, LOWER
45252-28090

YR2#,3#

 1
45252-28050

YR2#

 1
45263 - RING, STEERING COLUMN, NO.1
45263-32010

YR2#,3#

 1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-28030

YR2#,3#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-35171

YR2#,3#

W/TILT STEERING

 1
45280-28081

YR2#,3#..DLX,STD

 1
45280-28080

YR2#,32..DLX,STD

 1
45280-28080

YR2#..DLX,STD

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-28010

YR2#,3#

 1
45390 - SHAFT ASSY, STEERING TORQUE
45390-28010

YR2#

 1
45390-28020

YR2#

W/POWER STEERING

 1
Common parts
90101-08070
90119-06165
90119-08042
90119-08364
90170-08194
90179-10178
90201-10323
90201-11313
91651-40825
91661-60820
94110-40800
94512-00800
