YR29LV-PRBEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

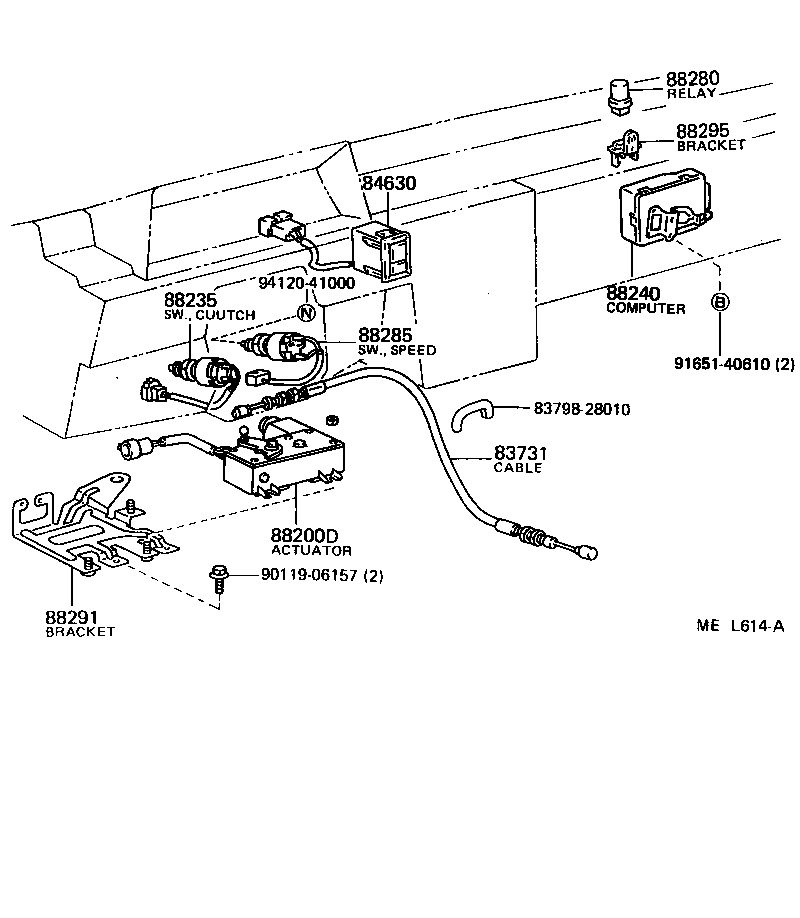

Click highlighted areas on diagram

diagram 83731 8379828010 84630 88200D 88235 88240 88280 88285 88291 88295 9011906157 9165140610 9412041000
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-28010

YR2#,3#

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-28010

YR2#,3#

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-28011

YR2#,3#..4FC

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-28070

YR2#,3#..4FC

 1
88280 - RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B
90987-02004

YR2#,3#

 1
88285 - SWITCH, CRUISE CONTROL
88282-28010

YR2#,3#

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-28010

YR2#,3#

 1
88295 - BRACKET, CRUISE CONTROL(AUTO DRIVE) RELAY
85999-12050

YR2#,3#

 1
Common parts
83798-28010
90119-06157
91651-40610
94120-41000
