YR29LV-PRBEA (1985)
Toyota Van
Production
Aug 1985
-
Aug 1988
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

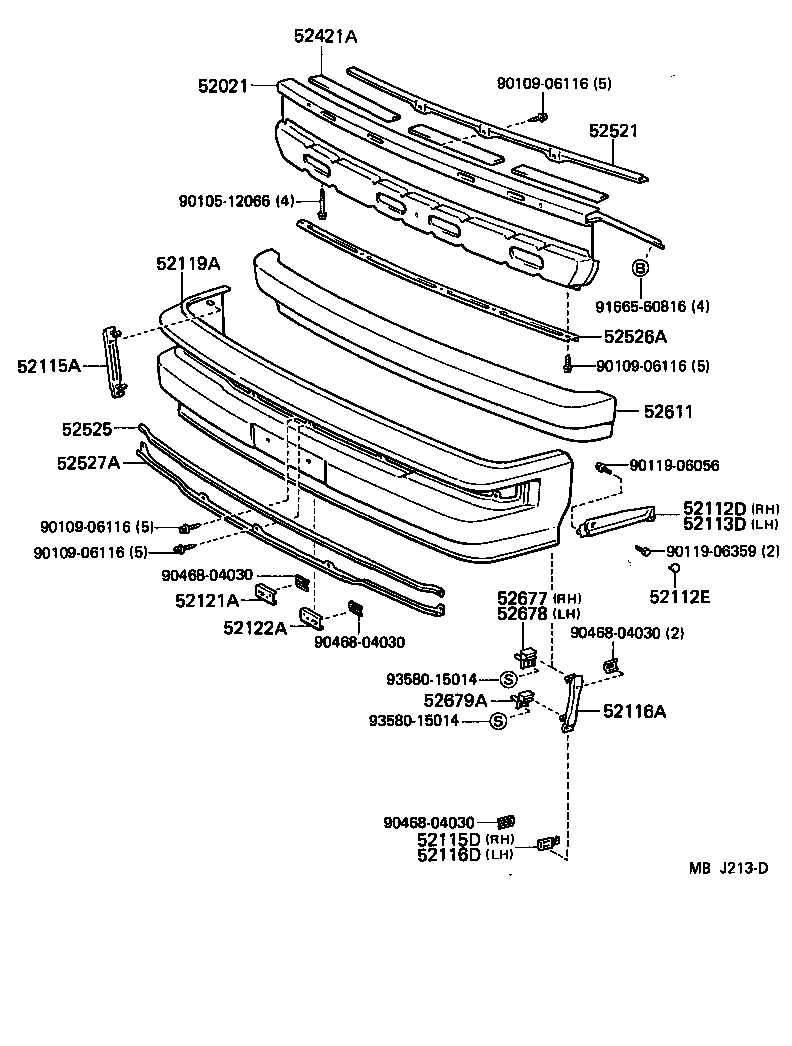

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28010 |
YR2# |
1 | ||
| 52021-28030 |
YR2#,3# |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-8700201 |
YR2#,3#..DLX,STD BLACK,BLACK |
1 | ||
| 52112E - PLUG, HOLE(FOR FRONT BUMPER EXTENSION) | ||||
| 90950-0148201 |
YR2#,3#..DLX,STD BLACK,BLACK |
2 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-8700201 |
YR2#,3#..DLX,STD BLACK,BLACK |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52675-28020 |
YR2#,3# |
1 | ||
| 52675-28010 |
YR2# |
1 | ||
| 52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH | ||||
| 52115-28010 |
YR2#,3# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52675-28020 |
YR2#,3# |
1 | ||
| 52675-28010 |
YR2# |
1 | ||
| 52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH | ||||
| 52115-28010 |
YR2#,3# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28010 |
YR2#..DLX,STD |
1 | ||
| 52119-28040 |
YR2#,3#..DLX,STD |
1 | ||
| 52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH | ||||
| 52121-28010 |
YR2#,3# |
1 | ||
| 52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH | ||||
| 52122-28020 |
YR2#,3# |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-28010 |
YR2#,3# |
3 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-28020 |
YR2# |
1 | ||
| 52521-28030 |
YR2#,3# |
1 | ||
| 52521-28010 |
YR2# |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-28010 |
YR2# |
1 | ||
| 52525-28020 |
YR2#,3# |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-28020 |
YR2#,3# |
1 | ||
| 52526-28010 |
YR2# |
1 | ||
| 52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2 | ||||
| 52527-28010 |
YR2#,3# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28030 |
YR2#,3# |
1 | ||
| 52611-28010 |
YR2# |
1 | ||
| 52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH | ||||
| 52677-28010 |
YR2#,3# |
1 | ||
| 52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH | ||||
| 52677-28010 |
YR2#,3# |
1 | ||
| 52679A - SUPPORT, FRONT BUMPER SIDE, NO.3 | ||||
| 52679-28010 |
YR2#,3# |
2 | ||
| Common parts | ||||
| 90105-12066 | ||||
| 90109-06116 | ||||
| 90119-06056 | ||||
| 90119-06359 | ||||
| 90468-04030 | ||||
| 91665-60816 | ||||
| 93580-15014 | ||||
