YR29LV-PRBEA (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )YR2#

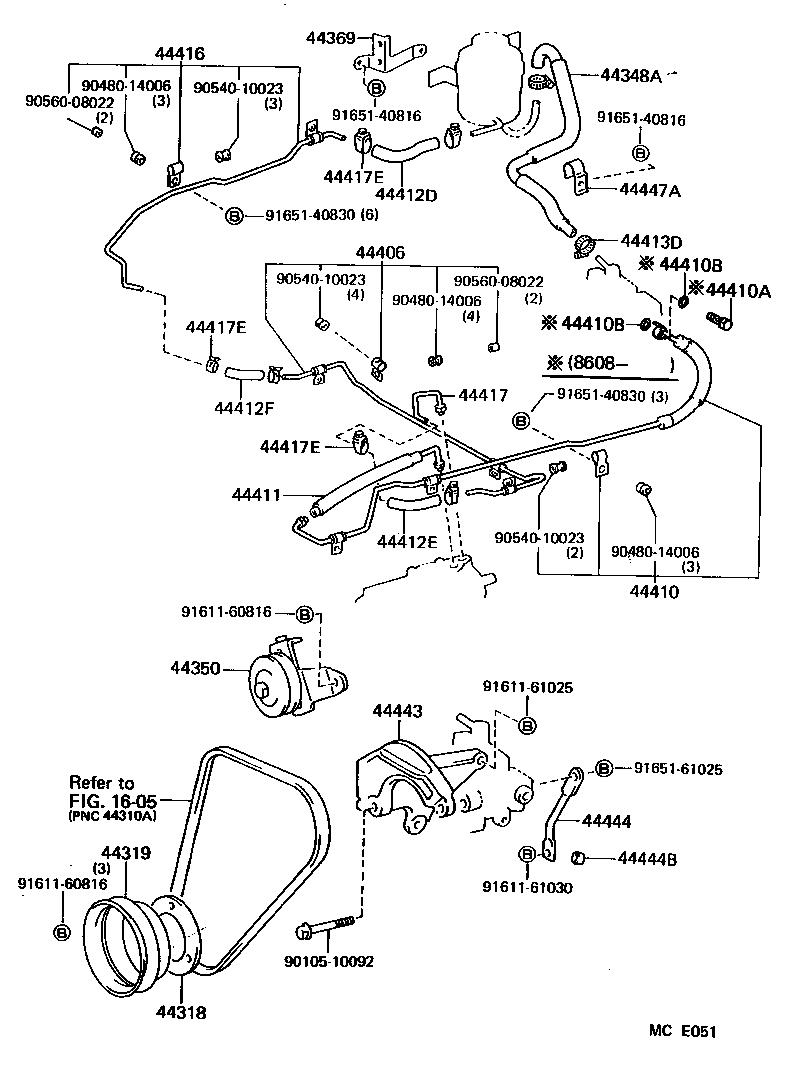

Click highlighted areas on diagram

diagram 1605 44318 44319 44348A 44350 44369 44406 44410 44410A 44410B 44410B 44411 44412D 44412E 44412F 44413D 44416 44417 44417E 44417E 44417E 44443 44444 44444B 44447A 9010510092 9048014006 9048014006 9048014006 9054010023 9054010023 9054010023 9056008022 9056008022 9161160816 9161160816 9161161025 9161161030 9165140816 9165140816 9165140830 9165140830 9165161025
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-28012

YR2#,3#

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-28013

YR2#,3#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-28040

YR2#,3#

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-28011

YR2#,3#

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-28011

YR2#,3#

 1
44406 - TUBE SUB-ASSY, RETURN
44416-28110

YR2#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-28021

YR2#

 1
44410-28052

YR2#

 1
44410-28051

YR2#

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

YR2#,3#

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

YR2#,3#

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

YR2#,3#

 2
44411 - HOSE, PRESSURE FEED
44411-28050

YR2#

 1
44412D - HOSE, RETURN, NO.1
44412-28130

YR2#,3#

 1
44412E - HOSE, RETURN, NO.2
44412-28150

YR2#

 1
44412F - HOSE, RETURN, NO.3
44412-28140

YR2#

 1
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90467-21005

YR2#,3#

 2
90460-26001

YR2#,3#

 2
90460-01001

YR2#

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-28030

YR2#

 1
44416-28051

YR2#

 1
44417 - TUBE, RETURN, NO.2
44417-28020

YR2#

 1
44417-28060

YR2#

 1
44417E - CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)
90467-16007

YR2#,3#

 6
44417E - CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)
90467-16007

YR2#,3#

 6
44417E - CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)
90467-16007

YR2#,3#

 6
44443 - BRACKET, PUMP
44443-28021

YR2#,3#

 1
44444 - STAY, PUMP, REAR
44444-27010

YR2#

 1
44444-27030

YR2#,3#

 1
44444B - COLLAR (FOR PUMP REAR STAY)
90387-12031

YR2#,3#

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-28020

YR2#,3#

 1
Common parts
90105-10092
90480-14006
90540-10023
90560-08022
91611-60816
91611-61025
91611-61030
91651-40816
91651-40830
91651-61025
Linked diagrams
1605
