YR29LV-MREA (1985)
Toyota Van

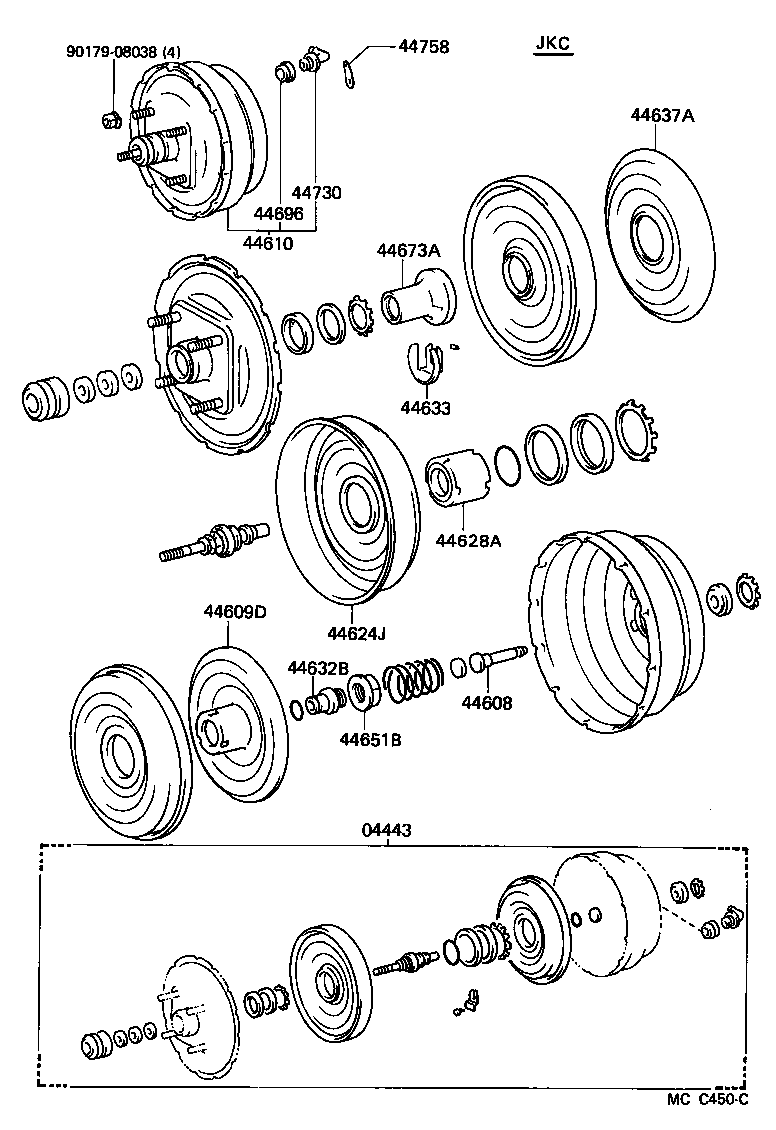

ILLUST NO. 1 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-28080 |
YR2# JKC |
1 | ||
| 04443-28070 |
YR2# AISIN |
1 | ||
| 04443-28200 |
YR2#,3# JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-20810 |
YR2#,3# JKC |
1 | ||
| 44606-20800 |
YR2#,3# AISIN |
1 | ||
| 44606-32010 |
YR2# AISIN |
1 | ||
| 44608-32020 |
YR2# JKC |
1 | ||
| 44608-17090 |
YR2#,3# JKC |
1 | ||
| 44609D - PLATE & RETAINER SUB-ASSY, BOOSTER | ||||
| 44609-28300 |
YR2#,3# |
1 | ||
| 44609-26380 |
YR2#,3# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-28230 |
YR2# |
1 | ||
| 44610-28460 |
YR2#,3# |
1 | ||
| 44610-28300 |
YR2# |
1 | ||
| 44624J - PLATE, BOOSTER CENTER | ||||
| 44624-28300 |
YR2#,3# |
1 | ||
| 44628A - BODY, BOOSTER CENTER | ||||
| 44628-20810 |
YR2#,3# |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-28300 |
YR2#,3# |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
YR2# |
1 | ||
| 44633-20811 |
YR2#,3# |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-28300 |
YR2#,3# |
1 | ||
| 44637-32040 |
YR2# |
1 | ||
| 44651B - NUT, BOOSTER | ||||
| 44651-20810 |
YR2#,3# |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32020 |
YR2# |
1 | ||
| 44673-20810 |
YR2#,3# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
YR2# AISIN |
1 | ||
| 90480-24517 |
YR2#,3# JKC |
1 | ||
| 90480-24015 |
YR2#,3# JKC |
1 | ||
| 90480-24439 |
YR2#,3# AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14060 |
YR2#,3# JKC |
1 | ||
| 44730-20060 |
YR2# AISIN |
1 | ||
| 44730-28010 |
YR2#,3# JKC |
1 | ||
| 44730-14050 |
YR2#,3# AISIN |
1 | ||
| 44730-22090 |
YR2# JKC |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-28020 |
YR2# |
1 | ||
| 44758-28070 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

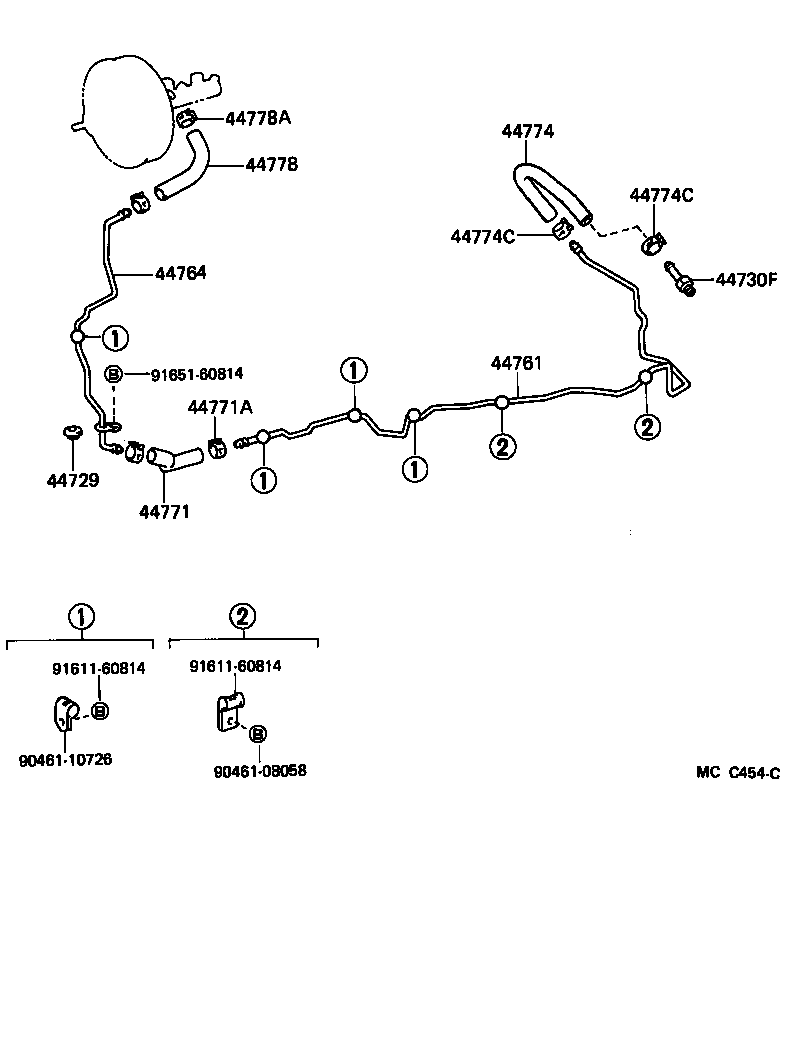

ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-25010 |
YR2#,3# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
YR2#,3# |
1 | ||
| 90404-51047 |
YR2# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-28120 |
YR2# |
1 | ||
| 44761-28070 |
YR2# |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-28050 |
YR2#,3# |
1 | ||
| 44764-28020 |
YR2# |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-28020 |
YR2#,3# |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
YR2# |
2 | ||
| 90467-16002 |
YR2#,3# |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-28080 |
YR2#,3# |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16141 |
YR2# |
2 | ||
| 90467-16002 |
YR2#,3# |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16141 |
YR2# |
2 | ||
| 90467-16002 |
YR2#,3# |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-28020 |
YR2# |
1 | ||
| 44778-28040 |
YR2#,3# |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
YR2# |
2 | ||
| 90467-16002 |
YR2#,3# |
2 | ||
| Common parts | ||||
| 90461-08058 | ||||
| 90461-10726 | ||||
| 91611-60814 | ||||
| 91651-60814 | ||||
ILLUST NO. 1 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-28080 |
YR2# JKC |
1 | ||
| 04443-28070 |
YR2# AISIN |
1 | ||
| 04443-28200 |
YR2#,3# JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-20810 |
YR2#,3# JKC |
1 | ||
| 44606-20800 |
YR2#,3# AISIN |
1 | ||
| 44606-32010 |
YR2# AISIN |
1 | ||
| 44608-32020 |
YR2# JKC |
1 | ||
| 44608-17090 |
YR2#,3# JKC |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
YR2# |
1 | ||
| 44621-14030 |
YR2#,3# |
1 | ||
| 44624D - RETAINER, BOOSTER SEAL | ||||
| 44626-60010 |
YR2#,3# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
YR2# |
1 | ||
| 44628-60010 |
YR2#,3# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
YR2#,3# AISIN |
1 | ||
| 44642-32010 |
YR2# AISIN |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
YR2#,3# |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-20800 |
YR2#,3# |
1 | ||
| 44635-28120 |
YR2# |
1 | ||
| 44666 - CASE, REACTION DISC | ||||
| 44657-28370 |
YR2#,3# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
YR2# AISIN |
1 | ||
| 90480-24517 |
YR2#,3# JKC |
1 | ||
| 90480-24015 |
YR2#,3# JKC |
1 | ||
| 90480-24439 |
YR2#,3# AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14060 |
YR2#,3# JKC |
1 | ||
| 44730-20060 |
YR2# AISIN |
1 | ||
| 44730-28010 |
YR2#,3# JKC |
1 | ||
| 44730-14050 |
YR2#,3# AISIN |
1 | ||
| 44730-22090 |
YR2# JKC |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-28020 |
YR2# |
1 | ||
| 44758-28070 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
