YR29LV-MRBEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

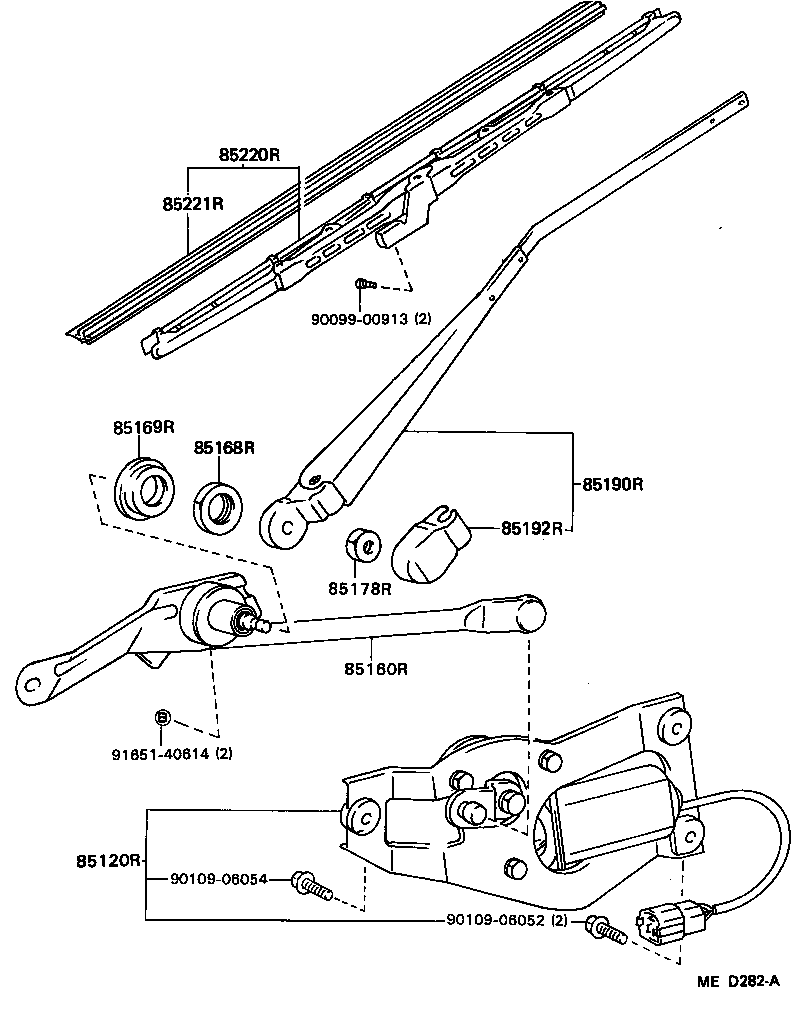

Click highlighted areas on diagram

diagram 85120R 85160R 85168R 85169R 85178R 85190R 85192R 85220R 85221R 9009900913 9010906052 9010906054 9165140614
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-87002

YR2#,3#

 1
85160R - LINK ASSY, REAR WIPER
85160-87004

YR2#,3#

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

YR2#,3#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-87004

YR2#,3#

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06115

YR2#,3#

 1
85190R - ARM ASSY, REAR WIPER
85190-87014

YR2#,3#

 1
85192R - COVER, REAR WIPER ARM
85192-14020

YR2#,3#

 1
85220R - BLADE ASSY, REAR WIPER
85220-22600

YR2#,3#

 1
85221R - BLADE, REAR WIPER
85221-87003

YR2#,3#

 1
Common parts
90099-00913
90109-06052
90109-06054
91651-40614
