YR29LV-MRBEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

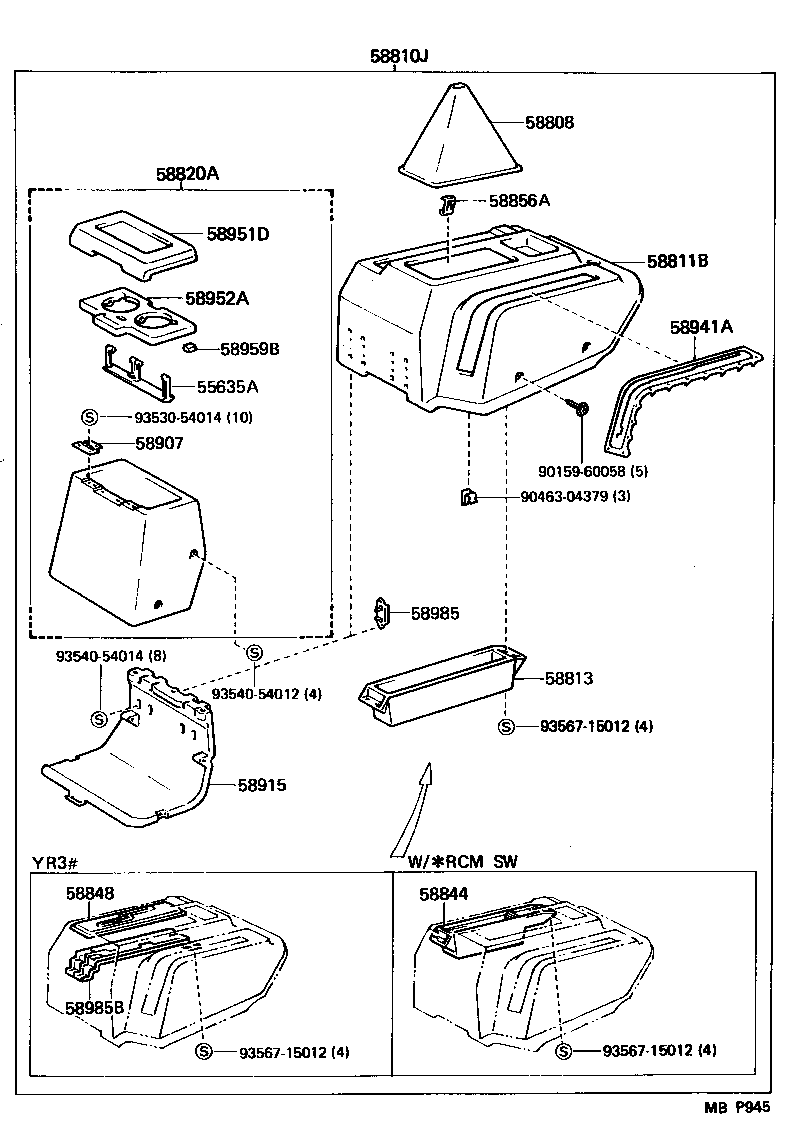

Click highlighted areas on diagram

diagram 55635A 58808 58810J 58811B 58813 58820A 58844 58848 58856A 58907 58915 58941A 58951D 58952A 58959B 58985 58985B 9015960058 9046304379 9353054014 9354054012 9354054014 9356715012 9356715012 9356715012
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-8700203

YR2#,3#..5F

SHADOW GRAY,TRIM1#

 1
58808-8700204

YR2#,3#..5F

BLUE,TRIM8#

 1
58808-8700216

YR2#,3#..5F

BROWN,TRIM4#

 1
58810J - BOX ASSY, CONSOLE
58810-2805103

YR2#..5F..(DLX,STD)

SHADOW GRAY,TRIM1#

 1
58810-2805116

YR2#..5F..(DLX,STD)

SABLE,TRIM4#

 1
58810-2805104

YR2#..5F..(DLX,STD)

BLUE,TRIM8#

 1
58810-2805203

YR2#..5F..(DLX,STD)

SHADOW GRAY,TRIM1#

 1
58810-2805206

YR2#..5F..(DLX,STD)

SABLE,TRIM4#

 1
58810-2805204

YR2#..5F..(DLX,STD)

BLUE,TRIM8#

 1
58811B - BOX, CONSOLE
58811-2803103

YR2#,3#..DLX,STD

SHADOW GRAY,TRIM1#

 1
58811-2803104

YR2#,3#..DLX,STD

BLUE,TRIM8#

 1
58811-2803116

YR2#,3#..DLX,STD

SABLE,TRIM4#

 1
58811-2803103

YR2#..DLX,STD;YR3#..4FC..(DLX,STD)

SHADOW GRAY,TRIM1#

 1
58811-2803116

YR2#..DLX,STD;YR3#..4FC..(DLX,STD)

SABLE,TRIM4#

 1
58811-2803104

YR2#..DLX,STD;YR3#..4FC..(DLX,STD)

BLUE,TRIM8#

 1
58811-2803204

YR2#,3#..DLX,STD

BLUE,TRIM8#

 1
58811-2803206

YR2#,3#..DLX,STD

SABLE,TRIM4#

 1
58811-2803203

YR2#,3#..DLX,STD

SHADOW GRAY,TRIM1#

 1
58813 - BOX, CONSOLE, UPPER
58813-8700104

YR2#;YR3#..4FC

BLUE,TRIM8#

 1
58813-8700103

YR2#;YR3#..4FC

SHADOW GRAY,TRIM1#

 1
58813-8700116

YR2#;YR3#..4FC

SABLE,TRIM4#

 1
58856A - HOLDER, CONSOLE BOX
58856-28010

YR2#..5F

 1
58856-28010

YR2#,3#..5F

 1
58941A - COVER, PARKING BRAKE HOLE
58941-28020

YR2#,3#

 1
Common parts
90159-60058
90463-04379
93530-54014
93540-54012
93540-54014
93567-15012
