YR29LV-MRBEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )YR2#..5F

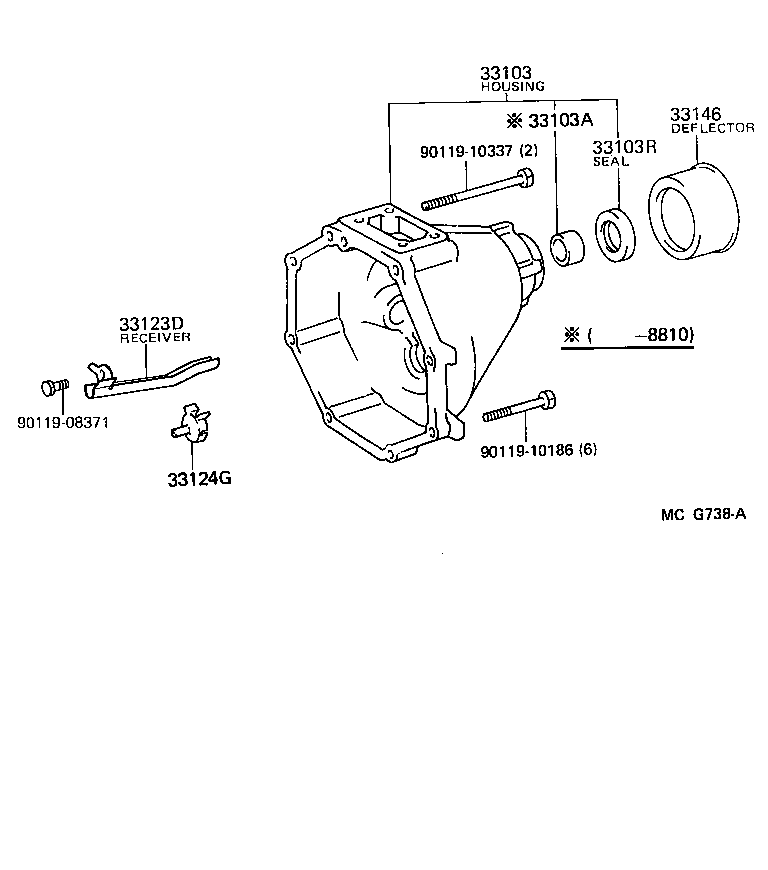

Click highlighted areas on diagram

diagram 33103 33103A 33103R 33123D 33124G 33146 9011908371 9011910186 9011910337
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-28041

YR2#..5F

 1
33103-28040

YR2#..5F

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

YR2#..5F

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38032

YR2#..5F

 1
33123D - RECEIVER, CASE COVER OIL(MTM)
33124-28011

YR2#..5F

 1
33124-28010

YR2#..5F

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-36010

YR2#..5F

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

YR2#..5F

 1
Common parts
90119-08371
90119-10186
90119-10337
