YR29LV-MRBEA (1985)
Toyota Van
Production
Aug 1985
-
Aug 1988
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

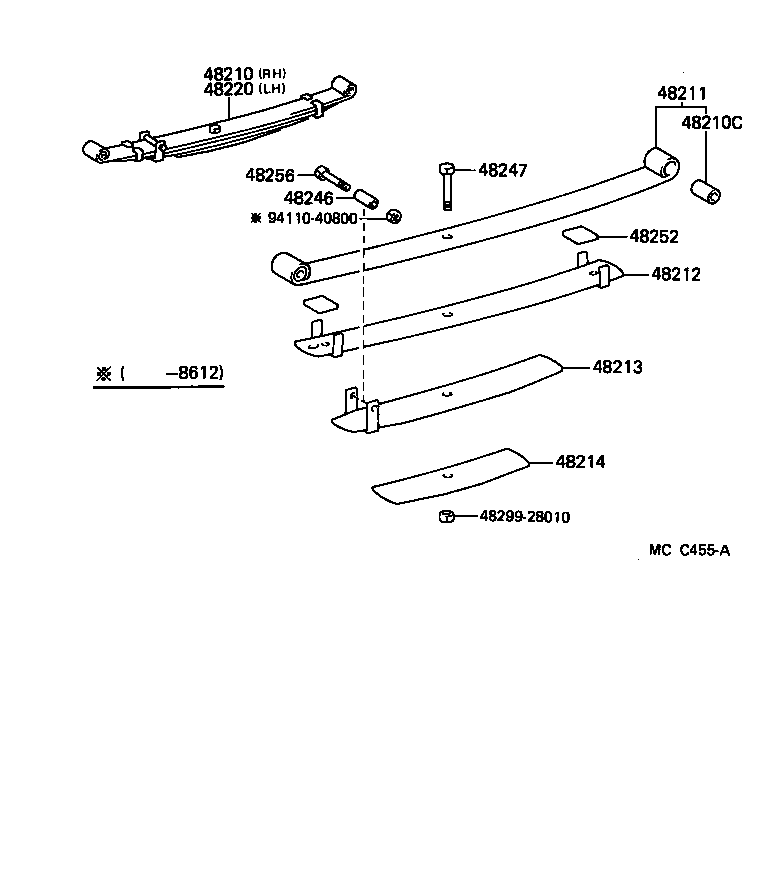

ILLUST NO. 2 OF 2(8508- )YR29
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-28150 |
YR29 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14012 |
YR29 |
2 | ||
| 90389-14004 |
YR29 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-28150 |
YR29 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-28150 |
YR29 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-28150 |
YR29 RH |
1 | ||
| 48204-28150 |
YR29 LH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-28150 |
YR29 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-28110 |
YR29 |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-26060 |
YR29 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-28020 |
YR29 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
YR29 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-26010 |
YR29 |
2 | ||
| Common parts | ||||
| 48299-28010 | ||||
| 94110-40800 | ||||

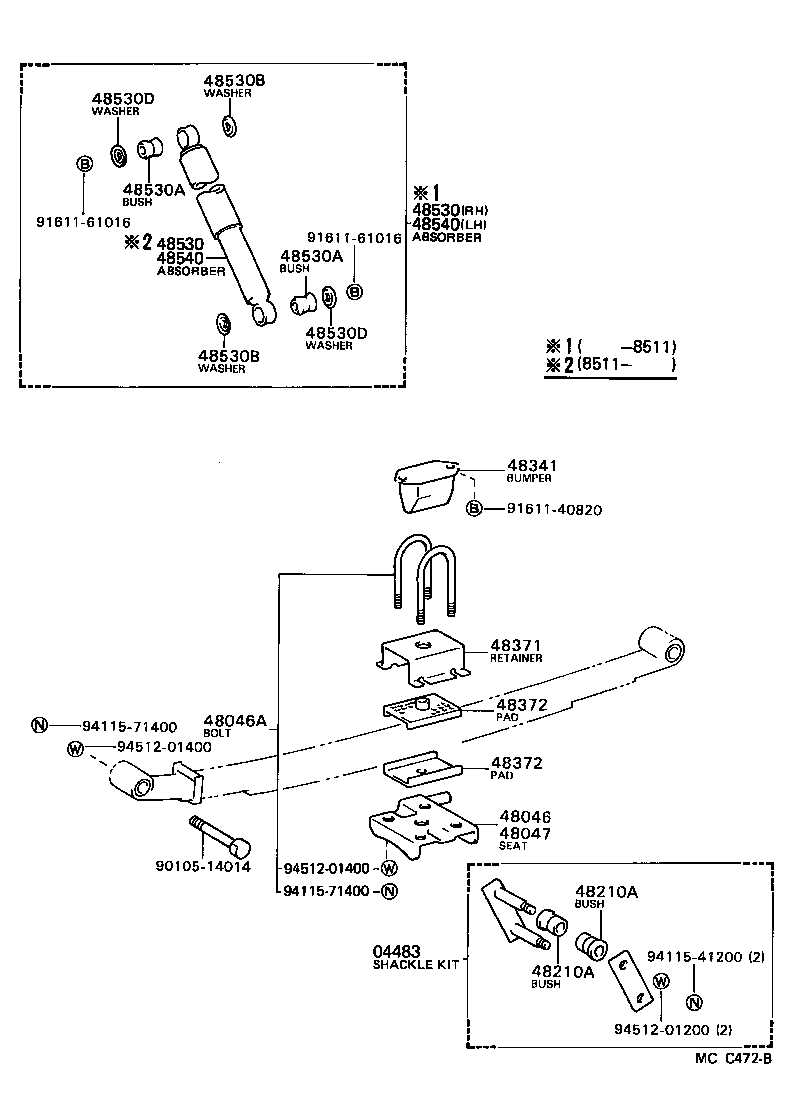

ILLUST NO. 1 OF 2(8508- )YR29
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-27021 |
YR29 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-28040 |
YR29 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14225 |
YR29 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-28030 |
YR29 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15001 |
YR29 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15001 |
YR29 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-28050 |
YR2# |
2 | ||
| 48341-35030 |
YR29 |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-28060 |
YR29 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48371-28010 |
YR29 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48371-28010 |
YR29 |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-28080 |
YR29 |
1 | ||
| 48531-80018 |
YR29 |
1 | ||
| 48531-80018 |
YR29 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-28080 |
YR29 |
1 | ||
| 48531-80018 |
YR29 |
1 | ||
| 48531-80018 |
YR29 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
YR2# |
2 | ||
| 90385-16001 |
YR2# |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
YR2# |
2 | ||
| 90385-16001 |
YR2# |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
YR29 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
YR29 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
YR2# |
2 | ||
| 90948-03007 |
YR29 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
YR2# |
2 | ||
| 90948-03007 |
YR29 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80018 |
YR29 |
1 | ||
| 48531-80018 |
YR29 |
1 | ||
| 48531-28080 |
YR29 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80018 |
YR29 |
1 | ||
| 48531-80018 |
YR29 |
1 | ||
| 48531-28080 |
YR29 |
1 | ||
| Common parts | ||||
| 90105-14014 | ||||
| 91611-40820 | ||||
| 91611-61016 | ||||
| 94115-41200 | ||||
| 94115-71400 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
