YR29LV-MRBEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )USA

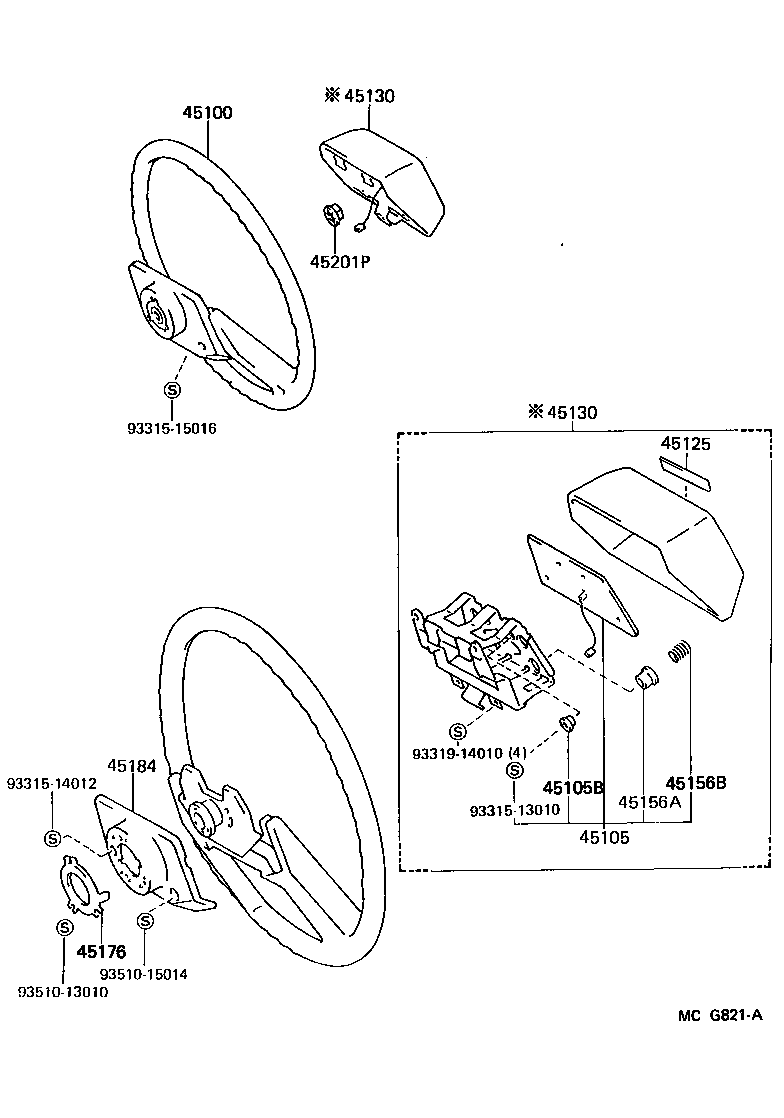

Click highlighted areas on diagram

diagram 45100 45105 45105B 45125 45130 45130 45156A 45156B 45176 45184 45201P 9331513010 9331514012 9331515016 9331914010 9351013010 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2226006

YR2#,3#..USA

BROWN,TRIM4#

 1
45100-2226004

YR2#,3#..USA

BLUE,TRIM8#

 1
45100-2226013

YR2#,3#..USA

GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-22090

YR2#,3#..USA

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001

YR2#,3#..USA

 4
45125 - MARK, STEERING WHEEL PAD
45125-28130

YR2#,3#..USA

 1
45130 - BUTTON ASSY, HORN
45130-2808003

YR2#,3#..USA

GRAY,TRIM1#

 1
45130-2808004

YR2#,3#..USA

BLUE,TRIM8#

 1
45130-2808016

YR2#,3#..USA

SABLE,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-2808003

YR2#,3#..USA

GRAY,TRIM1#

 1
45130-2808004

YR2#,3#..USA

BLUE,TRIM8#

 1
45130-2808016

YR2#,3#..USA

SABLE,TRIM4#

 1
45156A - SEAT, HORN CONTACT SPRING SET
45156-16010

YR2#,3#..USA

 4
45156B - SPRING(FOR HORN CONTACT SPRING SET SEAT)
90501-06032

YR2#,3#..USA

 4
45176 - RING, HORN CONTACT
45176-22050

YR2#,3#..USA

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-2211013

YR2#,3#..USA

GRAY,TRIM1#

 1
45184-2211006

YR2#,3#..USA

BROWN,TRIM4#

 1
45184-2211004

YR2#,3#..USA

BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

YR2#,3#

 1
Common parts
93315-13010
93315-14012
93315-15016
93319-14010
93510-13010
93510-15014
