YR27LV-PREK (1983)

Toyota Van

Production Nov 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

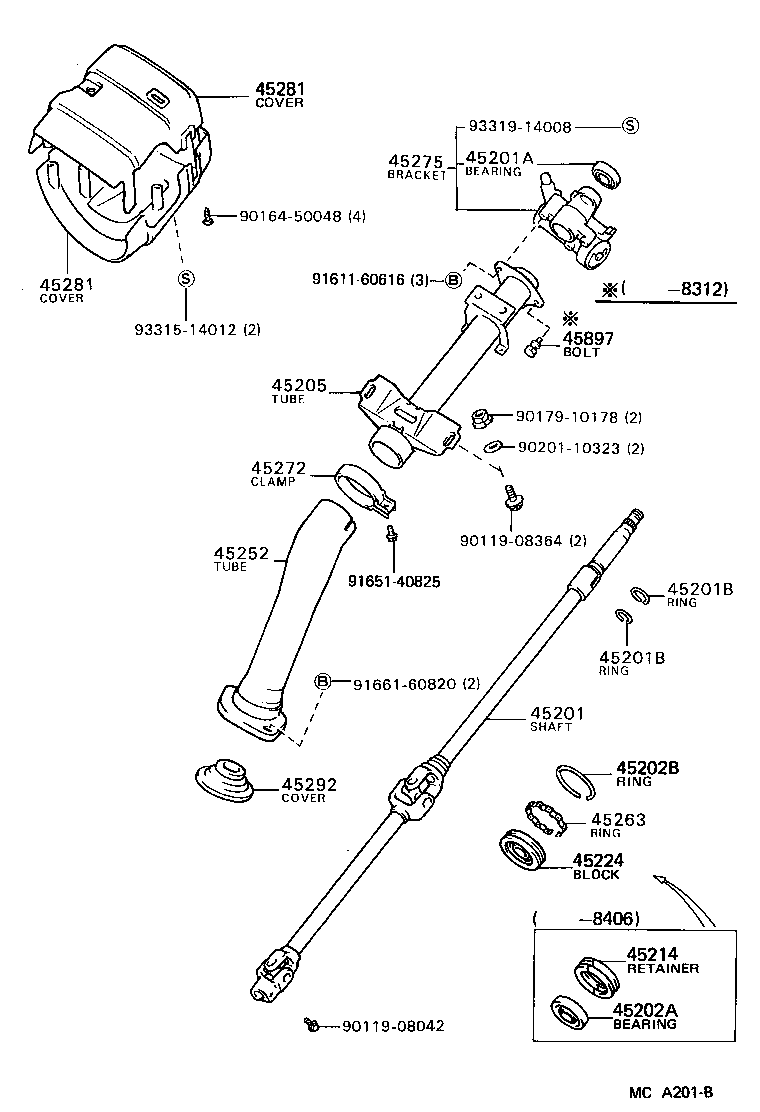

ILLUST NO. 1 OF 2(8308-8508)DLX,STD

Click highlighted areas on diagram

diagram 45201 45201A 45201B 45201B 45202A 45202B 45205 45214 45224 45252 45263 45272 45275 45281 45281 45292 45897 9011908042 9011908364 9016450048 9017910178 9020110323 9161160616 9165140825 9166160820 9331514012 9331914008
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-28021

YR2#..DLX,STD

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

YR2#..DLX,STD

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

YR2#,3#

T=1.20,UPR

 1
90520-17269

YR2#,3#

T=1.20,LWR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

YR2#,3#

T=1.20,UPR

 1
90520-17269

YR2#,3#

T=1.20,LWR

 1
45202A - BEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT)
90363-30007

YR2#

 1
45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
96152-00300

YR2#,3#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-28080

YR2#..DLX,STD

 1
45214 - RETAINER, MAIN SHAFT SPRING
45214-28010

YR2#

 2
45252 - TUBE, STEERING COLUMN, LOWER
45252-28050

YR2#

 1
45263 - RING, STEERING COLUMN, NO.1
45263-32010

YR2#,3#

 1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-28030

YR2#,3#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-28080

YR2#..DLX,STD

 1
45281 - HOUSING, STEERING COLUMN
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45287-2808102

YR2#

LWR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45287-2809202

YR2#..DLX,STD

LWR,WINE,WINE,TRIM4#

 1
45286-2809202

YR2#..DLX,STD

UPR,WINE,WINE,TRIM4#

 1
45286-2808102

YR2#

UPR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45286-2808202

YR2#

UPR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45287-2808202

YR2#

LWR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45281 - HOUSING, STEERING COLUMN
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45287-2808102

YR2#

LWR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45287-2809202

YR2#..DLX,STD

LWR,WINE,WINE,TRIM4#

 1
45286-2809202

YR2#..DLX,STD

UPR,WINE,WINE,TRIM4#

 1
45286-2808102

YR2#

UPR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45286-2808202

YR2#

UPR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45287-2808202

YR2#

LWR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-28010

YR2#,3#

 1
45897 - BOLT, STEERING LOCK SET
45897-12030

YR2#

 1
Common parts
90119-08042
90119-08364
90164-50048
90179-10178
90201-10323
91611-60616
91651-40825
91661-60820
93315-14012
93319-14008

ILLUST NO. 1 OF 2(8308-8408)YR21 ; (8308-8408)YR27..USA ; (8408-8508)

Click highlighted areas on diagram

diagram 45201 45201A 45201A 45201B 45201B 45201G 45202 45202A 45202B 45205 45214 45215 45224 45252 45263 45272 45275 45292 45897 9011906165 9011908042 9011908042 9011908364 9017910178 9020110323 9165140825 9166160820
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-28021

YR2#..DLX,STD

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

YR2#..DLX,STD

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

YR2#..DLX,STD

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

YR2#,3#

T=1.20,UPR

 1
90520-17269

YR2#,3#

T=1.20,LWR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

YR2#,3#

T=1.20,UPR

 1
90520-17269

YR2#,3#

T=1.20,LWR

 1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45220-28021

YR2#

 1
45202A - BEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT)
90363-30007

YR2#

 1
45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
96152-00300

YR2#,3#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-28080

YR2#..DLX,STD

 1
45214 - RETAINER, MAIN SHAFT SPRING
45214-28010

YR2#

 2
45252 - TUBE, STEERING COLUMN, LOWER
45252-28050

YR2#

 1
45263 - RING, STEERING COLUMN, NO.1
45263-32010

YR2#,3#

 1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-28030

YR2#,3#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-28080

YR2#..DLX,STD

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-28010

YR2#,3#

 1
45897 - BOLT, STEERING LOCK SET
45897-12030

YR2#

 1
Common parts
90119-06165
90119-08042
90119-08364
90179-10178
90201-10323
91651-40825
91661-60820

(8308-8408)YR21 ; (8308-8408)YR27..USA ; (8408-8508)

Click highlighted areas on diagram

diagram 45081 45081A 45081B 45281 45281 45288 45804 45807 45813 45814 45815 45819 45819A 45824 45826 45826A 45826B 45826C 45892 45892A 45892B 9010908112 9011408002 9011908185 9020106204 9020106557 9020108065 9020108065 9020208031 9020208031 9161140616 9161160840 9331514012 9411040600 9411050800 9411050800 9418210600 9418210600 9418210800 9418210800 9453100800 9453100800 9454100800 9616000600
Part # Description Qty Price
45281 - HOUSING, STEERING COLUMN
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45287-2808102

YR2#

LWR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45287-2808102

YR2#

LWR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45287-2809202

YR2#..DLX,STD

LWR,WINE,WINE,TRIM4#

 1
45287-2809202

YR2#..DLX,STD

LWR,WINE,WINE,TRIM4#

 1
45286-2809202

YR2#..DLX,STD

UPR,WINE,WINE,TRIM4#

 1
45286-2809202

YR2#..DLX,STD

UPR,WINE,WINE,TRIM4#

 1
45286-2808102

YR2#

UPR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45286-2808102

YR2#

UPR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45286-2808202

YR2#

UPR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45286-2808202

YR2#

UPR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45287-2808202

YR2#

LWR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45287-2808202

YR2#

LWR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45281 - HOUSING, STEERING COLUMN
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45287-28091

YR2#..DLX,STD

LWR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45286-28091

YR2#..DLX,STD

UPR,WINE

 1
45287-2808102

YR2#

LWR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45287-2808102

YR2#

LWR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45287-2809202

YR2#..DLX,STD

LWR,WINE,WINE,TRIM4#

 1
45287-2809202

YR2#..DLX,STD

LWR,WINE,WINE,TRIM4#

 1
45286-2809202

YR2#..DLX,STD

UPR,WINE,WINE,TRIM4#

 1
45286-2809202

YR2#..DLX,STD

UPR,WINE,WINE,TRIM4#

 1
45286-2808102

YR2#

UPR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45286-2808102

YR2#

UPR, W/TILT STEERING, WINE,RED/MAROON,TRIM4#

 1
45286-2808202

YR2#

UPR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45286-2808202

YR2#

UPR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45287-2808202

YR2#

LWR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
45287-2808202

YR2#

LWR, W/TILT STEERING, WINE,WINE,TRIM4#

 1
Common parts
90109-08112
90114-08002
90119-08185
90201-06204
90201-06557
90201-08065
90202-08031
91611-40616
91611-60840
93315-14012
94110-40600
94110-50800
94182-10600
94182-10800
94531-00800
94541-00800
96160-00600
